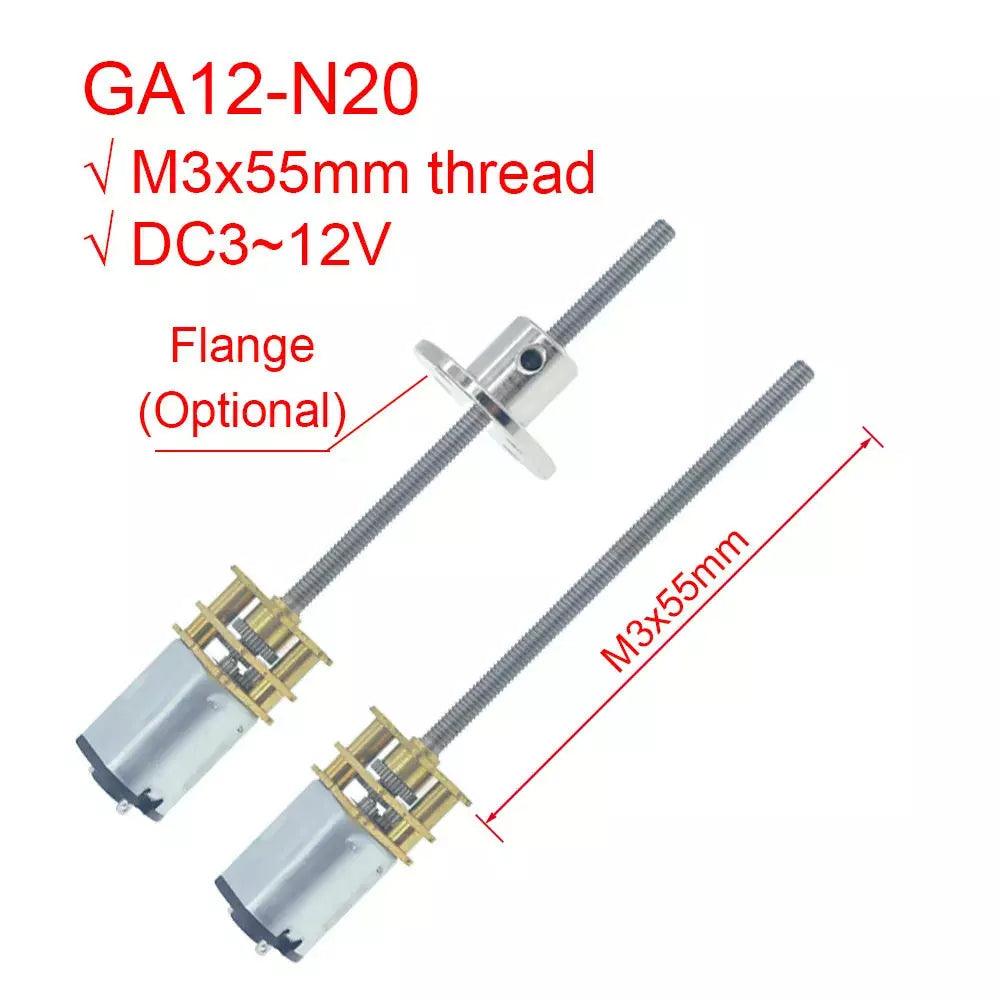

GA12-N20 M3 * 55mm Thread DC 12V (Compatible 6V 3V) Micro All Metal Gear 30~4000RPM Stainless Steel Long Shaft Motor with Flange

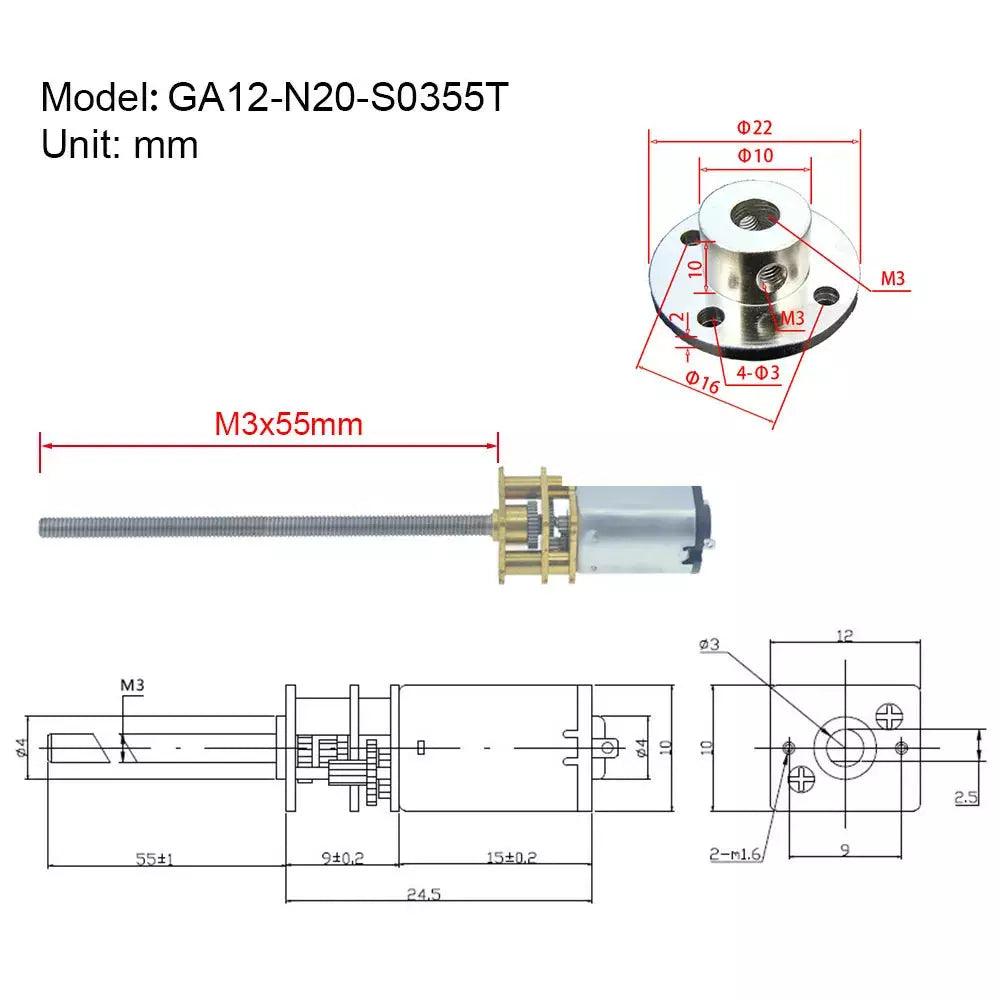

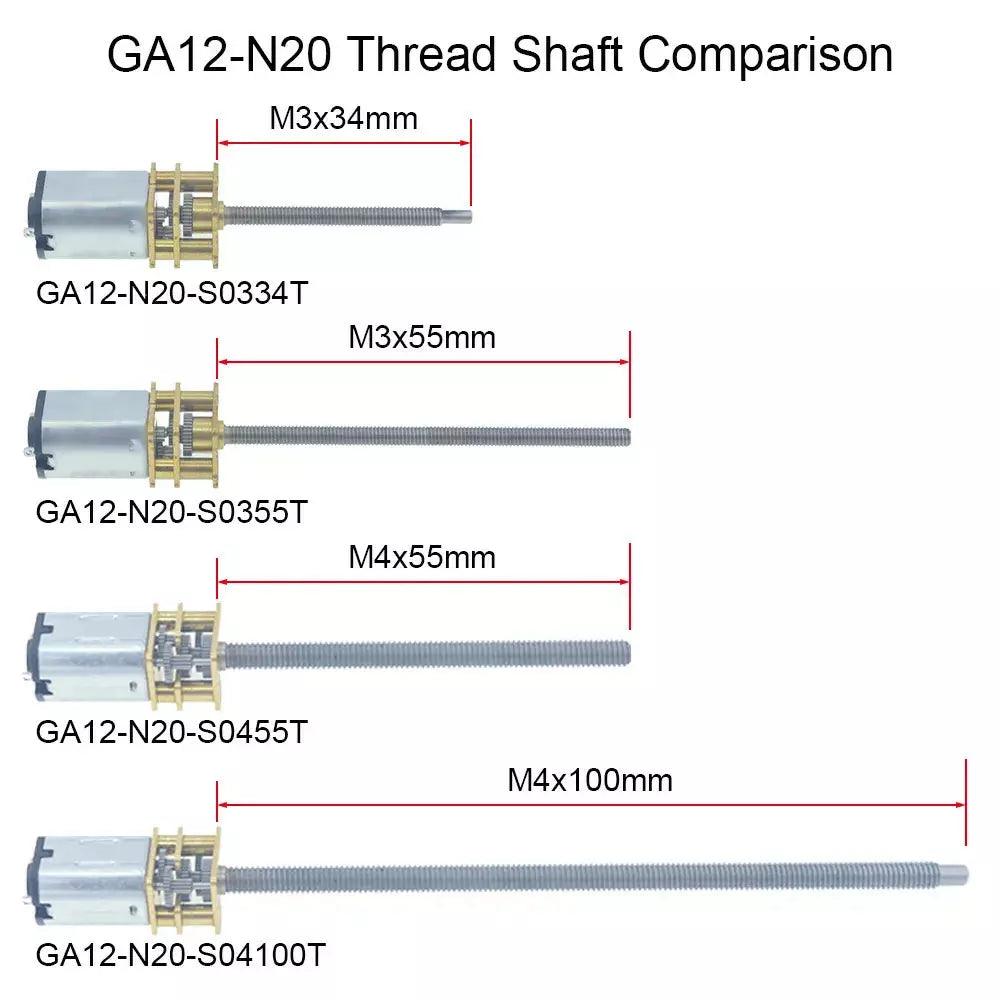

The N20 series motors have various models, click for details:Model: GA12-N20-S0355T
Gear Box Name: GA12
Gear Box Type: Spur Gear
Motor Body Name: N20 (B1215)
Motor Body Type: DC Brushed Motor (BDC)
Rated Voltage: DC 12V (can be reduced to 6V, 3V, etc.)
Motor Weight: 25g (approx.)
Motor Length: 79mm
Motor Body Size: 12mm(diameter) * 26mm(height)
Shaft Number: Single
Shaft Size: 3mm(diameter) * 55mm(length)
Shaft Shape: Treaded, M3 * 55mm
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH

The motor's rated voltage is DC 12V, it can be reduced to 6V, 3V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

The Speed (RPM) in the purchase option is based on DC12V.
When the voltage is reduced to 6V, the speed is about 1/2 of those of 12V. So if you want a motor of 6V m RPM, please select 12V 2*m RPM, such as want 6V 30 RPM select 12V 60 RPM.
When the voltage is reduced to 3V, the speed is about 1/4 of those of 12V. So if you want a motor of 3V n RPM, please select 12V 4*n RPM, such as want 6V 15 RPM select 12V 60 RPM.

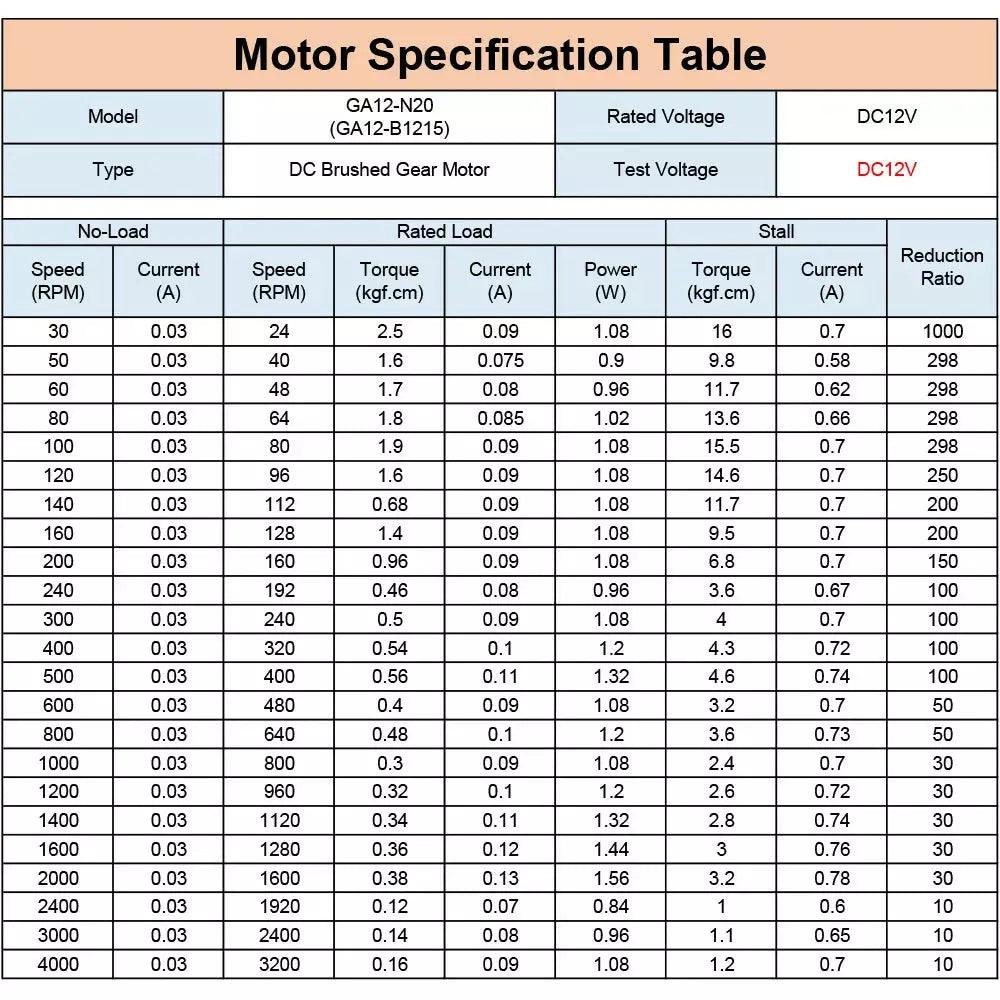

The No-load Speed at rated voltage DC 12V (Red is speeds in purchase options, Commonly used) is:
30  50  60  80  100  120  140  160  200  240  300  400  500  600  800 1000 1200 1400 1600 2000 2400 3000 4000 RPM

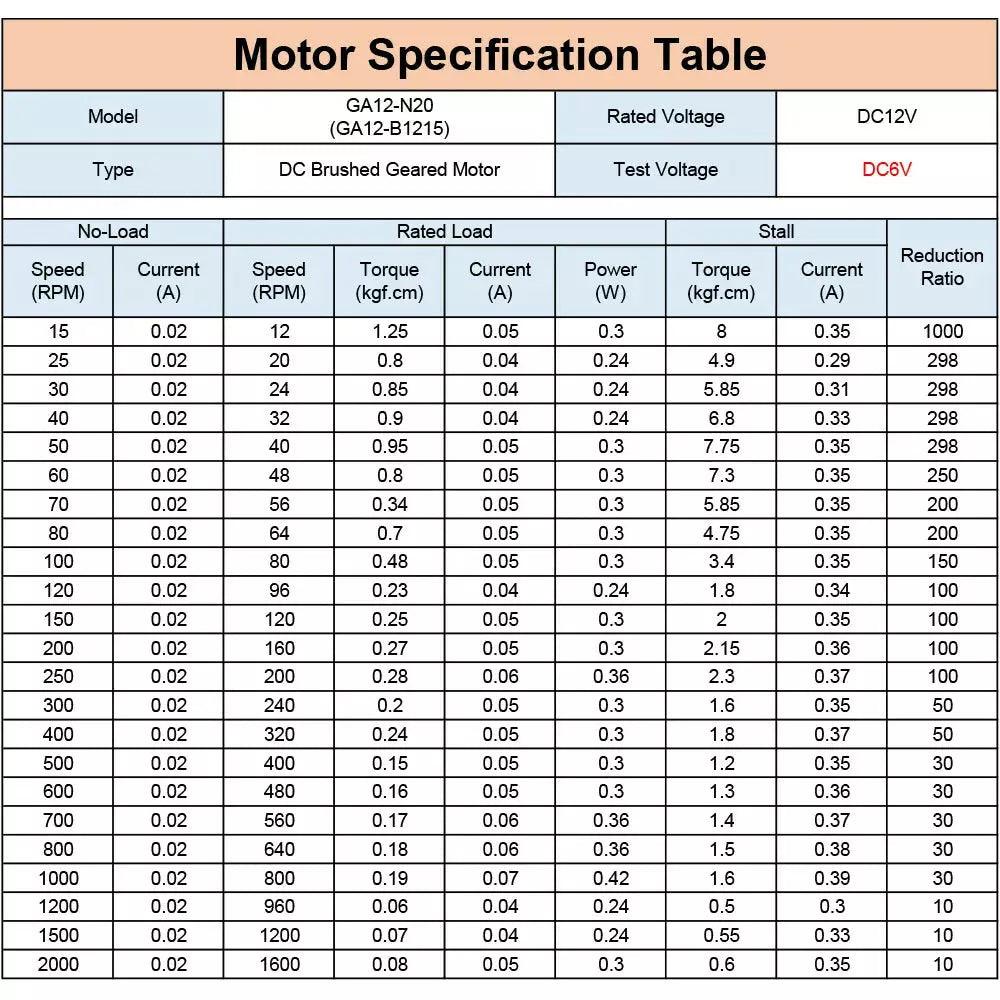

The No-load speed at DC 6V is (Speeds in purchase options divided by 2):
15 25 30 40 50 60 70 80 100 120 150 200 250 300 400 500 600 700 800 1000 1200 1500 2000 RPM

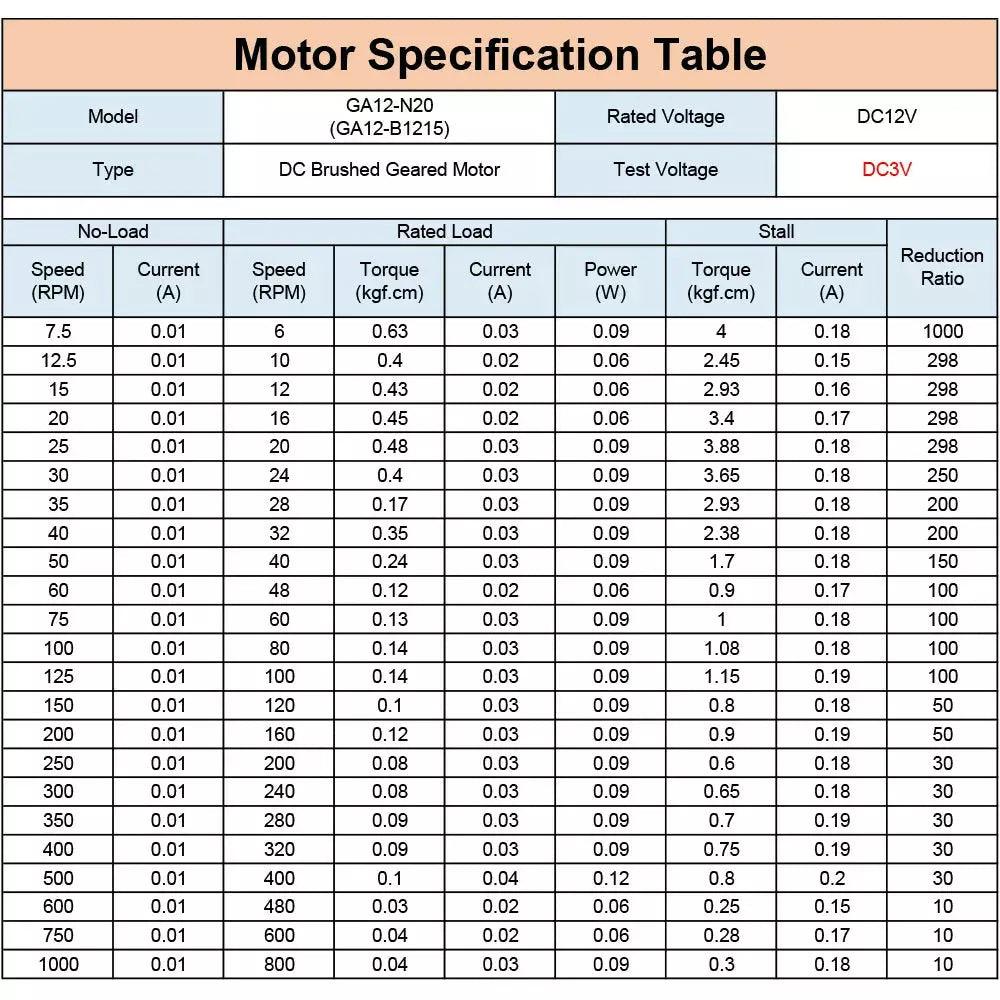

The No-load speed at DC 3V is (Speeds in purchase options divided by 4):
7.5 12.5 15 20 25 30 35 40 50 60 75 100 125 150 200 250 300 350 400 500 600 750 1000 RPM

For more voltages and speeds, please contact us.

Notes:

The availability of motors is divided into three types:
1. In stock: The most commonly used models, the most cost-effective, available in stock, and generally 3 days delivery..
2. Processing: Once mass-produced models, slightly lower cost performance, need to be processed now, generally 7 days delivery.
3. Customized: Customized based on customer needs (such as more voltage, speed, shaft type, etc.), price and delivery time need to be evaluated according to the customized needs and purchase quantity, generally 10~20 days delivery.

Package included:
- 1 x Motor
- 1 x Flange (optional)
