GA12-N20 M3 * 34mm Thread DC 12V Micro Gear Reduction 30~4000RPM

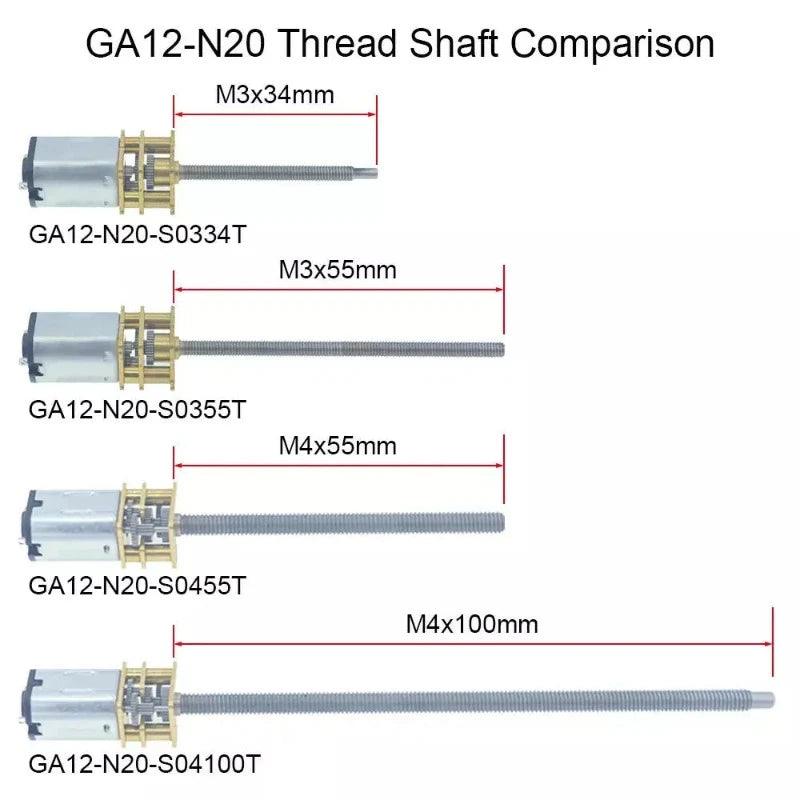

The N20 series motors have various models, click for details:

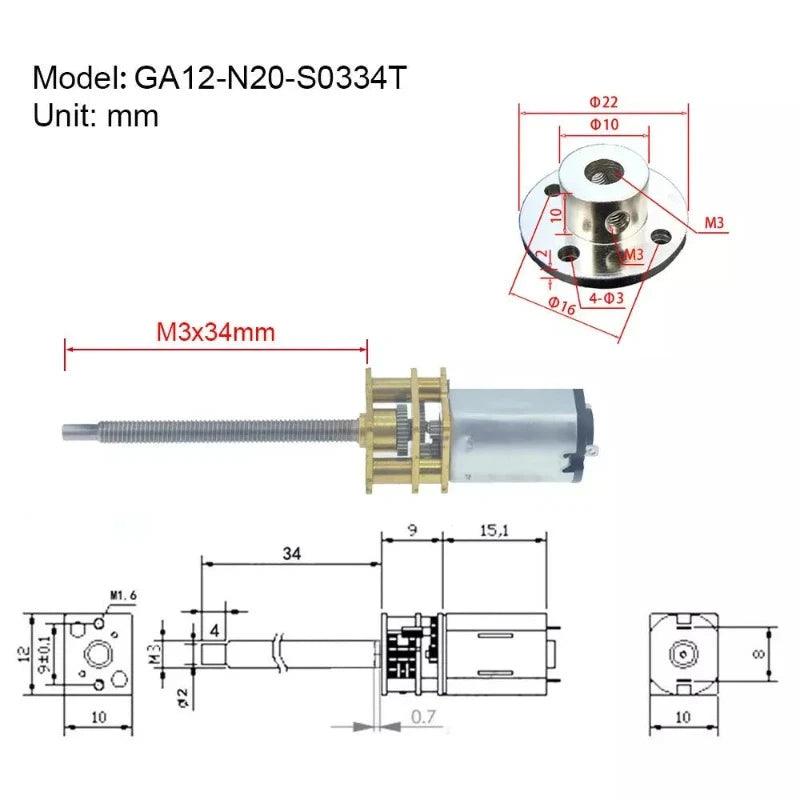

Model: GA12-N20-S0334T
Gear Box Name: GA12
Gear Box Type: Spur Gear
Motor Body Name: N20 (B1215)
Motor Body Type: DC Brushed Motor (BDC)
Rated Voltage: DC 12V (can be reduced to 6V, 3V, etc.)
Motor Weight: 20g (approx.)
Motor Length: 58mm
Motor Body Size: 12mm(diameter) * 26mm(height)
Shaft Number: Single
Shaft Size: 3mm(diameter) * 34mm(length)
Shaft Shape: Treaded, M3 * 34mm
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH

The motor's rated voltage is DC 12V, it can be reduced to 6V, 3V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

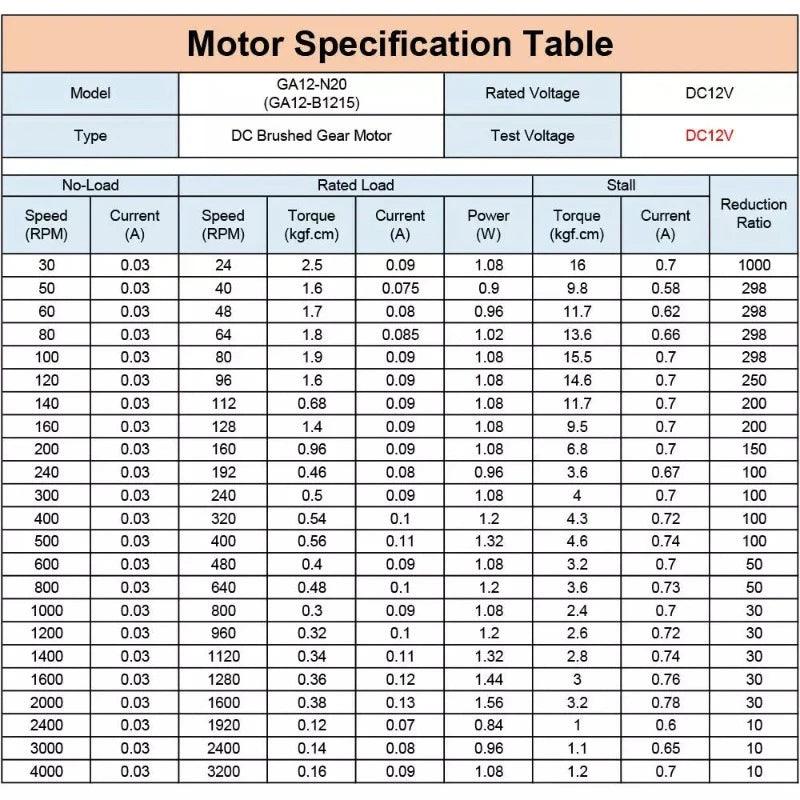

The Speed (RPM) in the purchase option is based on DC12V.

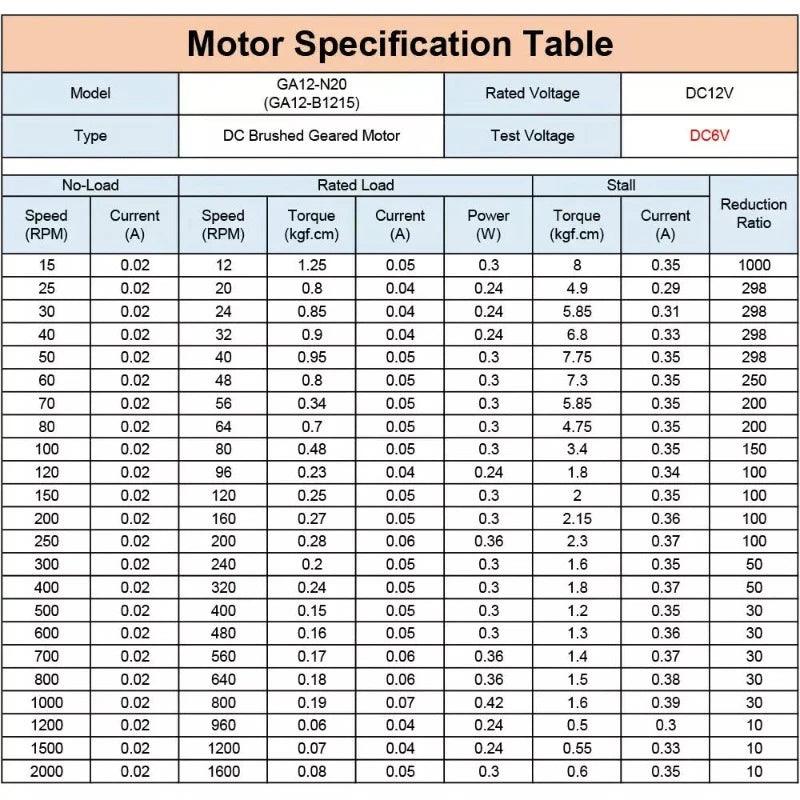

When the voltage is reduced to 6V, the speed is about 1/2 of those of 12V. So if you want a motor of 6V m RPM, please select 12V 2*m RPM, such as want 6V 100 RPM select 12V 200 RPM.

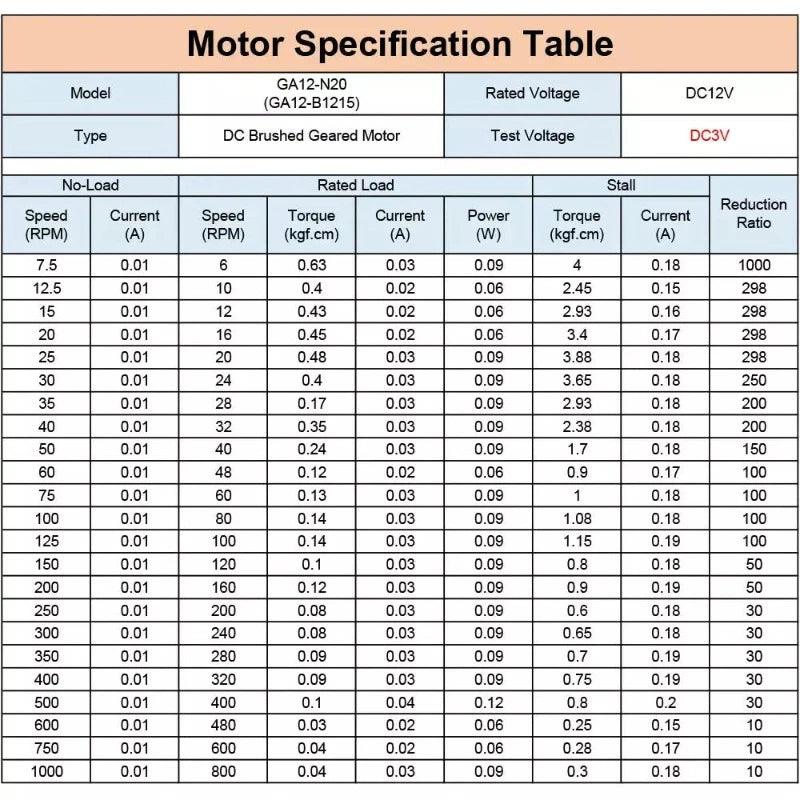

When the voltage is reduced to 3V, the speed is about 1/4 of those of 12V. So if you want a motor of 3V n RPM, please select 12V 4*n RPM, such as want 3V 50 RPM select 12V 200 RPM.

That is 12V 200RPM = 6V 100RPM = 3V 50RPM, and other RPM are calculated in the same way.

For more voltages and speeds, please contact us.

Notes:

The vast majority of this serial motor models are shipped within 3 days after receipt of the paid order, but due to the large number of product models, some models may be temporarily out of stock and require an additional 3 to 4 days to stock, so the promised delivery time is 7 days.

Package included:
- 1 x Motor

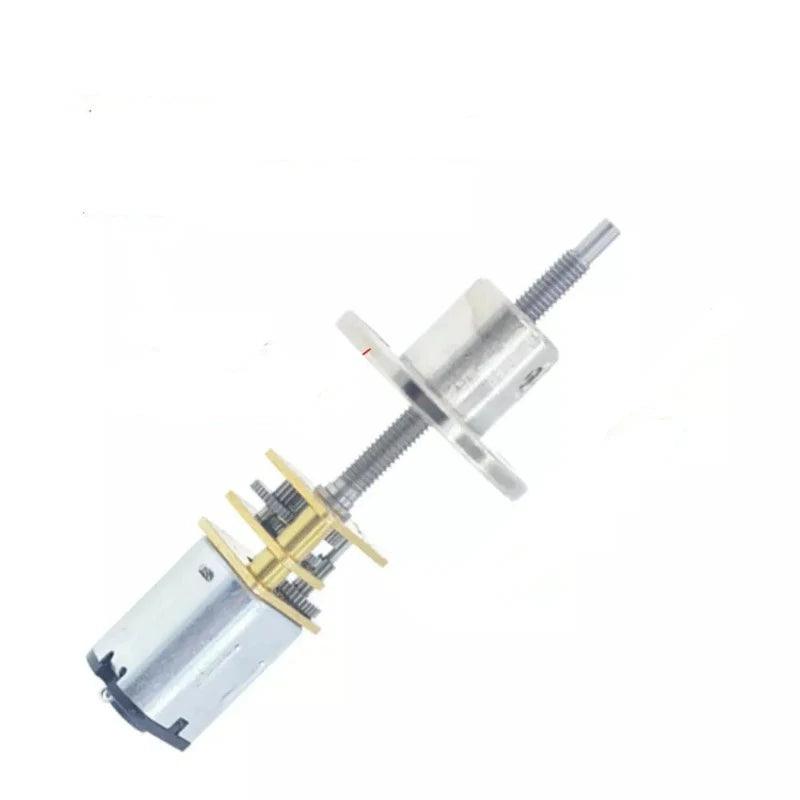

- 1 x Flange (optional)
