Free Shipping 5DDP 5 Channel Din Rail SSR Quintuplicate Five Input Output 24VDC Single Phase DC Solid State Relay PLC Module 5A

SPECIFICATIONS

Free Shipping 5DDP 5 Channel Din Rail SSR Quintuplicate Five Input Output 24VDC Single Phase DC Solid State Relay PLC Module 5A

Usage: General Purpose

Unit Type: piece

Type: DC Solid state

Theory: Solid State Relay

Size: Subminiature

Protect Feature: Sealed

Package Weight: 0.1kg (0.22lb.)

Package Size: 5cm x 5cm x 2cm (1.97in x 1.97in x 0.79in)

Model Number: ST5-5DDP

Load current: 5A

Load Voltage: 24VDC

Input Voltage: 24VDC

Contact Load: Low Power

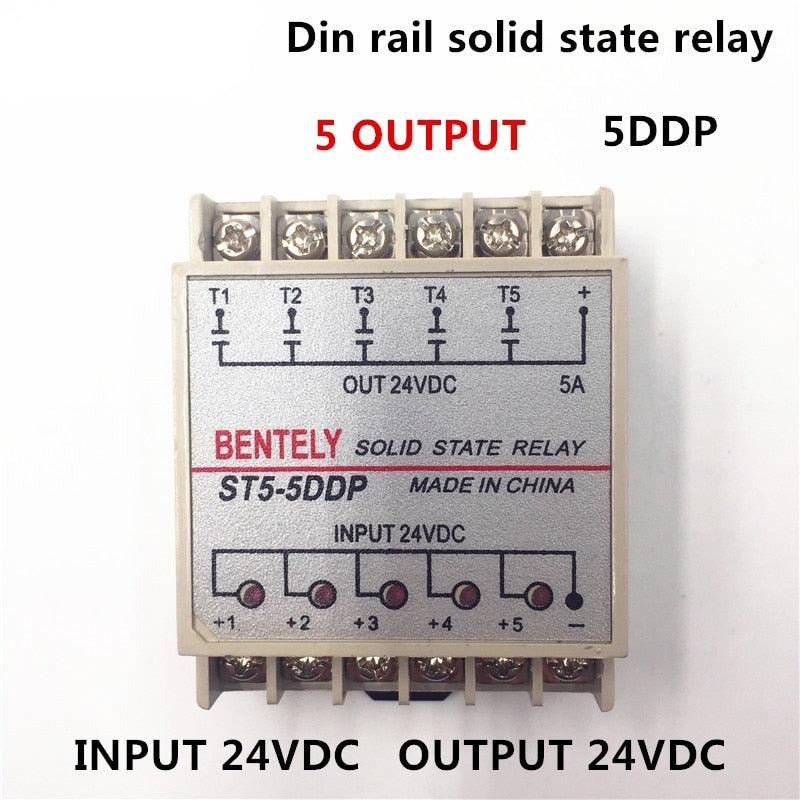

Din Rail Solide state relay

Input  24V DC

Output 24VDC

quintuplicate output

Rate current 5A

Type	Standard type	Isolation type
Model	ST5-5DDP	ST5-5DDG	PN5-10DA
Rated load current	5A	5A	10A
Input Data
Input voltage	24VDC	3~32VDC
Min. ON/OFF Voltage	ON>4V.  OFF<1.0V	ON>2.4V.  OFF<1.0V
Trigger current	7.5mA/12V	4mA/12V
Output Data
Operating Voltage	24VDC	5~36VDC	24~380VAC
Voltage Drop	1.6V/25°c
Leakage Current	0.8mA	0.7mA
Response Time	< 1ms		ON<10ms, OFF<10ms
Dielectric Strength	Over 2.5KVAC/1min.
Isolation Strength	Over 50M/500VDC
Operation Temperature	_20°c    ~     +80°c
Housing Material	Intensive ABS
Weight	65g	85g

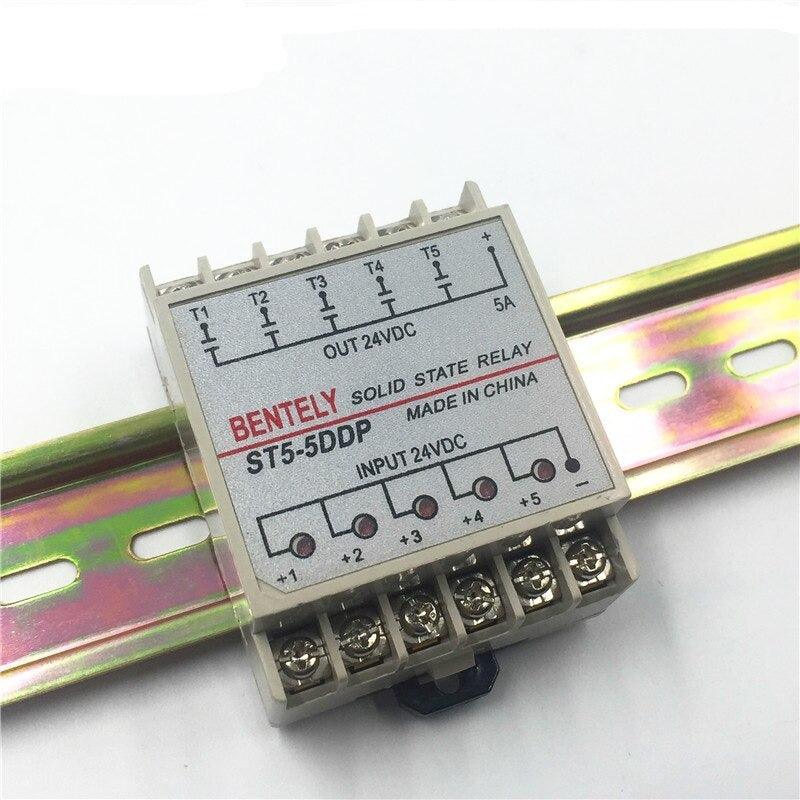

Installation	Din rail installation
