EARU-1pc Metal Push Button Switch Oxidation Momentary 12mm/16mm/19mm/22mm 1NO

Regular price $4.38 USD
Regular price Sale price $4.38 USD
Sale Sold out
Shipping calculated at checkout.


EARU-1pc Metal Push Button Switch Waterproof  Oxidation Momentary 12mm/16mm/19mm/22mm Red Blue Black Green Golden Silver 1NO PC Power

Warranty: 1 year

Switch Type: Push Button Switch

Material: aluminium alloy

Item Type: Switches

Is Smart Device: No

Features: Colorful

Feature 2: Screw foot

Feature 1: Self-reset

Current: 3A

Color: Red/Blue/Black/Green/Golden/Silver

Certification: CCC

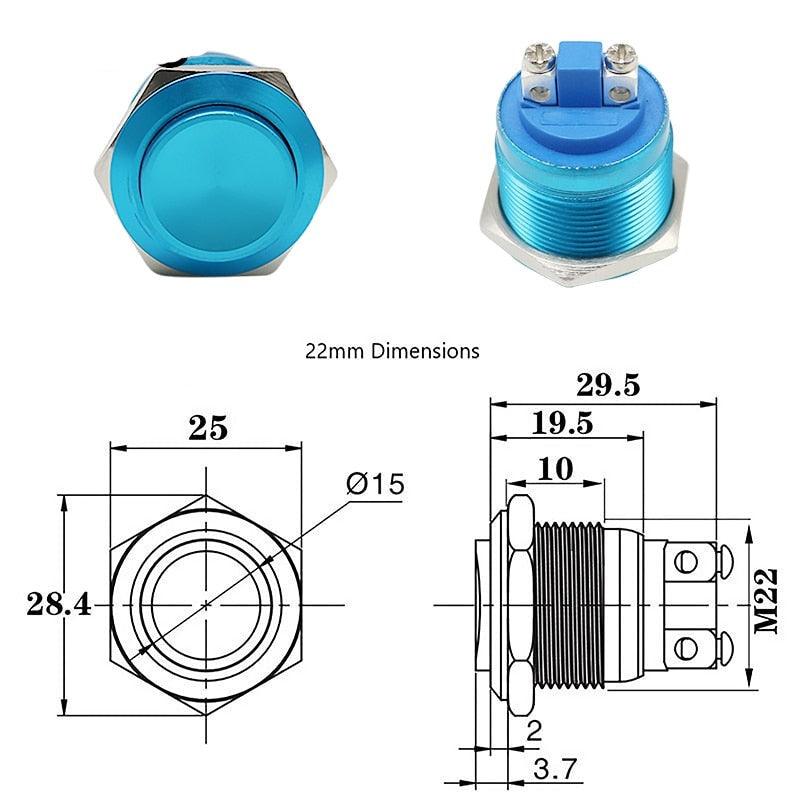

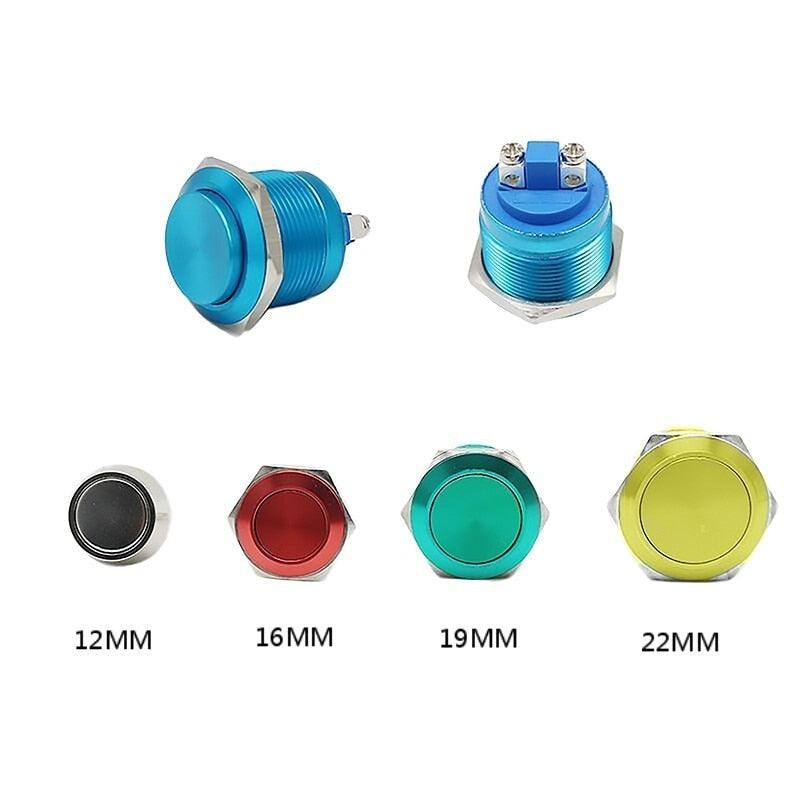

  • Diameter:12mm, 16mm ,19mm, 22mm
  • Type: screw type,momentary

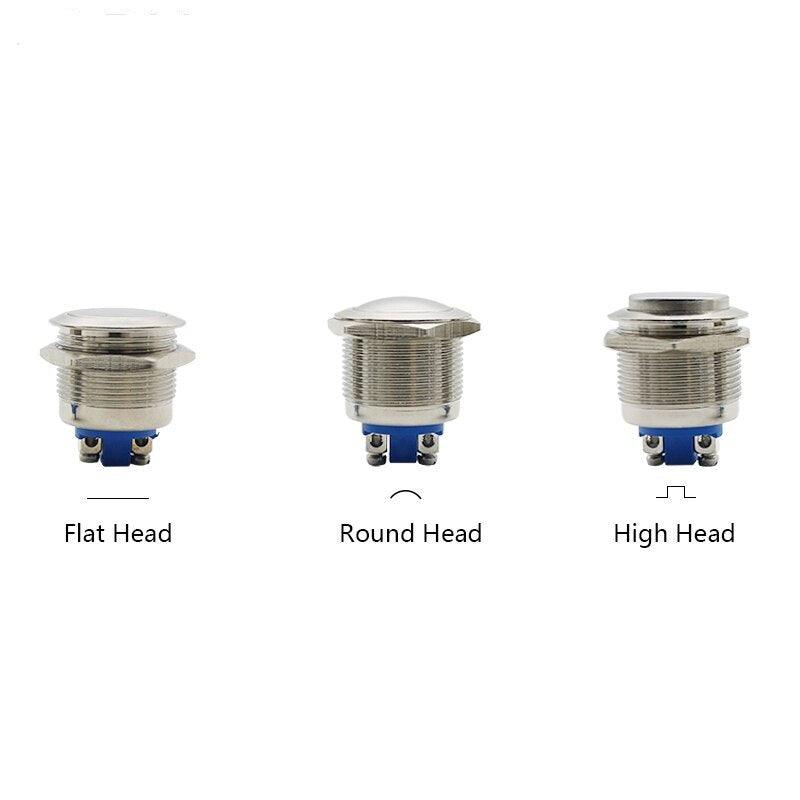

  • Head: Flat head, Round head, High head
  • Material:Aluminium Alloy
  • Color:Red Blue Black Green Golden Silver
Product Display
  • Max Switch Rating: 3A/250VAC
  • Operation Type: Momentary (push it-on, release it-off)
  • The Front Shape: Camber Surface
  • The Crust Material of Made of copper/Aluminum alloy
  • The Crust Material of red,blue,gloden,silver,green,
  • button: Aluminium Oxide
  • Protection Degree: IP65 ,IK08
  • Terminal Type: Screw
  • Switch Type: Two terminal breakpoints slow moving contact
  • Contact Resistance: ≤50mΩ
  • Insulation Resistance: ≥1000mΩ
  • Dielectric Strength: 2000VAC
  • Operation Temperature: -20℃ to +55℃
  • Operating Pressure: About 4N
  • Contact: Aluminum alloy
  • Base: PBT
After pressing the button ,press-key will return automatically If you don't continue to press the button,Self-reset.
