Draw Wire Displacement Sensor Pull Wire Linear Encoder Position Transmitter
Regular price
$67.50 USD
Regular price
Sale price
$67.50 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Cable Pull Displacement Sensor, Draw Wire Encoder, Linear Position Transducer WPS / MPS / WXY31 / ES02 / ES06

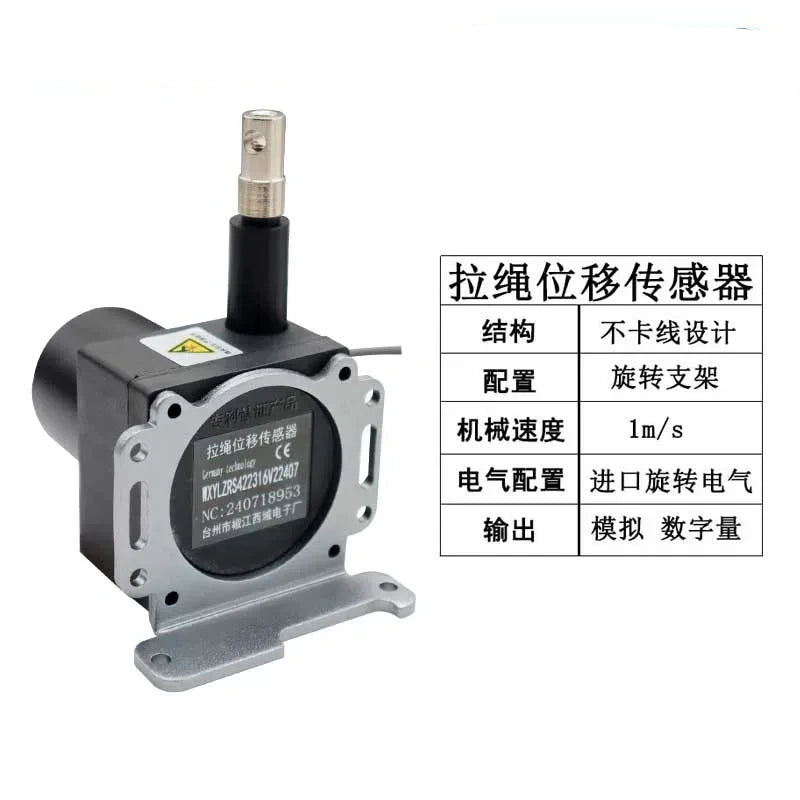

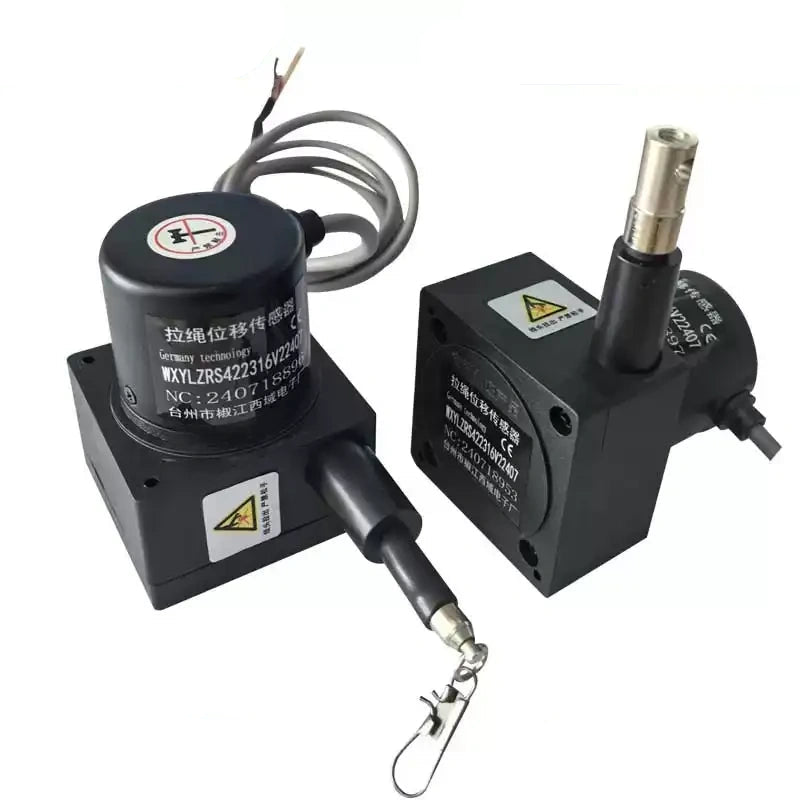

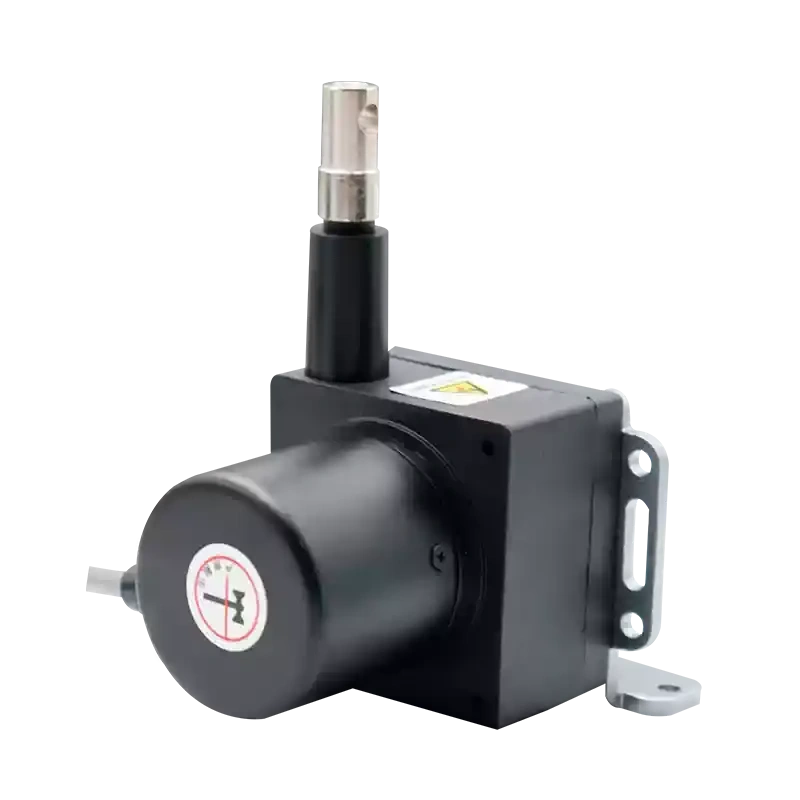

This draw wire displacement sensor (cable pull encoder / pull wire position transducer) converts linear travel distance into standard electrical signal for industrial position monitoring.
✅ Measuring Stroke Options: 0-100mm,0-200mm,0-300mm,0-400mm,0-500mm,0-600mm,0-700mm,0-800mm,0-900mm,0-1000mm,0-1200mm,0-1500mm,0-2000mm,0-2500mm,0-3000mm,0-4000mm,0-5000mm,0-6000mm,0-7000mm,0-8000mm,0-9000mm,0-10000mm,0-12000mm,0-15000mm.
✅ Multiple Signal Output Types:
- Resistance Output: 0-5KΩ,0-10KΩ
- Voltage Output: 0-5V DC,0-10V DC
- Current Output: 4-20mA 2-wire / 3-wire / 4-wire
- RS485 Modbus RTU Communication
- A/B Phase Pulse Signal(NPN/PNP/TTL/Differential)
Wide working voltage DC5V~DC24V, protection grade IP65 (IP68 customized). Operating temperature: -30℃ ~ +85℃.Flexible steel wire rope, stable retraction force, anti-vibration and impact resistance.Common model series: ES02, ES06, WXY31, WPS, MPS, WFS, WXY61-L, WXY81-L, WPS-XL.Applied for hydraulic machinery, engineering equipment, mold machinery, lifting platform, automated production line linear position & displacement measurement.
Specification
| Attribute Name | Attribute Value |
|---|---|
| Product Name | Draw Wire Pull Cable Displacement Sensor Linear Position Encoder |
| Alias Model | WPS, MPS, WFS, WXY31, ES02, ES06, WXY61-L, WXY81-L, WPS-XL |
| Measuring Range | 0-100mm,0-200mm,0-300mm,0-400mm,0-500mm,0-600mm,0-700mm,0-800mm,0-900mm,0-1000mm,0-1200mm,0-1500mm,0-2000mm,0-2500mm,0-3000mm,0-4000mm,0-5000mm,0-6000mm,0-7000mm,0-8000mm,0-9000mm,0-10000mm,0-12000mm,0-15000mm |
| Output Signal Option | 0-5K Resistance,0-10K Resistance,0-5V,0-10V,4-20mA 2-wire,4-20mA 3-wire,4-20mA 4-wire,RS485 Modbus RTU,A/B Phase Pulse |
| Supply Voltage | DC5V / DC12~24V / DC6~24V / DC7~24V (Depends on signal type) |
| Protection Class | IP65, Customizable IP68 |
| Working Temperature | -30℃ ~ +85℃ |
| Wire Material | Multi-strand flexible steel wire rope |
| Accuracy | ±0.1%FS ~ ±0.3%FS (Depends on model & stroke) |
| Application | Linear displacement measurement, hydraulic machinery, automation equipment, lifting equipment, injection mold, engineering machinery |

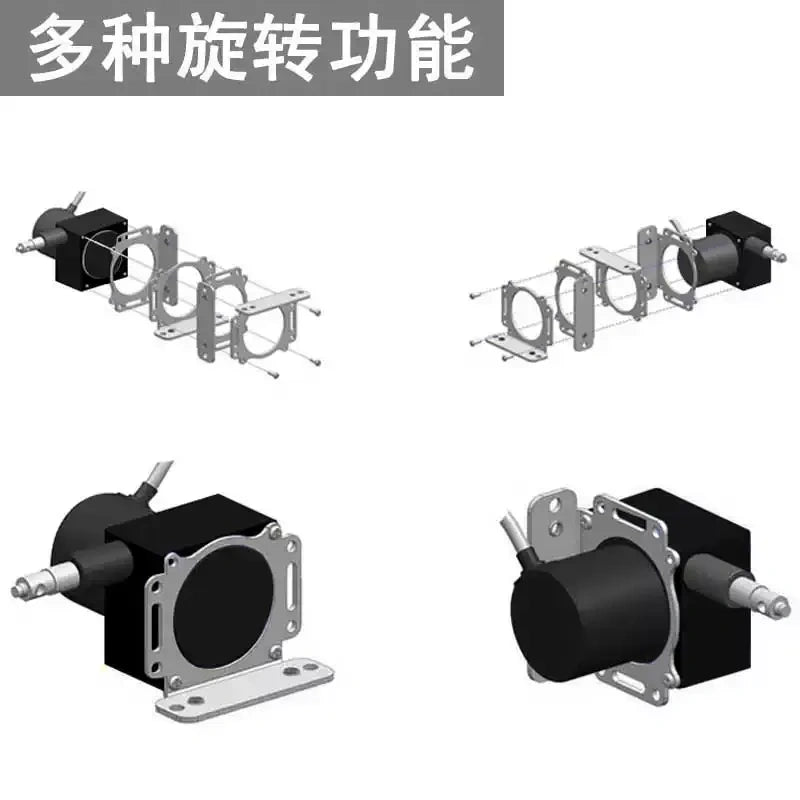

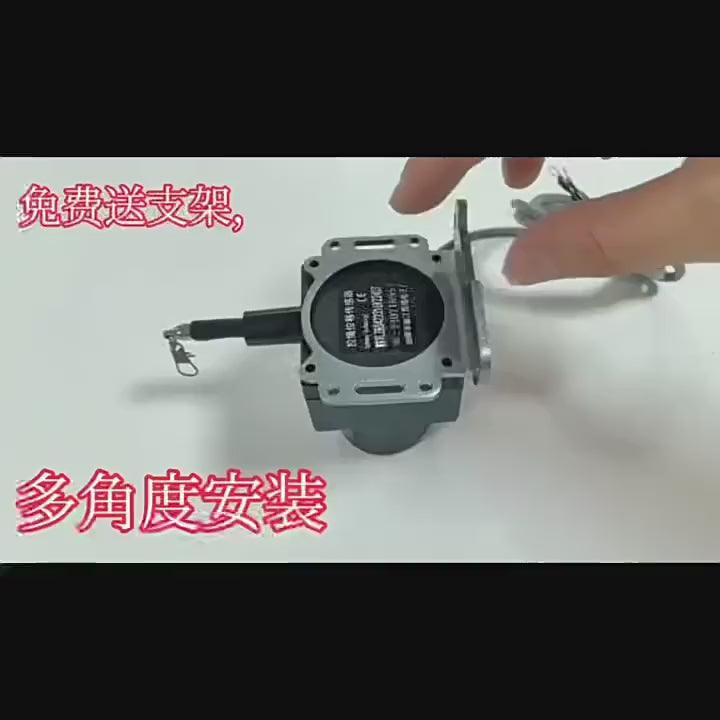

Dimension & Mounting
