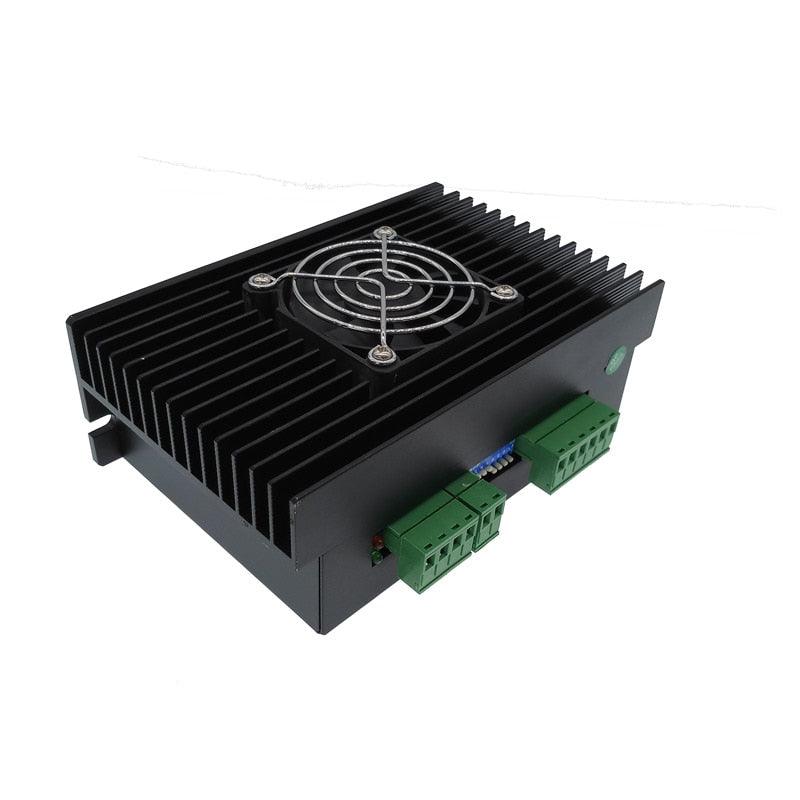

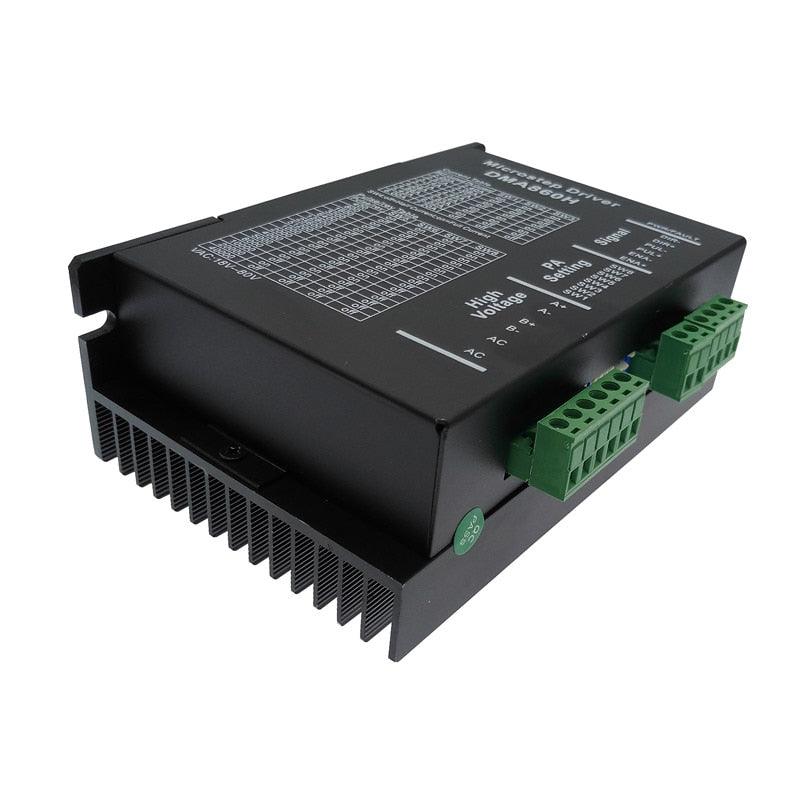

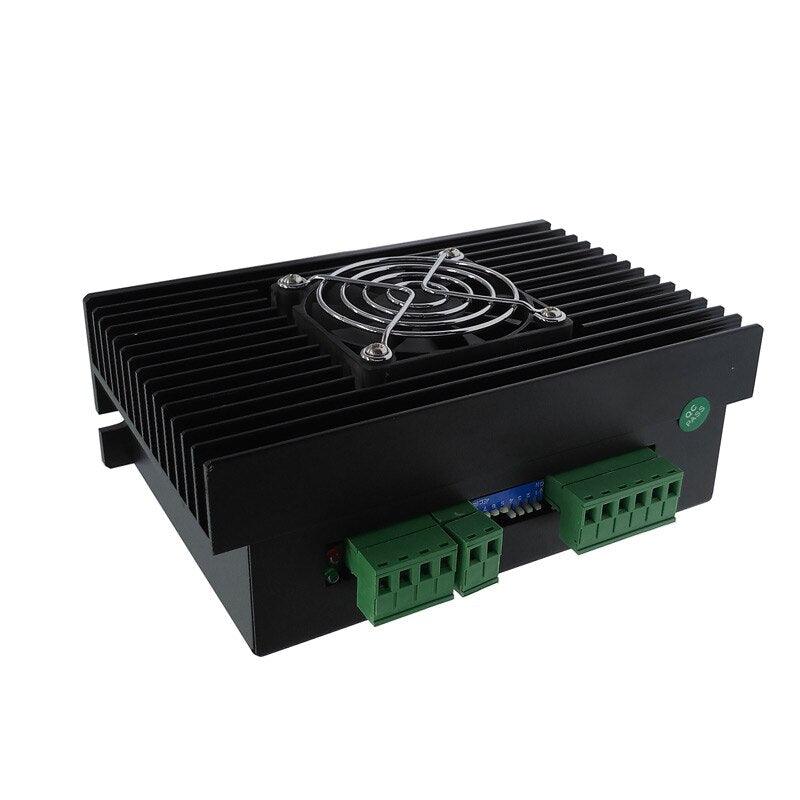

DMA860H step driver 2 phase DSP microstep driver for nema 34 nema 42 AC24-80V DC24-80V

$39.20 USD
$51.00 USD $39.20 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

DMA860H step driver 2 phase DSP microstep driver for nema 34 nema 42 AC24-80V DC24-80V

Power supply: AC24-80V/ DC24-80V

Power Supply: DC

Origin: CN(Origin)

Motor Type: Stepper Motor

Model Number: DMA860H

Parameter

0.Power InPut :AC24-80V or DC24-80V 1.New 32-bit DSP technology 2.Ultra-low vibration noise 3.Is built with high segmentation 4.Automatic setting of parameters 5.Precision current control of makes the motor much less hot 6.Electrical current automatically halts when idle 7.Can drive 4,6,8 - wire 2 phase stepping motor 8.Optical isolation differential signal input 9.Pulse response frequency up to 300KHz (higher adjustable) 10.Current Settings are convenient and optional between 2.4 and 7.2(peak) 11.4 bit dial code, a total of 16 subdivisions
