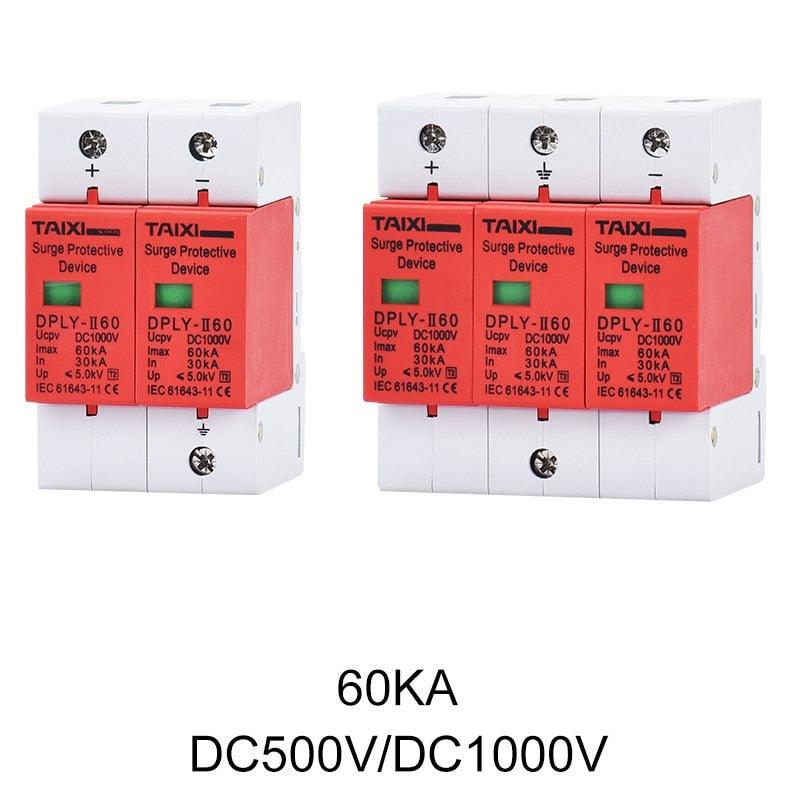

DC Surge Protector PV SPD 500V 800V 1000V System Used 20KA 40KA 60KA SPD 2 Poles 3P With PE Lightning Protect Wind Generator

$21.34 USD
$16.38 USD $21.34 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Poles Number
Rated Current

SPECIFICATIONS

DC Surge Protector PV SPD 500V 800V 1000V System Used 20KA 40KA 60KA SPD 2 Poles 3P With PE Lightning Protect  Wind Generator

Type: Mini

Origin: Mainland China

Model Number: SP1

Brand Name: CHTAIXI

The DC Surge Protctor (DC SPD) mainly used for DC distribtion, such as solar generate system, wind power system, automotive power supply systems, etc. It protects when lightning damages the line. Its has an instruction window that can indicate whether the line has been struck by lightning.
If the red indicator indicates that the line has been struck by lightning, please replace the protector or module in time.

Technical Parameters

● Discharge current (In): 20KA, 40KA, 60KA
● Poles: 2P, 3P
● Working voltage (Uc): DC 500V, DC 800V, DC 1000V
● Poles: 2P ( 2 Poles ), 3P (3 Poles)
● Indicate: Green(Working well), Red(Fault, product or module needs to be replaced )
● Working temperature: -40­°C+85°C
● Voltage shock level：2.2KV-5KV
● Installation conditions: Vertical (standard rail mounting)
● Standard: EC61643-1
● Warraty: 18th Month
Circuit Wiring Recommend
1. Please use the protector in combination according to the actual load and circuit, and select an appropriate current Amp.
2. The product can be installed upside down without affecting the service life and protection ability
1: Terminals (Maximum 25mm2 (4 AWG) cable can be connected).
2: Status window, if the indicator is red, it means that the protector hasbeen struck by lightning, please replace the module or product in time
3: Rail mounting buckle, the circuit breaker can be directly installed on the DIN rail without screws
