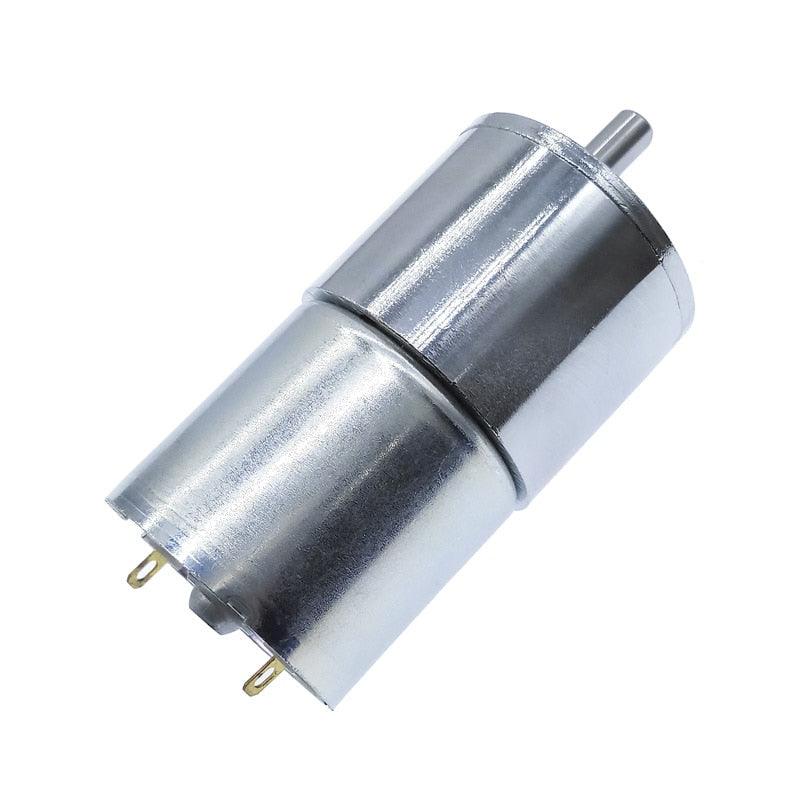

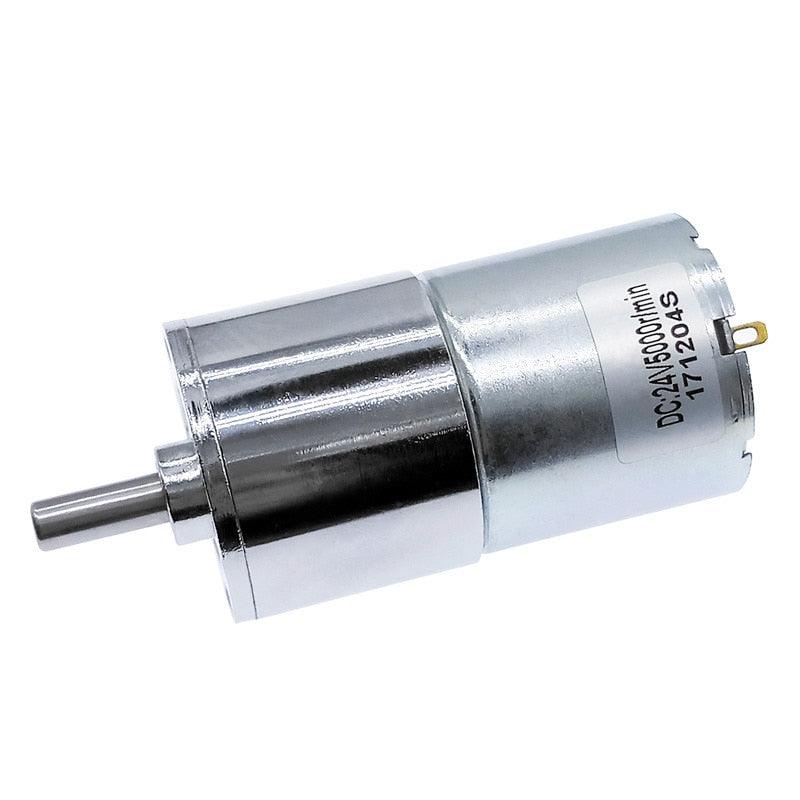

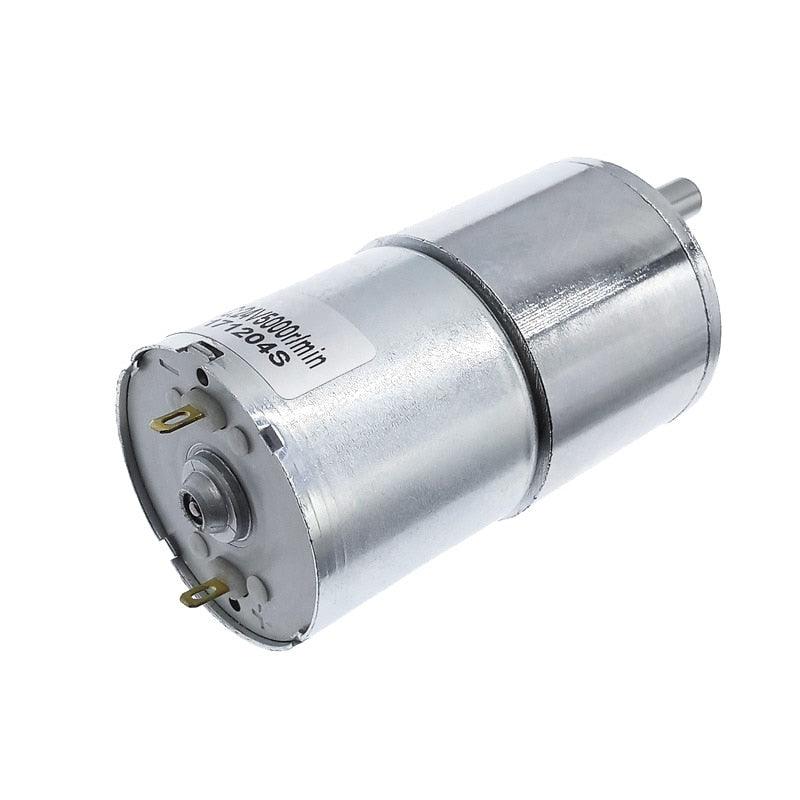

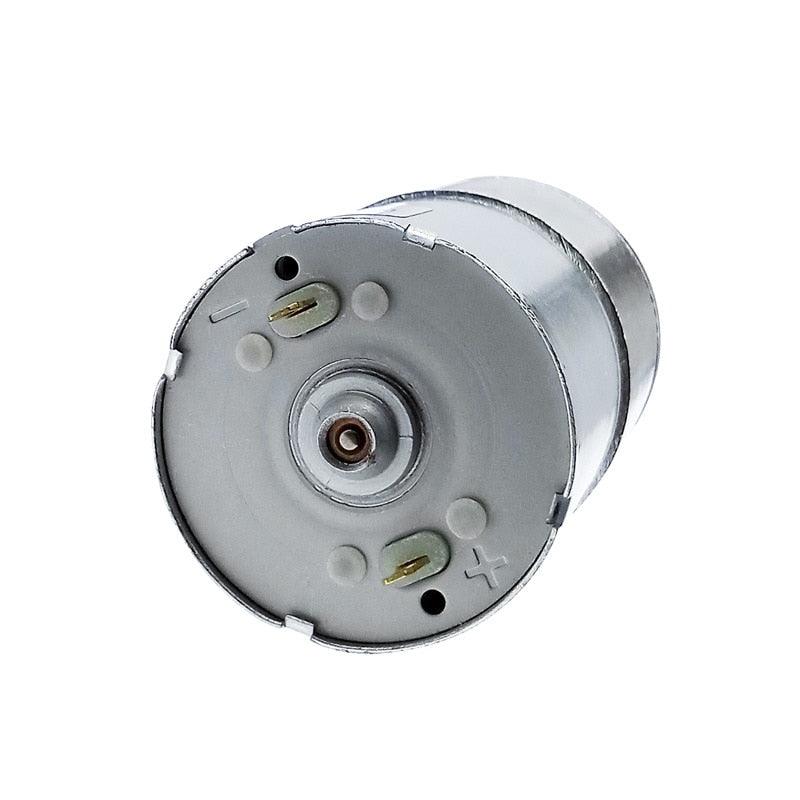

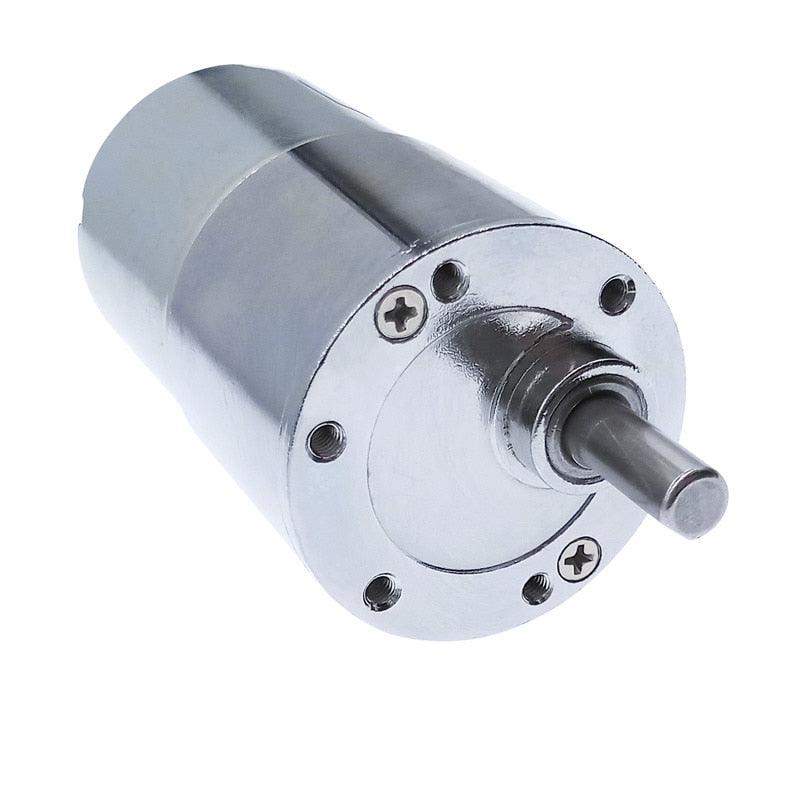

GB37RG 12V 24V DC Gear Motor, Eccentric Shaft Permanent Magnet Brush Motor, High Torque 1.5-15kgf.cm, Speed 2.5-1150RPM, Drip-Proof for Home Appliance
Couldn't load pickup availability
GB37RG Gear Motor 520 DC,37mm gear motor
12V/24V High Torque Permanent Magnet Brush Motor, Eccentric Shaft, 100mA, Various RPM, Home Appliance / DIY Projects
Specification
| Attribute | Value |
|---|---|
| Product Name | GB37RG DC Gear Motor |
| Model Number | GB37RG |
| Brand | CNMAWAY |
| Rated Voltage | 12V / 24V (selectable) |
| Rated Speed Options | 2.5,5,10,15,20,30,45,50,60,87,100,120,150,200,300,370,420,570,630,1000,1150 RPM |
| Rated Current (Continuous) | 100mA |
| Output Power | 2W |
| Torque | 1.5 ~ 15 kgf·cm |
| Shaft Type | Eccentric Shaft |
| Motor Type | Permanent Magnet DC Gear Motor |
| Commutation | Brush |
| Efficiency | IE2 |
| Construction | Permanent Magnet |
| Protection | Drip-proof |
| Usage | Home Appliance, Automation, DIY, Small Machinery |
| Certification | CCC, CE |
| Origin | Mainland China (CN) |
FAQ
Q1: What voltages are available for this GB37RG DC gear motor?
A: This motor is available in both 12V and 24V versions. Please select the voltage that matches your power supply.
Q2: How many speed (RPM) options are there?
A: We offer 21 speed options from 2.5rpm to 1150rpm, including 2.5,5,10,15,20,30,45,50,60,87,100,120,150,200,300,370,420,570,630,1000 and 1150rpm, so you can pick the exact speed for your application.
Q3: What is the rated torque of this gear motor?
A: The torque range is 1.5~15kgf.cm depending on speed selection, providing good power for small gear-driven mechanisms.
Q4: Is this motor brushed or brushless?
A: It is a brushed permanent magnet DC gear motor with commutator, featuring drip-proof protection for reliability in common environments.
Q5: What can this GB37RG motor be used for?
A: Suitable for home appliances, smart home devices, small automation, DIY projects, pumps, valves, display turntables and other light mechanical drives.
Q6: Does this motor come with certification?
A: Yes, it carries CCC and CE certification.
Q7: What is the continuous current draw?
A: The continuous current is 100mA at rated load, which is energy efficient for small gear motor applications.
