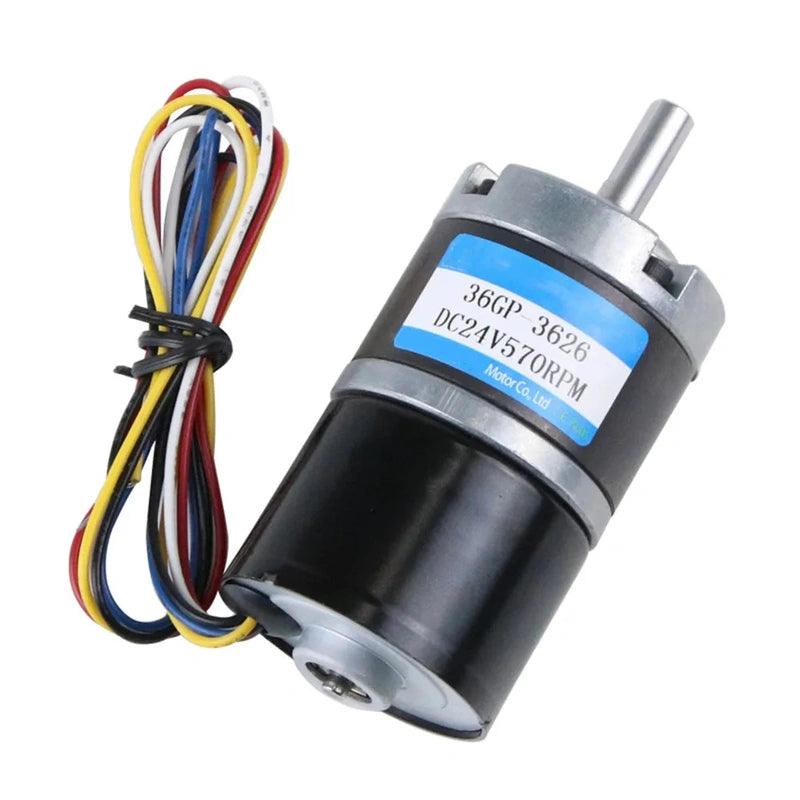

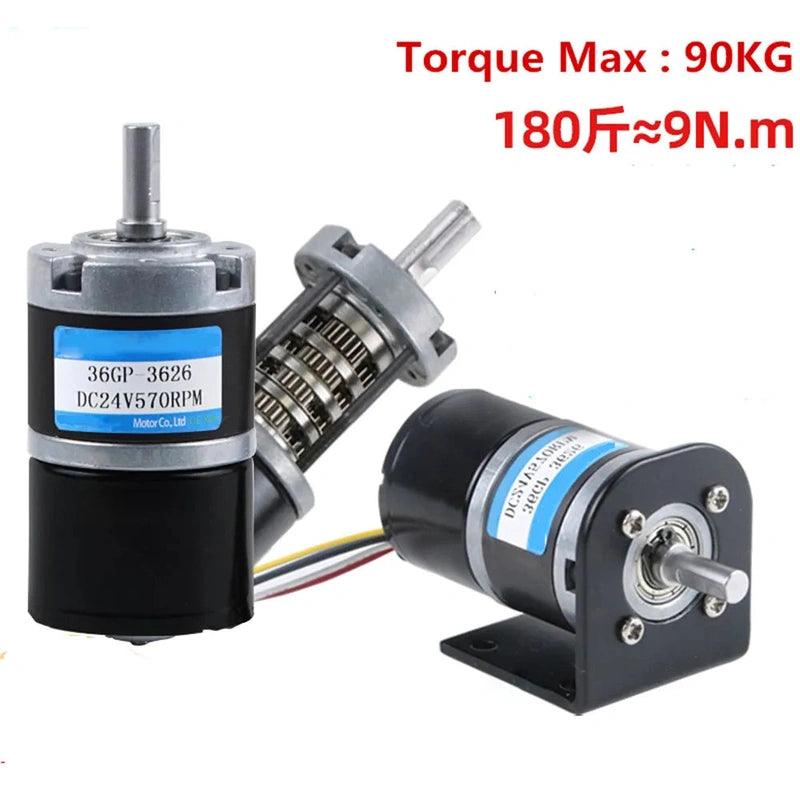

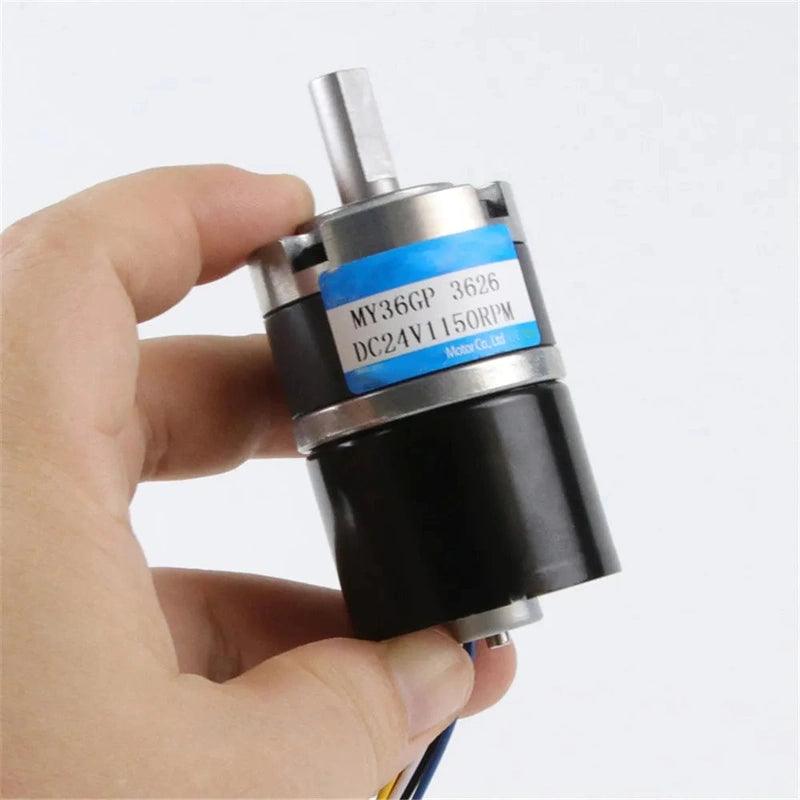

DC 12V 24V Brushless Planetary Gear Motor High Torque 90KG Speed 8rpm To 1154rpm PWM BLDC Metal Gearbox Moter 36GP-3626 Electric

SPECIFICATIONS

DC 12V 24V Brushless Planetary Gear Motor High Torque 90KG Speed 8rpm To 1154rpm PWM BLDC Metal Gearbox Moter 36GP-3626 Electric

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: 36GP-3626

Wiring method introduction

Black line : Connect DC power supply negative -

Red line: Connect DC power supply positive +

Note: Connect the blue line to the negative line of the power supply and the motor will stop immediately, this is the brake function

White line: is the line that controls the motor to rotate clockwise or counterclockwise. Connect the white line to the black line and the motor will change the direction of rotation immediately.

Yellow line: FG signal line outputs Hall signal, the base pulse rotates one turn and one signal

Blue line: PWM pulse width speed control line, can be connected to 0 To 5V pulse width governor

Friendly reminder: The positive and negative poles of the power supply are forbidden to be connected incorrectly. The signal cable is forbidden to be connected to the power supply. Please use the motor strictly according to the above description, otherwise the motor will burn out, thanks

The following is the connection photo of the motor and controller

① Yellow wire: the negative pole of the input DC power supply

② Green wire: the positive pole of the input DC power supply

The positive and negative poles of the power supply are forbidden to be connected incorrectly.

The following is the motor parameter table

Pls contact me if you need other Voltage and speed or Leaving a message.

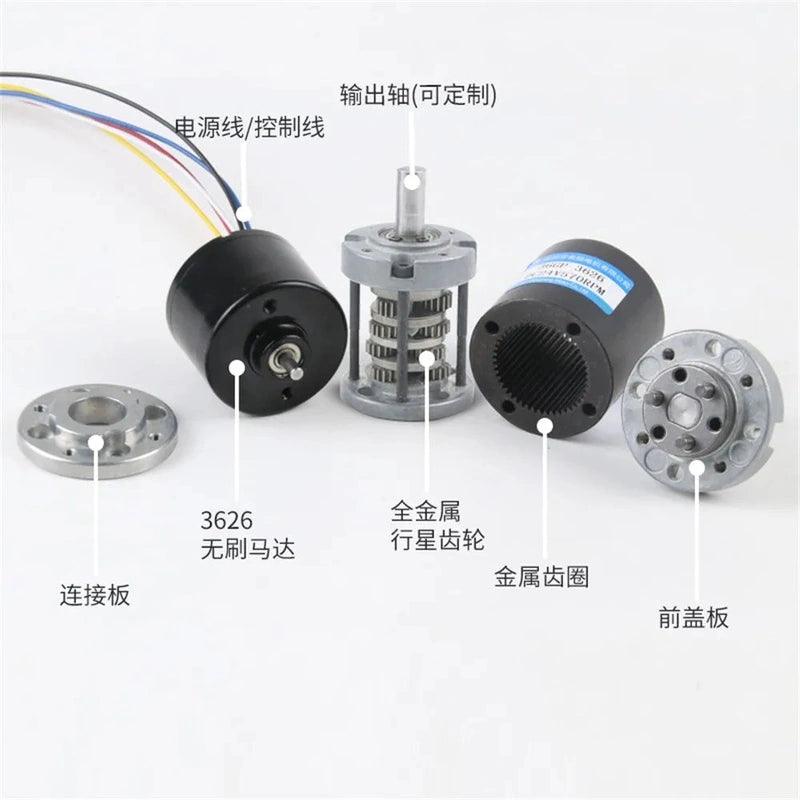

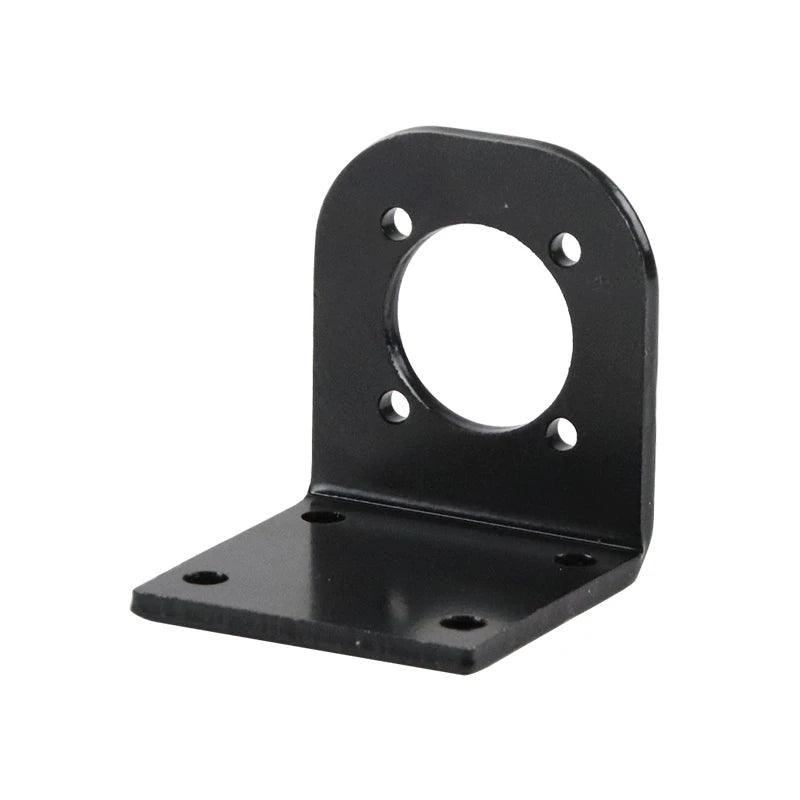

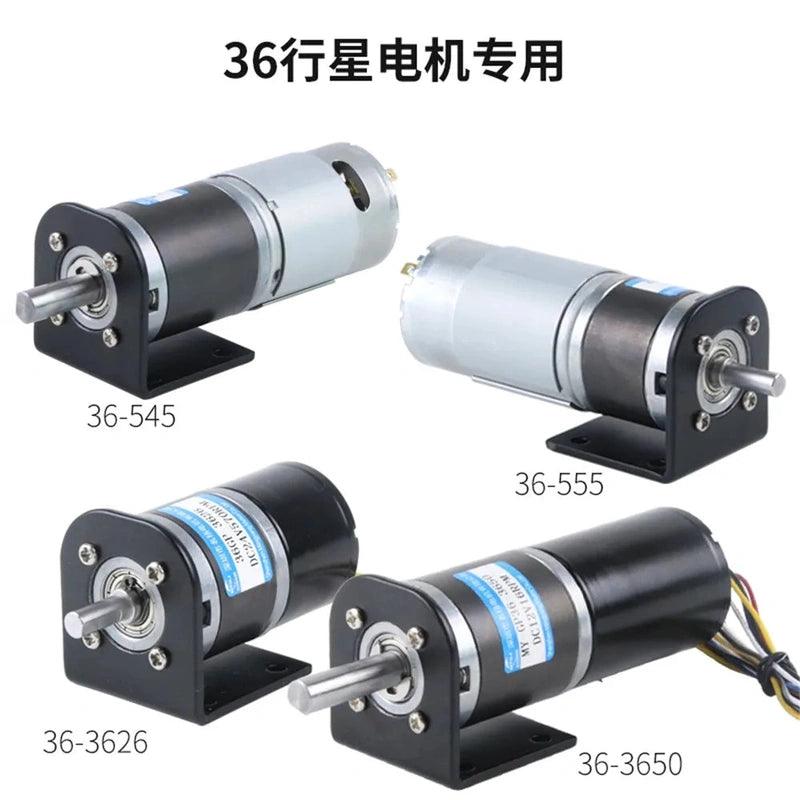

The following is a description of the quality materials and structures of this motor.

The size is for reference only,the measurement will be slightly different,please pay attention before buying
