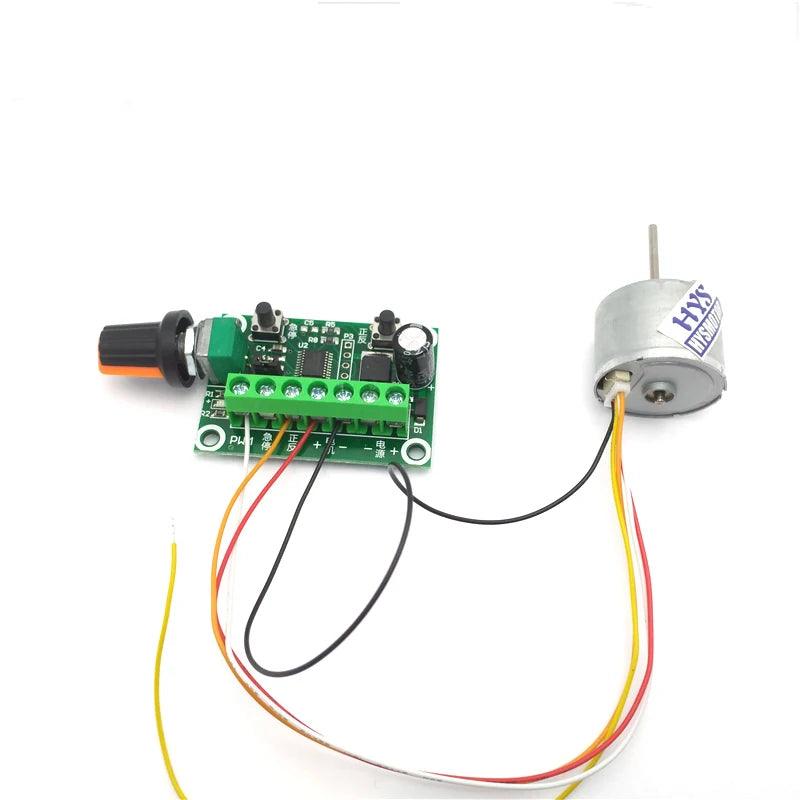

DC 12V 24V 8700RPM Adjustable Speed Silent Long Life Micro High Speed Mini Brushless Motor with Hall Encoder Speed Measurement

Regular price $23.34 USD
Regular price $14.91 USD Sale price $23.34 USD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

SPECIFICATIONS

DC 12V 24V 8700RPM Adjustable Speed Silent Long Life Micro High Speed Mini Brushless Motor with Hall Encoder Speed Measurement

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: 2418 Brushless High Speed Motor

  • Red line:Power+

  • Black line:Power-

  • Yellow line:FG output,18singals/R

  • Orange line:CCW/CW control ,orange line Vacant motor is ccw,when orange line connect power-,motor is cw.

  • White line:pwm speed adjust

Wire Connection Method:

  • Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal

  • Motor Diameter: about 24mm

  • Motor Body Length: 18mm

  • Output Shaft Diameter: 4mm(D-Type)

  • Output Shaft Length: 9.5mm

           No-load Speed:8700RPM

  • Voltage:DC24V

Specification:
