Split core Current Transformer OPCT10AL 5A/333mV 10A/333mV 60A/333mV
Couldn't load pickup availability
SPECIFICATIONS
mini split core Current Transformer OPCT10AL 5A/333mV 10A/333mV 60A/333mV Ferrite Cores high frequency testing current transform
working frequency: 50Hz~200KHz
through hole: 10mm
product name: Miniature split core Current Transformer 5A/2.5mA 5a/5ma 10a/5ma
output current: Alternating current
old and new: new
is_customized: Yes
Warranty period: 1 year
Usage: Current
Ratio Output: 100, 125, 200, 333 mV (AC)
Ratio Input: 5, 10, 20, 30, 50, 60 A (AC)
Phase: Single
Output way: lead wire
Origin: Mainland China
Net Weight: 50~60g
Model Number: OPCT10AL voltage output
Measure current: Alternating current
Material: Copper Winding and PC ABS
Color: black
Coil Structure: Toroidal
Coil Number: Autotransformer
Certification: RoHS,UL
Brand Name: njxse
Care Instructions
Care Instructions

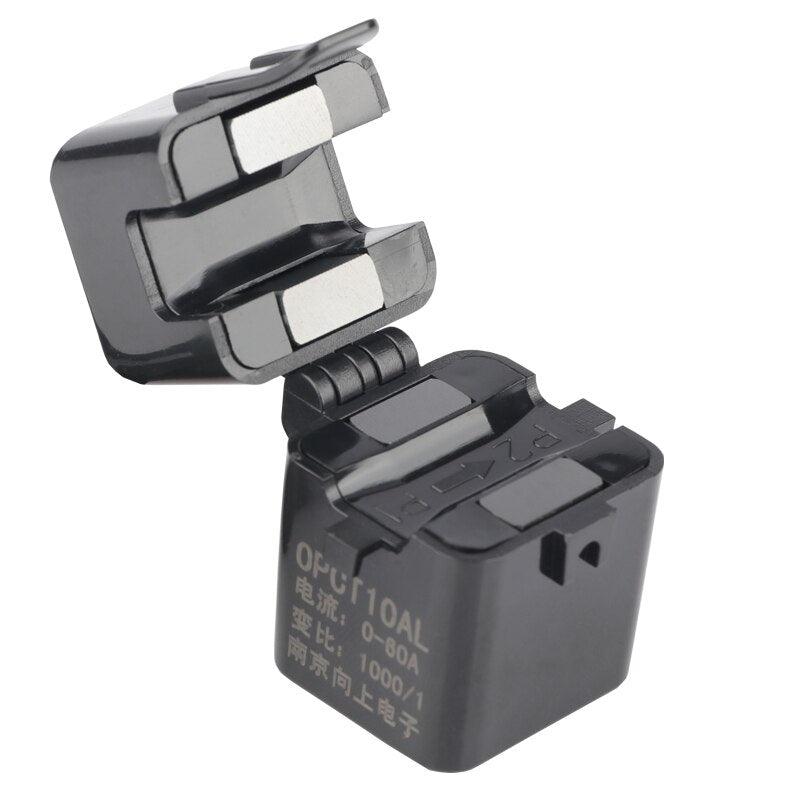

![5A/333mV Current Transformer](http://www.electric-b2c.com/cdn/shop/products/split-core-current-transformer-opct10al-5a333mv-10a333mv-60a333mv-electrical-center-b2c-1.jpg?v=1718875891&width=1445)

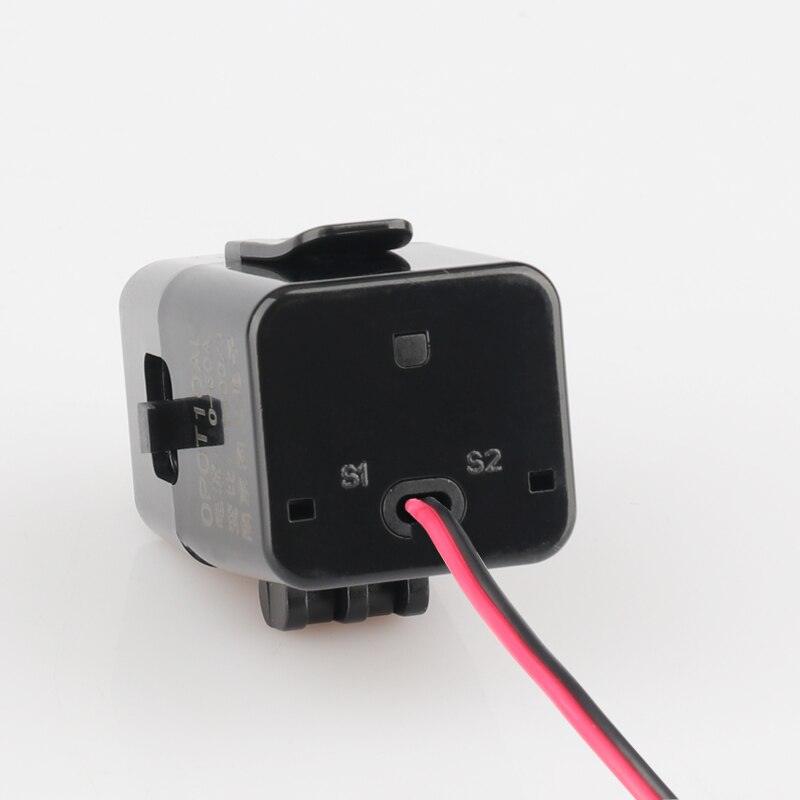

![10A/333mV Current Transformer](http://www.electric-b2c.com/cdn/shop/products/split-core-current-transformer-opct10al-5a333mv-10a333mv-60a333mv-electrical-center-b2c-2.jpg?v=1718875892&width=1445)

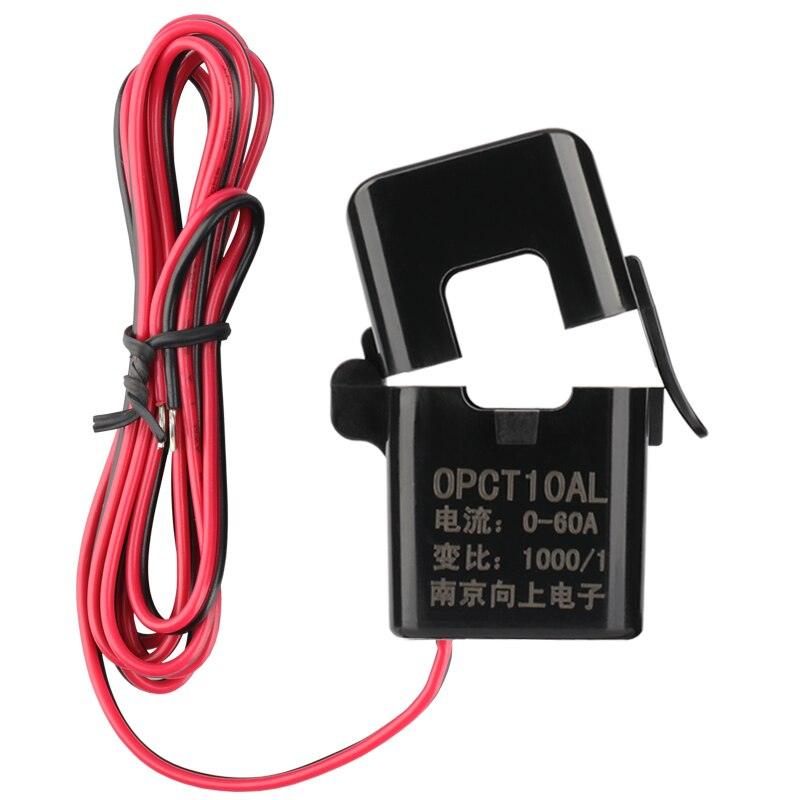

![60A/333mV mini split core](http://www.electric-b2c.com/cdn/shop/products/split-core-current-transformer-opct10al-5a333mv-10a333mv-60a333mv-electrical-center-b2c-3.jpg?v=1718875894&width=1445)

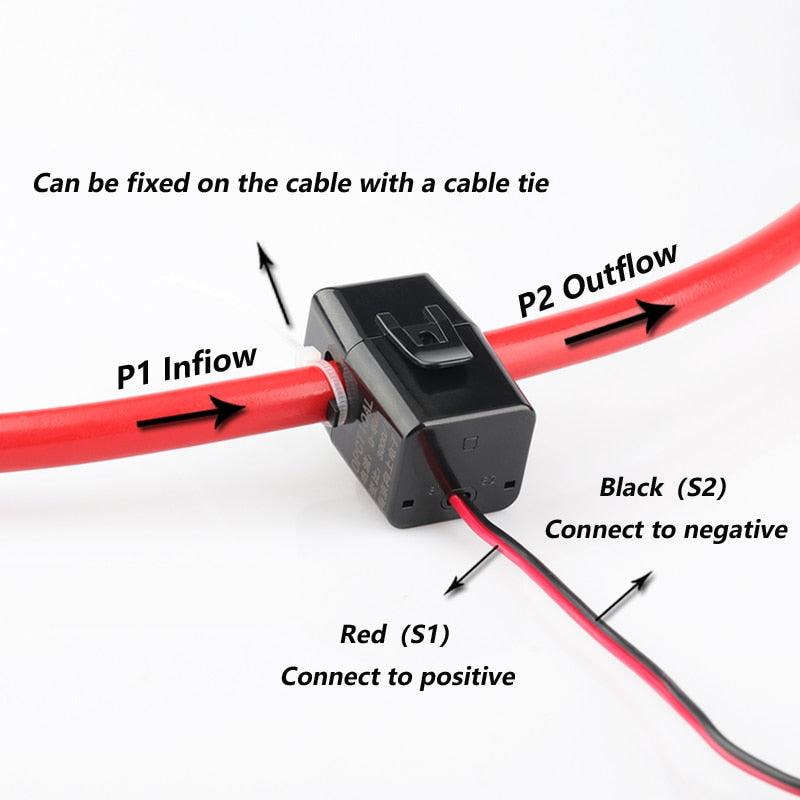

![mini split core Current Transformer](http://www.electric-b2c.com/cdn/shop/products/split-core-current-transformer-opct10al-5a333mv-10a333mv-60a333mv-electrical-center-b2c-4.jpg?v=1718875895&width=1445)

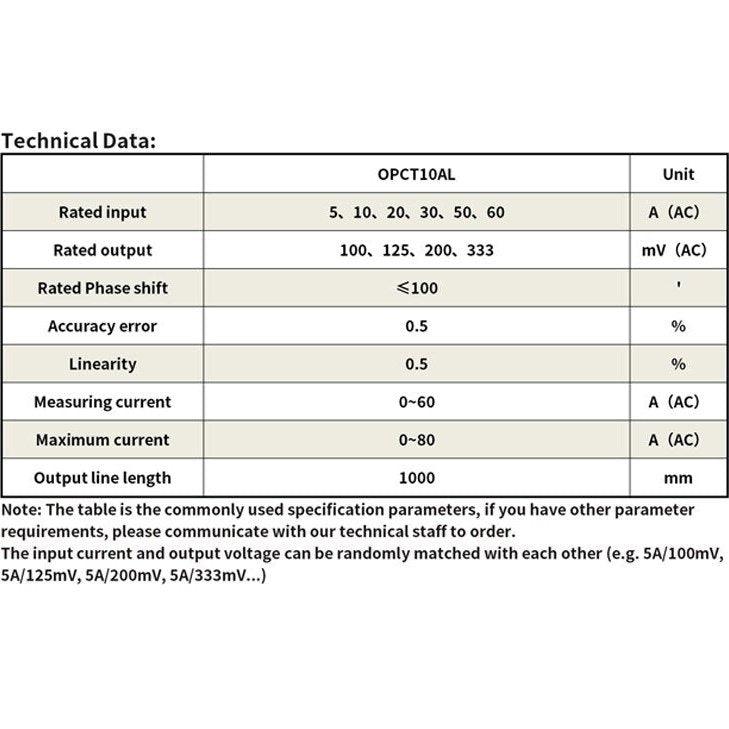

![Split core Current Transformer OPCT10AL 5A/333mV 10A/333mV 60A/333mV.](http://www.electric-b2c.com/cdn/shop/products/split-core-current-transformer-opct10al-5a333mv-10a333mv-60a333mv-electrical-center-b2c-5.jpg?v=1718875896&width=1445)

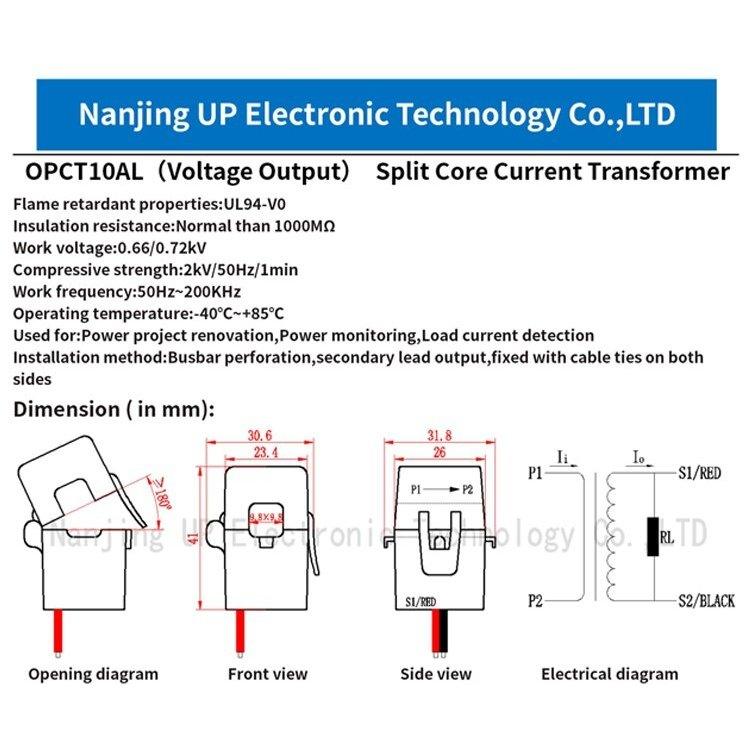

![Split core Current Transformer OPCT10AL 5A/333mV 10A/333mV 60A/333mV.](http://www.electric-b2c.com/cdn/shop/products/split-core-current-transformer-opct10al-5a333mv-10a333mv-60a333mv-electrical-center-b2c-6.jpg?v=1718875898&width=1445)
