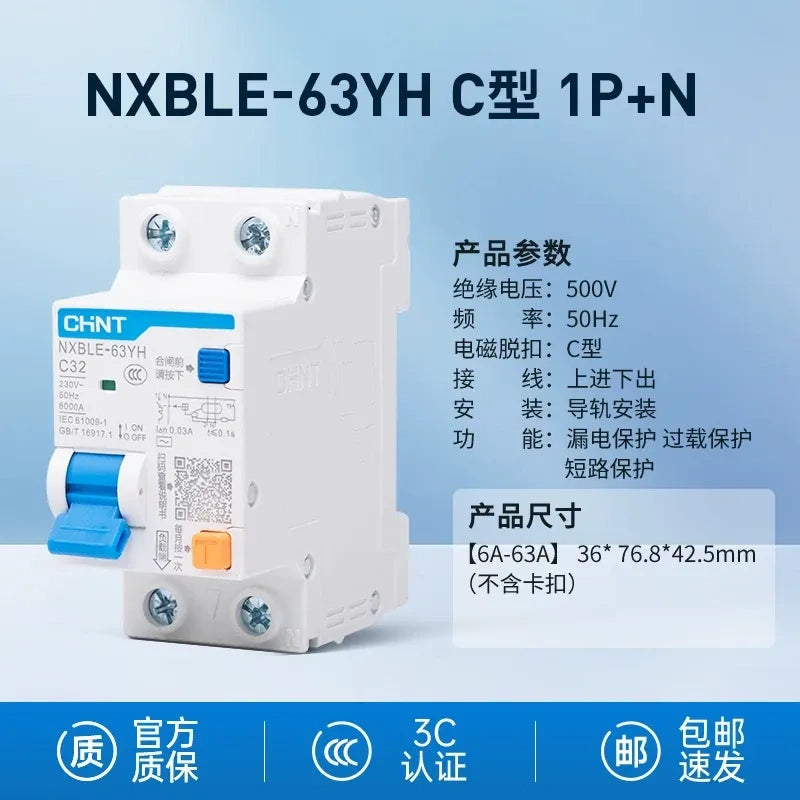

• NXBLE63YH-63YH 1P+N Leakage Circuit Breaker ,1P+N RCBO
  • CHNT DPN 1P+N 30mA RCBO NXBLE-63Y Residual Current Operated Circuit Breaker Over Current Leakage Protection 6 10 16 20 25 40 63A.
  • CHNT DPN 1P+N 30mA RCBO NXBLE-63Y Residual Current Operated Circuit Breaker Over Current Leakage Protection 6 10 16 20 25 40 63A.
  • CHNT DPN 1P+N 30mA RCBO NXBLE-63Y Residual Current Operated Circuit Breaker Over Current Leakage Protection 6 10 16 20 25 40 63A.
  • CHNT DPN 1P+N 30mA RCBO NXBLE-63Y Residual Current Operated Circuit Breaker Over Current Leakage Protection 6 10 16 20 25 40 63A.
  • CHNT DPN 1P+N 30mA RCBO NXBLE-63Y Residual Current Operated Circuit Breaker Over Current Leakage Protection 6 10 16 20 25 40 63A.

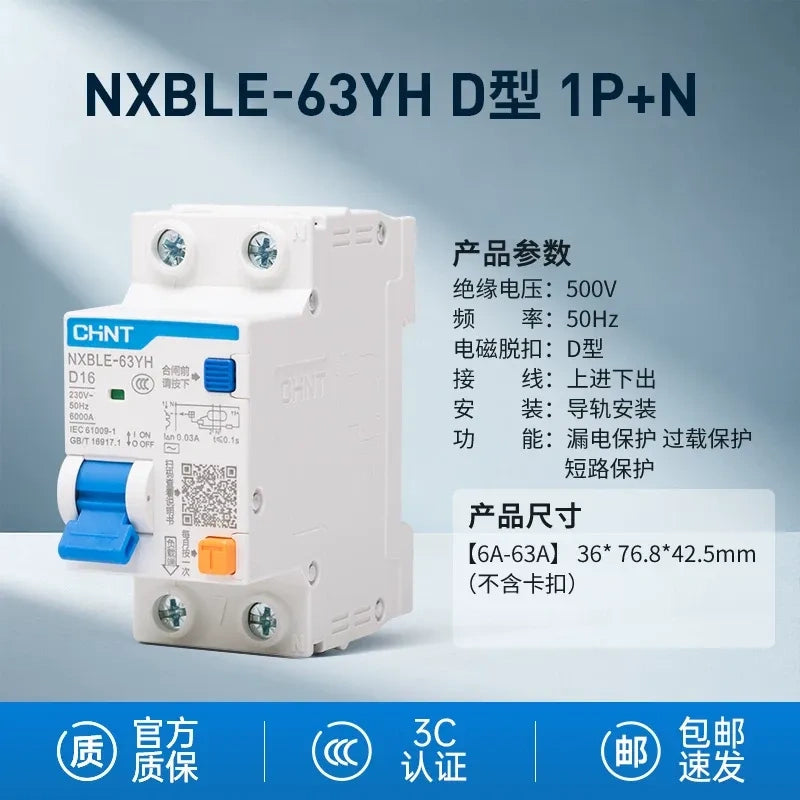

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE D ,1P+N RCBO

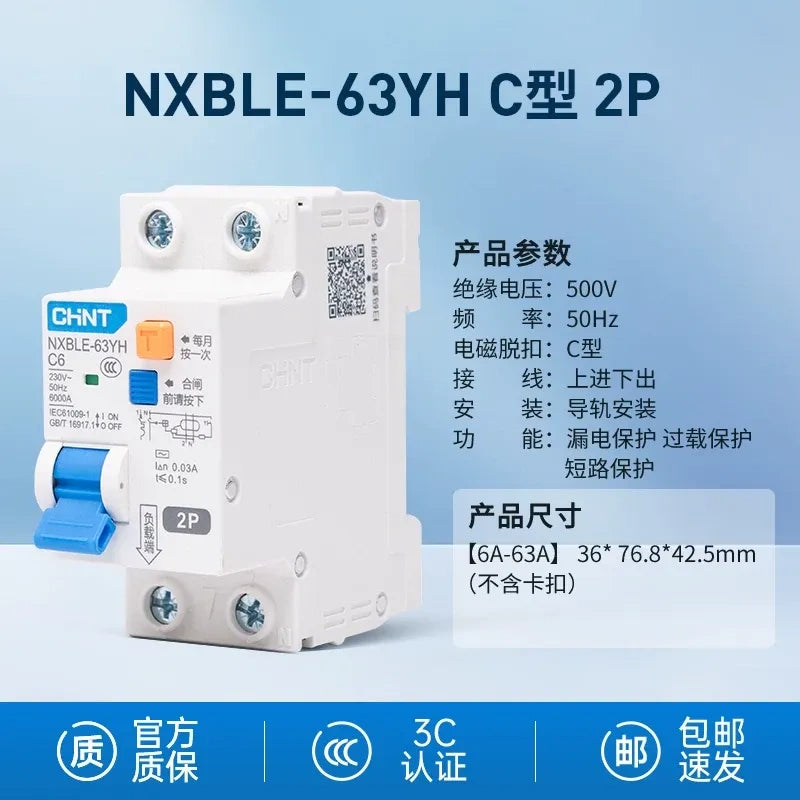

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE C,2P RCBO

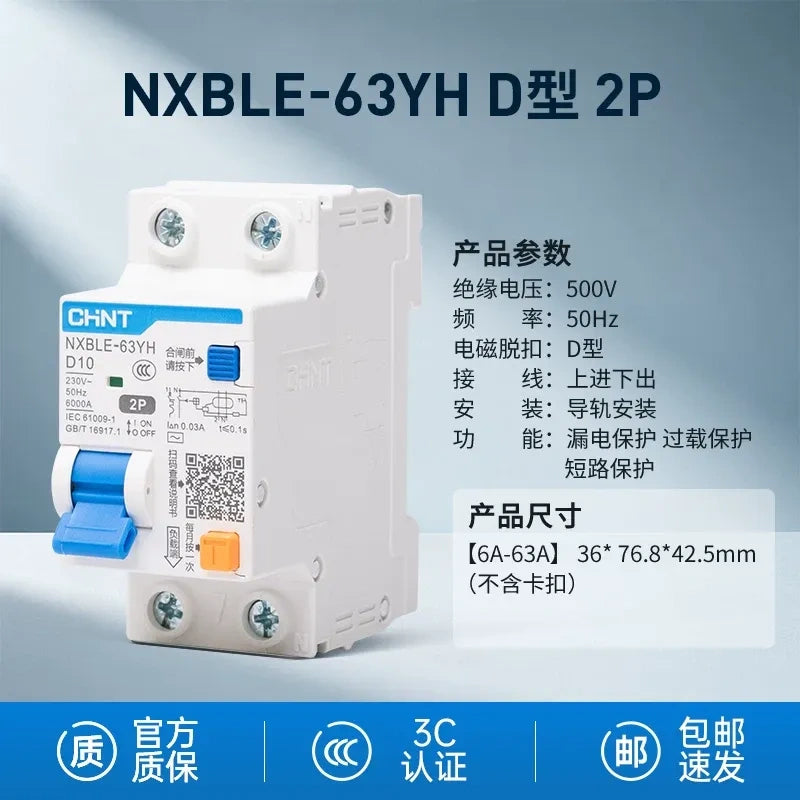

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE D,2P RCBO

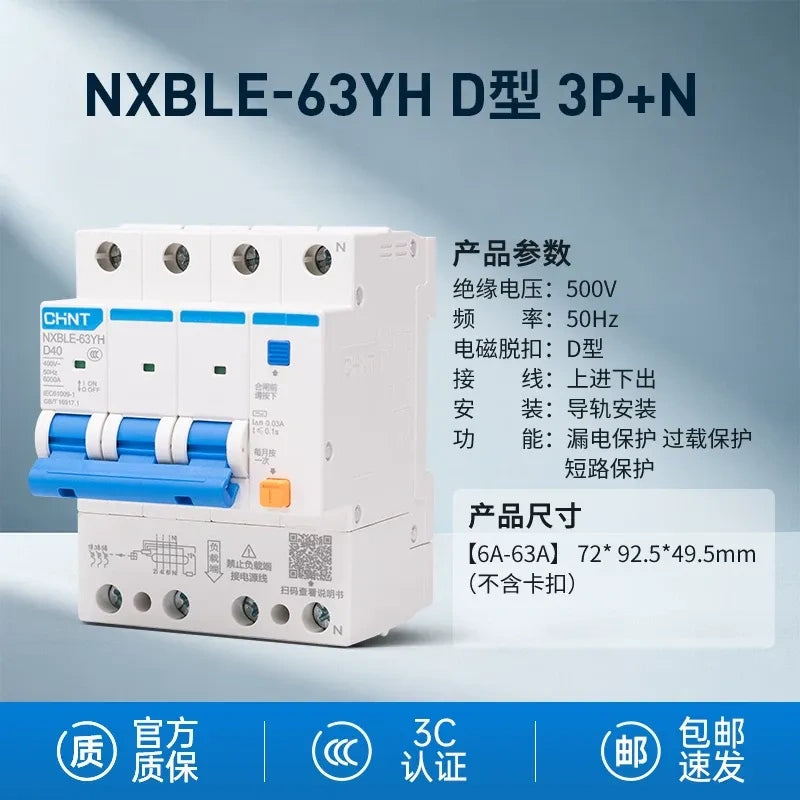

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE D ,2P+N RCBO

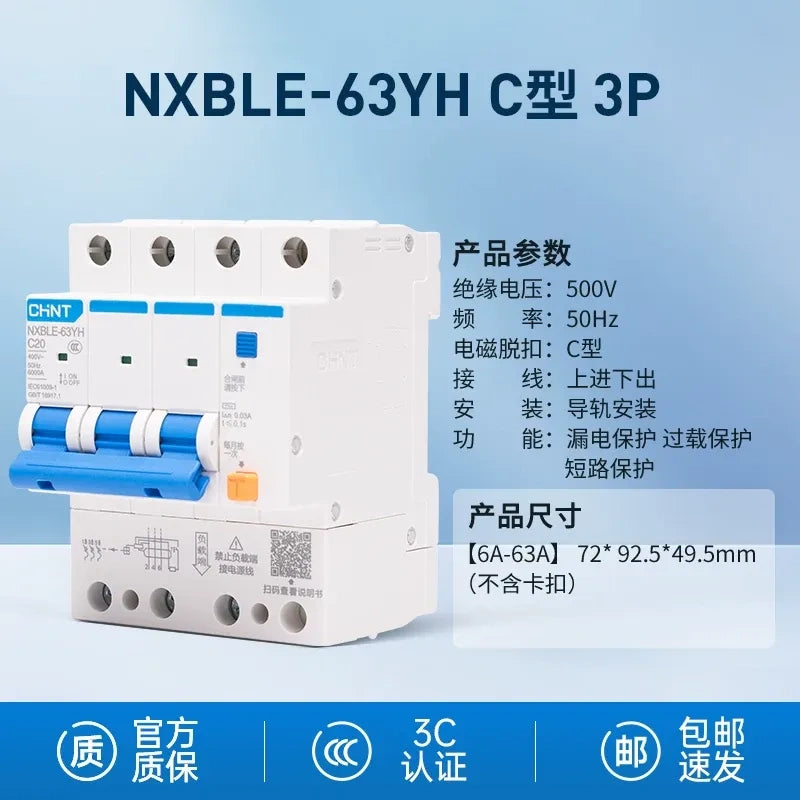

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE C,3P RCBO

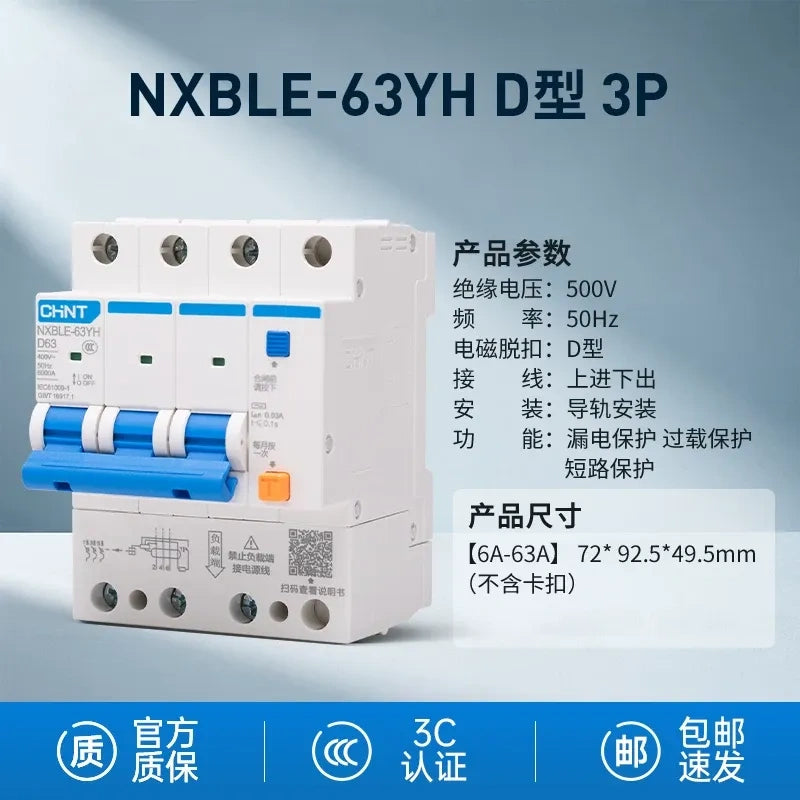

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE D,3P RCBO

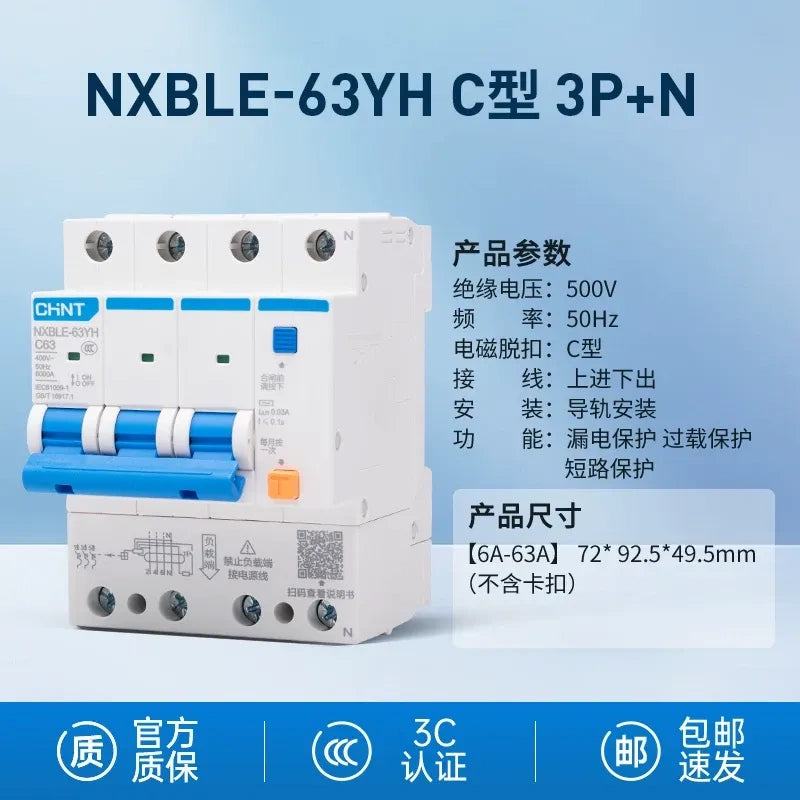

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE C ,3P+N RCBO
  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE D ,1P+N RCBO

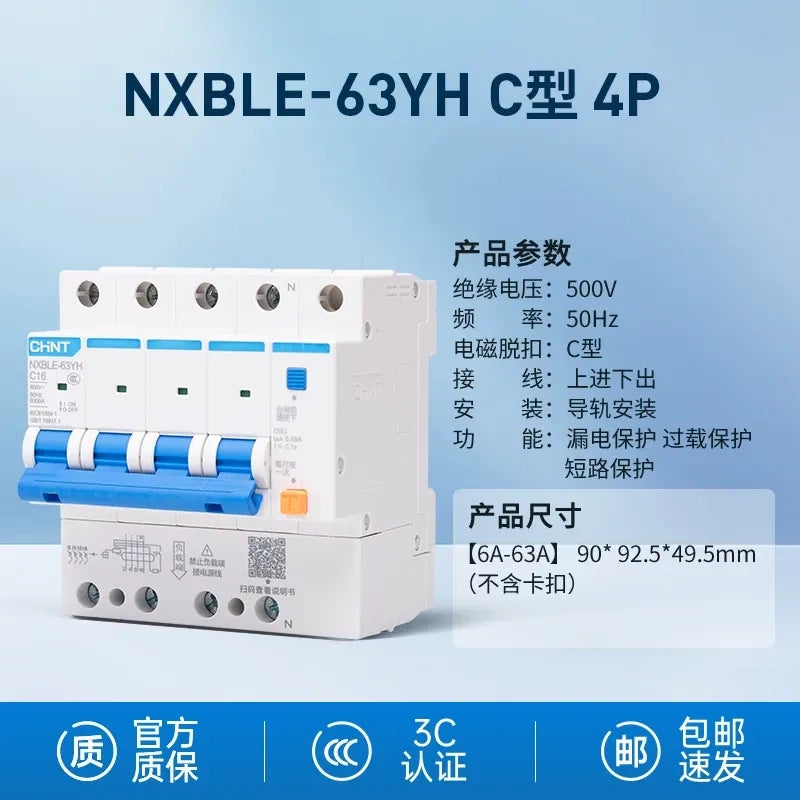

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE C ,4P RCBO

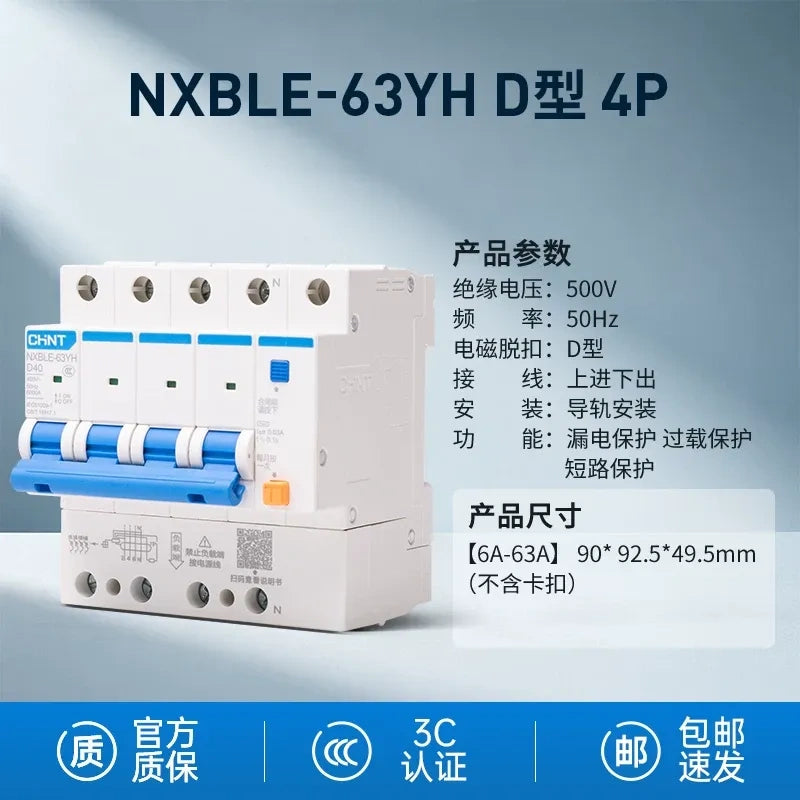

  • NXBLE63YH-63YH 1P+N Leakage Circuit Breaker TYPE D,4P RCBO
1 9

CHINT ELECRTIC

CHINT NXBLE-63YH Residual Current Circuit Breaker 1P+N/2P/3P/3P+N/4P 6A~63A

$17.60 USD
$17.60 USD
Sale Sold out
Shipping calculated at checkout.
Pole No.
Rated Current

CHNT NXBLE-63YH Residual Current Circuit Breaker, C/D Curve RCD MCB 1P+N/2P/3P/3P+N/4P 6A~63A Narrow Body Earth Leakage Protection Air Switch for Household Distribution Box

Description

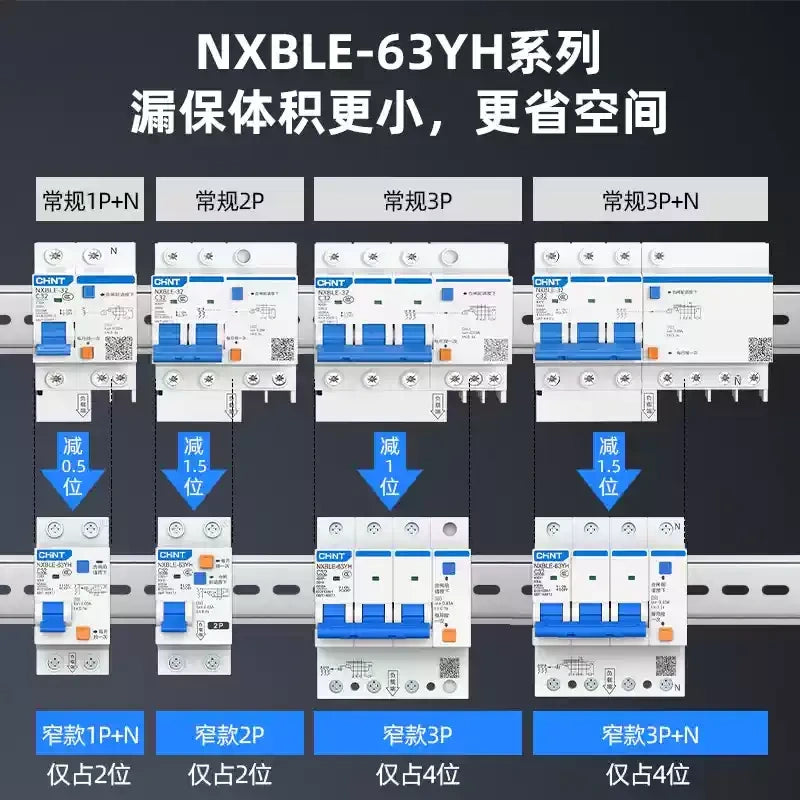

Original CHNT NXBLE-63YH narrow-type leakage circuit breaker, compact size same occupancy as ordinary MCB; available C Curve(5~10In for home appliance) & D Curve(10~20In for motor/inductive equipment), rated current 6A/10A/16A/20A/25A/32A/40A/50A/63A, pole options:1P+N,2P,3P,3P+N,4P.

1P+N/2P for AC230V single-phase household,3P/3P+N/4P for AC400V three-phase; 30mA standard leakage trip, 4-in-1 protection: Overload+Short-circuit+Earth Leakage+Isolation, breaking capacity 6000A, DIN rail mounting, ideal for kitchen/bathroom/socket/lighting circuit home wiring.

Specification

属性类目 参数详情
Brand CHNT（正泰）
Model NXBLE-63YH
Product Name Residual Current Operated Circuit Breaker(RCCB+MCB,Leakage Air Circuit Breaker)
Trip Characteristic C Type(5~10In, Household resistive load) / D Type(10~20In, Motor & high inrush inductive load)
Poles 1P+N、2P、3P、3P+N、4P
Rated Current 6A,10A,16A,20A,25A,32A,40A,50A,63A
Rated Voltage 1P+N/2P:AC230V；3P/3P+N/4P:AC400V
Rated Frequency 50Hz
Residual Trip Current 30mA（Standard human electric shock protection）
Breaking Capacity 6000A
Protection Functions Overload Protection+Short-circuit Protection+Earth Leakage Protection+Isolation Function
Installation Standard 35mm DIN Rail Mount, Narrow body design same cabinet occupancy as regular air breaker
Working Temp -35℃ ~ +70℃
Application Household PZ30 distribution box, bathroom/kitchen/outlet/air-conditioner/lighting circuit, small industrial motor control
