CHINT ELECRTIC

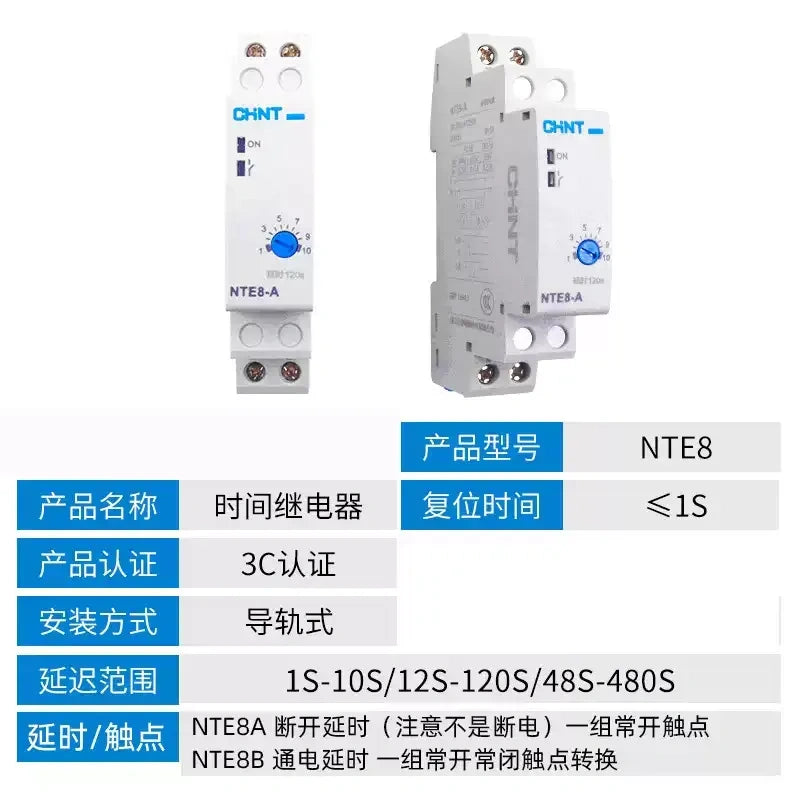

CHINT NTE8 Series DIN Rail Time Delay Relay NTE8A/NTE8B

$18.70 USD
$18.70 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.
Voltage

CHINT NTE8 Series DIN Rail Time Delay Relay NTE8A Break Delay / NTE8B Power On Delay Adjustable 1~480S AC220V DC24V Single Contact Timer Relay

Product Overview

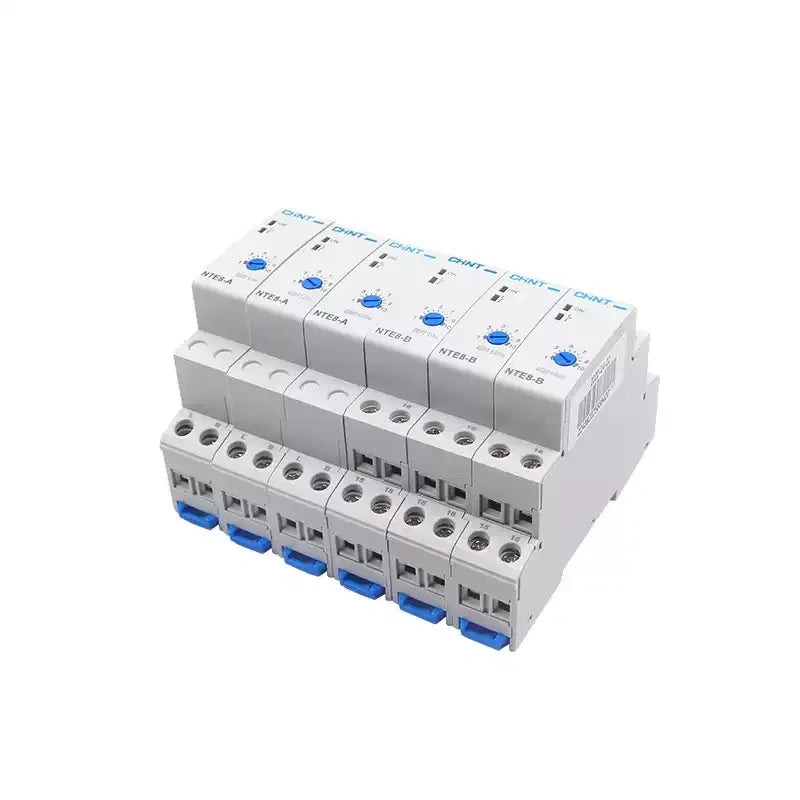

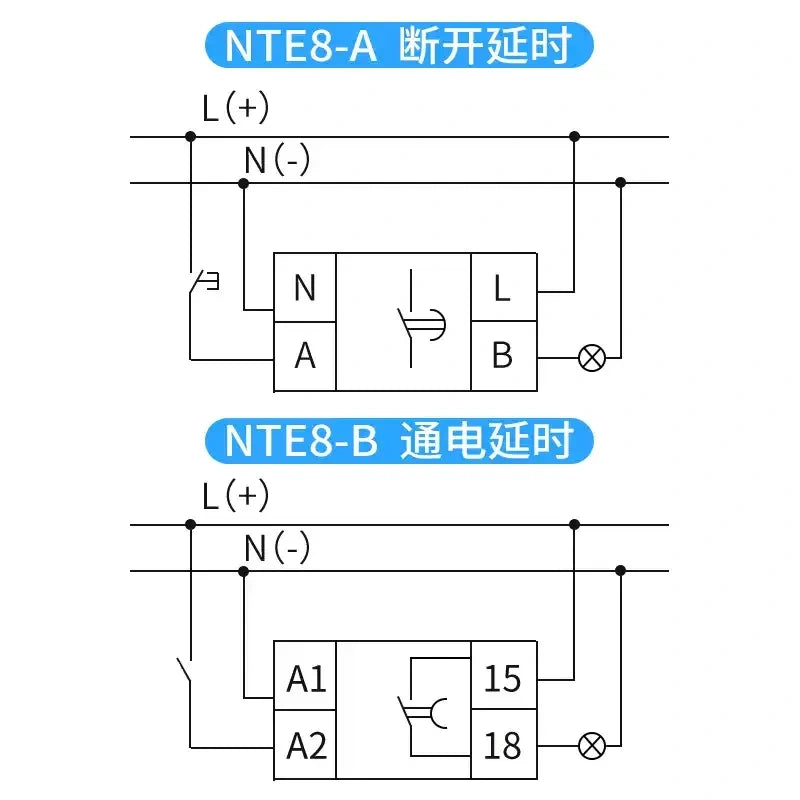

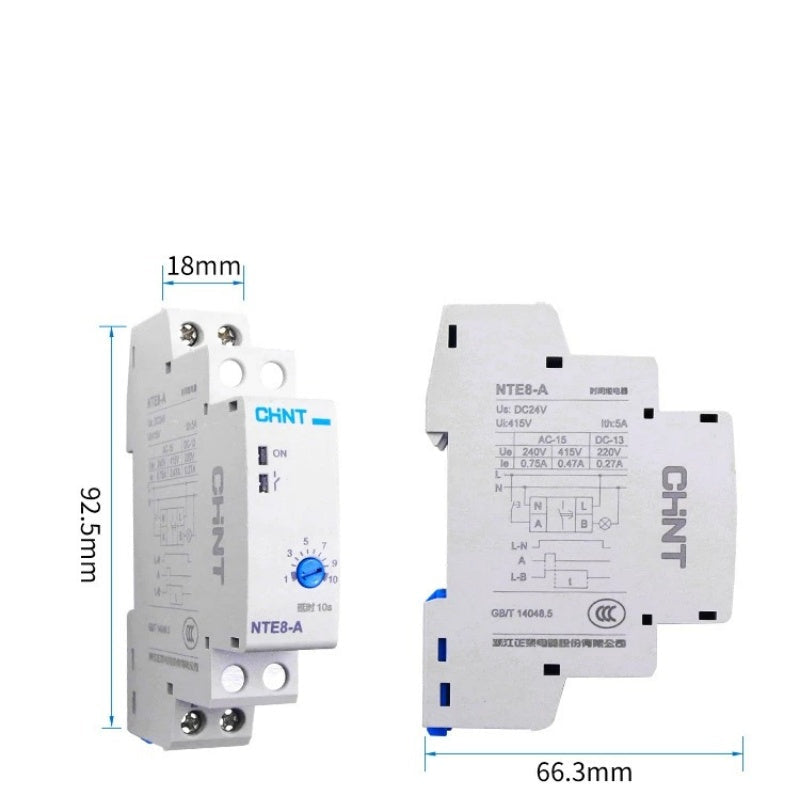

CHINT NTE8 modular DIN-rail mounted time relay has two working types:

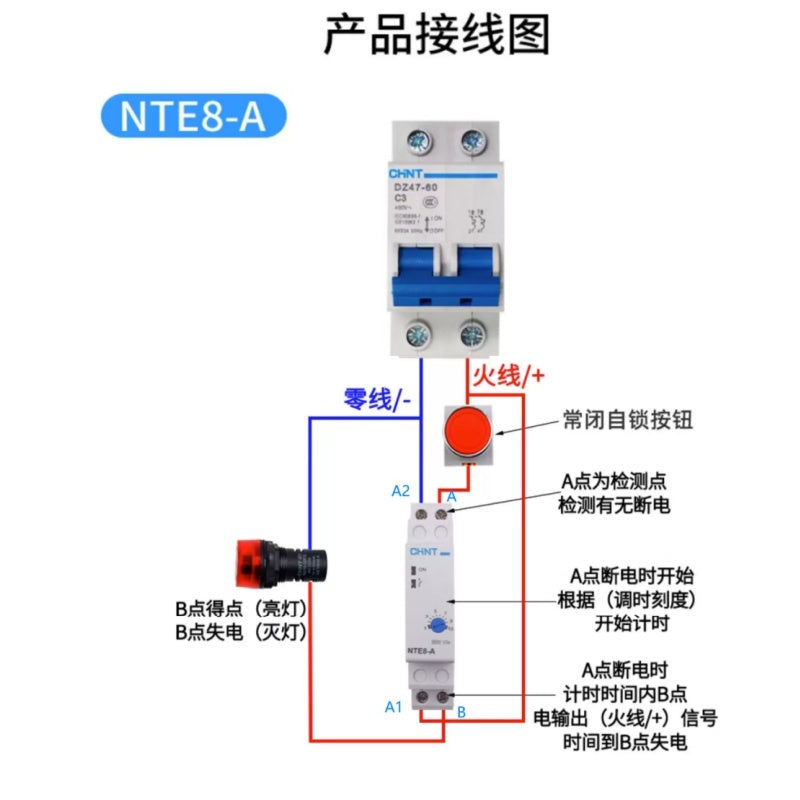

  • NTE8A: Signal Break Delay (not power-off delay) with 1NO contact

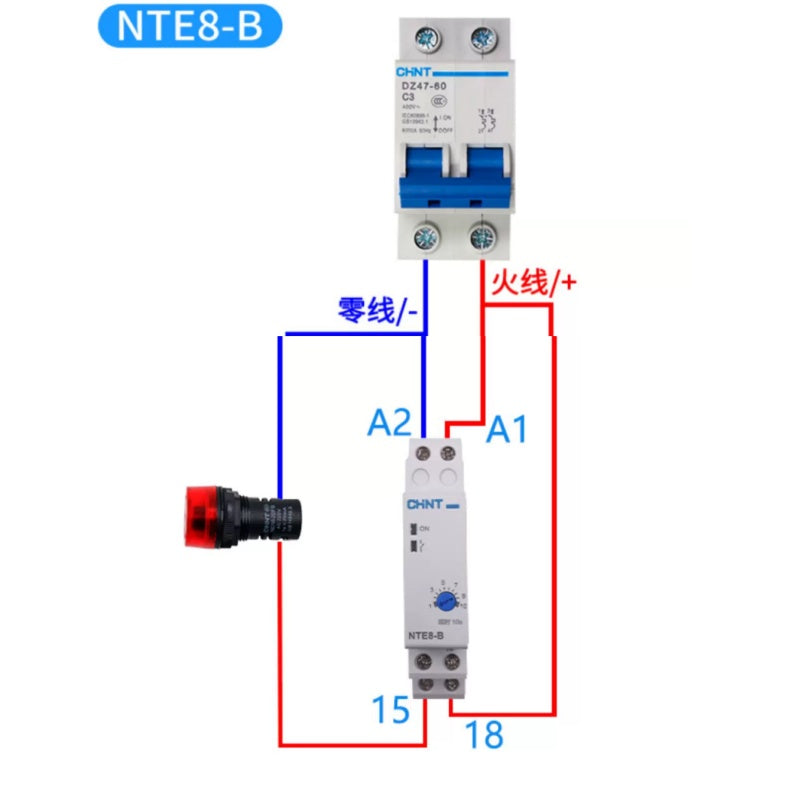

  • NTE8B: Power-on Delay with 1CO (1NO+1NC changeover contact)

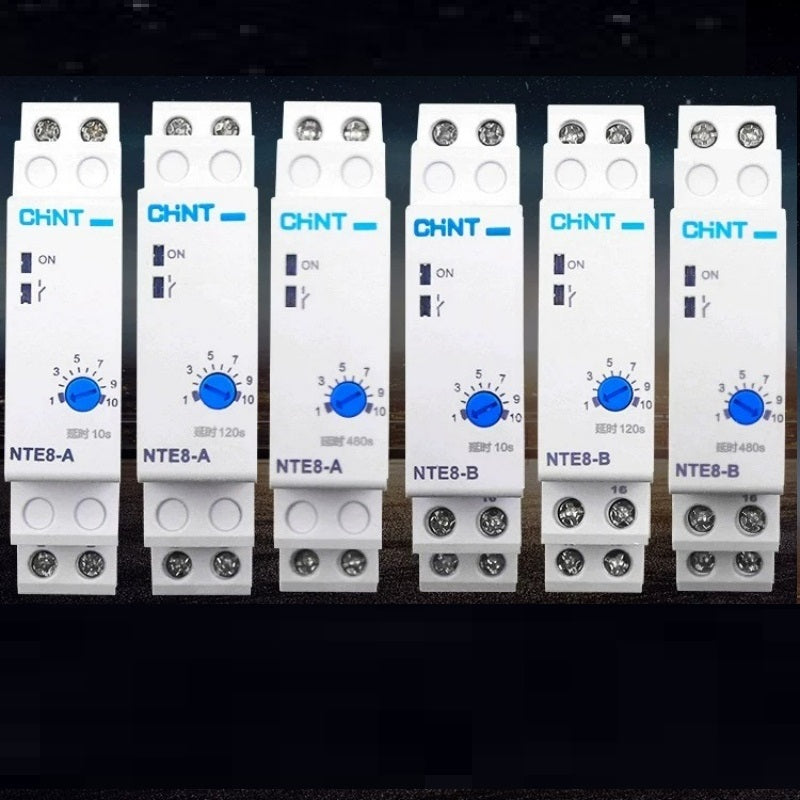

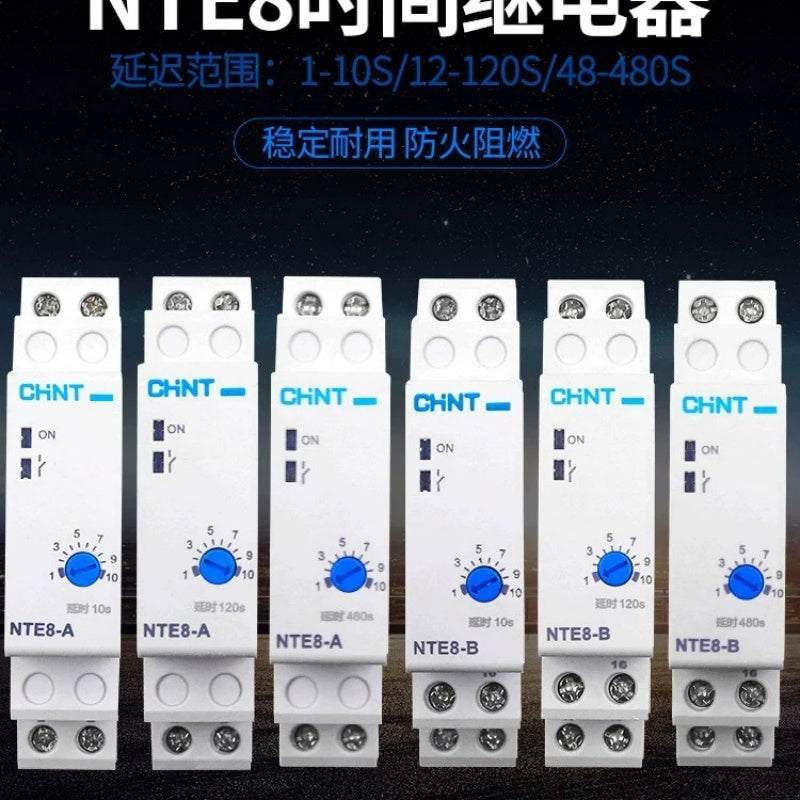

    3 standard adjustable timing ranges: 1~10s / 12~120s / 48~480S, coil voltage: AC220V / DC24V, standard 35mm DIN rail installation, flame retardant housing with CCC certification.

Option Buttons English Translation

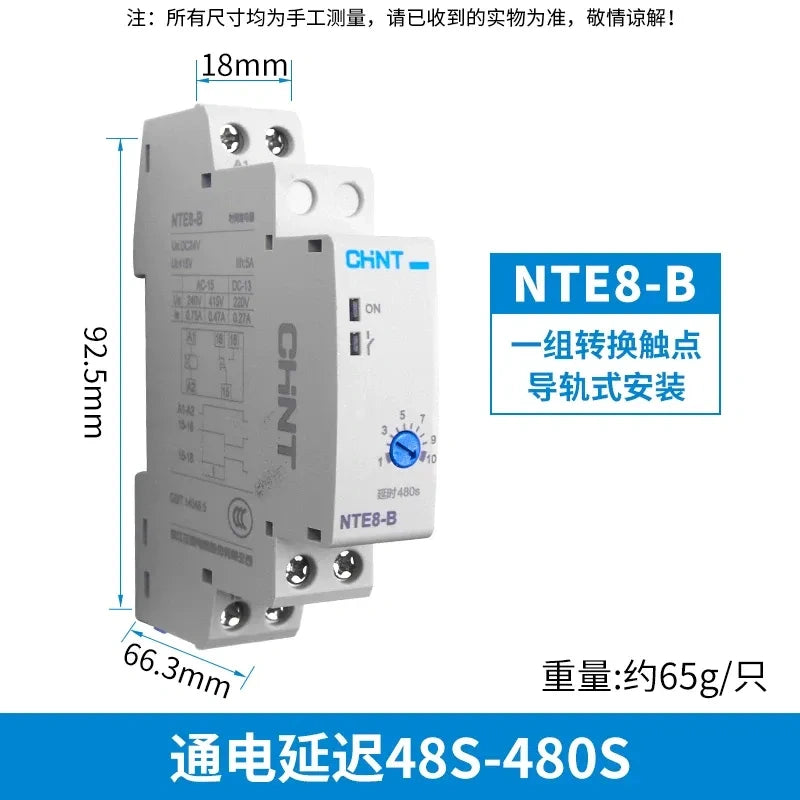

NTE8B Power-On Delay Type

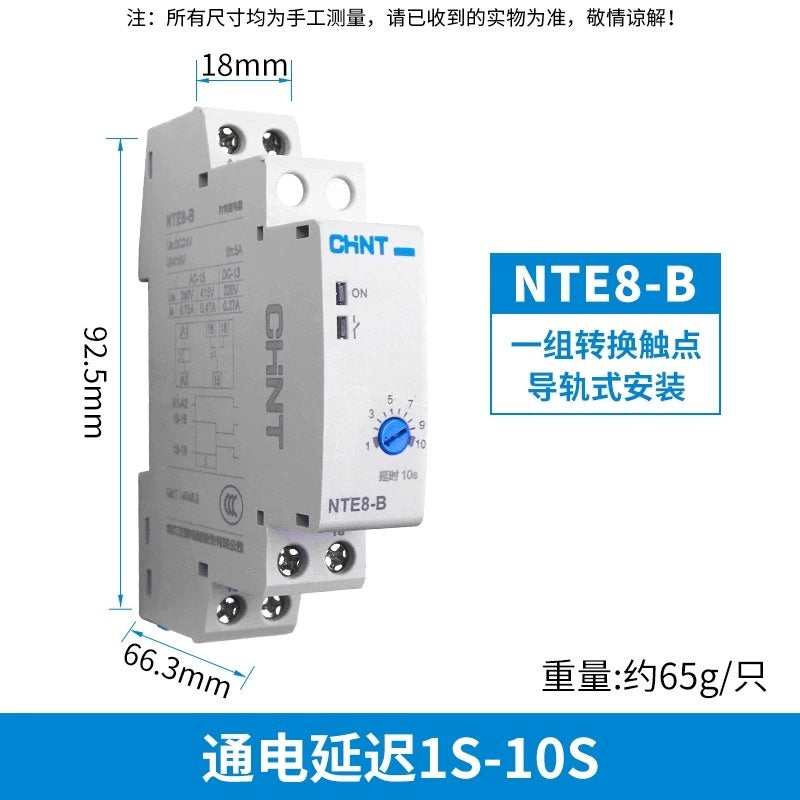

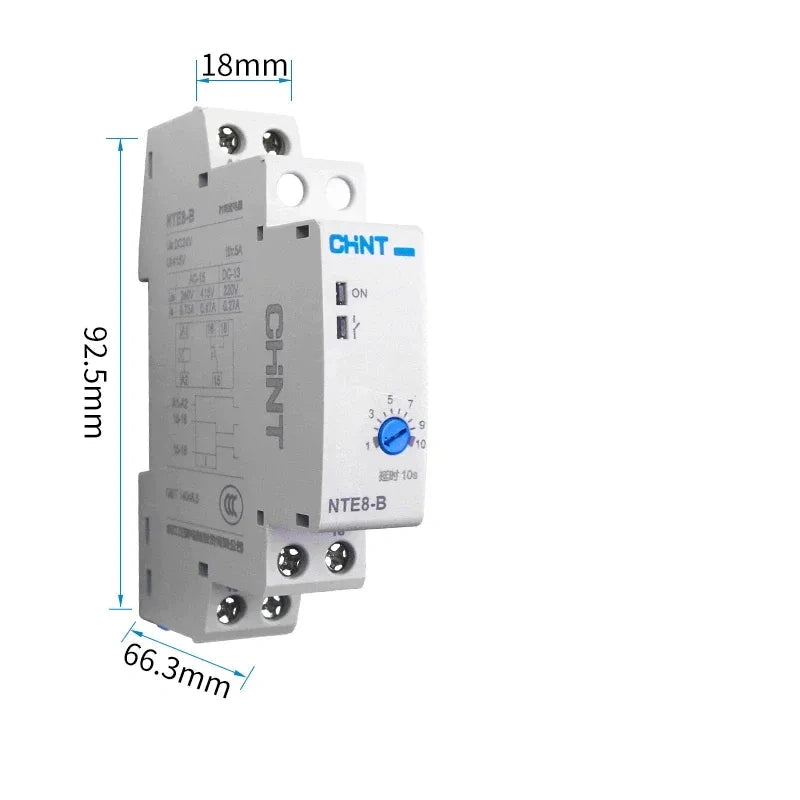

  1. B Power On Delay 1-10S → NTE8B Power On Delay 1~10 Seconds

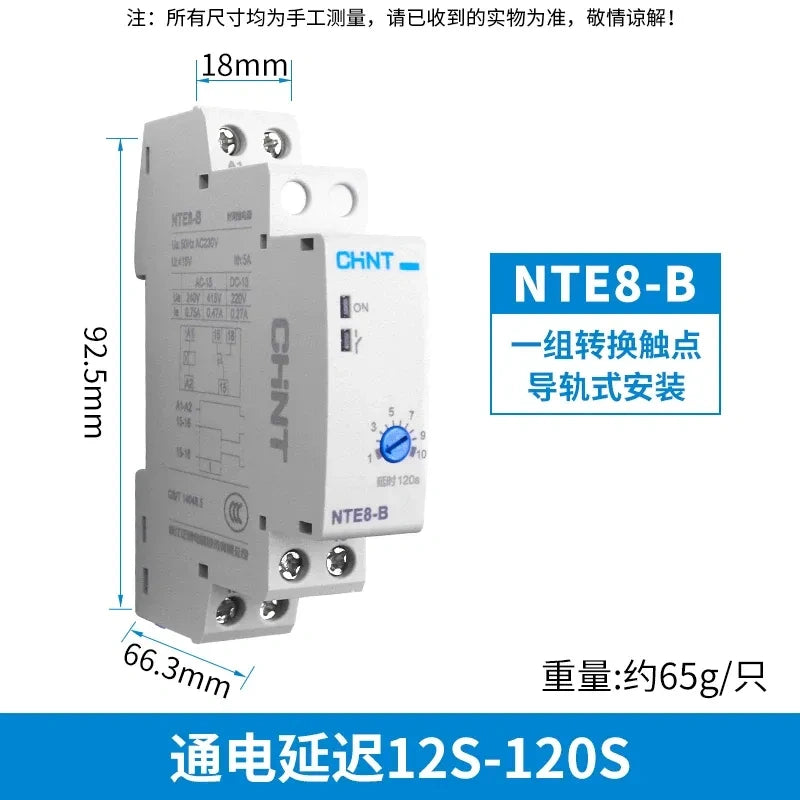

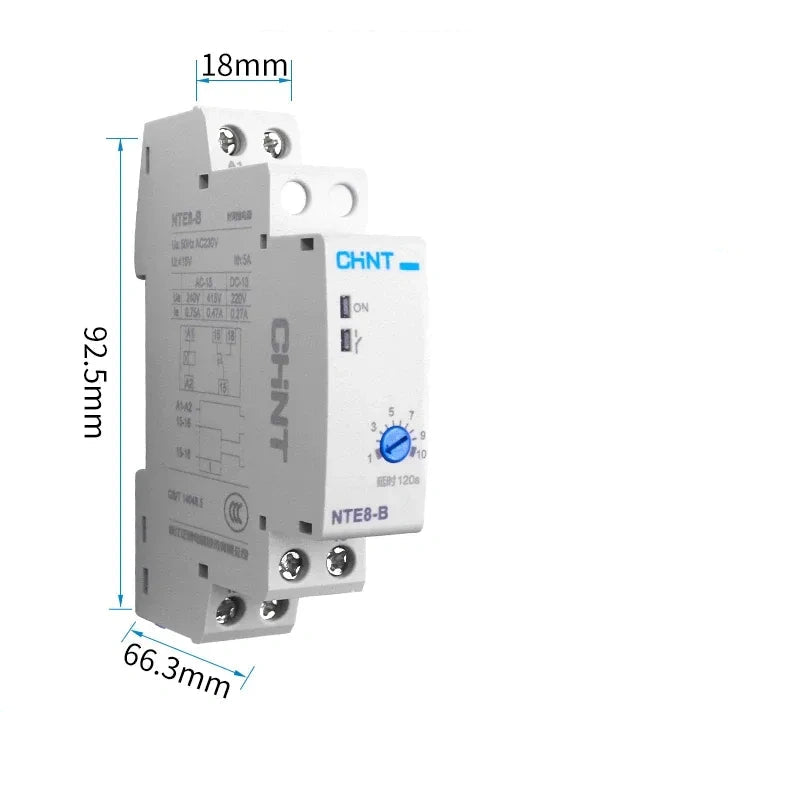

  2. B Power On Delay 12-120S → NTE8B Power On Delay 12~120 Seconds

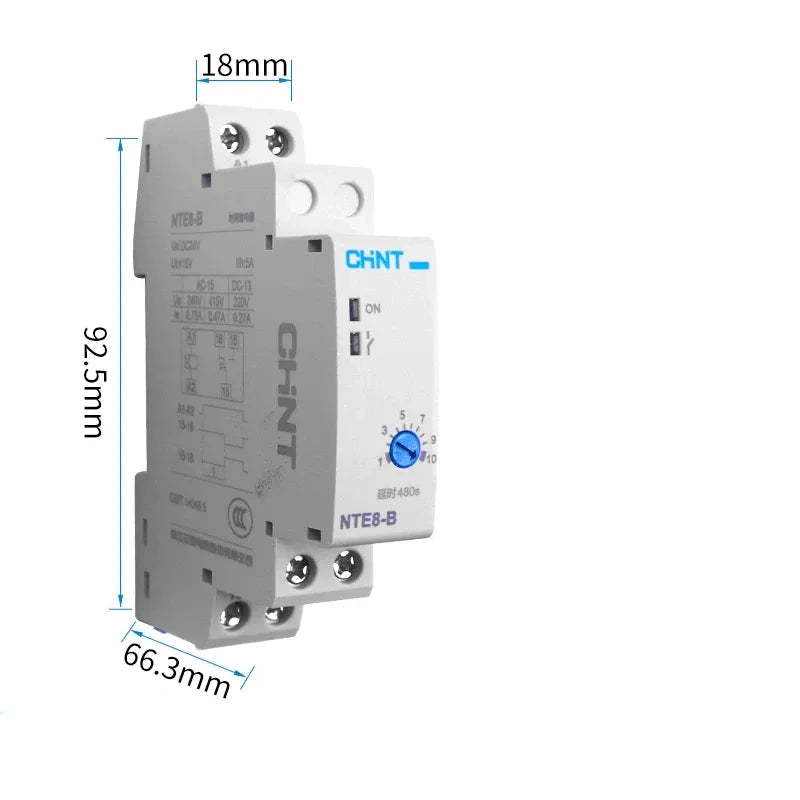

  3. B Power On Delay 48-480S → NTE8B Power On Delay 48~480 Seconds

NTE8A Signal Break Delay Type

  1. A Break Delay 1-10S → NTE8A Signal Break Delay 1~10 Seconds

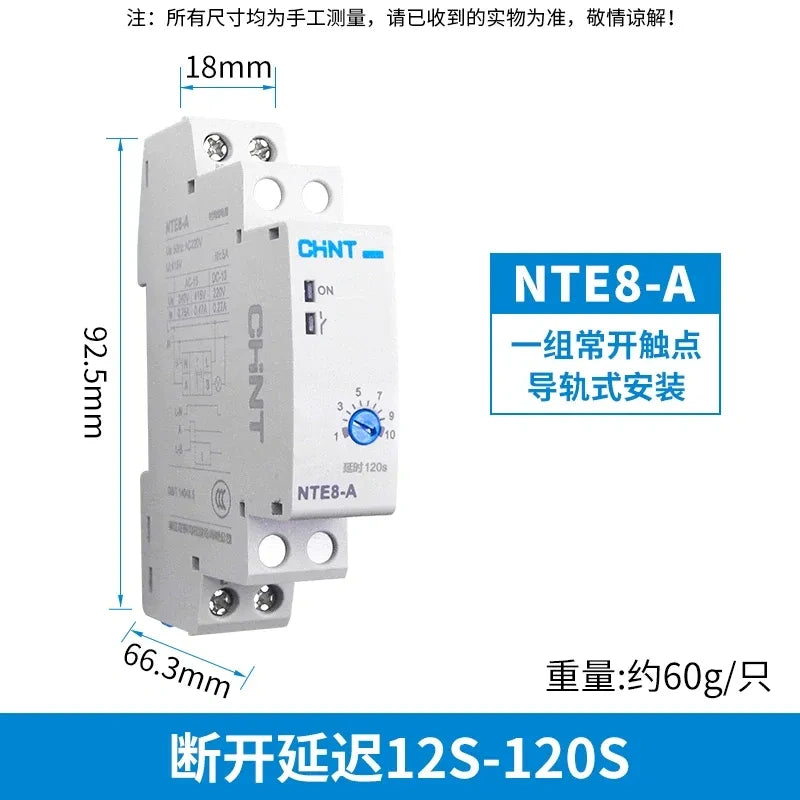

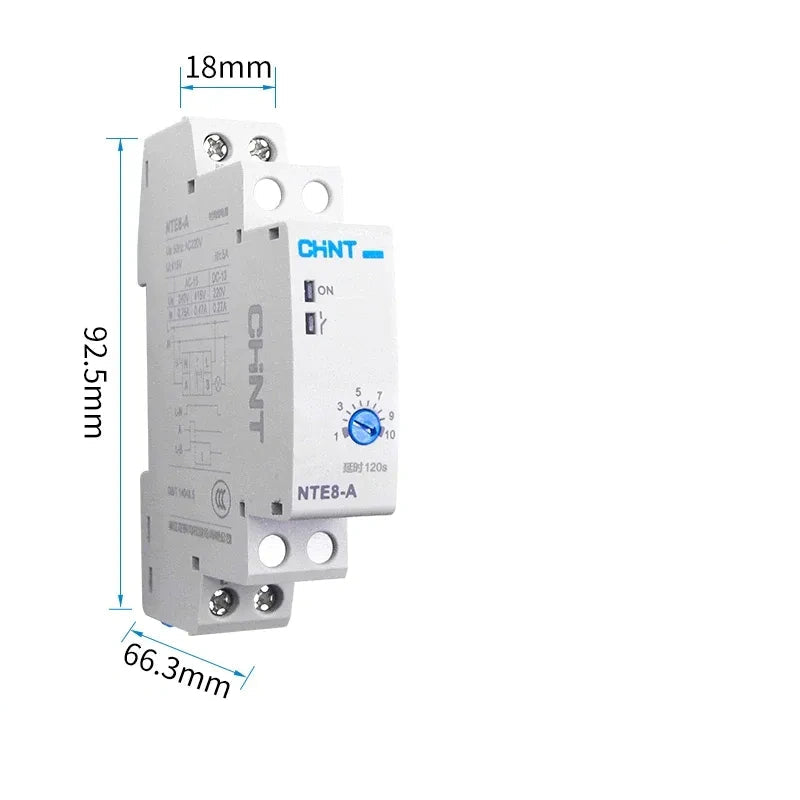

  2. A Break Delay 12-120S → NTE8A Signal Break Delay 12~120 Seconds

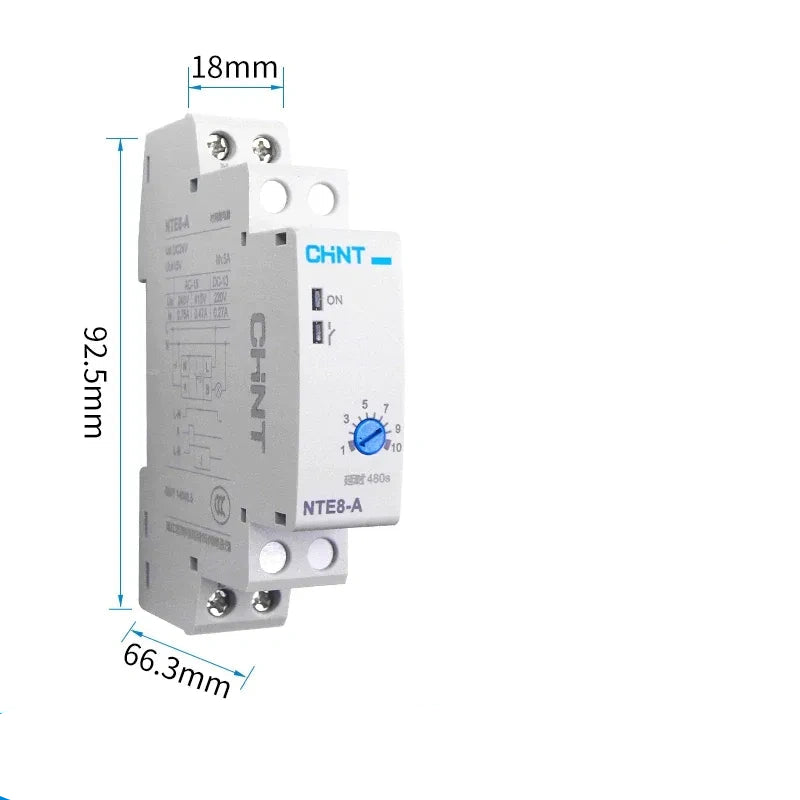

  3. A Break Delay 48-480S → NTE8A Signal Break Delay 48~480 Seconds

Coil Voltage Options

  • AC220V → AC 220VAC
  • DC24V → DC 24VDC

Core Technical Parameter

Item Spec
Model NTE8A(Break Delay) / NTE8B(Power On Delay)
Delay Range 1~10s / 12~120s / 48~480s
Rated Coil Voltage AC220V / DC24V
Contact Spec NTE8A:1NO; NTE8B:1CO(1NO+1NC)
Contact Rating AC240V/0.75A, AC415V/0.47A; DC220V/0.27A, Ith=5A
Reset Time ≤1s

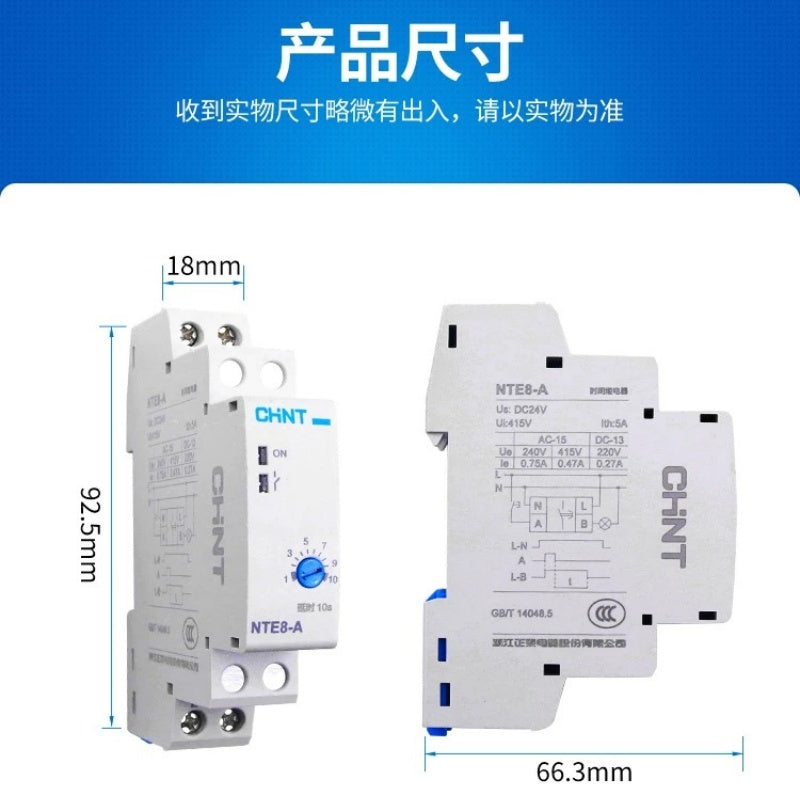

Mount 35mm DIN Rail Mount
Ambient Temp -5℃~+40℃
Electrical Life 100,000 operations; Mechanical Life:1,000,000 operations
Housing Flame retardant & durable plastic



Key Features

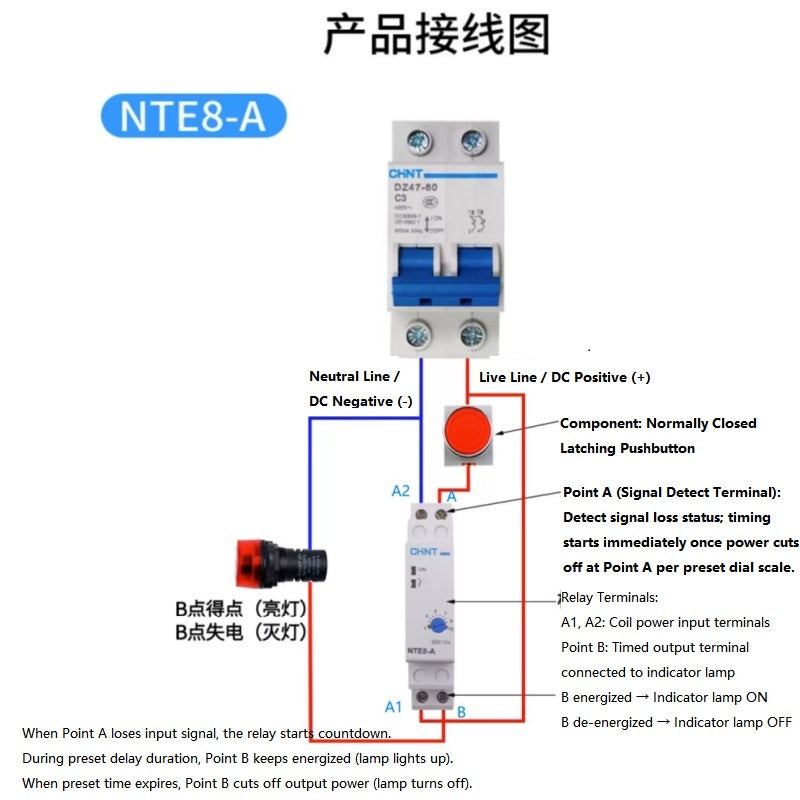

  1. Two Control Logic: NTE8B standard power-on delay; NTE8A signal break delay (delay runs after input signal cuts off, not power cut off).
  2. Compact DIN Rail Design: Slim modular size for cabinet standard rail installation, save panel space.
  3. Wide Adjustable Timing: Three full-range time specs cover short/medium/long delay automation needs.
  4. High Anti-flame Shell: Fire retardant material, stable performance for long-term industrial running.

Application

Home appliance lighting control, industrial automation equipment, new energy wind power equipment, communication cabinet sequential control & timing protection.
