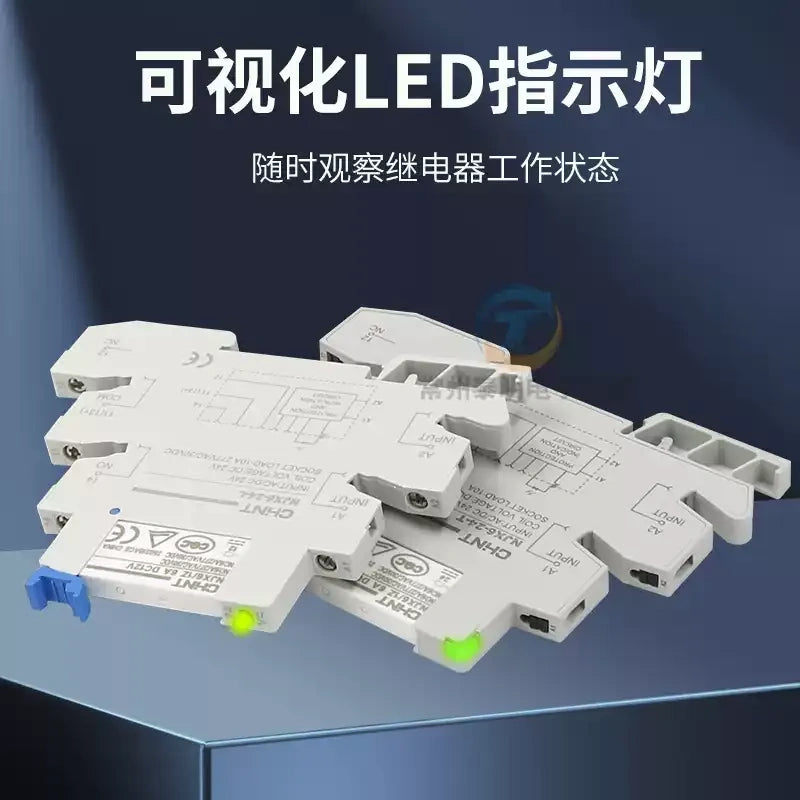

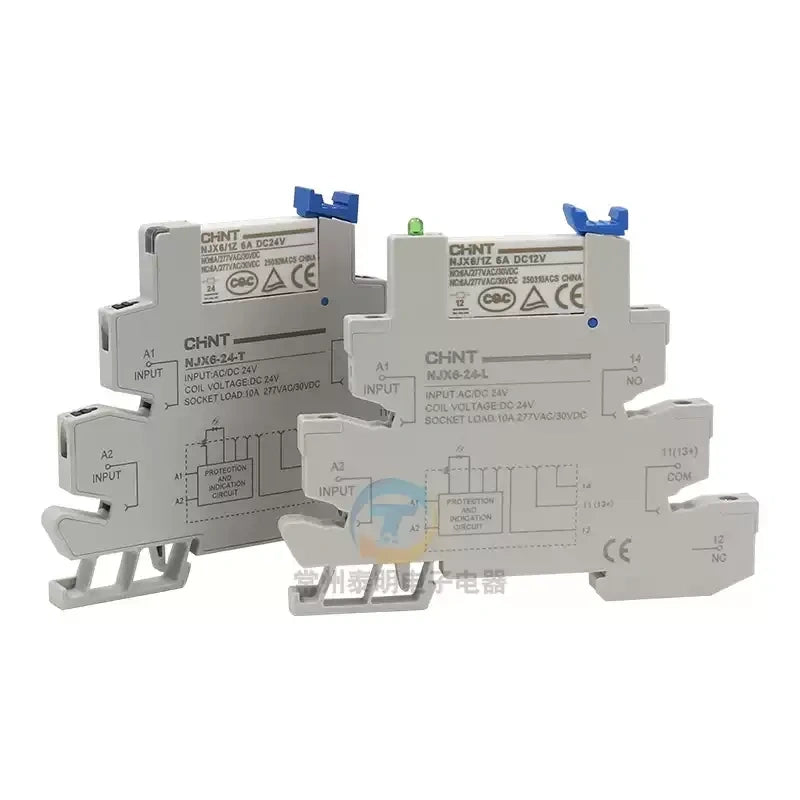

CHINT NJX6 Ultra-thin 6mm Slim Plug-in Relay

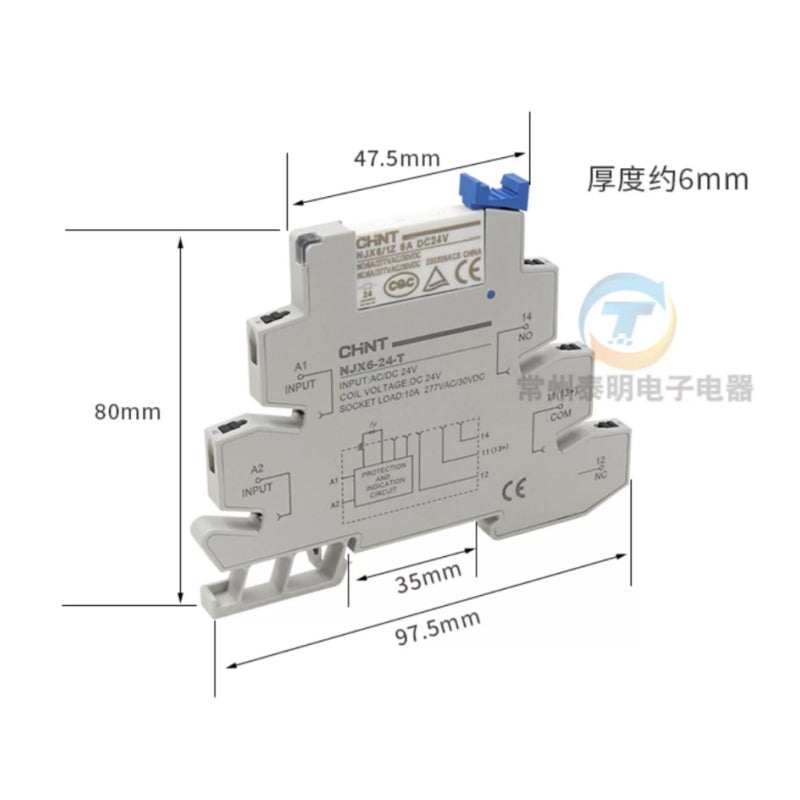

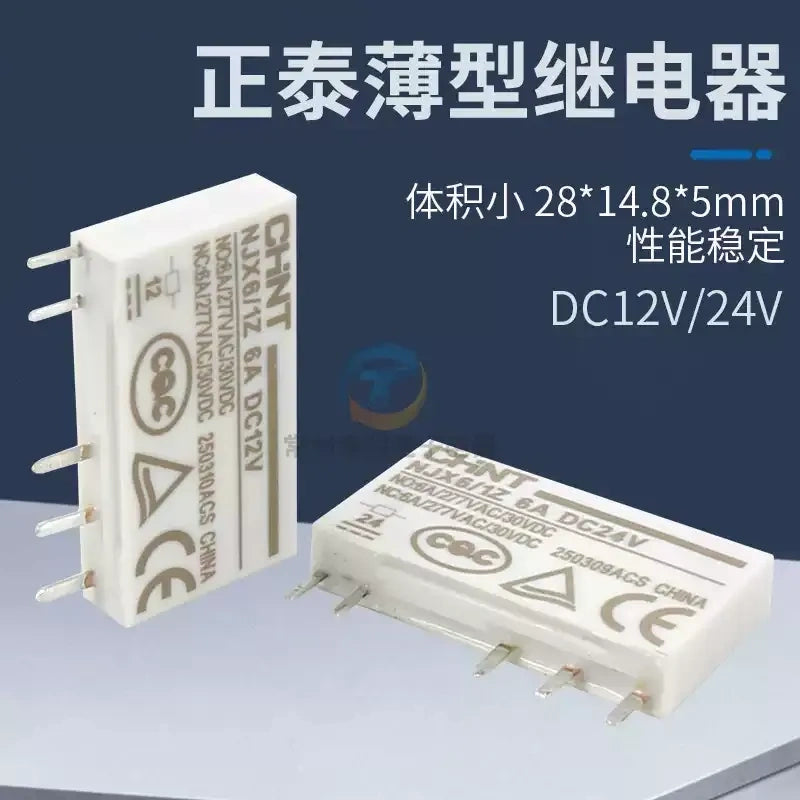

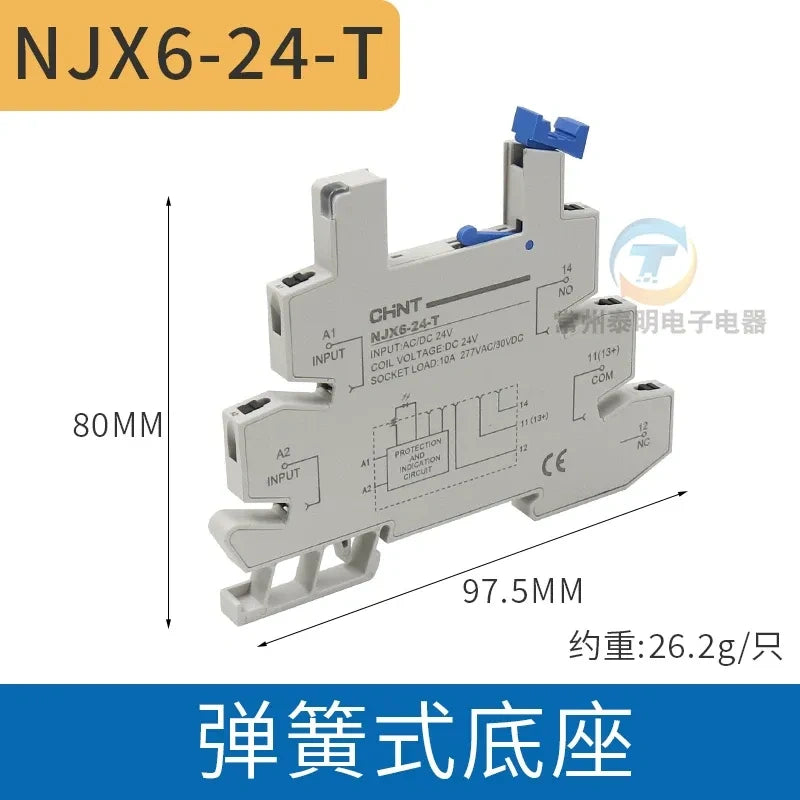

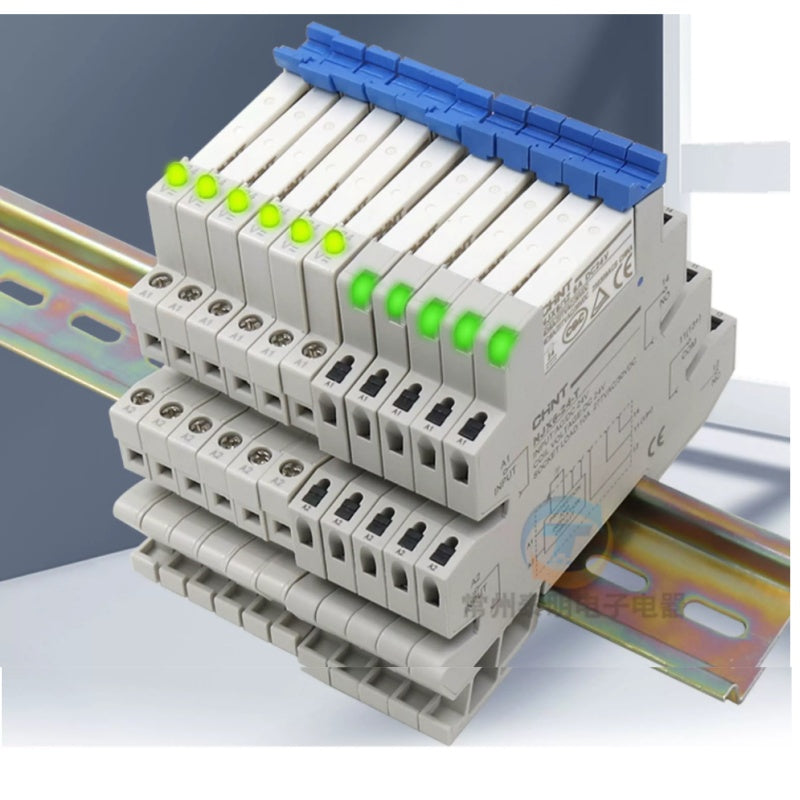

Genuine CHINT NJX6 series ultra-slim 6mm width intermediate relay, compact thin body design specially for dense PLC control cabinet installation. Single pole changeover 1Z (1NO+1NC) contact configuration, two load options:6A &10A, max switching rating 277VAC/30VDC. Multiple coil voltages:DC12V,DC24V,AC220V available. Two matching socket bases:Screw terminal base / Spring cage terminal base for optional assembly. Silver alloy contact ensures low contact resistance ≤100mΩ and long service lifespan, mechanical life up to 10 million cycles. Standard DIN rail mounting with optional jumper bars and marker tags for convenient centralized wiring. Certified CE,CQC,TUV complying with IEC61810-1 & GB/T21711.1, widely used for PLC signal amplification, solenoid valve and small actuator switching in industrial automation.

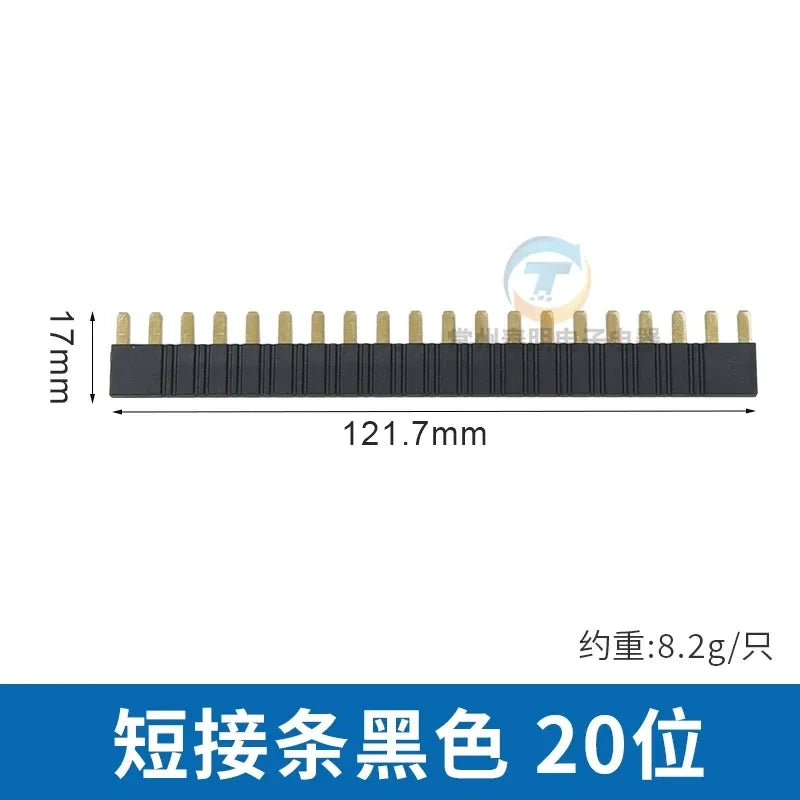

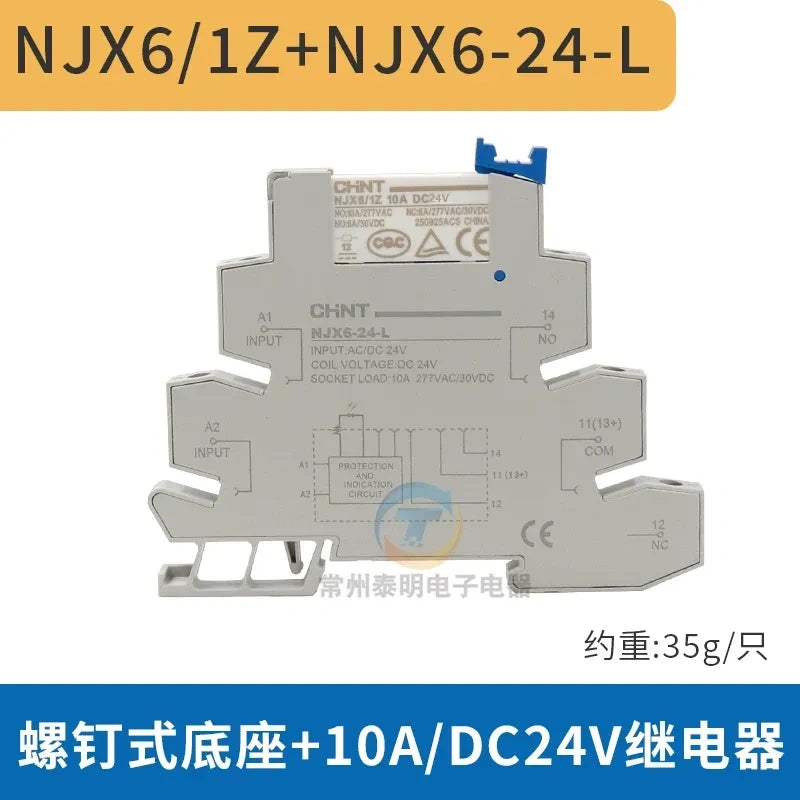

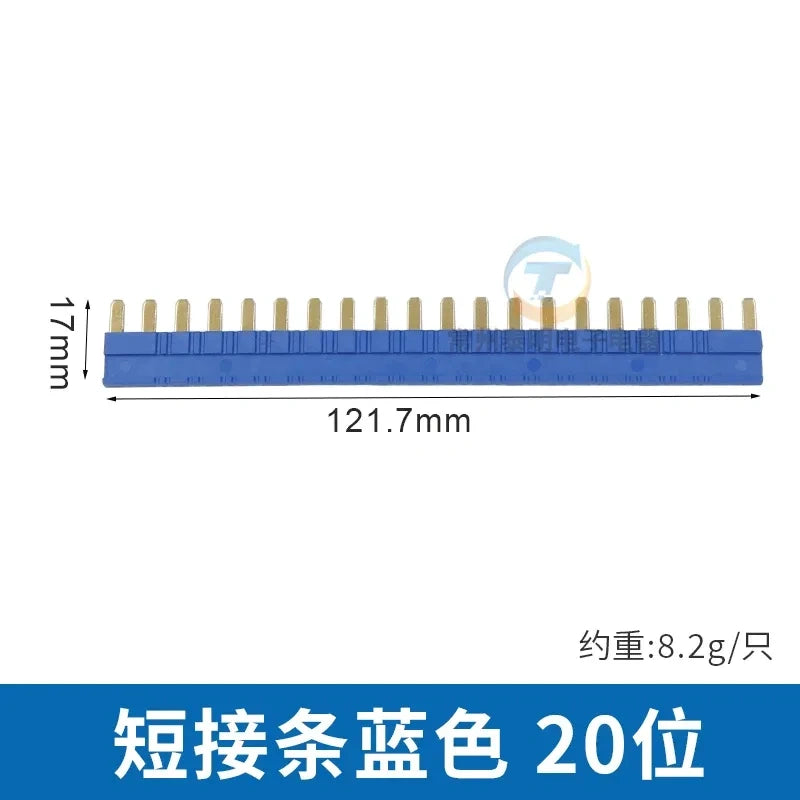

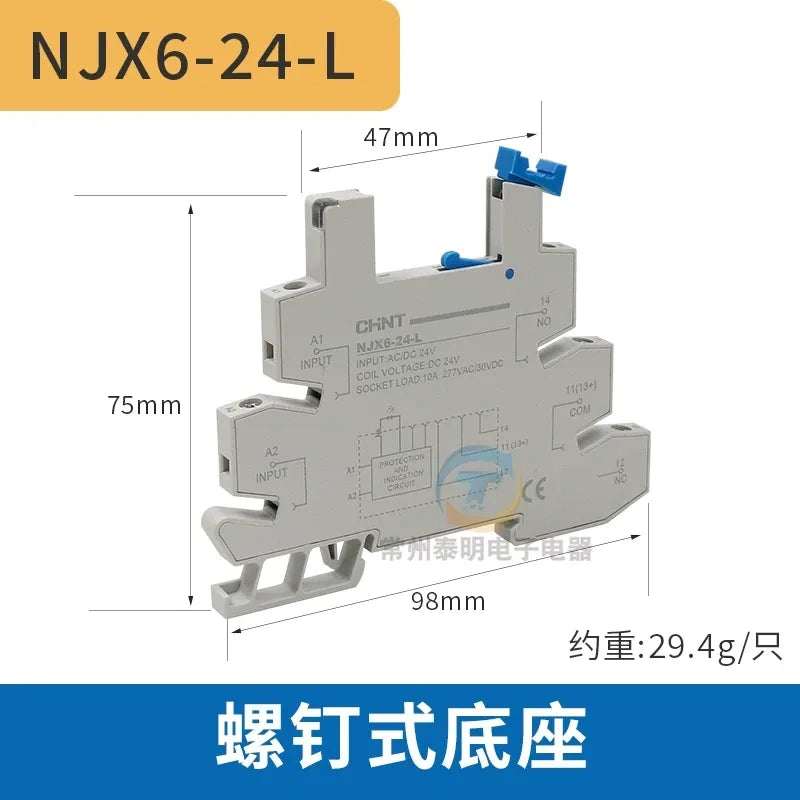

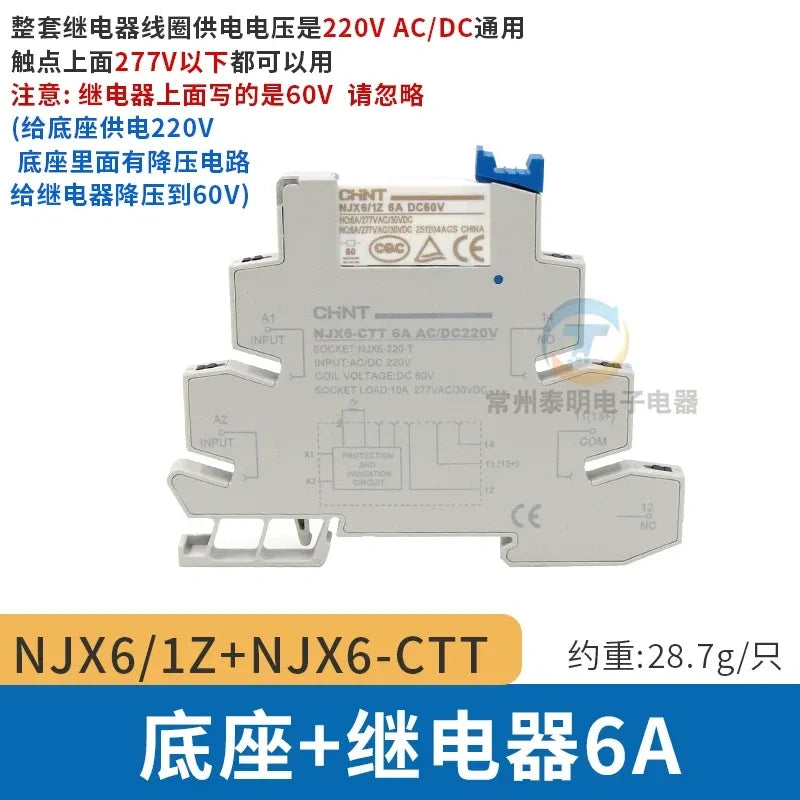

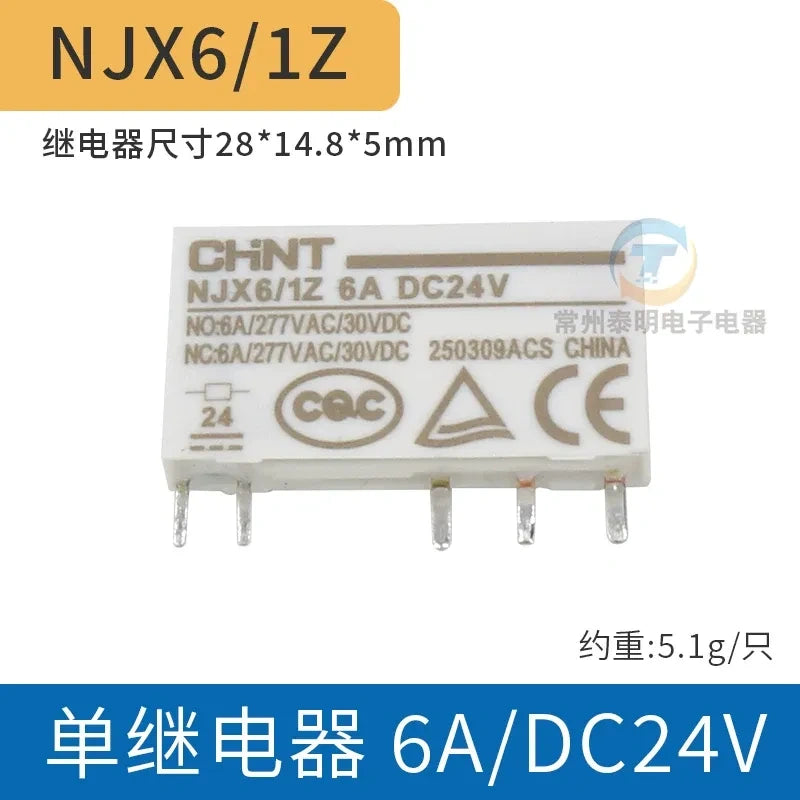

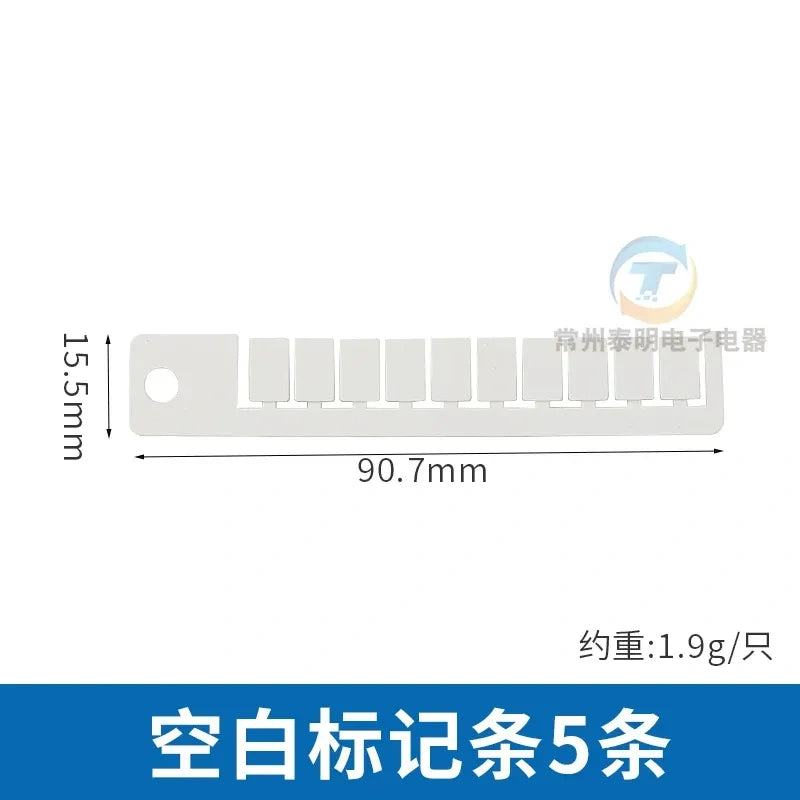

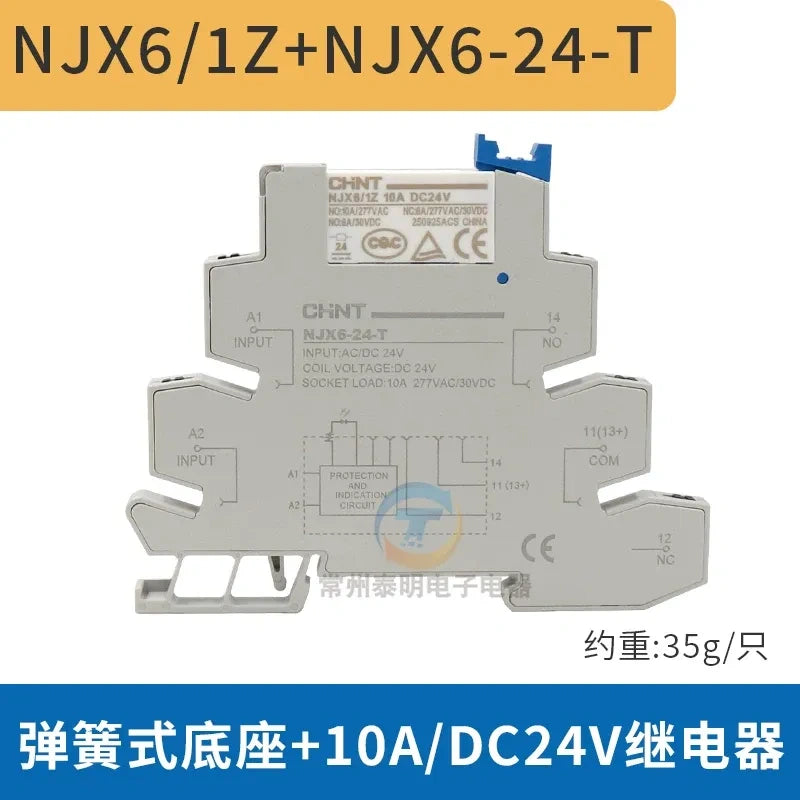

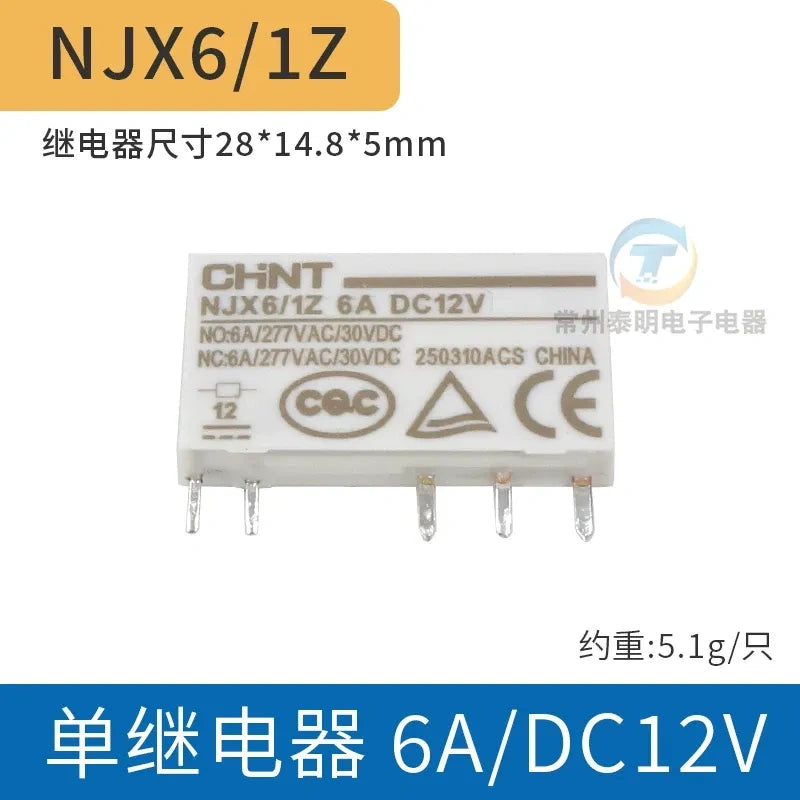

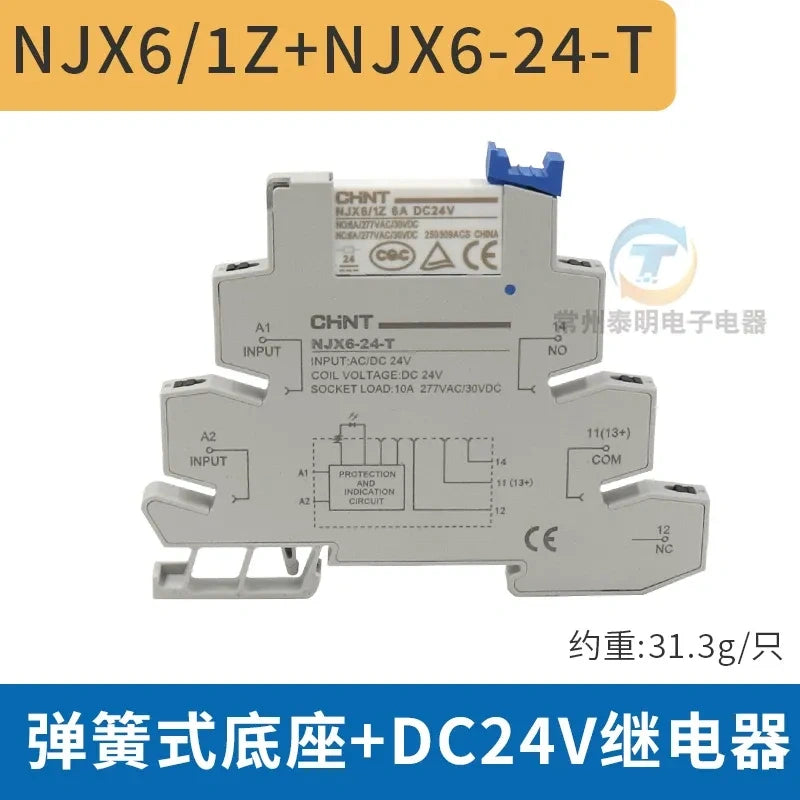

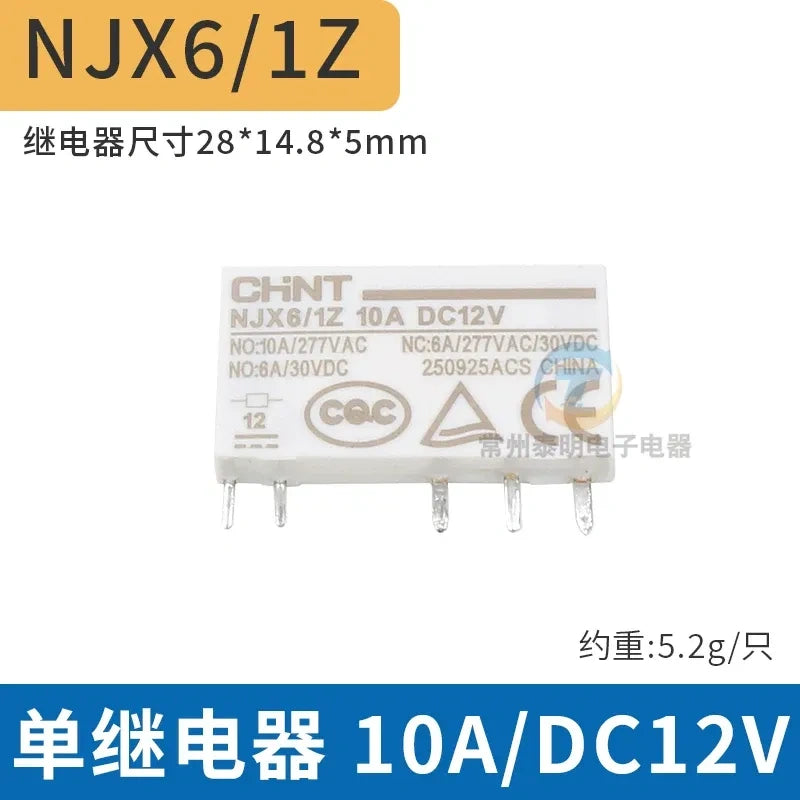

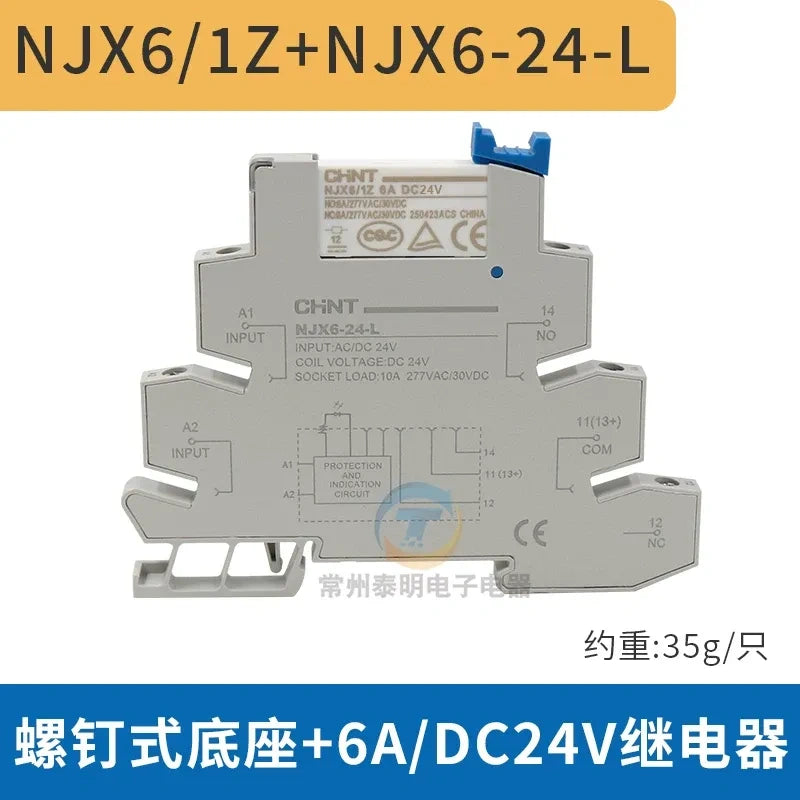

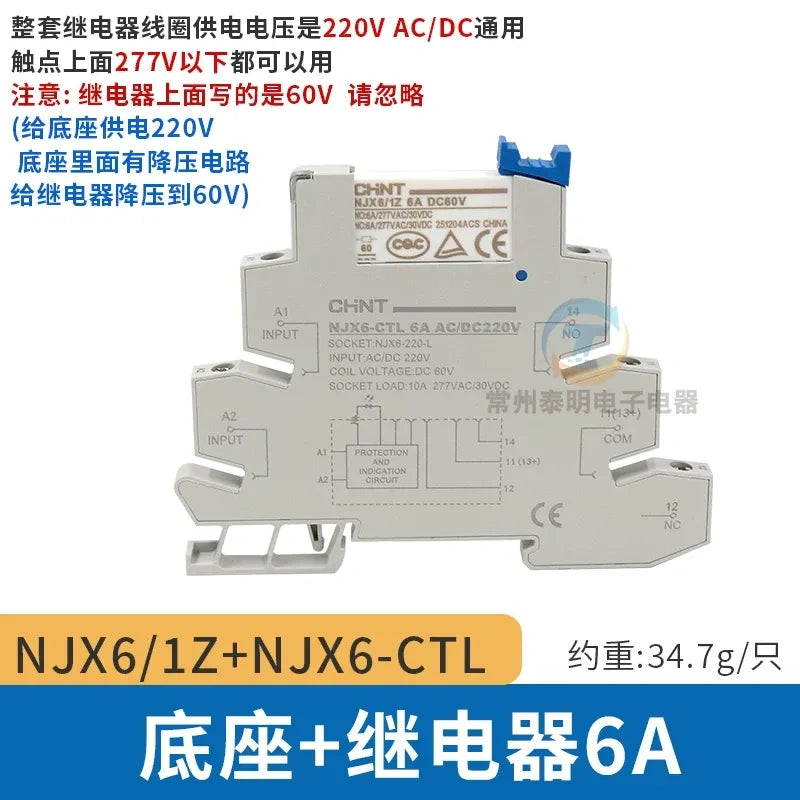

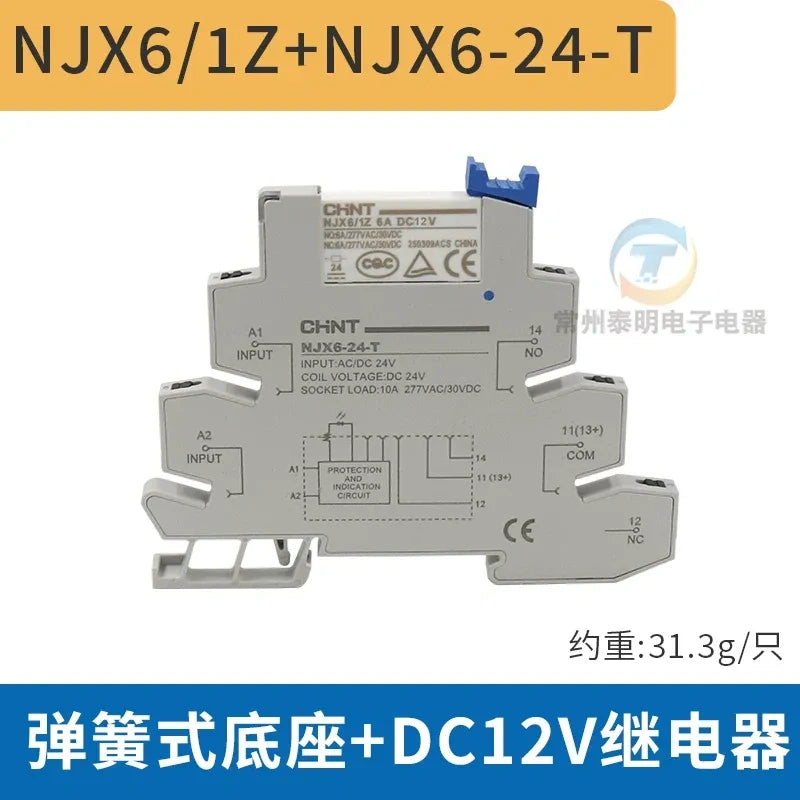

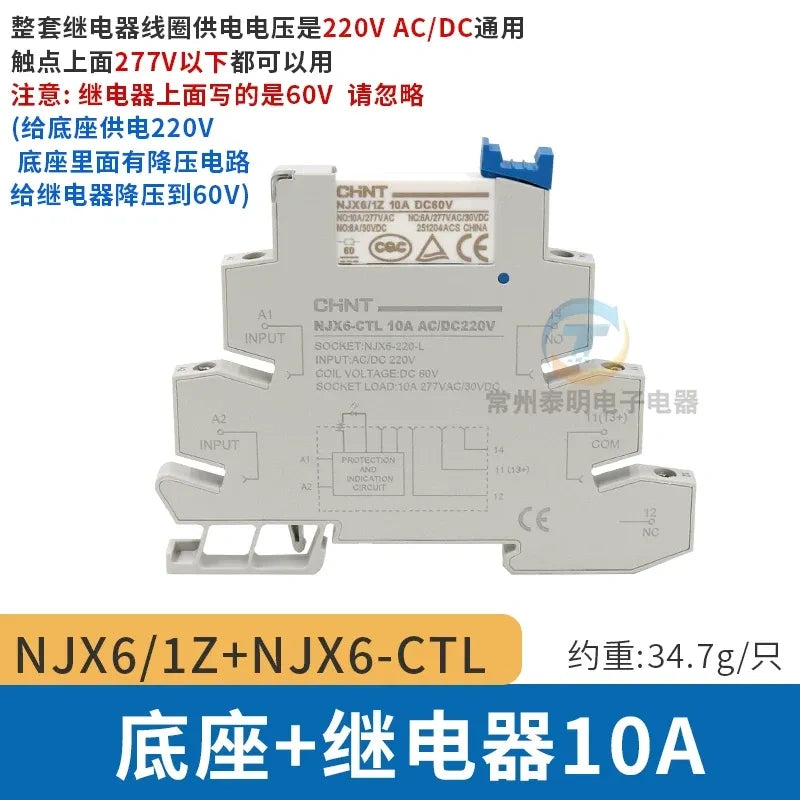

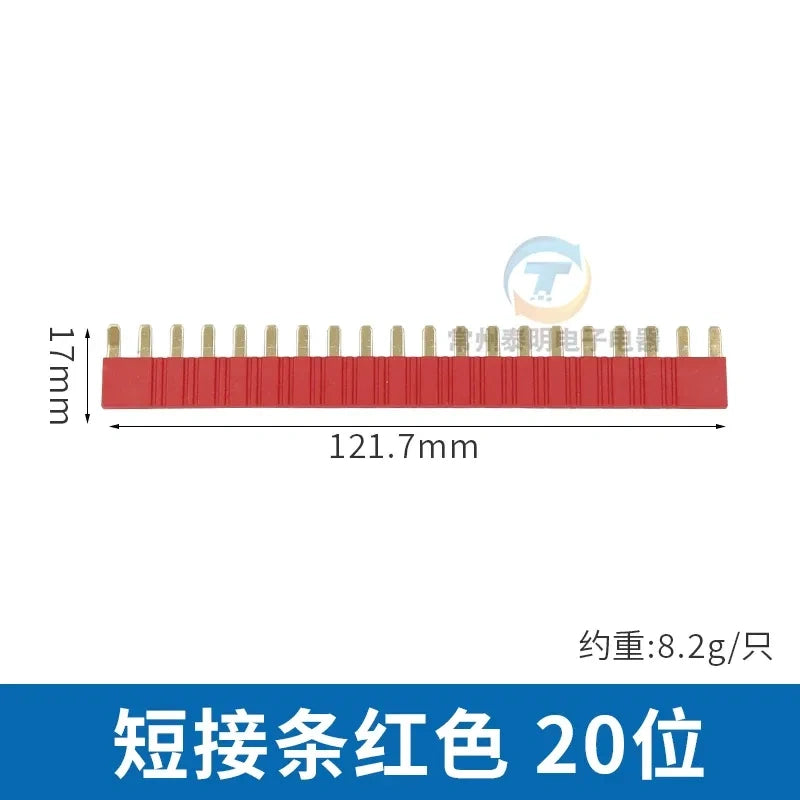

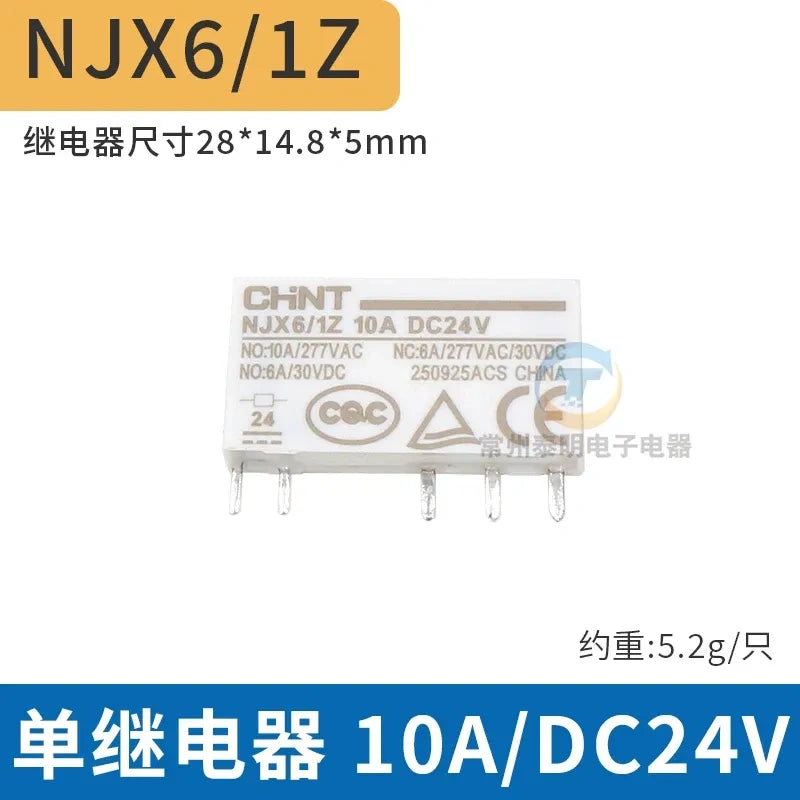

brand:CHINT brand_origin:China product_category:Ultra-thin Intermediate Relay sub_category:NJX6 6mm Slim DIN Rail Relay model_series:NJX6/1Z available_models:DC12V 6A Single Relay,DC12V 10A Single Relay,DC24V 6A Single Relay,DC24V 10A Single Relay,AC220V 6A Single Relay,AC220V 10A Single Relay,DC12V 6A+Screw Base,DC12V 10A+Screw Base,DC24V 6A+Screw Base,DC24V 10A+Screw Base,AC220V 6A+Screw Base,AC220V 10A+Screw Base,DC12V 6A+Spring Base,DC12V 10A+Spring Base,DC24V 6A+Spring Base,DC24V 10A+Spring Base,AC220V 6A+Spring Base,AC220V 10A+Spring Base coil_voltage:DC12V,DC24V,AC220V contact_spec:1Z(1NO+1NC) contact_rating:6A 277VAC,10A 277VAC max_switch_voltage:277VAC /30VDC contact_material:Silver Alloy contact_resistance:≤100mΩ body_thickness:6mm base_type:Screw Terminal Base,Spring Cage Terminal Base installation:35mm DIN Rail Mount mechanical_life:10000000 Cycles electrical_life:60000 Cycles accessory:20P Red/Black/Blue Jumper Bar,Blank Marker Label certification:CQC,CE,TUV,IEC61810-1,GB/T21711.1 application:PLC Control Cabinet,Industrial Automation,Solenoid Valve Driver,Small Equipment Signal Switch condition:Original New Genuine
