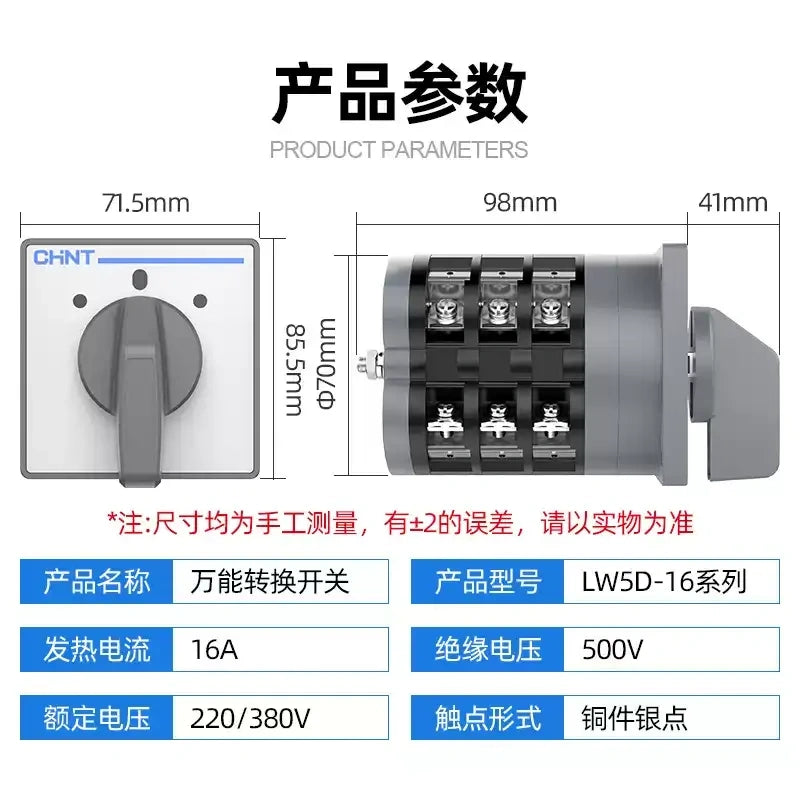

CHNT LW5D-16 3-Position Rotary Cam Switch 16A

$26.34 USD
$21.42 USD $26.34 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

SPECIFICATIONS

CHNT LW5D-16 3-Position Rotary Cam Switch 16A 3-Phase Current Conversion & Measurement Selector Switch, Main Power Cutoff Control Switch

Product Overview

LW5D-16 series rotary cam switch is widely used for three-phase AC circuit current switching measurement and circuit on-off control, rated current 16A, two core specifications: D0724/3 & YH3/3, 3-position mechanical rotary structure for phase switching, power cut & equipment control.

Two Model Definition

  1. LW5D-16 D0724/3: Three-phase current conversion switch, used to switch A/B/C three-phase current signal for ammeter sampling measurement
  2. LW5D-16 YH3/3: Three-phase voltage conversion switch, switch three-phase voltage for voltmeter inspection & measurement, also for main circuit disconnect control

Core Parameter

  • Rated Current: 16A
  • Pole Number: 3P
  • Gear: 3 Position (OFF/ON/Conversion)
  • Application: 3-phase current/voltage test switching, power cut-off control for motor & distribution equipment
  • Mounting: Panel mount rotary selector switch

Key Features

  1. Flame retardant insulating housing, reliable arc extinction, long service life
  2. Clear 3-position knob operation, stable contact conduction for signal conversion
  3. Dual available variants for current measuring(D0724/3) & voltage measuring(YH3/3)
  4. Suitable for distribution cabinet, motor control, instrument measuring circuit

Specification

Attribute Content
Product Name 3-Position Rotary Selector Switch
Model LW5D-16 D0724/3 / LW5D-16 YH3/3
Brand CHNT
Rated Current 16A
Position 3 Gear (3 Position)
Function 3-Phase Current/Voltage Conversion Measurement, Main Power Disconnect Control
Type Cam Rotary Switch, Panel Mount
Application Distribution box, Instrument measurement circuit, Motor control cabinet
