CHINT NS2-25 Motor Protection Circuit Breaker

$33.10 USD
$22.30 USD $33.10 USD
Sale Sold out
Shipping calculated at checkout.
Poles Number
Rated Current

CHINT NS2-25 Series Motor Starter MPCB 0.1~32A 3P AC690V Overload/Phase Loss/Short Circuit Protection DIN Rail Motor Protection Circuit Breaker

Product Overview

CHINT NS2 series is compact DIN-rail mounted motor protection circuit breaker (MPCB / motor starter), designed for three-phase asynchronous AC motor direct on-off control and full protection against overload, phase failure & short-circuit fault. Split into standard NS2-25 / NS2-25X / NS2-32X, adjustable thermal current range from 0.1A up to 32A, rated insulation voltage AC690V, 50/60Hz, IP20 indoor protection grade, CCC certified. Optional front-mounted auxiliary contact NS2-AE11/AE20 & side-mounted NS2-AU11/AU20 for status feedback signal output.

Full Adjustable Current Range & Select Button English

NS2-25 Standard Version

  1. NS2-25 0.25-0.4A → NS2-25 0.25~0.4A Adjustable
  2. NS2-25 0.4-0.63A → NS2-25 0.4~0.63A Adjustable
  3. NS2-25 0.63-1A【Recommended】→ NS2-25 0.63~1A Adjustable(Recommended)
  4. NS2-25 1-1.6A → NS2-25 1~1.6A Adjustable
  5. NS2-25 1.6-2.5A → NS2-25 1.6~2.5A Adjustable
  6. NS2-25 2.5-4A → NS2-25 2.5~4A Adjustable
  7. NS2-25 4-6.3A → NS2-25 4~6.3A Adjustable
  8. NS2-25 6-10A → NS2-25 6~10A Adjustable
  9. NS2-25 9-14A → NS2-25 9~14A Adjustable
  10. NS2-25 13-18A → NS2-25 13~18A Adjustable
  11. NS2-25 17-23A → NS2-25 17~23A Adjustable
  12. NS2-25 20-25A → NS2-25 20~25A Adjustable

NS2-32X

  1. NS2-32X 24-32A → NS2-32X 24~32A Adjustable

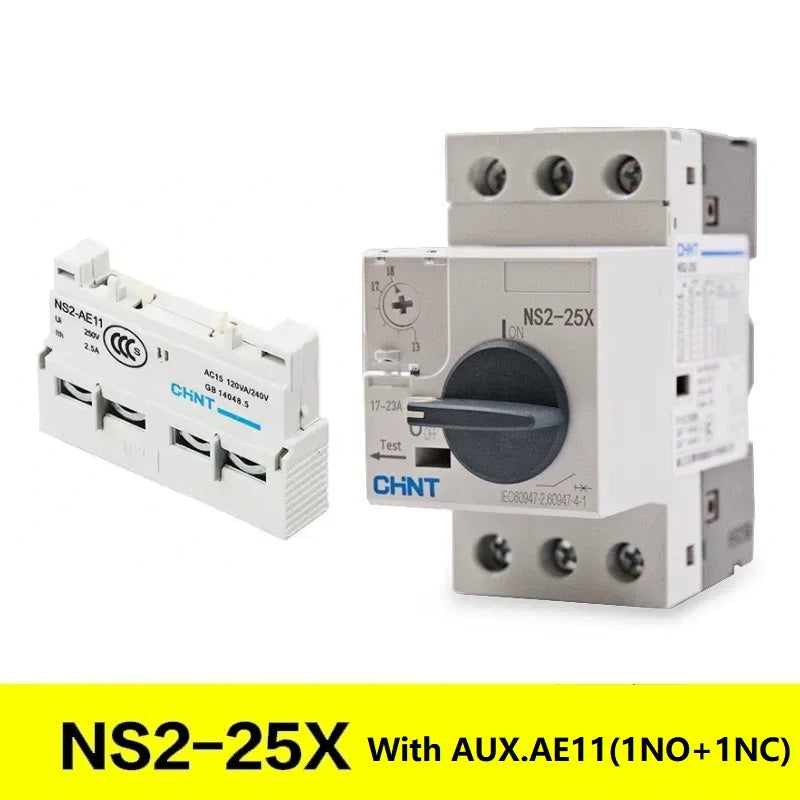

With Front Auxiliary AE11 variant (1NO+1NC front clip contact):

NS2-25/AE11 0.25-0.4A ~ 20-25A (same current grades above)

NS2-25X Improved Version full current options same as NS2-25

Accessories:

  • NS2-AE11: Front Mount Aux Contact 1NO+1NC
  • NS2-AE20: Front Mount Aux Contact 2NO
  • NS2-AU11: Side Mount Aux Contact 1NO+1NC
  • NS2-MC: Waterproof Mounting Enclosure

Core Technical Parameter

Item Specification
Brand CHINT
Model NS2-25 / NS2-25X / NS2-32X
Rated Insulation Voltage AC690V,50/60Hz
Frame Current 25A(NS2-25/25X),32A(NS2-32X)
Adjustable Thermal Current 0.1~32A
Protection Overload inverse-time trip + Phase Loss Protection + Instant Short-circuit Protection
Mounting Standard 35mm DIN Rail
IP Grade IP20
Certification CCC Approved
Operation Front Push Button Manual Control



Product Advantages

  1. Three-in-one integrated protection replaces fuse + thermal relay + contactor for small motor control, save cabinet space and wiring cost.
  2. Rotary knob adjustable thermal setting for matching different motor rated current, easy field calibration.
  3. Optional auxiliary contacts for breaker ON/OFF & fault remote signal feedback to PLC control system.
  4. Flame retardant plastic housing, compact modular size for distribution box installation.

Application

Water pump, exhaust fan, small machining equipment, agricultural machinery, HVAC three-phase motor local control & protection.
