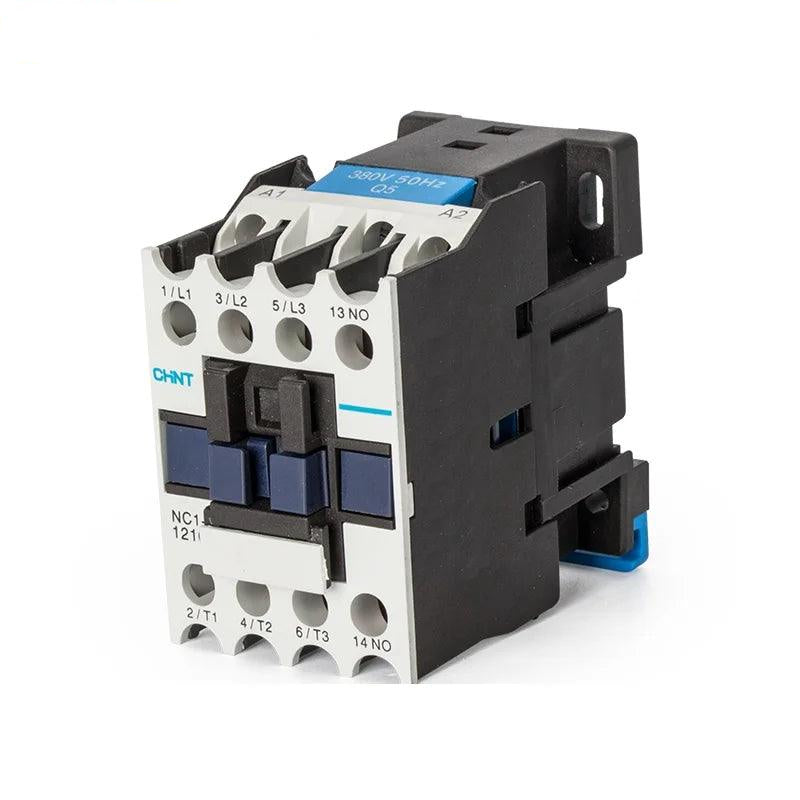

CHINT NC1 AC Magnetic Contactor 09A~95A AC220V/380V

CHINT NC1 series AC magnetic contactor is widely used for remote switching & frequent start‑stop control of AC motors and power circuits. Can combine with NR2 thermal overload relay to build complete motor magnetic starter for overload motor protection正泰电器。

✅ Wide AC‑3 rated current range: 09A,12A,18A,25A,32A,40A,50A,65A,80A,95A；Rated operational voltage up to AC690V,50/60HzCHINT Glob...。 ✅ Multiple coil selections: AC coil:24V,48V,110V,220V,230V,380V,400V；DC coil(Z type):24V,48V,110V,220VCHINT Glob...。 ✅ Auxiliary contact variants:1NO /1NC /1NO+1NC for interlock & signal feedback. ✅ **Standard 35mm TH35‑7.5 DIN‑rail mounting, quick clip‑on installation in distribution cabinet. ✅ **Utilization category AC‑1(resistive load), AC‑3(motor normal start), AC‑4(motor heavy‑duty frequent reversing)Chint Euro...。 ✅ **High‑quality silver alloy contacts, long mechanical & electrical service life, anti‑aging housing. ✅ **Compliant IEC/EN60947‑4‑1 standard, CE / UKCA / EAC certificationCHINT Glob...。 ✅ **Expandable accessories: auxiliary contact block, mechanical interlock for reversing motor circuit.

Matching Reminder: Directly cooperate with CHINT NR2 thermal overload relay to constitute DOL motor starter for motor overload & phase‑loss protection.

Typical Application: Three‑phase motor, water pump, fan, compressor, conveyor, machine tool, automation control cabinet, commercial & industrial power distribution panel.

⚠️ Important Order Reminder: Multiple variants: AC‑3 rated current, coil voltage(AC/DC), auxiliary contact configuration. Please confirm full specifications before purchase. Thermal overload relay is sold separately, not included.

brand:CHINT brand_origin:China product_category:AC Magnetic Contactor sub_category:CJX2 Equivalent NC1 Contactor model_series:NC1 available_models:NC1-0910,NC1-0901,NC1-1201,NC1-1210,NC1-1810,NC1-1801,NC1-2510,NC1-3210,NC1-4011,NC1-5011,NC1-6511,NC1-8011,NC1-9511 coil_voltage:AC220V,AC380V rated_current:9A,12A,18A,25A,32A,40A,50A,65A,80A,95A auxiliary_contact_type:1NO / 1NC / 1NO+1NC main_circuit_rating:AC-3 400V installation:35mm DIN Rail Mount housing_material:UL94-V0 Flame Retardant Plastic contact_material:Silver Alloy Anti-Arc Contact core_feature1:Low noise AC coil,stable against voltage fluctuation core_feature2:Arc resistant contact to avoid welding failure core_feature3:Compact modular design for cabinet wiring application:AC Motor,Solenoid Valve,Heating Device,Industrial Automation Control Cabinet certification:CCC,IEC60947-4-1,GB14048.4 condition:Original New Genuine

Common AC Coil Voltage Suffix Options

• AC24V, AC36V, AC48V, AC110V, AC220V, AC380V (50/60Hz universal)
• DC coil version add suffix Z: e.g. NC1-0910Z
