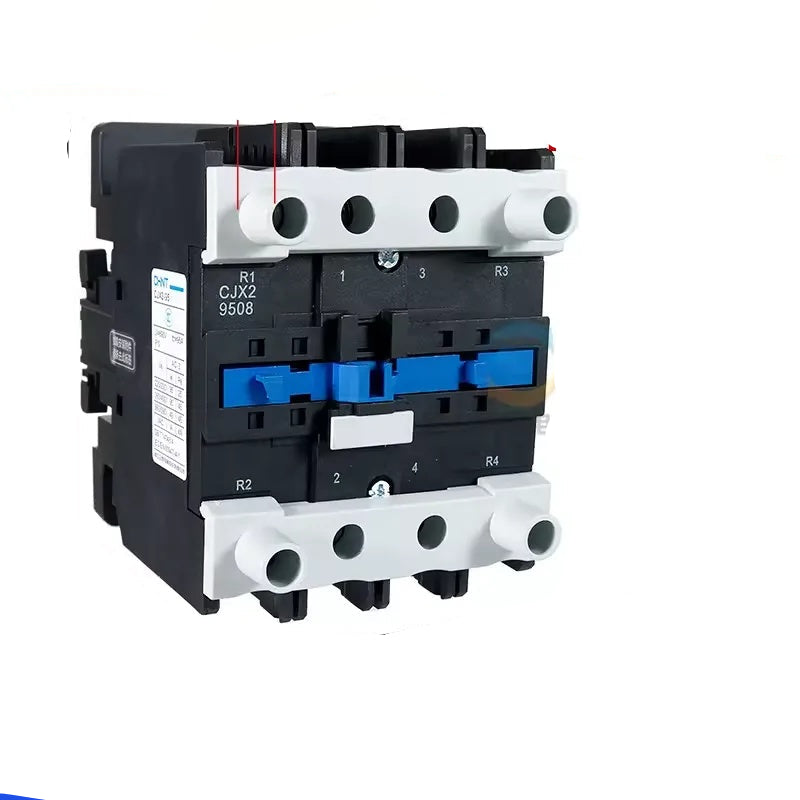

CHINT CJX2 4 Pole Contactor 9A~95A 2NO+2NC/4NO
Regular price
$26.40 USD
Regular price
Sale price
$26.40 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Chint CJX2 Series 4P Contactor - 220V AC, 4NO or 2NO2NC, 9A-95A Current Range
Product Overview
Chint 4-Pole AC Contactor (CJX2 Series) is an industrial-grade control component designed for high-reliability power switching. It supports two contact configurations: 4 Normally Open (4NO) or 2 Normally Open + 2 Normally Closed (2NO2NC), with a rated current range of 9A to 95A and 220V AC coil voltage, widely used in industrial, commercial and civil electrical control scenarios.
Key Features
- Brand & Model: Chint CJX2 Series, industrial-grade quality, compliant with international electrical standards.
- Pole & Contact Configuration: 4-Pole (4P) design, available in 4 Normally Open (4NO) or 2 Normally Open + 2 Normally Closed (2NO2NC) to meet different control needs.
- Current Range: 9A to 95A, adaptable to various load requirements from small equipment to heavy-duty machinery.
- Coil Voltage: 220V AC, stable activation, low power consumption, no easy heating.
- Durable Construction: High-quality metal contacts, wear-resistant and anti-oxidation, ensuring long service life and stable electrical connection.
- Easy Installation: Standard mounting size, suitable for panel installation and DIN rail mounting, convenient for wiring and replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand & Model | Chint CJX2 Series |
| Pole Number | 4-Pole (4P) |
| Contact Configuration | 4NO (4 Normally Open) / 2NO2NC (2 Normally Open + 2 Normally Closed) |
| Rated Current | 9A - 95A |
| Coil Voltage | 220V AC |
| Protection Grade | IP20 (industrial standard) |
| Mounting Type | Panel Mount / DIN Rail Mount |
| Service Life | 100,000 electrical operations |
Applications
Widely used in industrial control panels, power distribution systems, heavy-duty machinery, commercial electrical equipment, civil electrical control, and other scenarios that require stable, high-current switching control.
CHINT CJX2 4 Pole AC Magnetic Contactor 9A~95A
Model Code Rule
- XX04：4NO four normally open main contacts
- XX08：2NO+2NC two open + two closed main contacts
Suffix
/Z= DC coil; no suffix = AC coil
Full Model Parameter Table
| MPN / MODEL NO. | Item No. | AC-3 Rated Current | 4P Main Contact Form | Matching Thermal Relay |
|---|---|---|---|---|
| CJX2-0904 | CJX2-0904 | 9A | 4NO | JR36-20 Series |
| CJX2-0908 | CJX2-0908 | 9A | 2NO+2NC | JR36-20 Series |
| CJX2-1204 | CJX2-1204 | 12A | 4NO | JR36-20 Series |
| CJX2-1208 | CJX2-1208 | 12A | 2NO+2NC | JR36-20 Series |
| CJX2-1804 | CJX2-1804 | 18A | 4NO | JR36-20 Series |
| CJX2-1808 | CJX2-1808 | 18A | 2NO+2NC | JR36-20 Series |
| CJX2-2504 | CJX2-2504 | 25A | 4NO | JR36-20 Series |
| CJX2-2508 | CJX2-2508 | 25A | 2NO+2NC | JR36-20 Series |
| CJX2-3204 | CJX2-3204 | 32A | 4NO | JR36-63 Series |
| CJX2-3208 | CJX2-3208 | 32A | 2NO+2NC | JR36-63 Series |
| CJX2-4004 | CJX2-4004 | 40A | 4NO | JR36-63 Series |
| CJX2-4008 | CJX2-4008 | 40A | 2NO+2NC | JR36-63 Series |
| CJX2-5004 | CJX2-5004 | 50A | 4NO | JR36-63 Series |
| CJX2-5008 | CJX2-5008 | 50A | 2NO+2NC | JR36-63 Series |
| CJX2-6504 | CJX2-6504 | 65A | 4NO | JR36-63 Series |
| CJX2-6508 | CJX2-6508 | 65A | 2NO+2NC | JR36-63 Series |
| CJX2-8004 | CJX2-8004 | 80A | 4NO | JR36-160 Series |
| CJX2-8008 | CJX2-8008 | 80A | 2NO+2NC | JR36-160 Series |
| CJX2-9504 | CJX2-9504 | 95A | 4NO | JR36-160 Series |
| CJX2-9508 | CJX2-9508 | 95A | 2NO+2NC | JR36-160 Series |
