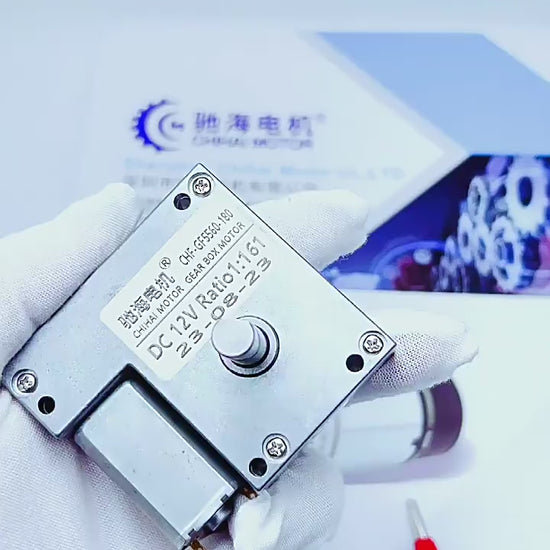

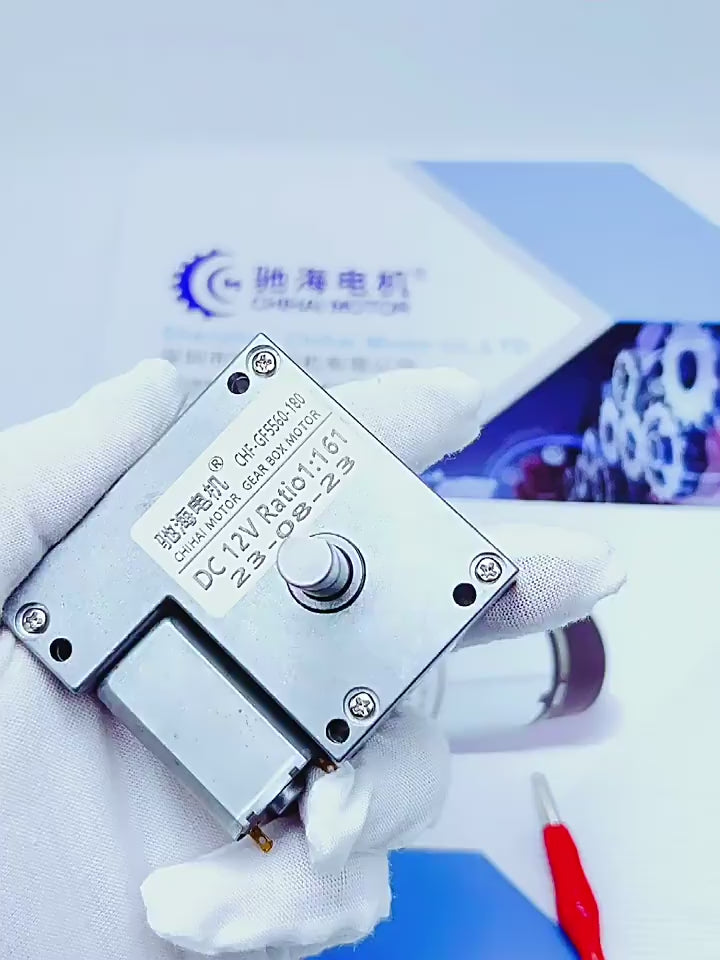

CHF-GF5560-180 DC Worm Gear Motor | 6-24V | High Torque | Self-Locking

Name: CHF-GF5560-180 DC Worm Gear Motor | 6-24V | High Torque | Self-Locking
Brand: electrical center b2c
SKU: Single Motor / DC6V / 1:26.9 [Axial Full Plane Type]
Price: 41.2 USD
Availability: InStock

$41.20 USD

Sale Sold out

Shipping calculated at checkout.

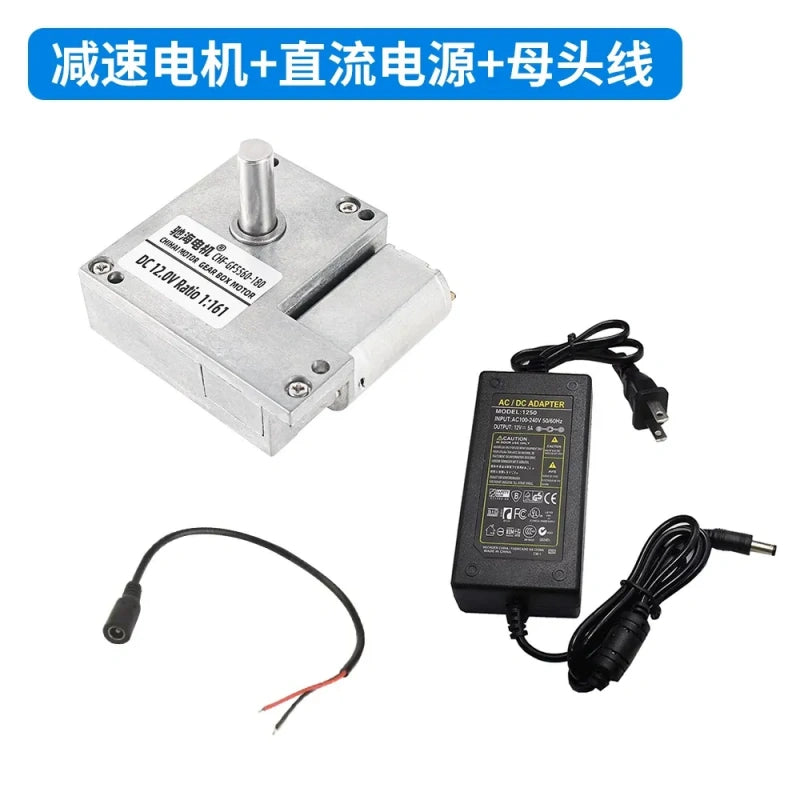

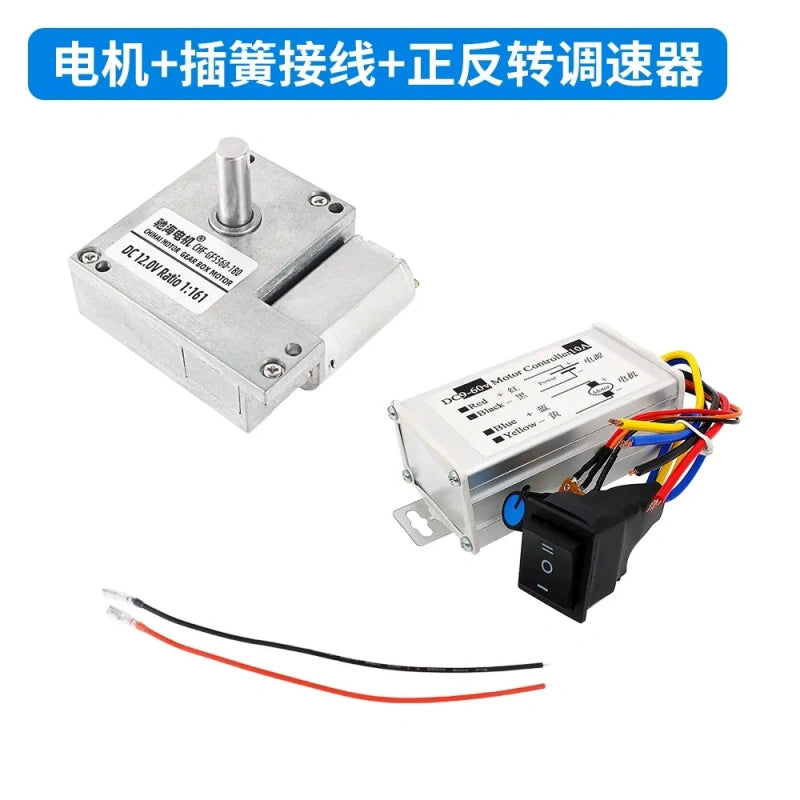

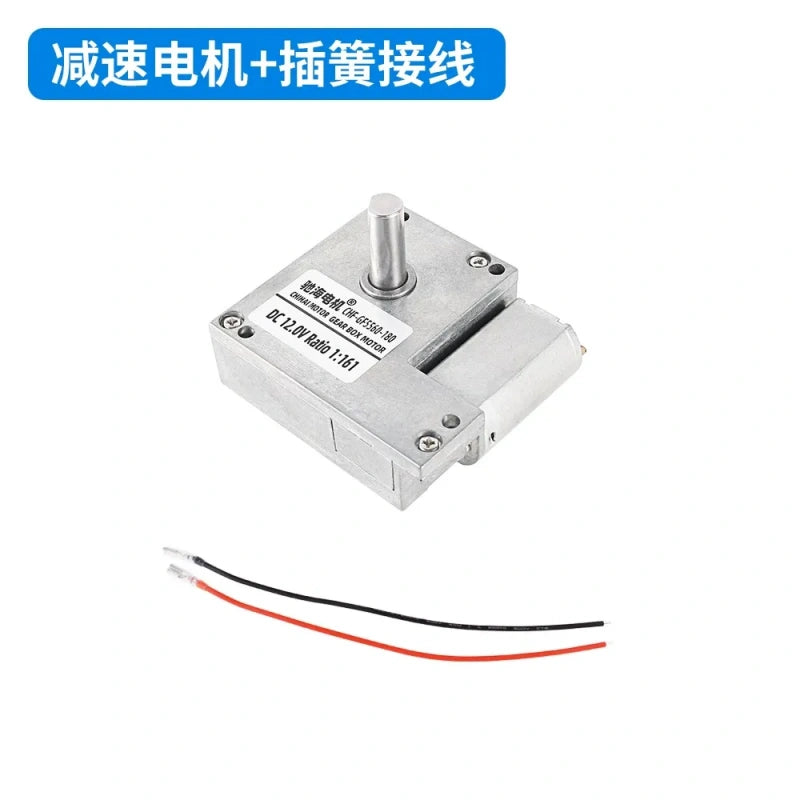

Motor Config. Single Motor Motor+Power Adapter+Female Head Wire Motor+Insert Wire Motor+Insert Wire+For&Rev Speed Controller Motor+Insert Wire+For&Rev Speed Controller+Power Adapter Motor+Insert Wire+Female Head Wire+Power Adapter

Motor Voltage DC6V DC12V

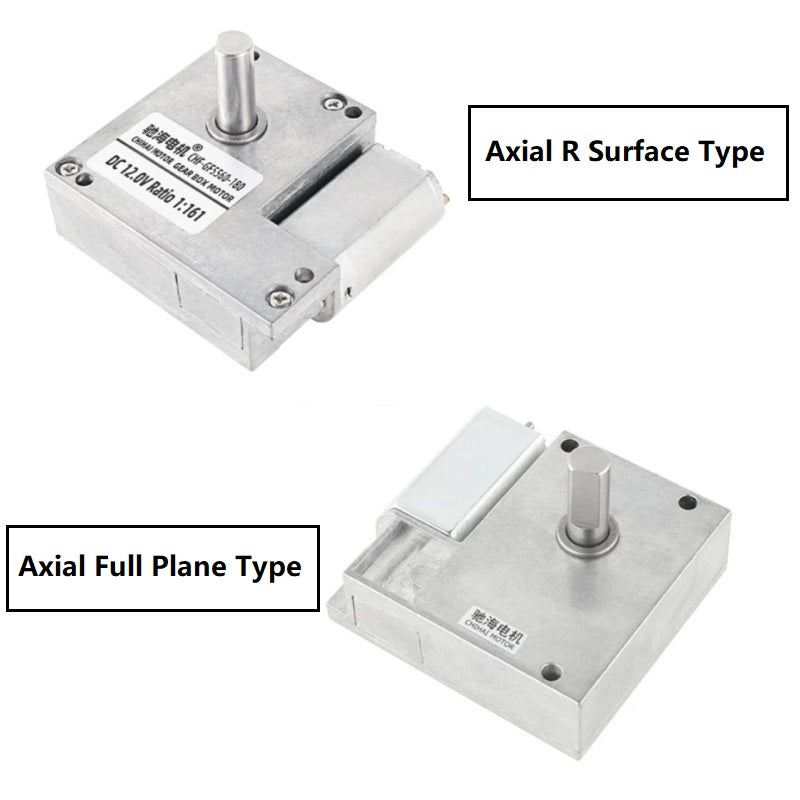

Reduction Ratio 1:26.9 [Axial Full Plane Type] 1:53.8 [Axial Full Plane Type] 1:161 [Axial Full Plane Type] 1:322 [Axial Full Plane Type] 1:700 [Axial R Surface Type] 1:1400 [Axial R Surface Type]

Product variants

Quantity

CHF-GF5560-180 Worm Gear DC Motor, 6V/12V/24V, High Torque, Self-Locking, Reduction Motor for Smart Home & Automation

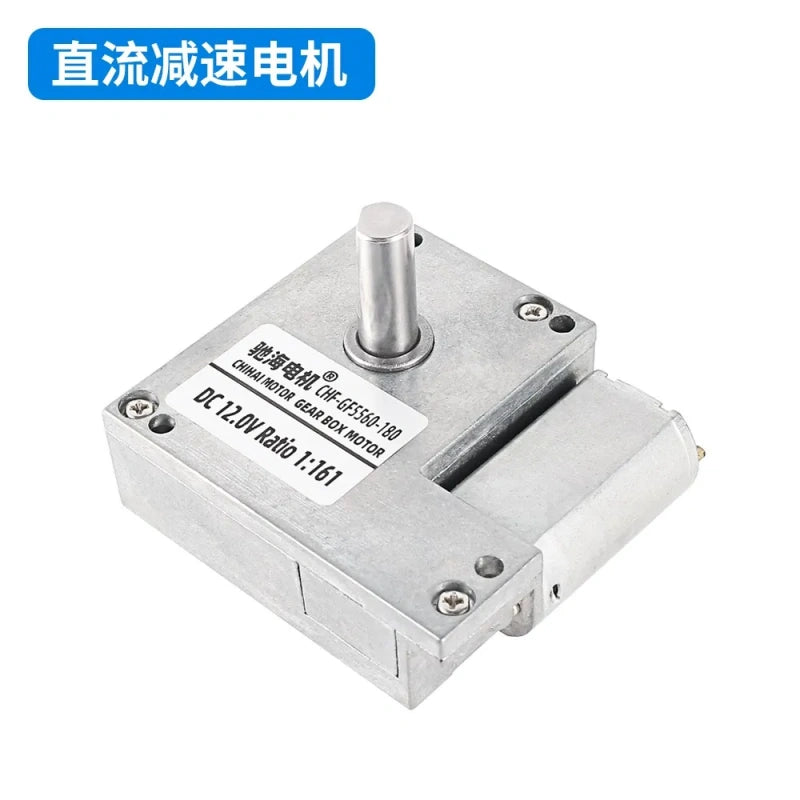

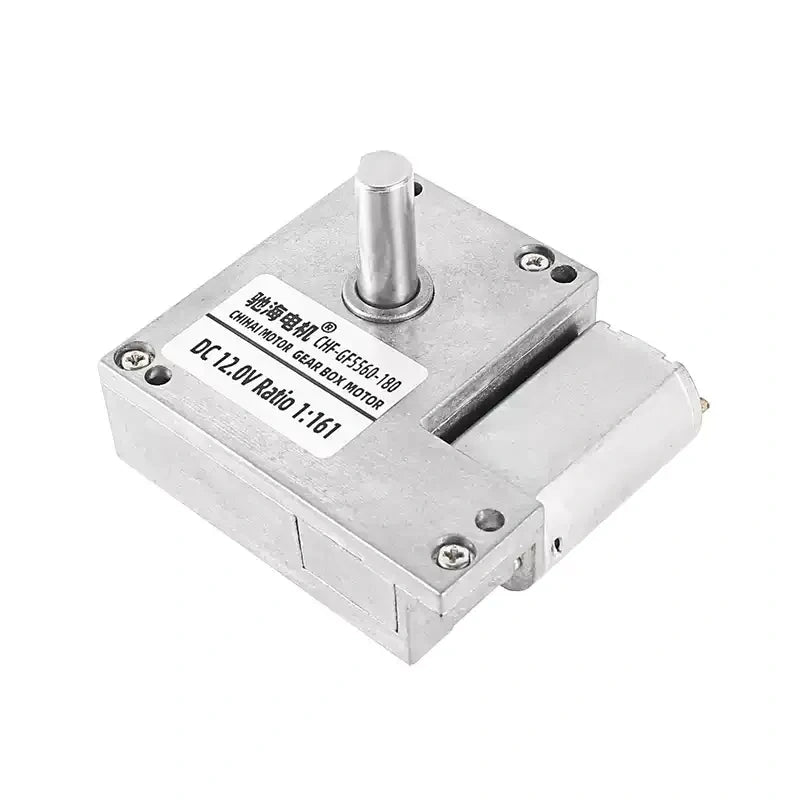

The CHF-GF5560-180 permanent magnet DC worm gear motor is designed for applications requiring high torque and self-locking capability. With multiple voltage options (6V/12V/24V), wide reduction ratios, and precision-machined gears, it delivers reliable performance for smart home devices, automation systems, and more.

✨ Key Features

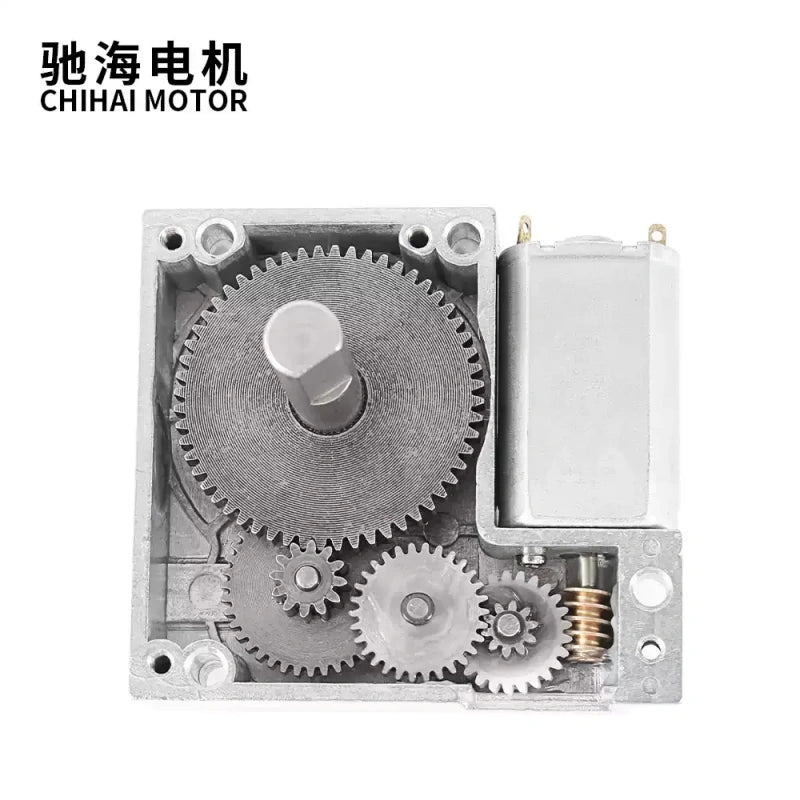

✅ Worm Gear Self-Locking: Copper worm with POM gear provides strong self-locking ability, preventing reverse rotation.

✅ Multiple Reduction Ratios: Choose from 1:26.9 to 1:1400 ratios for precise speed control and torque multiplication.

✅ Precision Machined Gears: Machine-cut gears enhance load capacity and wear resistance, extending service life.

✅ Dual Voltage Options: 6V, 12V, and 24V versions available, with max power up to 4.2W (12V high-torque model).

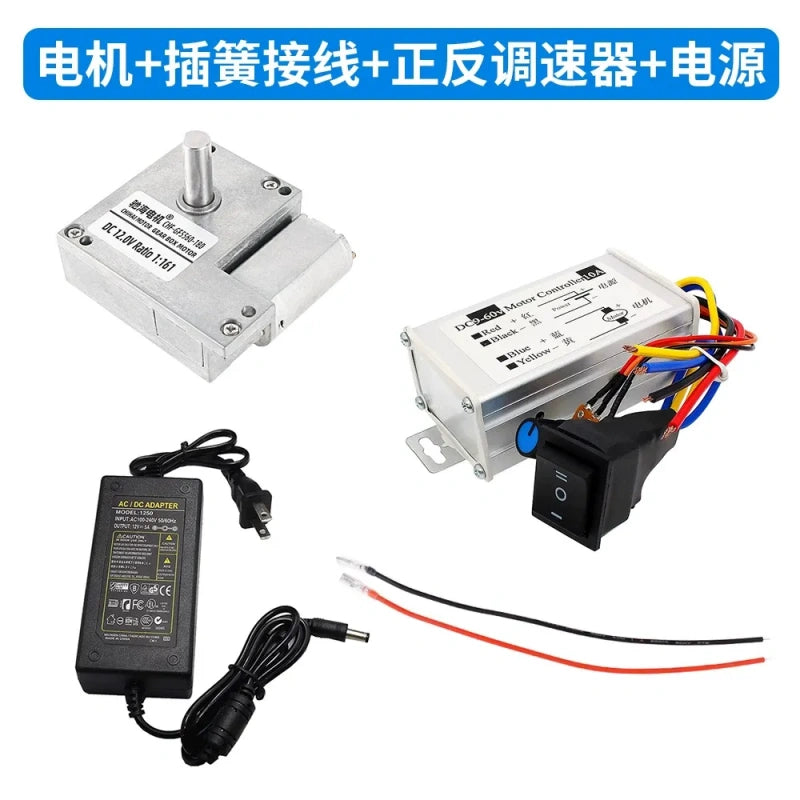

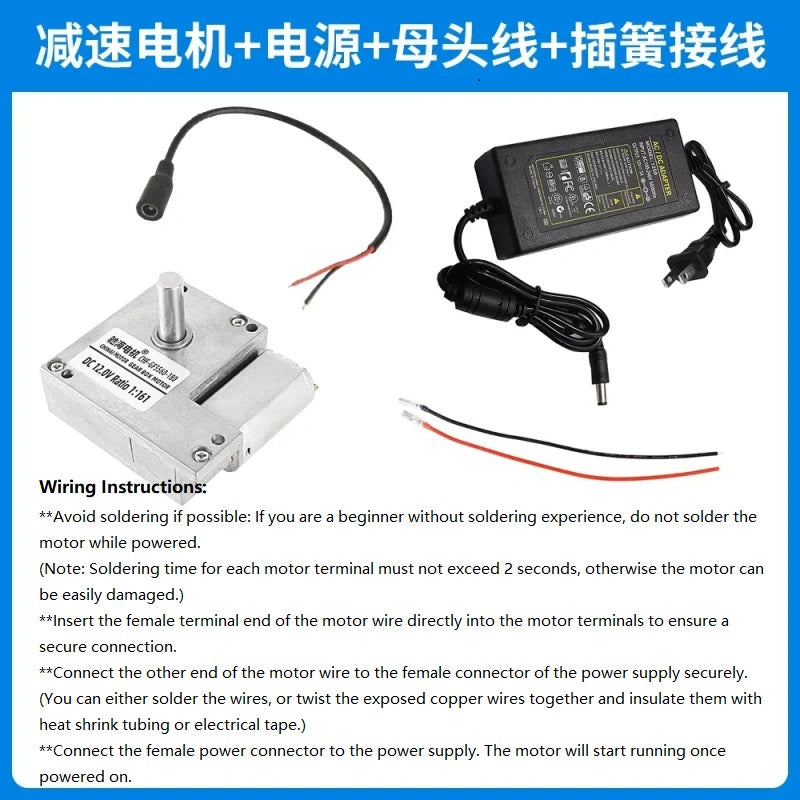

✅ Complete Kit Options: Available as single motor, with power adapter, speed controller, or full assembly for easy integration.

📊 Technical Specifications

Parameter	Details
Product Model	CHF-GF5560-180
Type	Worm Gear DC Motor
Rated Voltage	DC 6V / 12V / 24V
Reduction Ratios	1:26.9, 1:53.8, 1:161, 1:322, 1:700, 1:1400 (and more)
Rated Torque	Up to 25 Kg·cm (rated) / 40 Kg·cm (max)
No-Load Speed	4.0~590 RPM (varies by voltage and ratio)
No-Load Current	≤120~200mA (varies by voltage)
Stall Torque	Up to ≥40 Kg·cm
Stall Current	≤1.8~3.3A (varies by voltage)

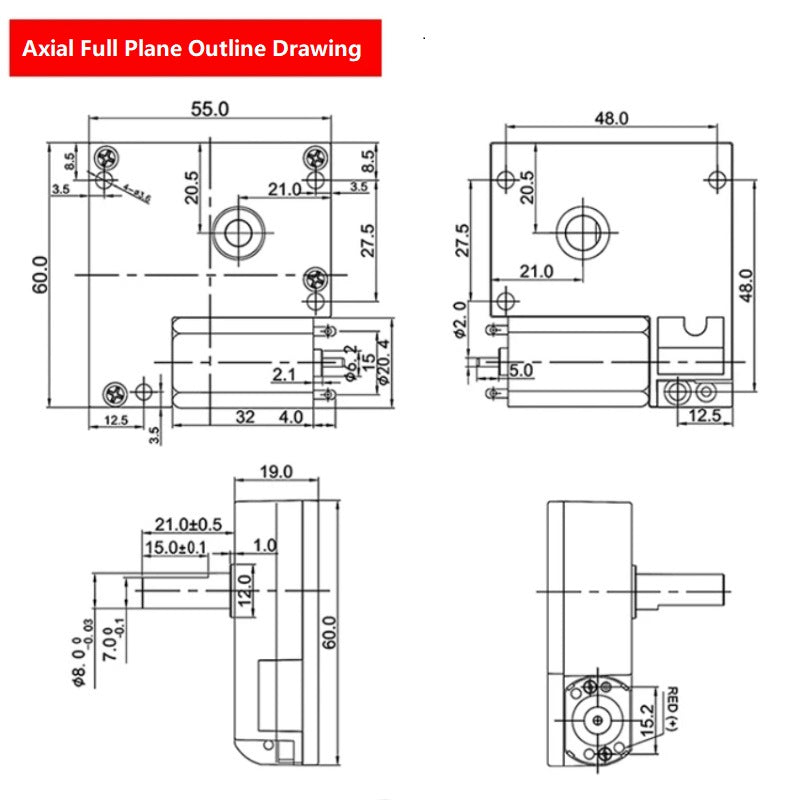

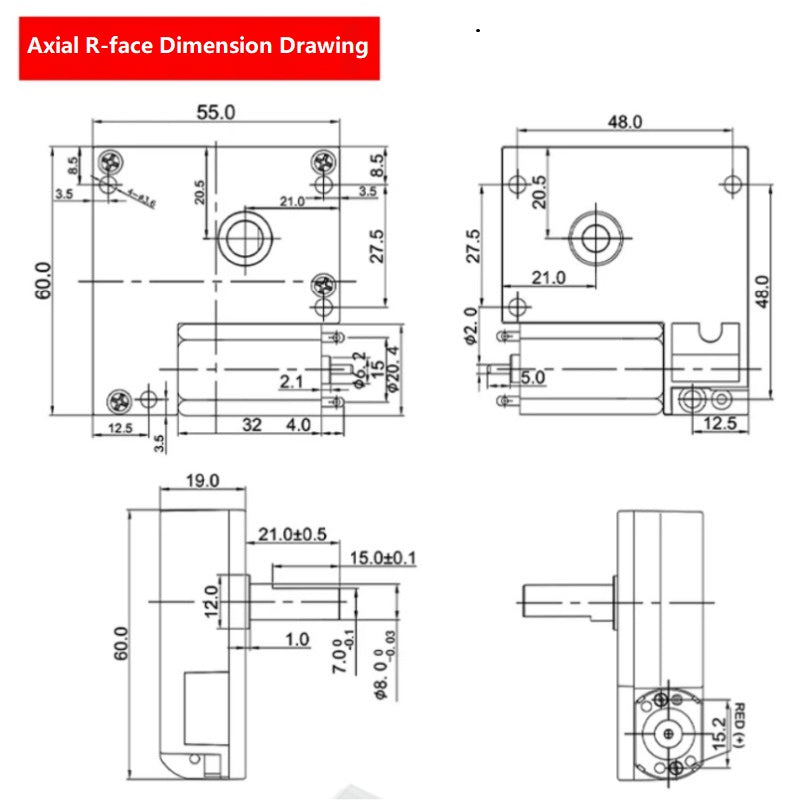

Output Shaft	Φ7mm, 21mm total length (15mm D-shaft)
Gear Module	0.5-0.8m
Weight	~200g
