CE Approved 2 Pcs Lot 2P 63A/160A/200A/250A DC440V PV Moulded Case DC Circuit Breaker
SPECIFICATIONS
CE Approved 2 Pcs Lot 2P 63A/160A/200A/250A DC440V PV Moulded Case DC Circuit Breaker
Brand Name: BLUSUNSOLAR
Type: Moulded Case
Origin: Mainland China
is_customized: Yes
Model Number: YJM1Z-225
Certification: CE
Color: As Picture
Pole: 2 P
Function: Solar Moulded Case
1.Rated voltage:DC 440V
2.Current rating:63A/160A/200A/250A
3.Number:2P
4.Standard:IEC60947, IEC60898
5.Contact Position Indication:ON/OFF/TRIP
6.COnnecting Capacity:25mm2(max)
Techniacl data:
Crust grade rating current Imm(A) |
Pole |
Rating voltage(V) |
Rating current In(A) |
Rated limit short circuit capability |
Instantaneous trip type |
|
Breaking current Icu(A) |
Time (ms) |
|||||
250A |
1 |
DC ~125V |
1. 2. 3. 4. 5. 6. 10. 15. 16. 20. 25. 32. 40. 50. 63,100,200,250 |
10000 |
10 |
B. C. D |
2 |
DC ~440V |
6000 |
||||
3 |
DC ~800V |
|||||
4 |
DC ~1000V |

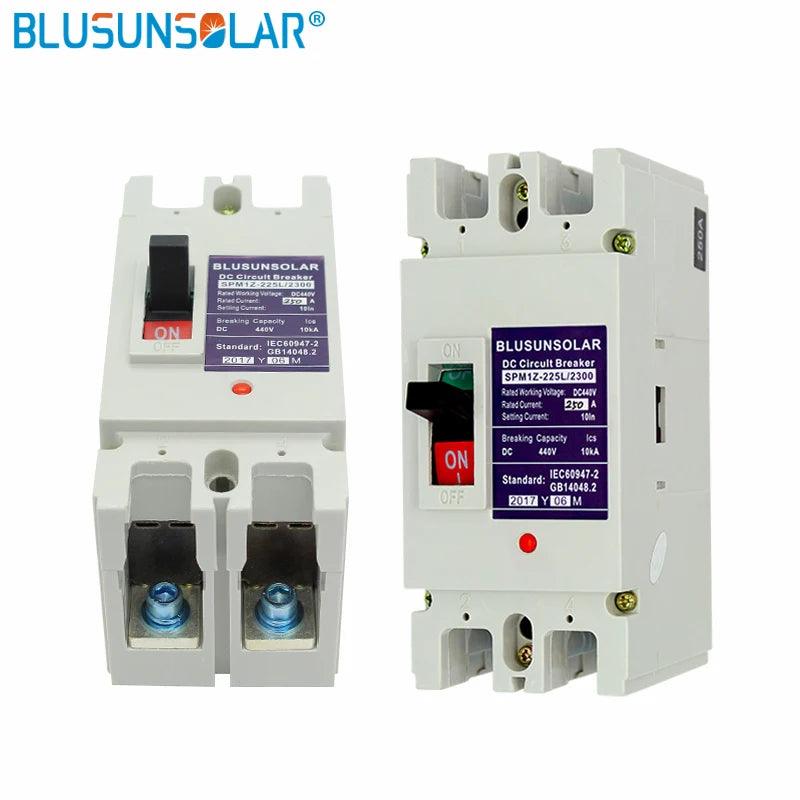

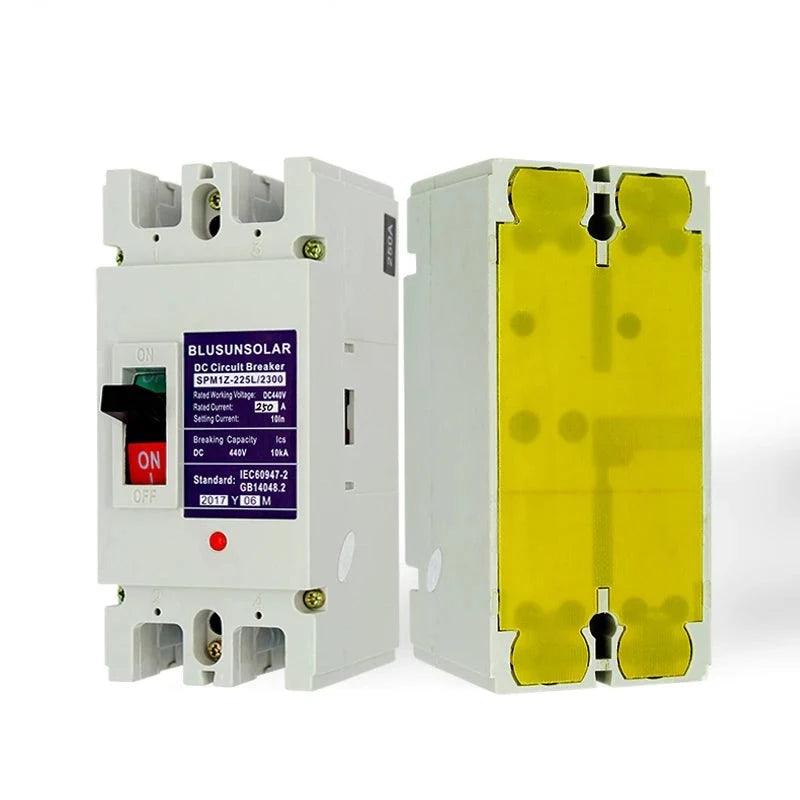

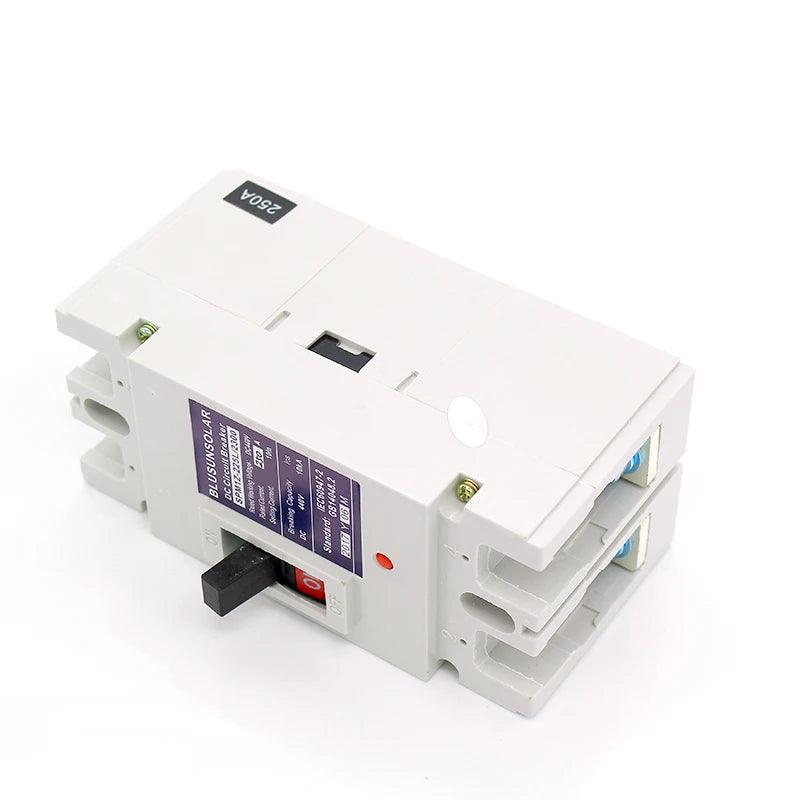

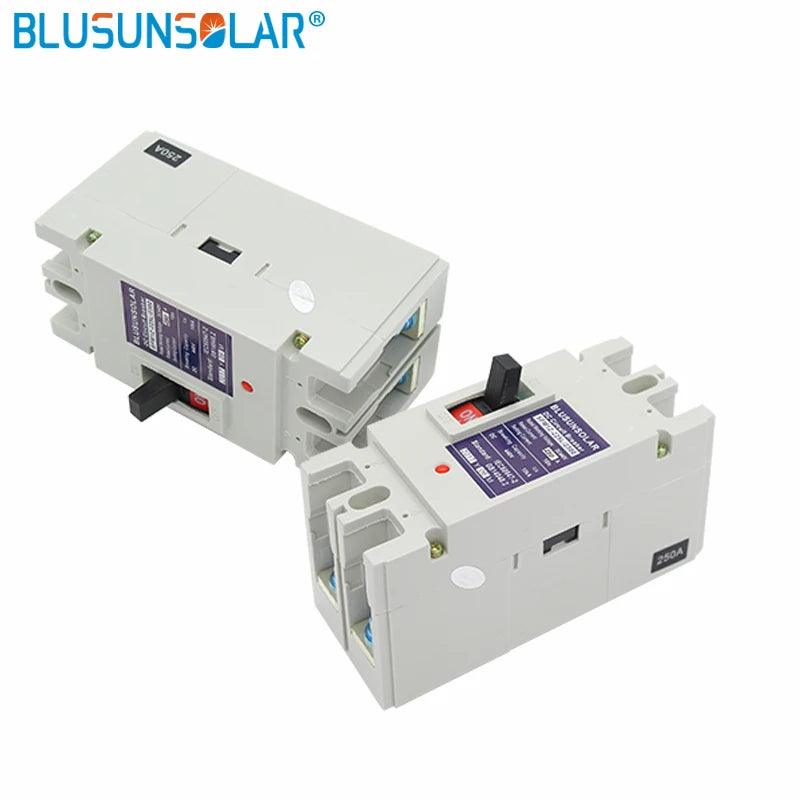

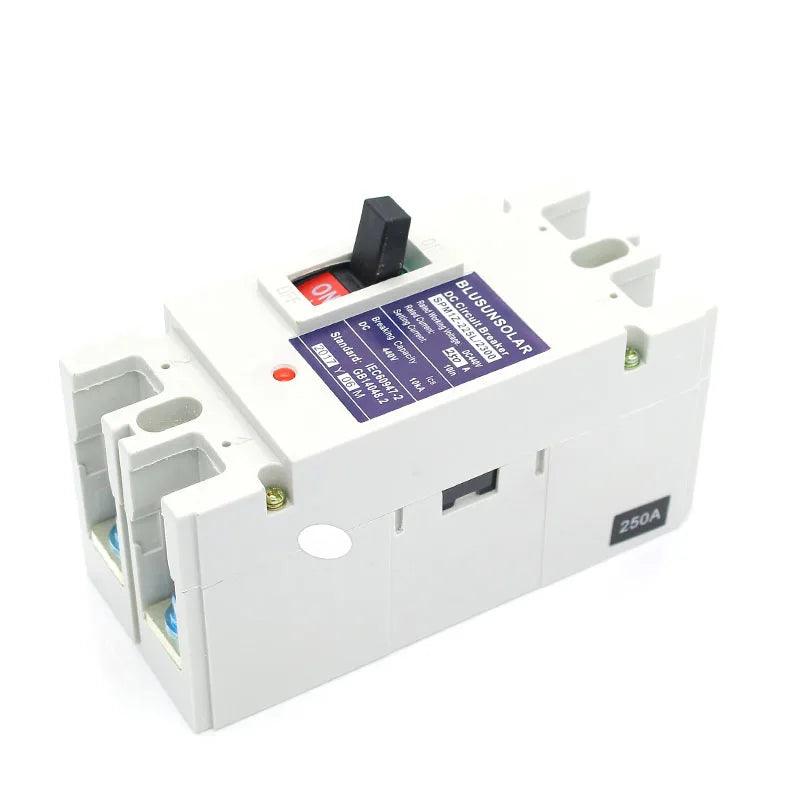

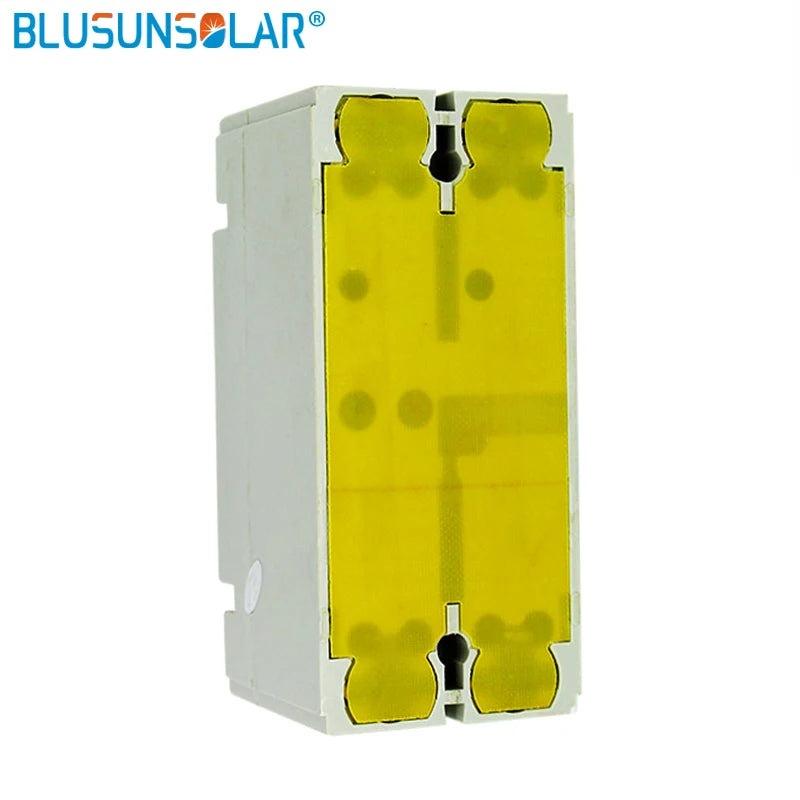

Main Drawing:
