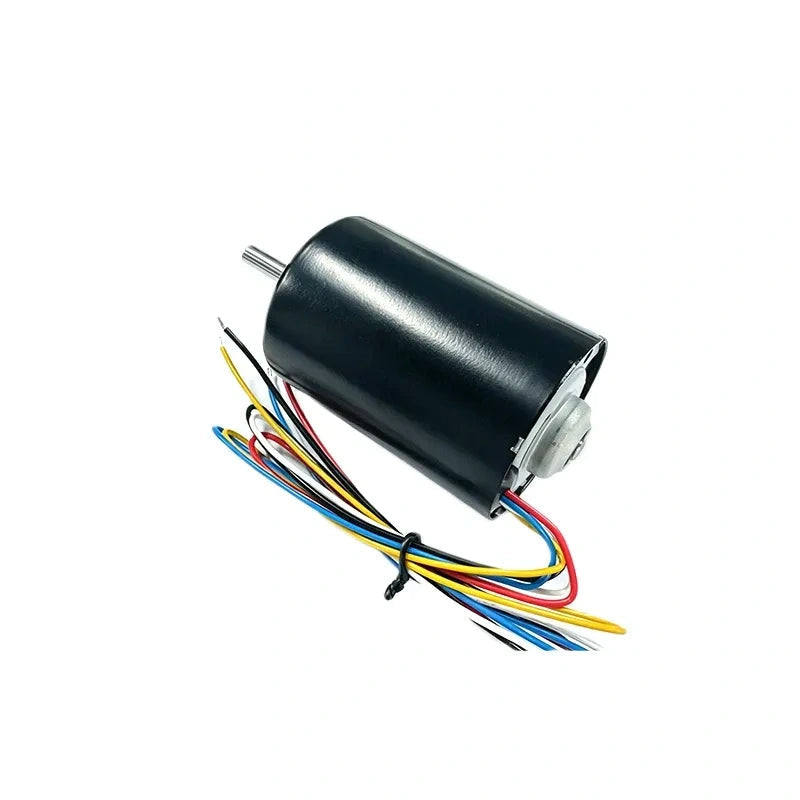

BL-4260 DC Brushless Motor 12V/24V 3000-10000RPM Built-in Driver PWM

$36.89 USD

Sale Sold out

Shipping calculated at checkout.

Motor Speed 3000RPM 4000RPM 5000RPM 6000RPM 7000RPM 8000RPM 9000RPM 10000RPM

Motor Voltage & Wire Type DC12V 5-Wire DC12V 6-Wire DC24V 5-Wire DC24V 6-Wire

Shaft Extension 14mm 16mm 24mm

Product variants

Quantity

Added ✓

Brushless Motor with Built-in Driver,

BL-4260 DC brushless motor 12V 24V 3000-10000 RPM

built-in driver PWM forward reverse brushless motor

5-wire 6-wire 14mm 16mm 24mm shaft 42mm BLDC

heavy duty brushless motor for CNC robot automation

Permanent Magnet High Speed BLDC Motor, Replace 775 Motor

Product Description

The BL-4260 DC brushless motor adopts high-strength magnetic tile rotor and 100% pure copper coil, paired with premium ball bearings for low friction, stable rotation, high temperature resistance and long service life.

This BLDC motor integrates built-in drive support, features PWM speed regulation and forward/reverse rotation function. Available in 12V /24V dual voltage options, multiple no-load speed options from 3000rpm up to 10000rpm. Shaft extension can be selected:14mm,16mm,24mm; 5-wire /6-wire versions for different control requirements.

Rated power:32.03W, net weight approx 256g.

Model: BL-4260 DC Brushless Motor (42mm frame, larger torque class).
Specs: 12V/24V, 3000~10000 RPM, Built-in Driver, PWM Speed Control, Forward & Reverse; 5-Wire / 6-Wire; Shaft: 14mm / 16mm / 24mm.
Feature: Plug-and-play integrated driver (no external ESC needed); robust 42mm body for higher torque than 36xx series; 24mm shaft option for heavy couplings; pairs with DM556 & HH/MK/JQX/LC1D control stack.
Use: Heavy-duty CNC spindles, large robotic actuators, industrial ventilation, automation conveyors, precision machining, tachometer-tested loops.
Pairing: Drive directly via PWM (built-in); power by 3-60V/3-90V PSU; logic switch via HH52P/MK2P → JQX-38F/LC1D for main power; wire UL2464 (power) & UL2547 (signal); test 4mm banana; coupler GX/M12; read XD tachometer; clean with cordless washer.
Note: Built-in driver simplifies vs sensorless BL-2838; larger 42mm frame vs BL-3657/3650/3630/3625; 24V yields higher torque/speed; 24mm shaft fits deep couplings; ideal heavy micro-drive bridging GP reducers & AC gear motors.

Core Advantages

✅ Built-in driver, easy wiring

✅ PWM adjustable speed & reversible rotation

✅ Pure copper winding, stable performance

✅ Ball bearing design, low heat generation

✅ Multiple speed & shaft size options

✅ 12V/24V wide voltage selection

Wire Sequence & Function Description

Please read carefully before using the product

Red Wire: Motor Power Positive + (DC 12V–24V). Do NOT miswire
Black Wire: Motor Power Negative − (DC 12V–24V). Do NOT miswire
Yellow Wire: Speed Feedback Signal (6 pulses per rotation. Max low level:0.6V; High level:4V ~ 5.6V)
Orange Wire: Motor Direction Control Input Signal (Forward rotation when connected together with black negative wire)
White Wire: PWM Speed Control Signal for motor speed regulation (Compatible with 0–5V speed controller)
Green Wire: Motor Brake Signal Input Control (Brake triggered at low level, max 0.6V)
⚠️ WARNING: Never reverse positive and negative power supply. Signal wires must NOT connect to power. Warranty void if miswired!

Specification

Attribute	Value
Product Model	BL-4260
Motor Type	DC Brushless BLDC Motor
Rated Voltage	12V / 24V
Rated Power	32.03W
No-load Speed	3000~10000 RPM optional
Function	PWM Speed Control, Forward & Reverse Rotation
Wire Type	5 Wire / 6 Wire
Shaft Extension	14mm /16mm /24mm
Material	Pure Copper Coil, High Strength Magnetic Tile, Ball Bearing
Net Weight	256g
Feature	Built-in driver, low noise, high temperature resistant
Application	CNC, Laser cutting, Packaging, Robotics, Automation equipment
