Adjustable Reciprocating Oscillating Motor with Controller, DIY Left Right Swing Actuator 20°-120° adjustable for Bird Swing, Waving, Massage
Regular price
$108.60 USD
Regular price
Sale price
$108.60 USD
Unit price
per
Shipping calculated at checkout.
Added ✓
Couldn't load pickup availability
reciprocating swing motor,oscillating motor,12v swing motor
DIY Speed Control Reciprocating Swing Motor DC12V/24V | Left-Right Oscillator for Simulation Waving, Therapy, Bird Swing
Product Description
This DC reciprocating oscillating swing motor is driven by a direct current motor, supplied with a variable speed power adapter. Simply plug into household 220V power to start working.
The swing angle is adjustable from 20° to 120° (max limit 10°~130°). It supports stepless speed regulation, with multiple reciprocating frequency options: 20,40,60,90,120,200,275 strokes per minute.
Available in DC12V / DC24V versions. The thrust is inversely related to stroke length: shorter stroke provides larger push force, longer stroke delivers smaller thrust.
Widely used for baby cradle modification, bird swing, advertising creative props, hand waving simulation, physical therapy tapping, gua sha massage and more. Great for DIY projects, you can freely explore various applications.
Key Features
✅ Stepless speed adjustable, multiple cycle frequency options
✅ Adjustable swing angle: 20-120° (extreme range 10-130°)
✅ 2 power options: DC12V / DC24V, comes with 220V power converter
✅ Quiet linear reciprocating motion, left-right oscillating movement
✅ DIY assembly, easy installation for multiple custom projects
Specification
Product Name: Reciprocating Swing Motor
Brand: Electrical Center B2C
Voltage: DC12V / DC24V
Motion Type: Left-right reciprocating oscillation

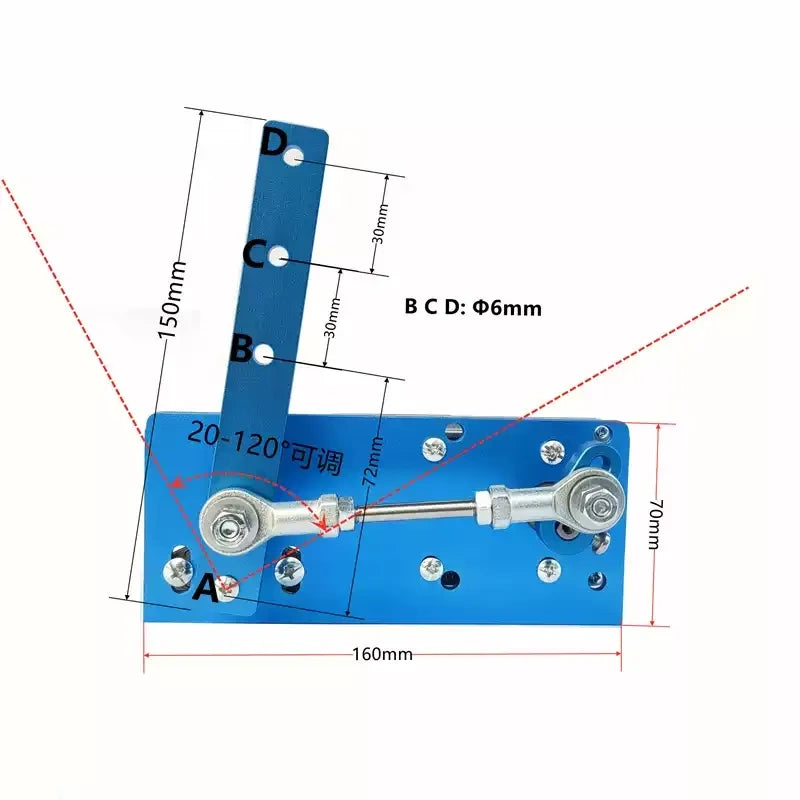

Swing Angle: 20°-120° adjustable, limit 10°-130°
Speed: Stepless speed control, 20~275 strokes/min

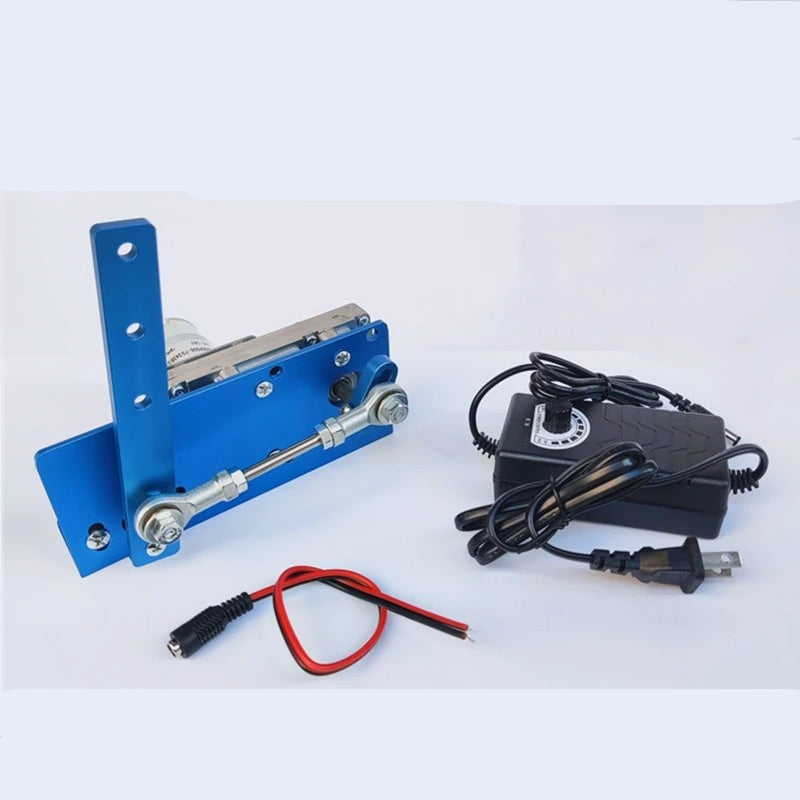

Package Includes: Swing motor + variable speed power adapter
Material: Metal & Plastic
Stroke: 6cm - 20cm
Thrust: Depends on stroke & voltage
Application: DIY modification, bird swing, waving simulation, physical therapy tapping, gua sha, cradle rebuild Noise Level: Silent operation
FAQs
Q1: What is the thrust of this swing motor?
A: The thrust is powered by the motor. Shorter stroke delivers greater thrust; longer stroke results in lower thrust.
24V:
2cm stroke: ~25kg, 4cm: ~10kg, 6cm: ~7kg, 8cm: ~5kg, 10cm: ~4kg,12cm:~3kg,15cm:~2kg
12V:
2cm stroke: ~15kg, 4cm: ~7.5kg, 6cm: ~5kg, 8cm: ~4kg, 10cm: ~3kg,12cm:~2.5kg,15cm:~1.5kg
Q2: What is the weight?
A: Weight increases with stroke length. The 12V and 24V models of the same stroke have nearly identical weight.
6cm: ~0.65kg | 8cm: ~0.70kg | 10cm: ~0.75kg |12cm: ~0.80kg |15cm: ~0.88kg |20cm: ~0.95kg
Q3: How to power it?
A: It comes with a 220V to DC power adapter. Just plug into household 220V AC power for use.
Q4: Can I adjust swing angle and speed?
A: Yes. Swing angle adjustable from 20° to120° (limit 10-130°). It supports stepless speed control, multiple reciprocating frequencies from 20 to 275 times per minute.
Q5: What applications can this motor be used for?
A: Widely used for DIY projects: bird swing, simulated hand waving, physical therapy tapping, gua sha massage, baby cradle modification, advertising display props and other creative automation builds.
