EARU -1pc 8mm Momentary Metal Horn Doorbell Bell Push Button Switch Waterproof

SPECIFICATIONS

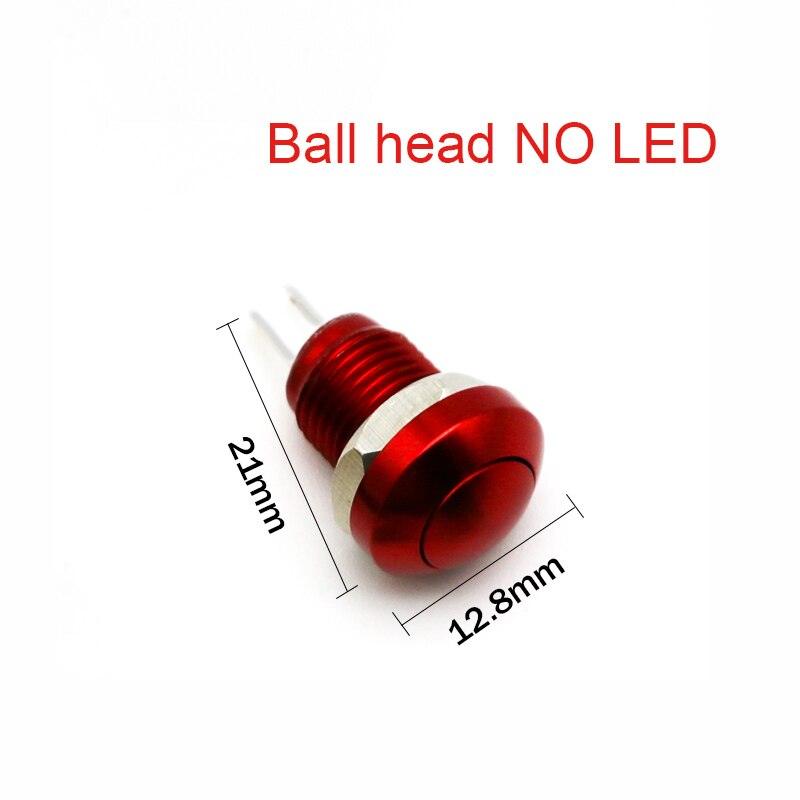

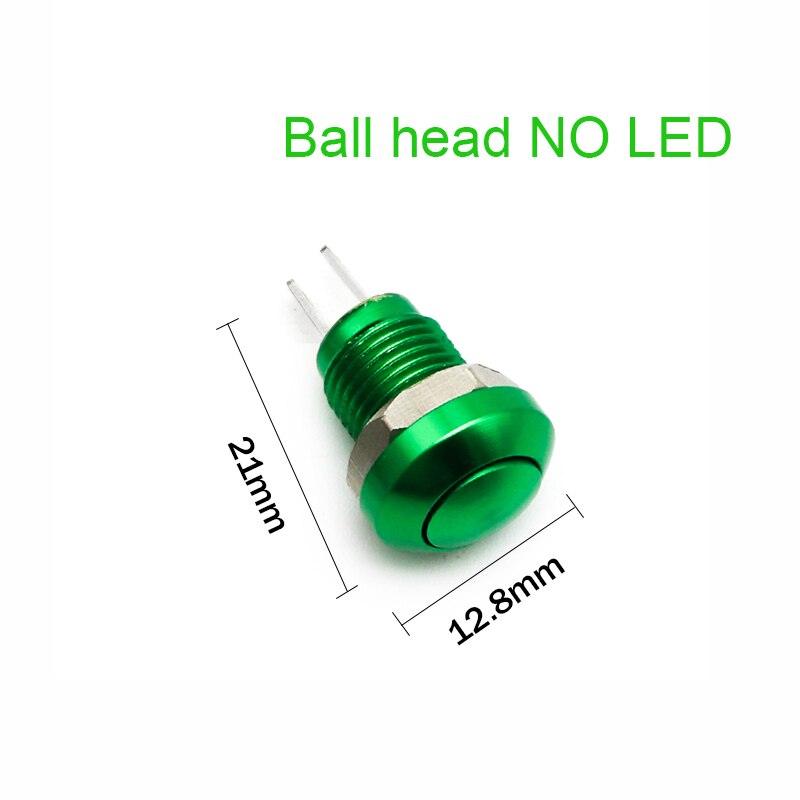

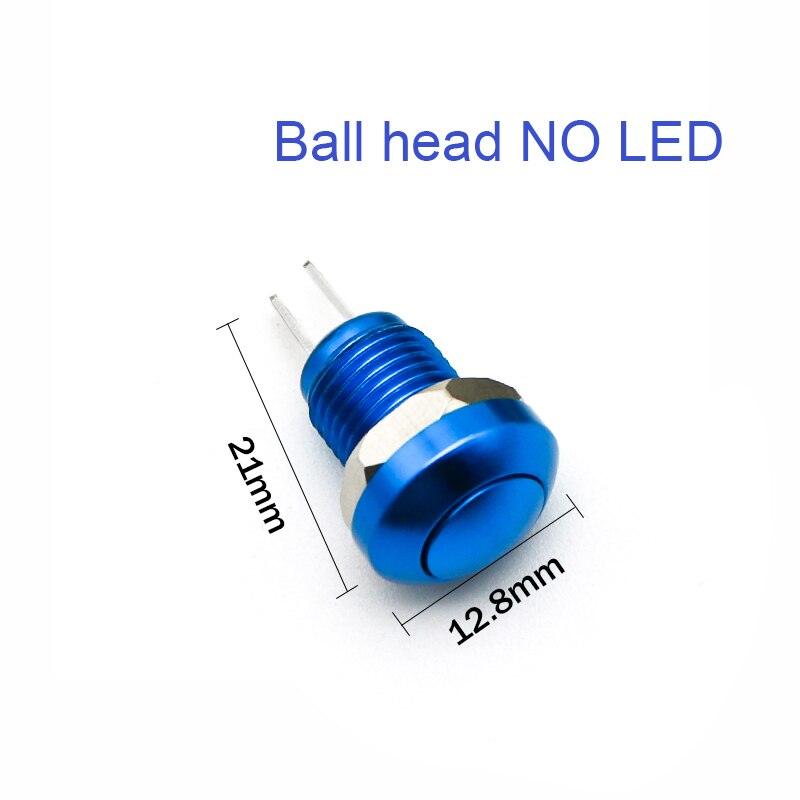

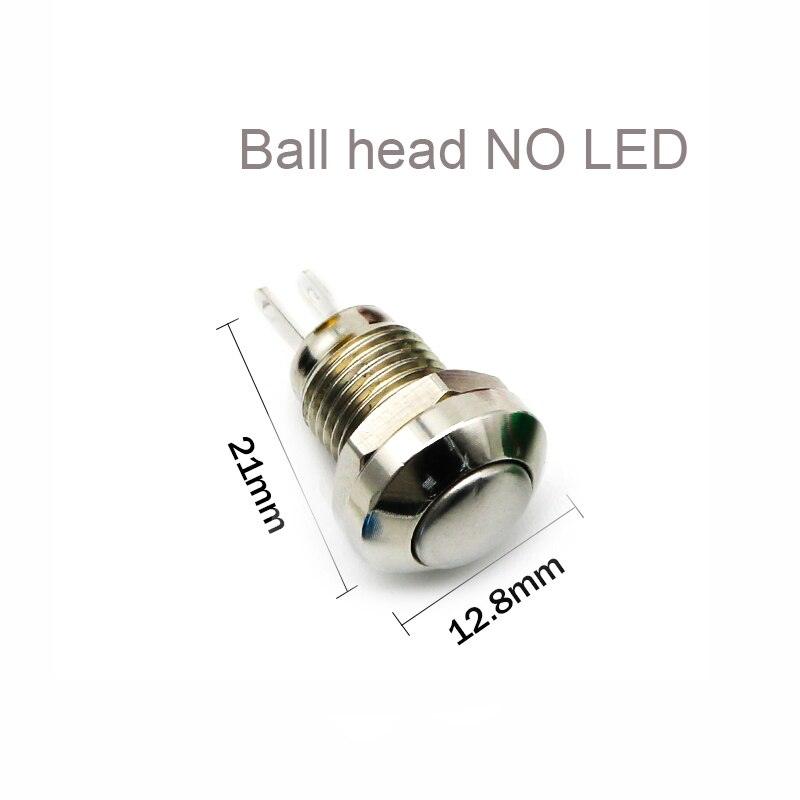

8mm Momentary Metal Horn Doorbell Bell Push Button Switch

Waterproof Car Auto Engine PC Power Start Starter Red Blue Green

Multi-colour Optional

Working Temperature: - 20 ℃ + 55 ℃

Warranty: 2 year

Switch Type: Push Button Switch

Model: 8mm

Material: Stainless Steel/Copper,Stainless Steel /Aluminium Oxide

Item Type: Switches

Is Smart Device: No

Features: Momentary

Current: 3A

Certification: RoHS,CE,CCC

Features：

Silver Contact Current: 3A

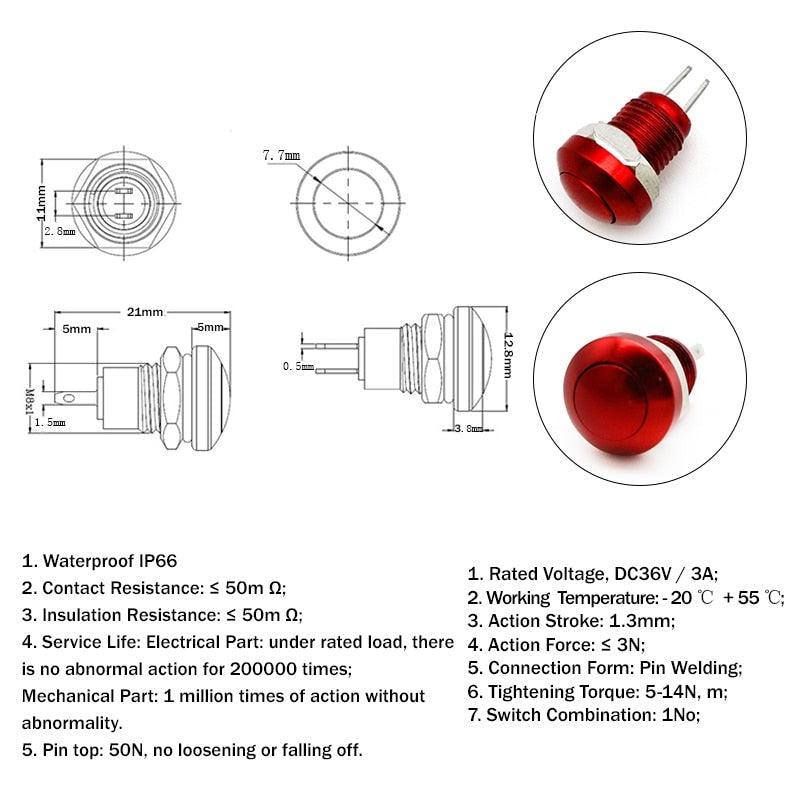

1. Waterproof IP66

2. Contact Resistance: ≤ 50m Ω;

3. Insulation Resistance: ≤ 50m Ω;

4. Service Life: Electrical Part: under rated load, there is no abnormal action for 200000 times;

Mechanical Part: 1 million times of action without abnormality.

5. Pin top: 50N, no loosening or falling off.

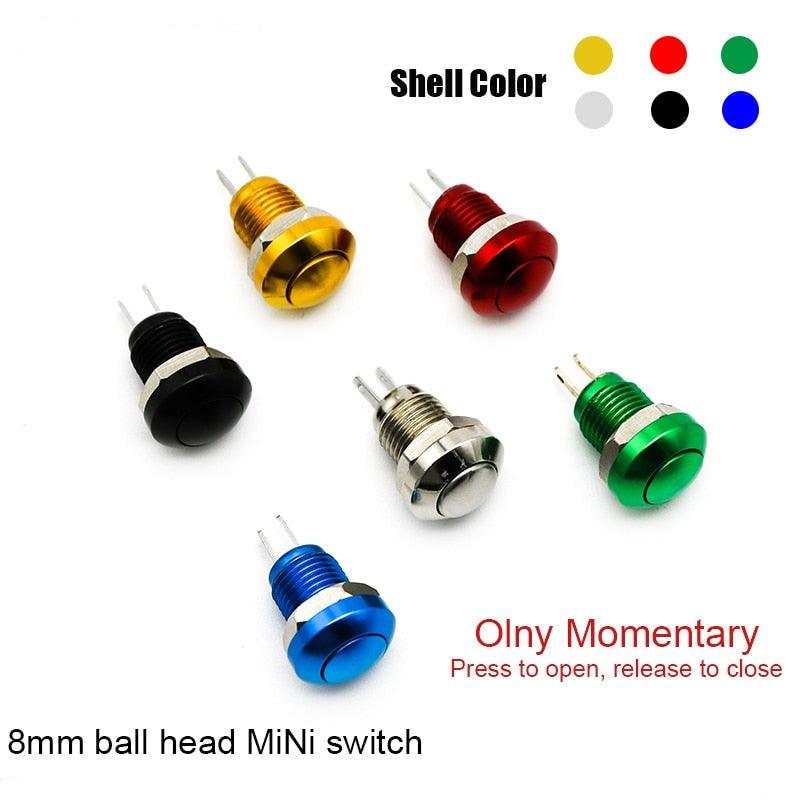

6.Press to open, release to close

Parameter：

1. Rated Voltage, DC36V / 3A;

2. Working Temperature: - 20 ℃ + 55 ℃;

3. Action Stroke: 1.3mm;

4. Action Force: ≤ 3N;

5. Connection Form: Pin Welding;

6. Tightening Torque: 5-14N, m;

7. Switch Combination: 1No;

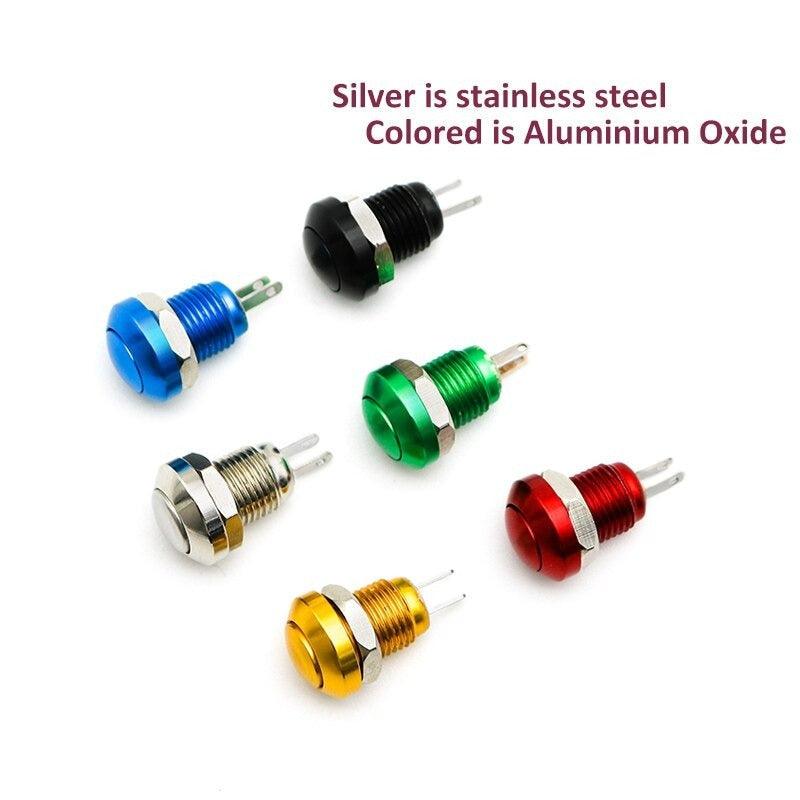

8.Shell Material: Silver is Stainless Steel

                           Color is Aluminium Oxide
