895 High Torque High RPM DC Motor

$25.90 USD
$35.20 USD $25.90 USD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

SPECIFICATIONS

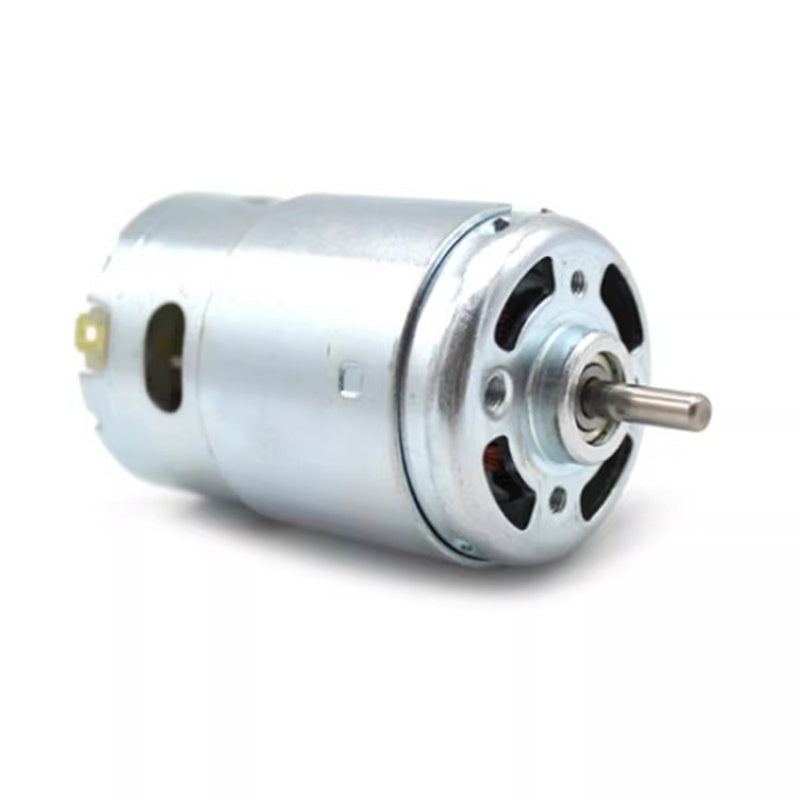

895 High Torque High RPM DC Motors 12V 24V 3000/6000/8000/12000/18000RPM Use For Scooter Cutting Machine Electric Grinder Motor,12v dc motor high torque high rpm

Brand Name: HYSMOTOR

Model Number: 895

Product Description

This 895 DC motor is a high-speed, high-power and high-torque drive component, specially designed for various scenarios that require strong power and stable operation. It supports two common voltage options (12V and 24V), which can be flexibly selected according to different equipment requirements, and is widely used in electric tools, gardening equipment, boat models, toy cars and other fields.

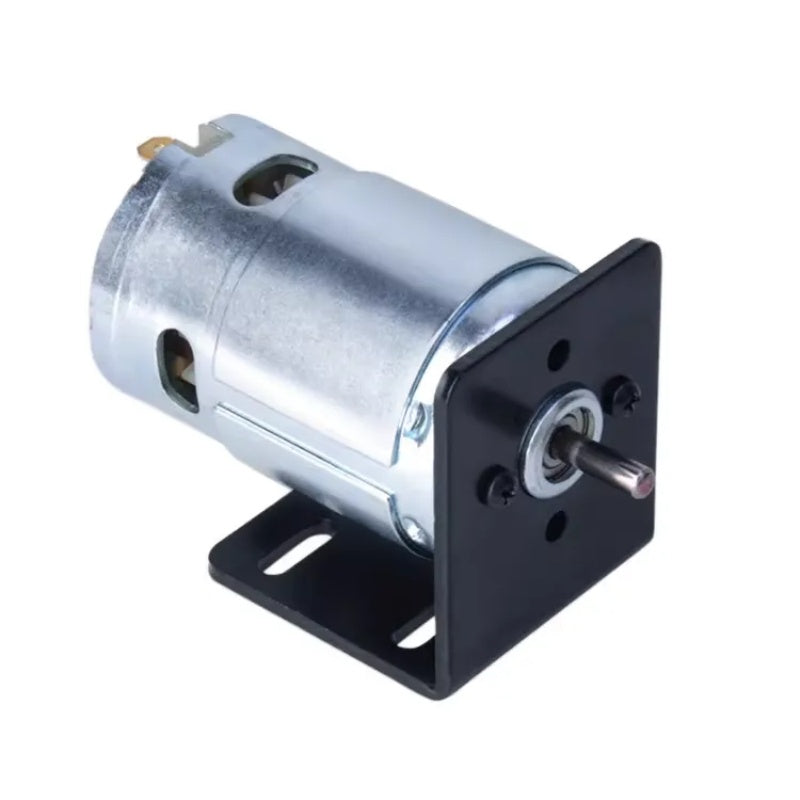

Vertical surface: thickness 3mm, height 54mm, width 50mm, high hardness metal bracket.
Underside: Thick 3mm, length 54mm.
Center step hole: about 21.5mm in diameter
Motor fixing hole: vertical hole M4, pitch 29mm
Cross hole M5, hole distance 32mm,
For detailed and specific dimensions, see the description.
Weight: about 100 grams
The bracket vertical hole is M4 screw hole, the pitch is 29mm, compatible with 775, 795,895 motor installation, Suitable for 7 series and 8 series motors，but is a vertical hole, it is not recommended to use on the 775/795 motor.

Low speed version 12v-24v ; 3000-6000rpm
1. Rated voltage : DC 12V To 24V
2. No load speed : 12v is 3000rpm Troque  5.2kg.cm , 24v is 6000rpm Troque 10kg.cm
3. Maximum torque :  10 KG.CM(It is best not to reach this value when the motor is working.）
4. No load current : 0.5A
5. Support for forward and reverse rotation

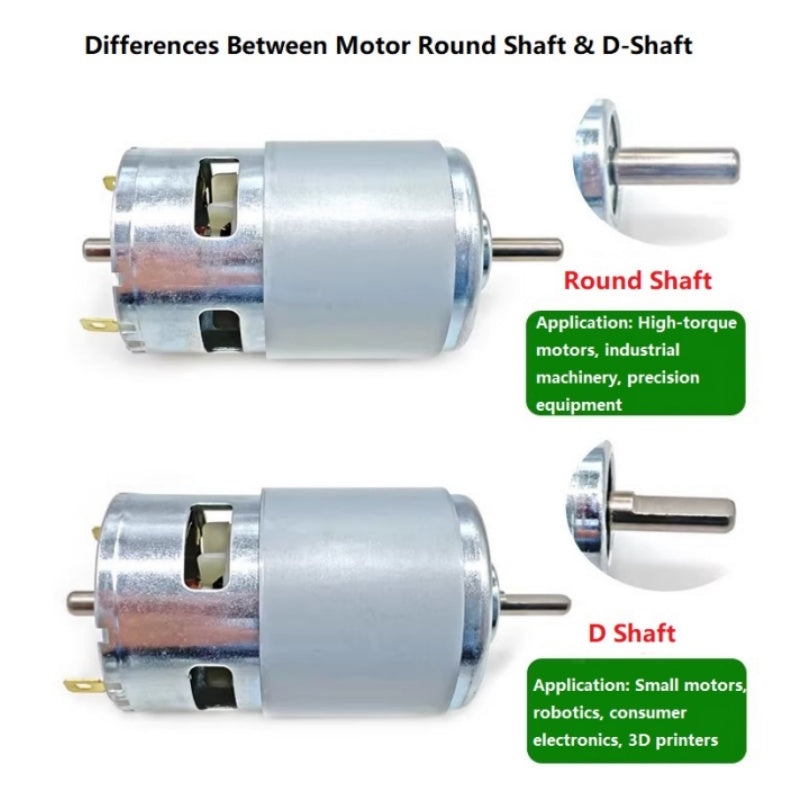

6. The diameter of the motor shaft is 5MM
7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger
8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.
High speed version12v-24v ; 7000rpm-14000rpm
1. Rated voltage : DC 12V To 24V
2. No load speed : 12v is 6000rpmTroque  4.2kg.cm;  24v is 12000rpm  Troque  8kg.cm
3. Maximum torque :  8 KG.CM(It is best not to reach this value when the motor is working.）
4. No load current : 0.9A
5. Support for forward and reverse rotation
6. The diameter of the motor shaft is 5MM
7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger
8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.
The following are the dimensions of the 895 motor
The measuring instruments we use are different, so the data for measuring the size of the motor will be slightly different. If your device has restrictions on the installation of the motor, you need to check it before buying.
High speed version12v-24v ; 10000rpm-20000rpm
1. Rated voltage : DC 12V To 24V
  1. No load speed : 12v is 9000rpm Troque  4.2kg.cm;  24v is 18000rpm  Troque  8kg.cm
3. Maximum torque : 7..5kg.vm KG.CM(It is best not to reach this value when the motor is working.）
4. No load current : 1.6A
5. Support for forward and reverse rotation
6. The diameter of the motor shaft is 5MM
7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger
8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.
The following are the dimensions of the 895 motor
The measuring instruments we use are different, so the data for measuring the size of the motor will be slightly different. If your device has restrictions on the installation of the motor, you need to check it before buying.
