80KTYZ AC 60W Permanent Magnet Synchronous Motor 220V 5rpm -110rpm High Torque 137KG Slow Speed Machine Motor Small Engine

SPECIFICATIONS

80KTYZ AC 60W Permanent Magnet Synchronous Motor 220V 5rpm -110rpm High Torque 137KG Slow Speed Machine Motor Small Engine

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Efficiency: IE 1

AC Voltage: 115/120 V

Origin: Mainland China

Phase: Single-phase

Protect Feature: Totally Enclosed

Certification: RoHS

Certification: CCC

Model Number: 80ktyz

Output Power: 60W

Type: Synchronous Motor

ac gear motor low rpm,10rpm,6 rpm gear motor,60 rpm motor,high torque low rpm ac electric motor,high torque low rpm ac motor,30 rpm motor

Features:

Low speed

Large torque

Positive and negative control

Can be recycled for 24 hours

Synchronization

No inertia

Pure copper wire

Metal gear

This motor is mainly used for: stage lighting, electric curtains, monitoring PTZ, air conditioners, Christmas trees, advertising light boxes, dynamic painting, water control, a plastic machine, Dianjiao Ji, a press, the screen machine, Electronic equipment and so on.

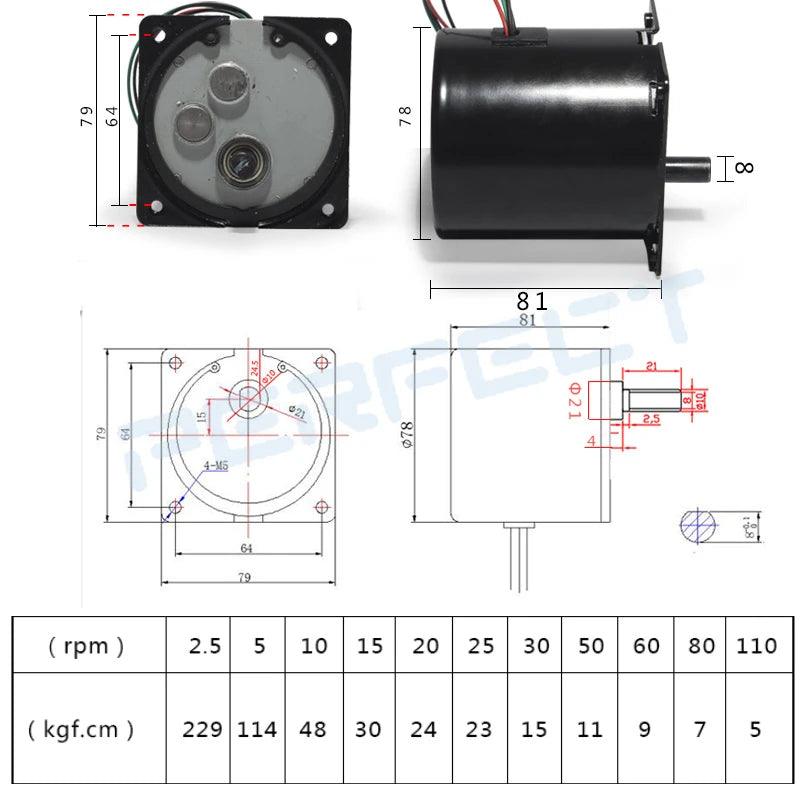

The motor dimensions and main parameters are as follows:

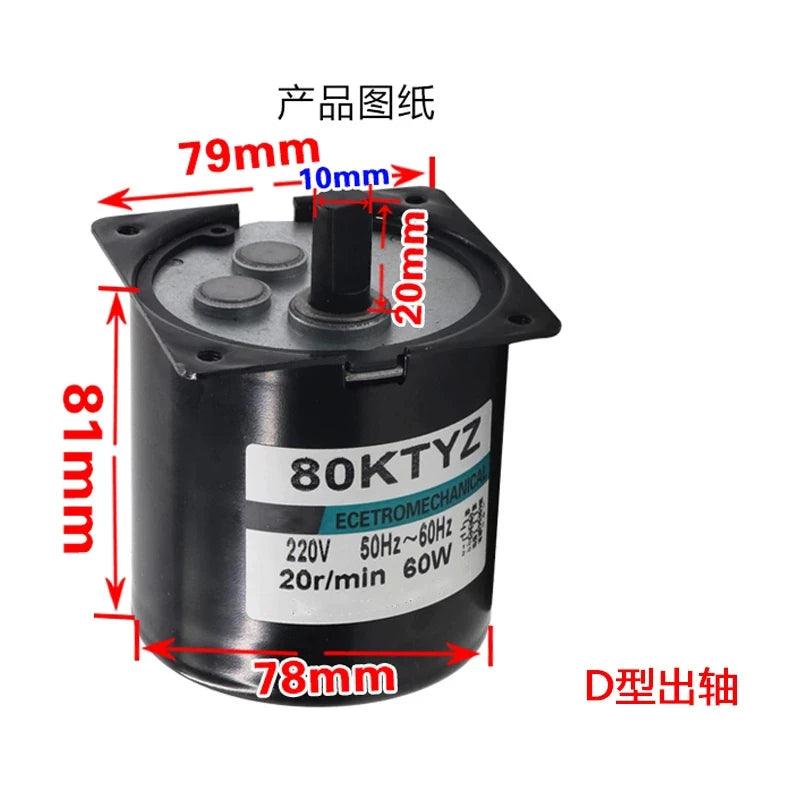

Body diameter 78MM, body height 81MM

Power: 60W Rotation direction: CW / CCW

Input voltage: 220VAC

Operating Temperature and Humidity: Temperature range -10C to + 50C, humidity range30% ~ 80%.

Storage Temperature: Range Temperature-20C to + 60C

Wiring method and rotation direction:

Two wiring method reach two direction of rotation:

1. forward(CW)

2. Reverse(CCW)
