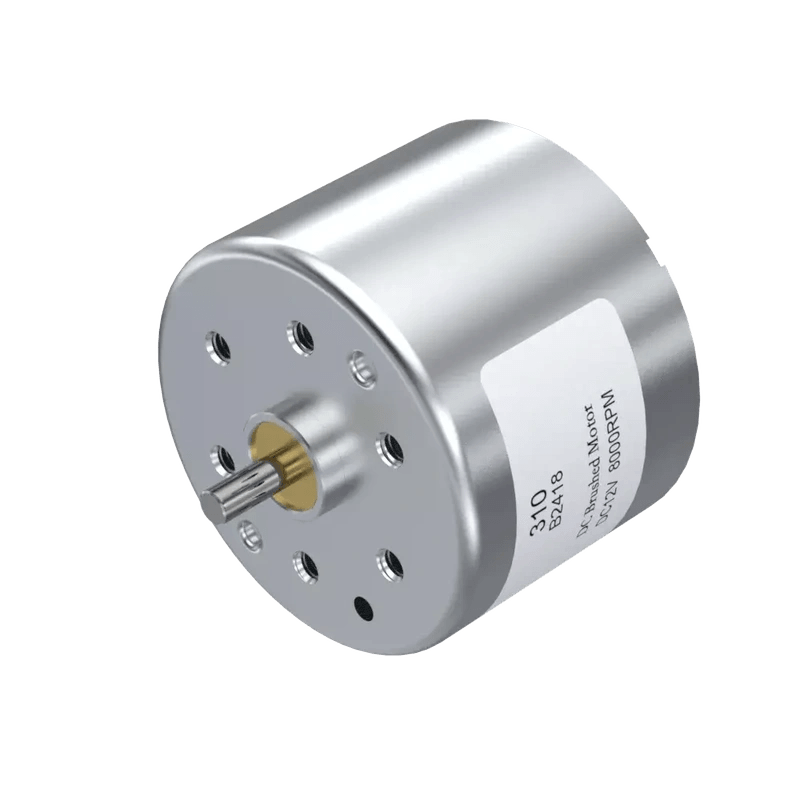

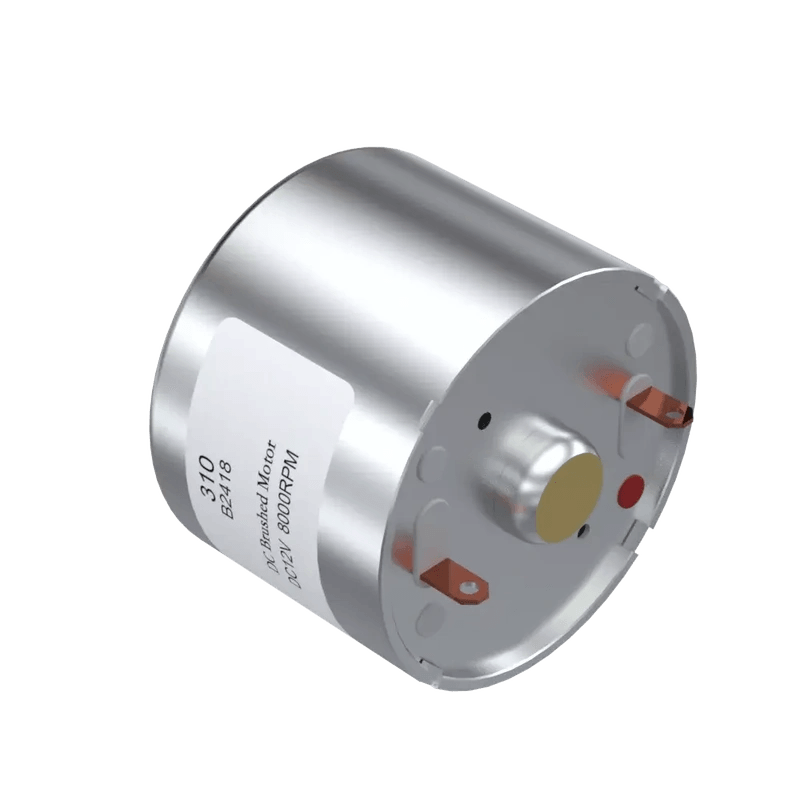

High Speed DC Brushed Micro Mini Motor for DIY Toys Hobbies Smart Car (B2418)

SPECIFICATIONS

310 12V 8000RPM 2W 9V 6000RPM 1W 6V 4000RPM 0.5W

High Speed DC Brushed Micro Mini Motor for DIY Toys Hobbies Smart Car (B2418)

Brand Name: Anmiy

Certification: NONE

Origin: Mainland China

Continuous Current(A): 0.18

Output Power: 2.1W

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: Home Appliance

Model Number: 310-S0207R

Torque: 1.65mN.m / 0.017kgf.cm

310 DC Brush Motor Series, Include 3 Family, click for details:

1) 310 (B2418): High-speed (No Gear)
2) GA25-310 (GA25-B2418): Common Gear



More DC Brush Motor Series (310 Series's Brother), click for details.

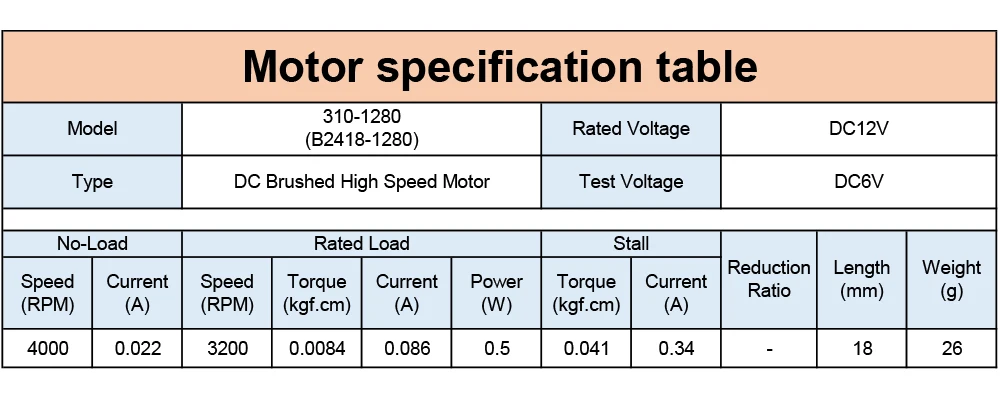

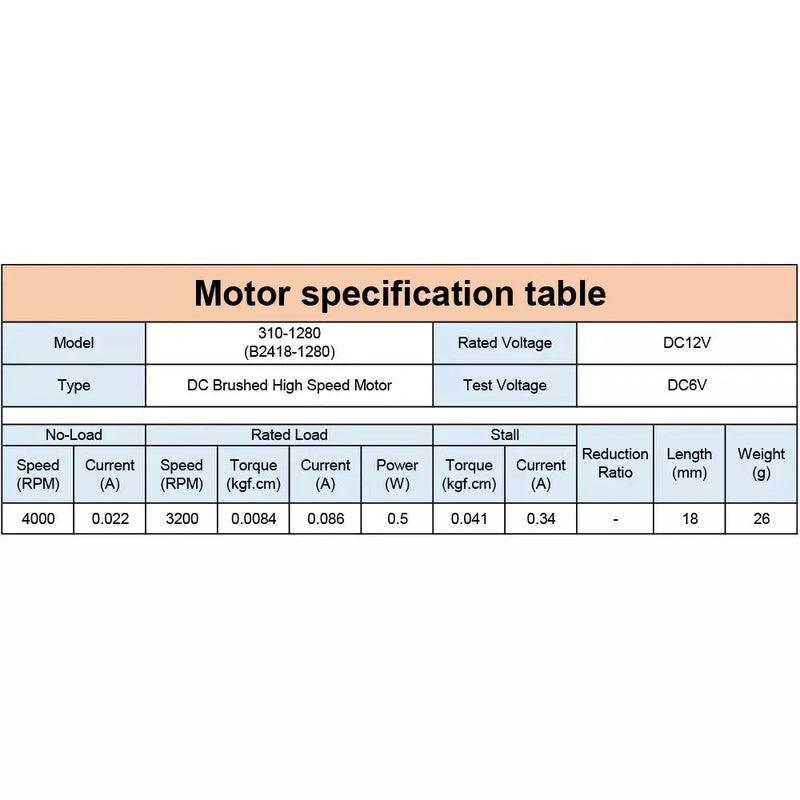

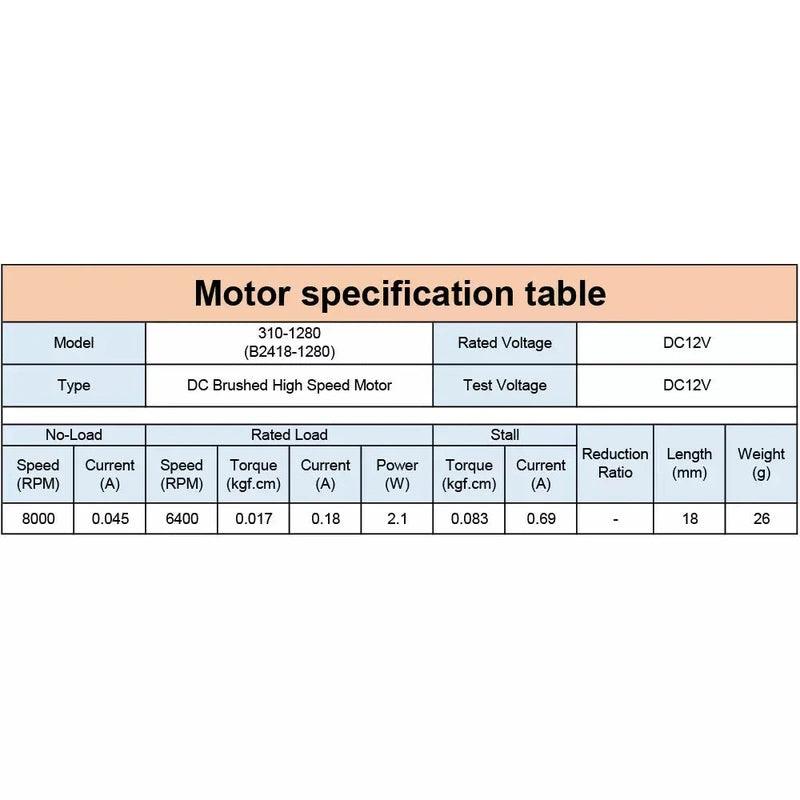

310 (B2418) DC brush motor, with rated voltage of DC12V, can be reduced to 9V, 6V, etc.

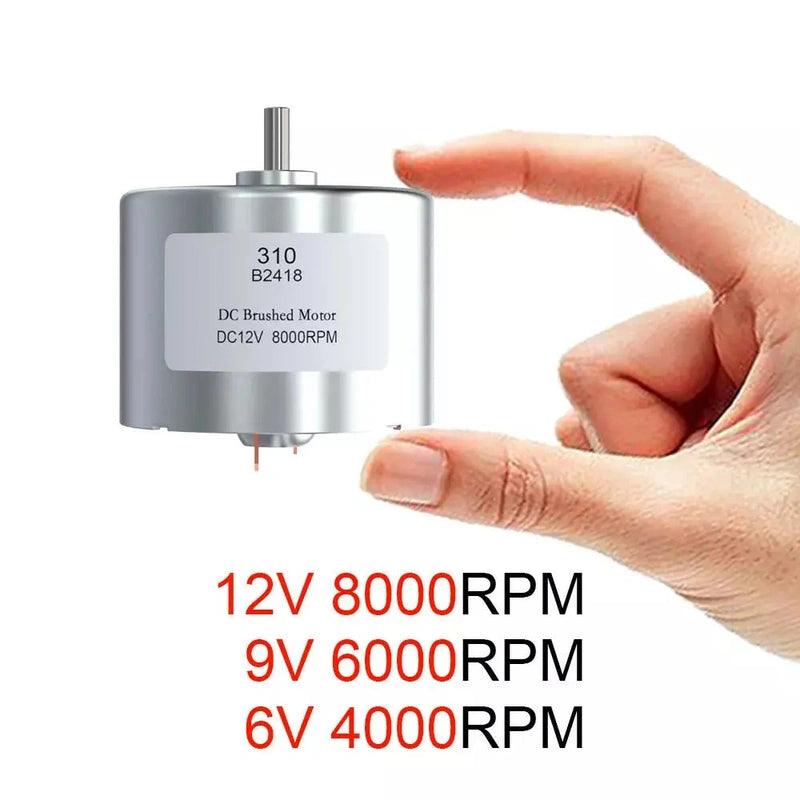

Generally, the no-load speed (unit: rpm, r/min) is:
12V: 8000 rpm

The speed when the voltage is reduced is:
9V: 6000 rpm
6V: 4000 rpm

More speeds can also be customized according to your needs. For details, please contact customer service.
