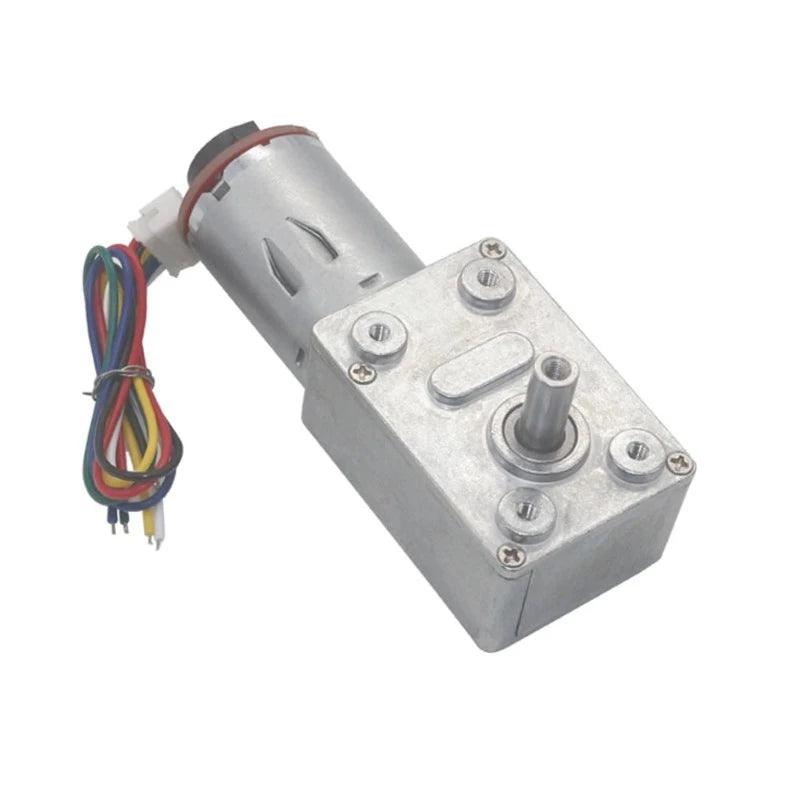

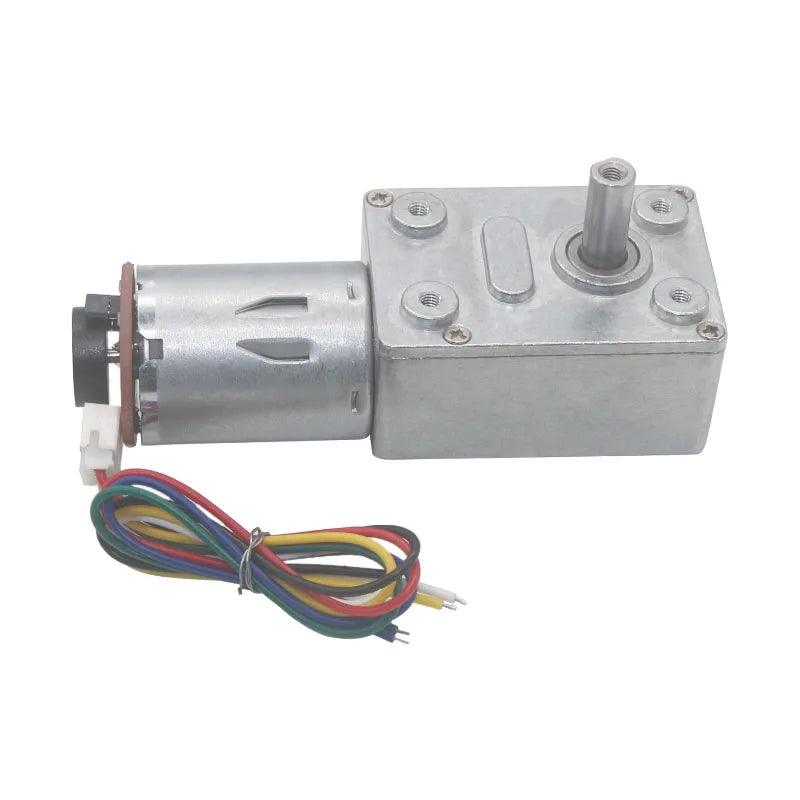

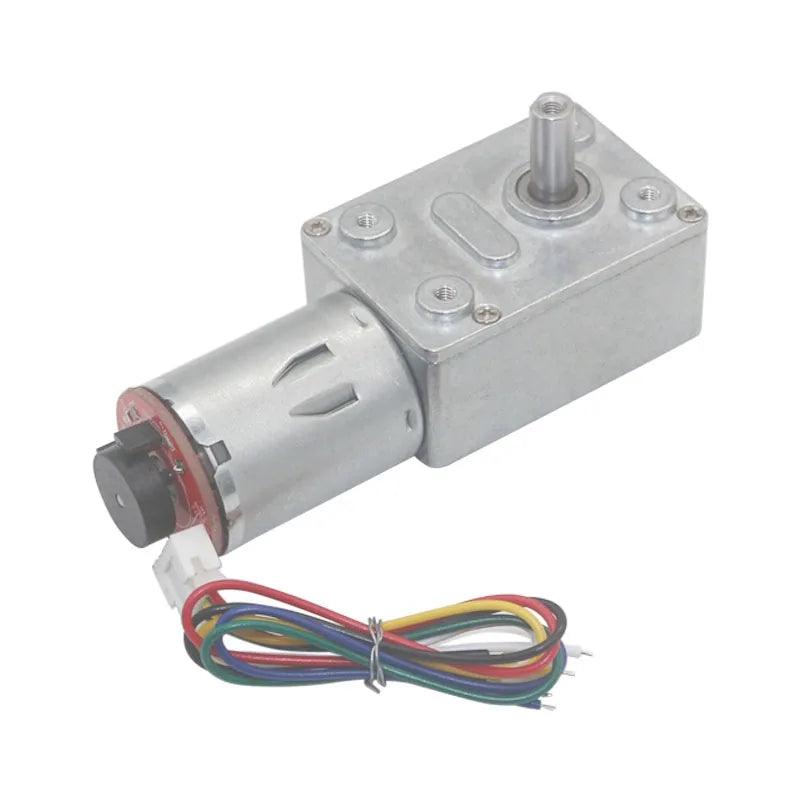

6V 12V 24V DC 6rpm 10rpm 18rpm 23rpm 30rpm 40rpm 90rpm 150rpm Self-lock Hall Encoder Worm Gearbox Reduction Motor JGY370 Geared
Couldn't load pickup availability
SPECIFICATIONS
6V 12V 24V DC 6rpm 10rpm 18rpm 23rpm 30rpm 40rpm 90rpm 150rpm Self-lock Hall Encoder Worm Gearbox Reduction Motor JGY370 Geared
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1

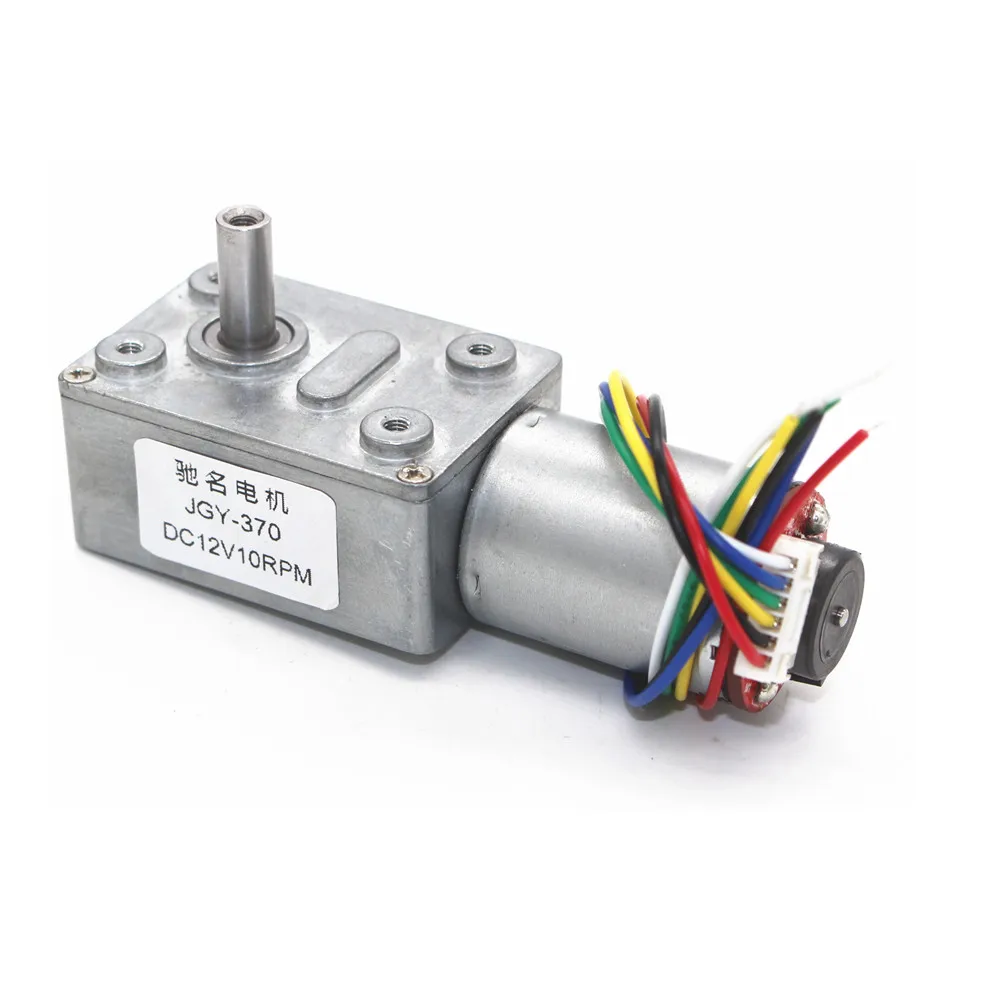

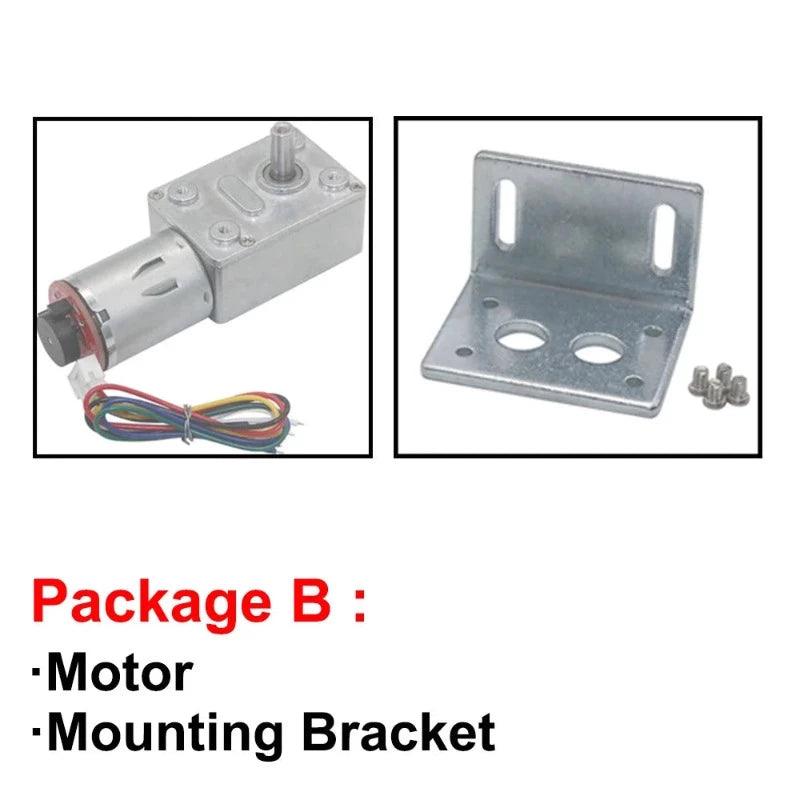

Model Number: JGY370 Geared Motor
Note: Different parameters' motors have their different looks. The lower speed and higher voltage are, the larger the torque is. Please read the parameters table before buying. Thanks!!!
Voltage: DC6V, DC12V, DC24V
No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 90rpm, 150rpm
Error: ±10%
Output Shaft Diameter: 6mm D-type
Output Shaft Length: 14mm
Gearbox Size:46*32*25mm
Gearbox Size Detal, please see the table

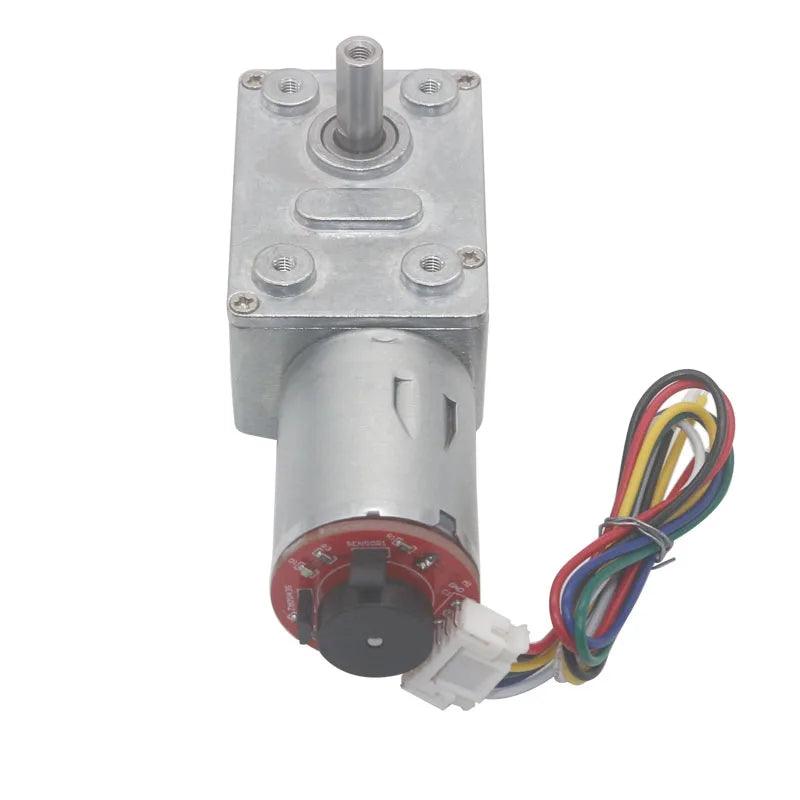

Wirings:
Notice:
1. The yellow and green wires are the speed signal output line, and they can't be connected any power supply, or it will be burnt.
2. Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.
3. Control CW or CCW of motor by changing the positive and negative power supply of encoder (change Red Wire and White Wire connect)
Red Wire - positive power supply of motor(+)
White Wire - negative power supply of motor(-)
Black Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;voltage is3.3-5V)
Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V)

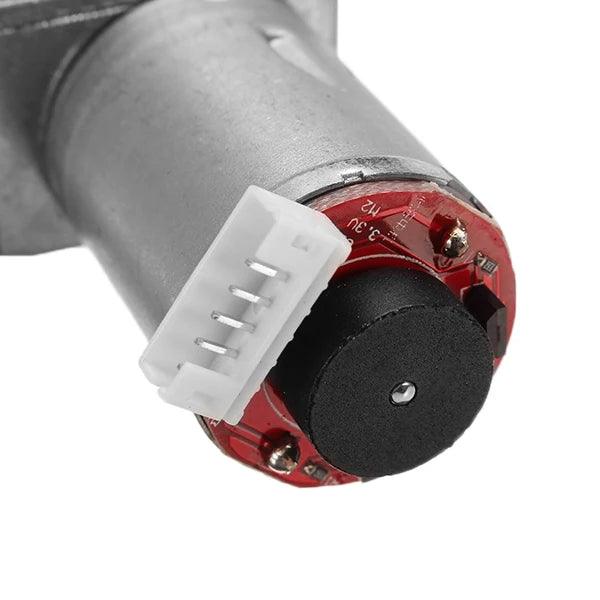

Yellow Wire - signal feedback (11 signals per motor turns a circle)
Green Wire - signal feedback (11 signals per motor turns a circle)
Applications:
