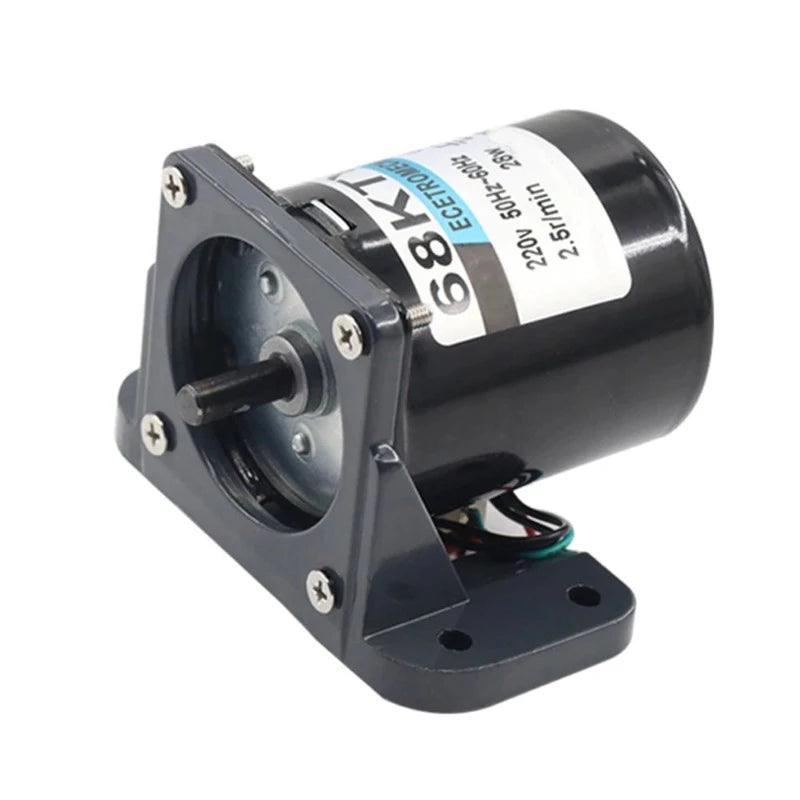

68KTYZ Synchronous Motor Permanent Magnet 28W AC 110V 220V Geared Speed 2.5rpm-110rpm High Torque 100KG CW CCW Reversed Forward

SPECIFICATIONS

68KTYZ Synchronous Motor Permanent Magnet 28W AC 110V 220V Geared Speed 2.5rpm-110rpm High Torque 100KG CW CCW Reversed Forward

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Efficiency: IE 1

AC Voltage: 115/120 V

Origin: Mainland China

Phase: Single-phase

Protect Feature: Totally Enclosed

Certification: RoHS

Certification: CCC

Model Number: 68ktyz

Output Power: 28W

Type: Synchronous Motor

Voltage 1: AC100V-127V

Voltage 2: AC220V-240V

Introduction of the motor

1. 68KTYZ Mini 220V 110V AC Permanent Magnet Synchronous Motor

2. The motor has the following voltage options: AC 220V 110V

3. AC 220V ; You can choose the no load speed have : 2.5rpm ; 5rpm ; 10rpm ; 15rpm ; 20rpm ; 30rpm ; 50rpm ; 60rpm ; 80rpm ; 100rpm 110rpm

Rated torque between 3 To 100 KGF.CM; Select a no load speed in AC 220V, there will be corresponding rated torque, please refer to the parameter table below.

4. The direction of rotation of the motor : CW and CCW; Support Reversed

5. Power : 28W

6. Working temperature : The lowest temperature is -10 degrees Celsius to the highest temperature of 70 degrees Celsius

7. Outstanding features of the motor: The motor is a permanent magnet synchronous motor ; Internal is metal gears ; Low speed and low noise 30dB ; Support continuous operation for 24 hours ; Speed adjustment is not supported ; 5,000 hours of life under normal use ; Use high quality materials ; Small size ; High torque ; Low power consumption ; Light weight and easy to use

8. Motor application range : Automatic barbecue shelf; Automatic dining table; Curtain machine; Crib; Stage Lighting; Dishwasher; Automation control, etc.

9. For the torque, size, product picture or other informations of the motor, please see the following information.Thanks

The following is the motor parameter table

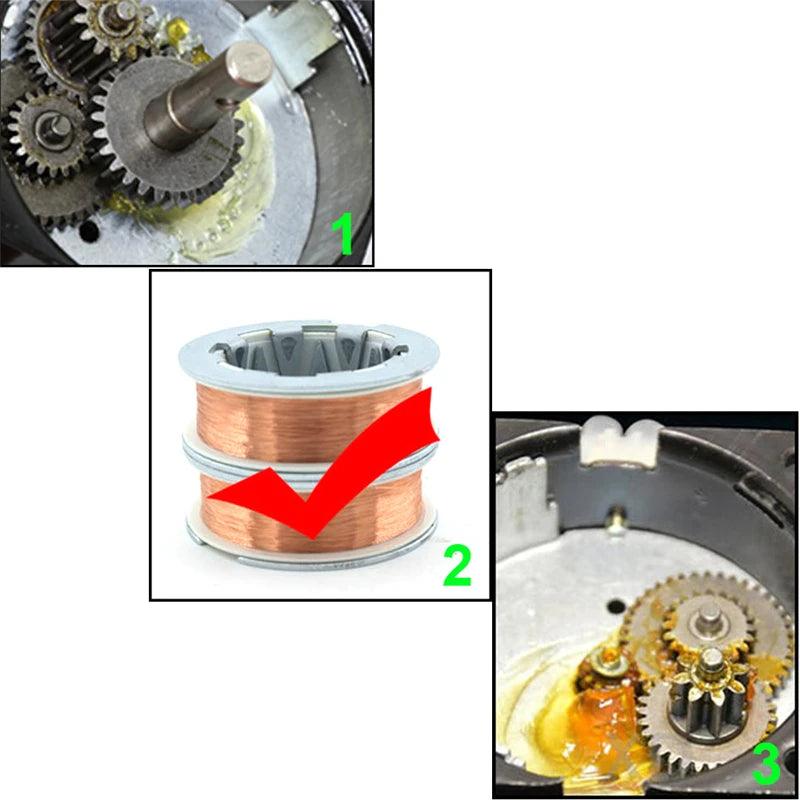

The following is a description of the quality materials and structures of this motor.

1. All metal gears

2. The wire in the rotor is made of pure copper. It is more conductive,resistant to temperature and prolongs the life of the motor.

3. Using imported lubricating oil, it effectively controls the speed of motor temperature rise, which makes the motor rotate more smoothly.

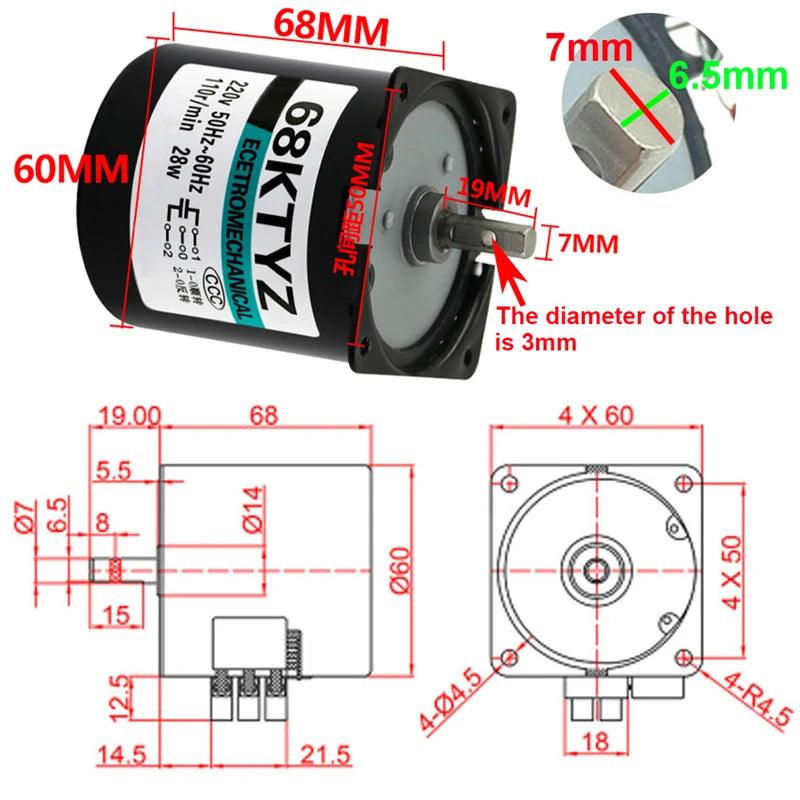

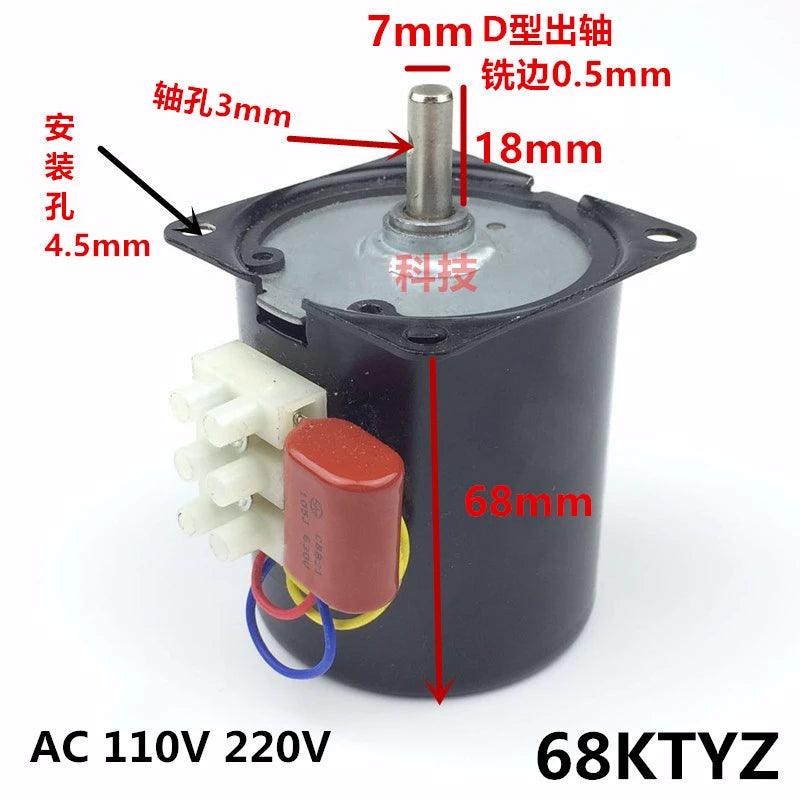

The size is for reference only,the measurement will be slightly different,please pay attention before buying

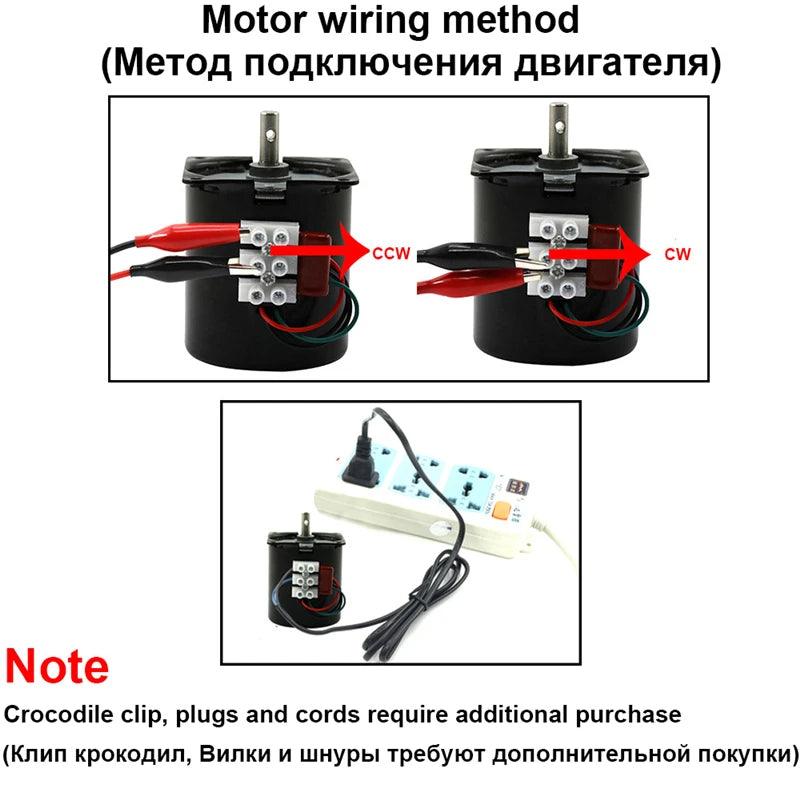

Wiring method

Crocodile clip, plugs and cords require additional purchase
