60mm Diameter DC19V-30V 350W High Speed Three Phase Brushless Motor Dust Collection Turbine Fan Replacement Drive BLDC Motors
Couldn't load pickup availability
SPECIFICATIONS
60mm Diameter DC19V-30V 350W High Speed Three Phase Brushless Motor Dust Collection Turbine Fan Replacement Drive BLDC Motors
Brand Name: HYSMOTOR
Certification: CCC
Origin: Mainland China
Output Power: 350W
Commutation: Brushless
Type: Micro Motor
Protect Feature: Explosion-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Model Number: 60mm Micro Three-phase Brushless DC Motor
Voltage: DC19V-30V

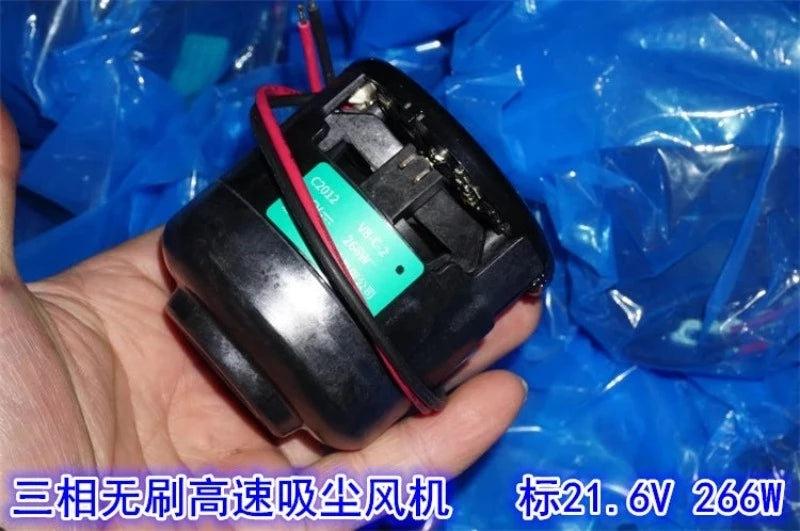

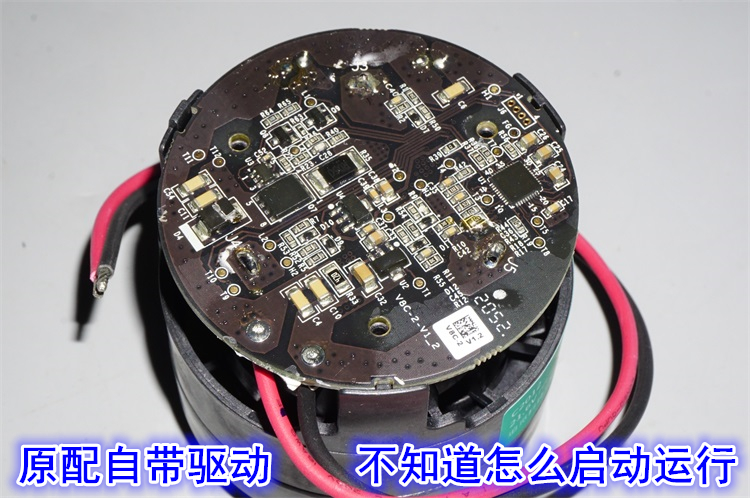

The brand new stock of high-power ultra high-speed three-phase brushless motor, the nominal fan is 21.6V2660W, the drive of the motor can not be powered for operation at present, and it is estimated that there is a communication protocol.

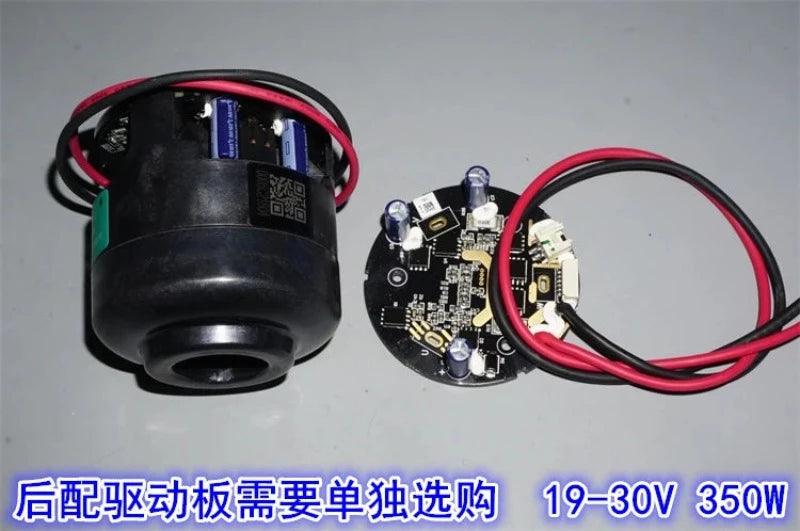

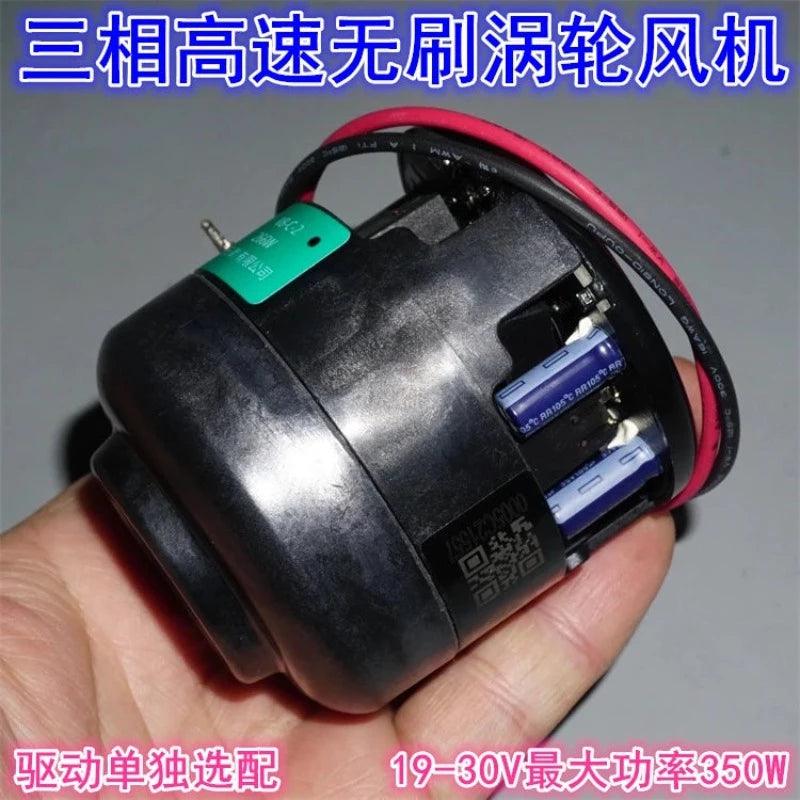

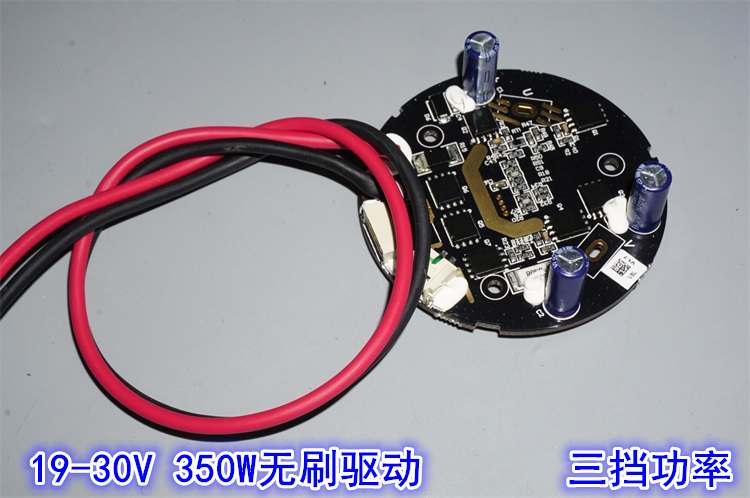

Now there is a rear mounted drive for replacement. The original position soldering iron is used for replacement. The rear mounted drive supports a voltage of 19-30V, a maximum power of 350W, and a three gear low, medium and high speed. The power on defaults to a medium speed gear. The measured 24V voltage of the drive is 2.5A at a low speed, 4.5A at a medium speed, and 14A at a high speed. You need to be able to weld yourself. Driving other fans is not necessarily compatible, and you need to be very close to the motor parameters.
Note: The delivered drive plate needs to be welded by the buyer. If you mind, please do not buy it. Thank you!

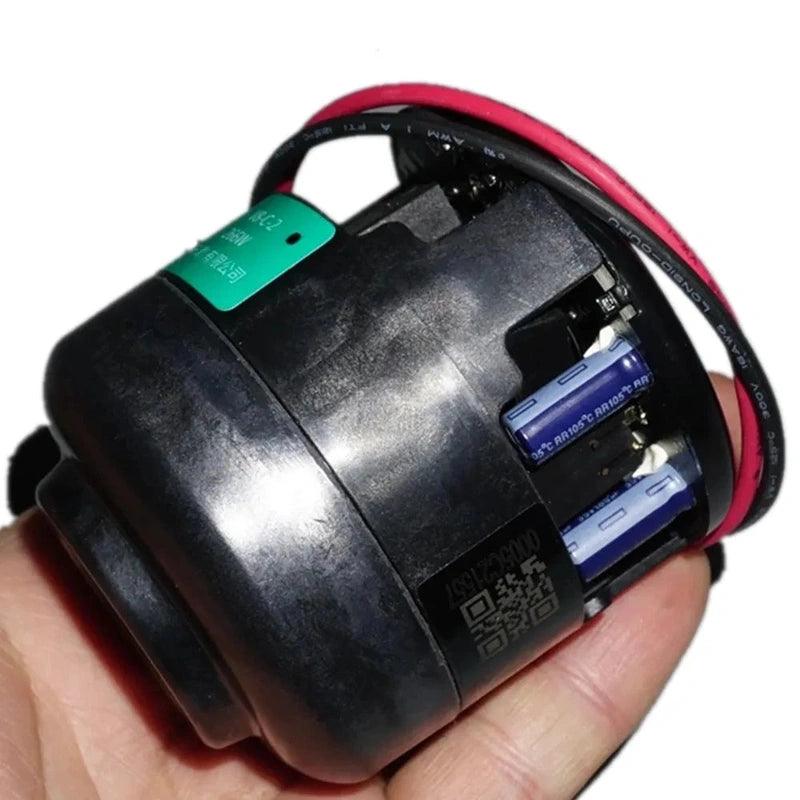

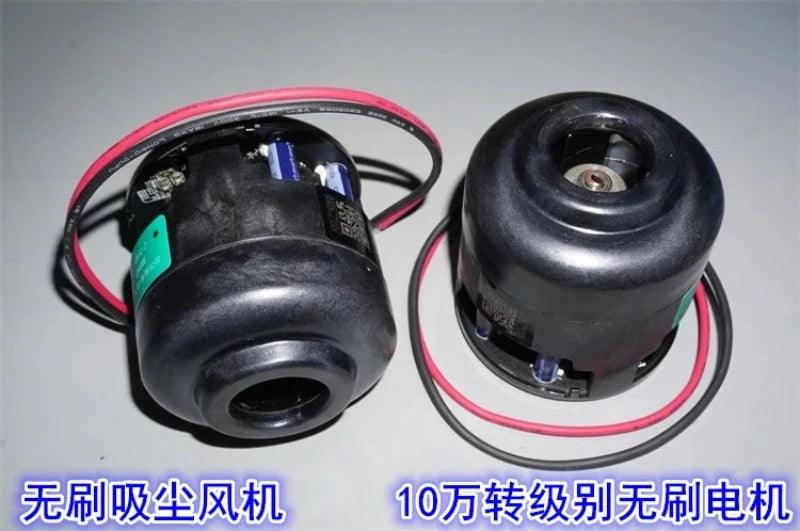

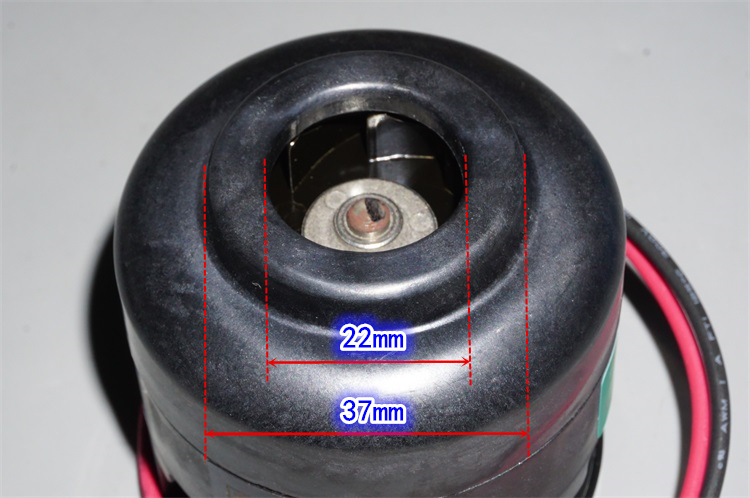

The motor body is 60mm in diameter and 65mm in total length.
The fan weighs about 200g.
