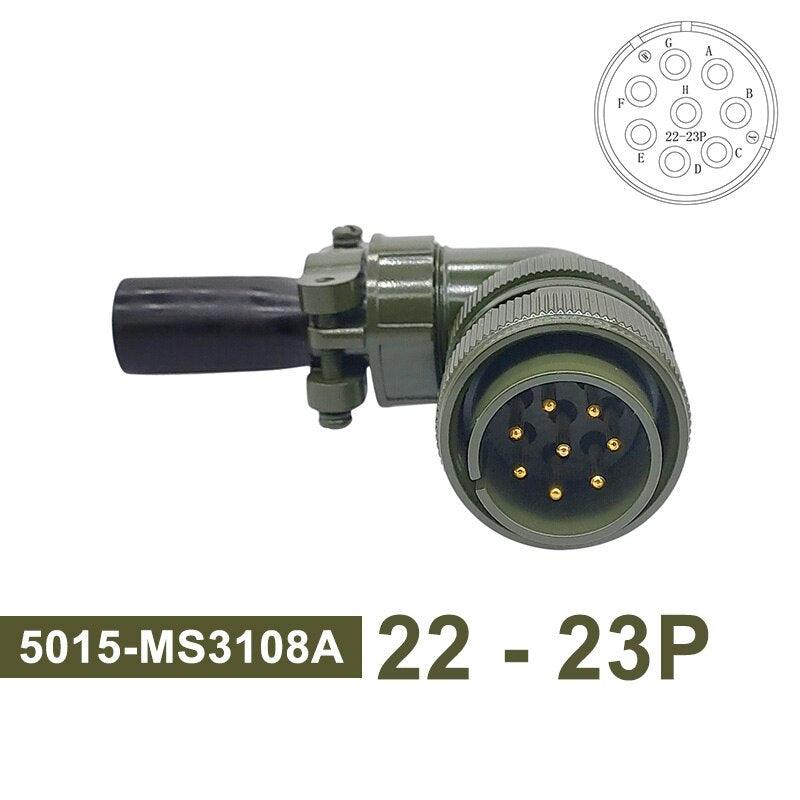

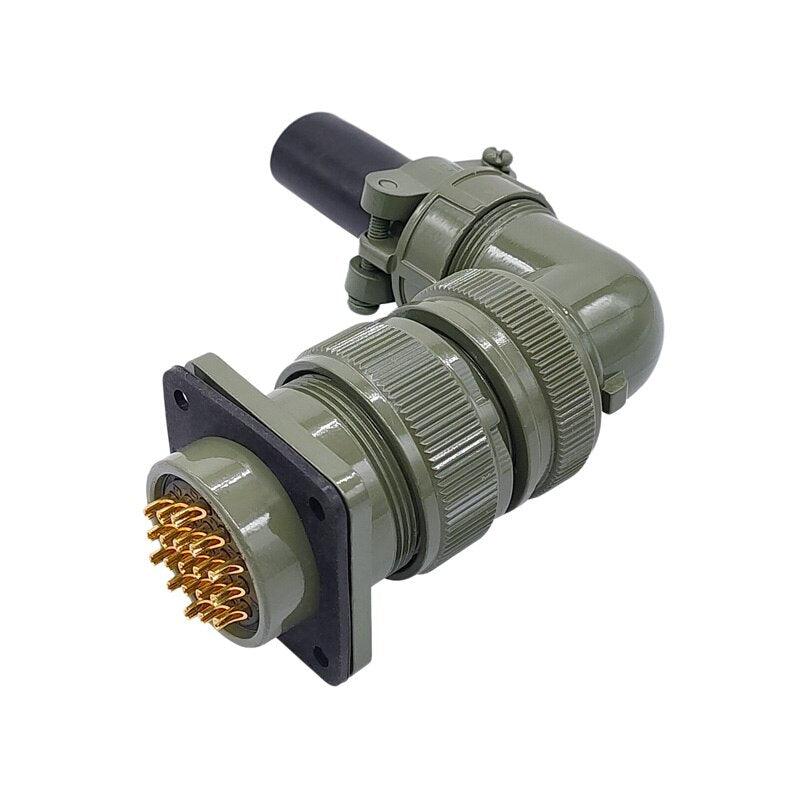

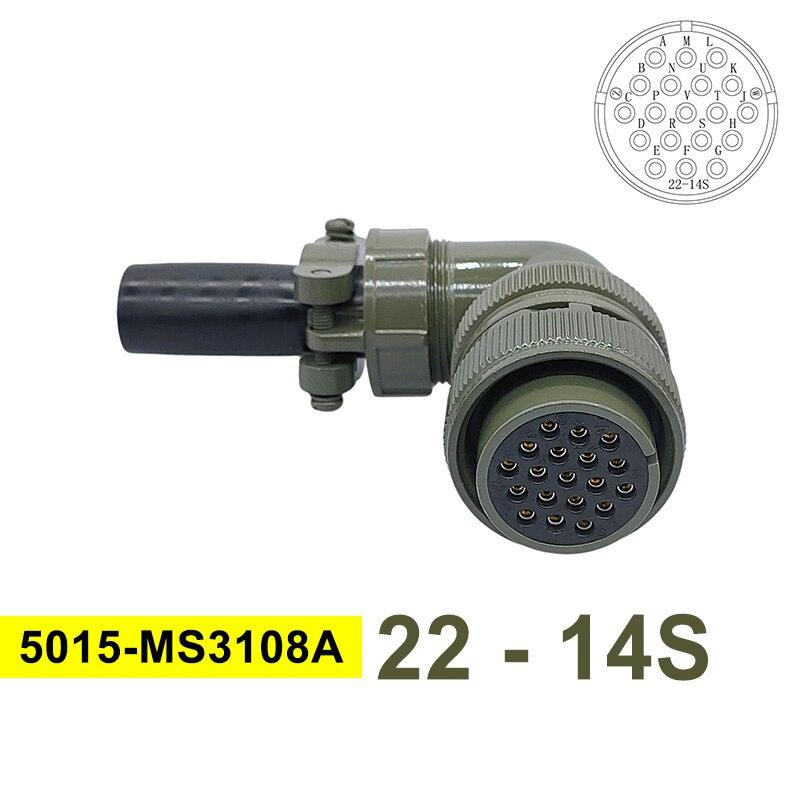

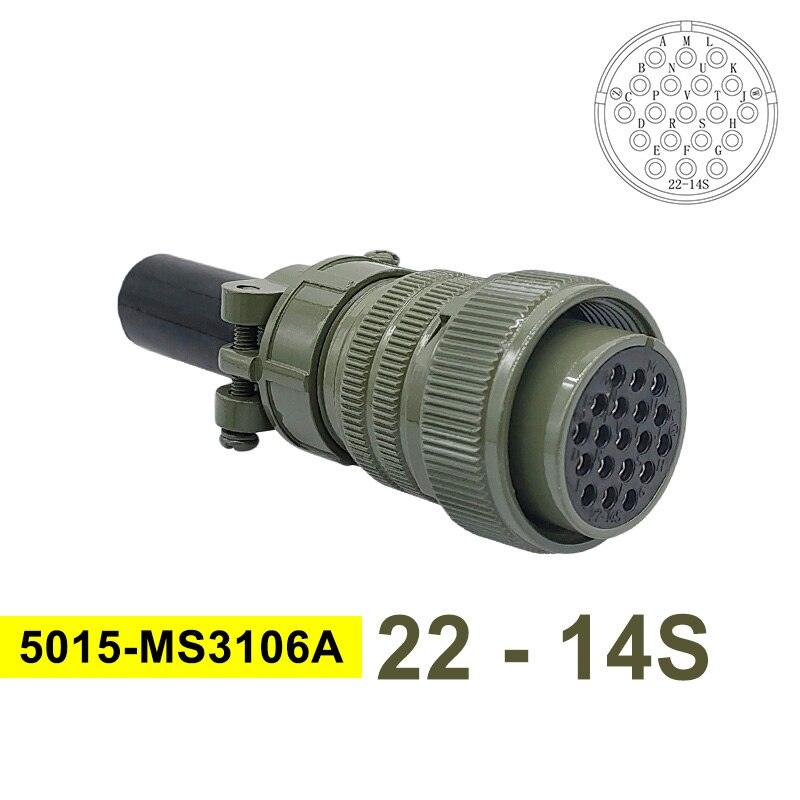

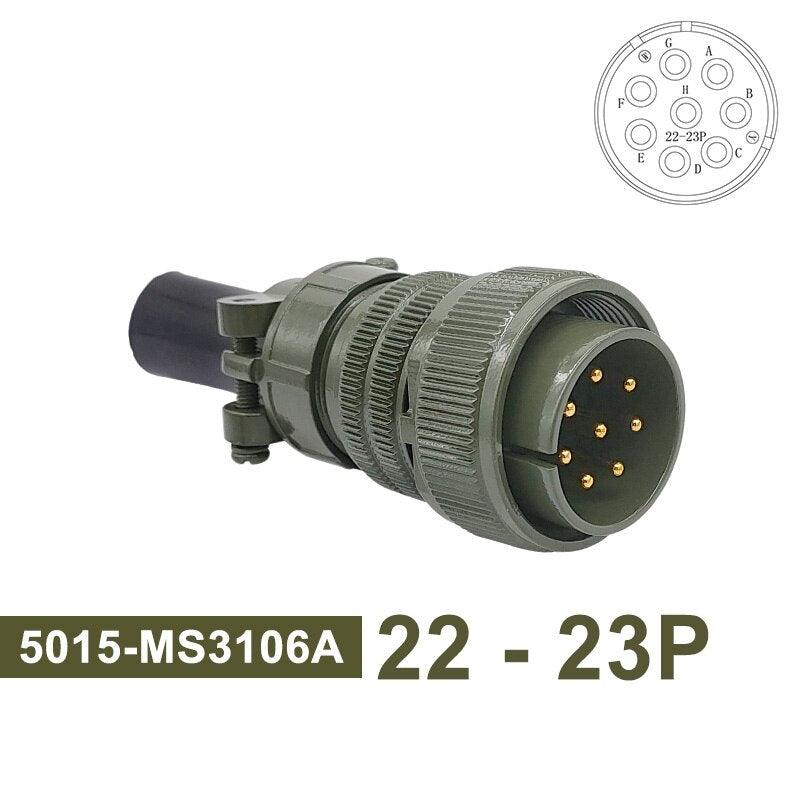

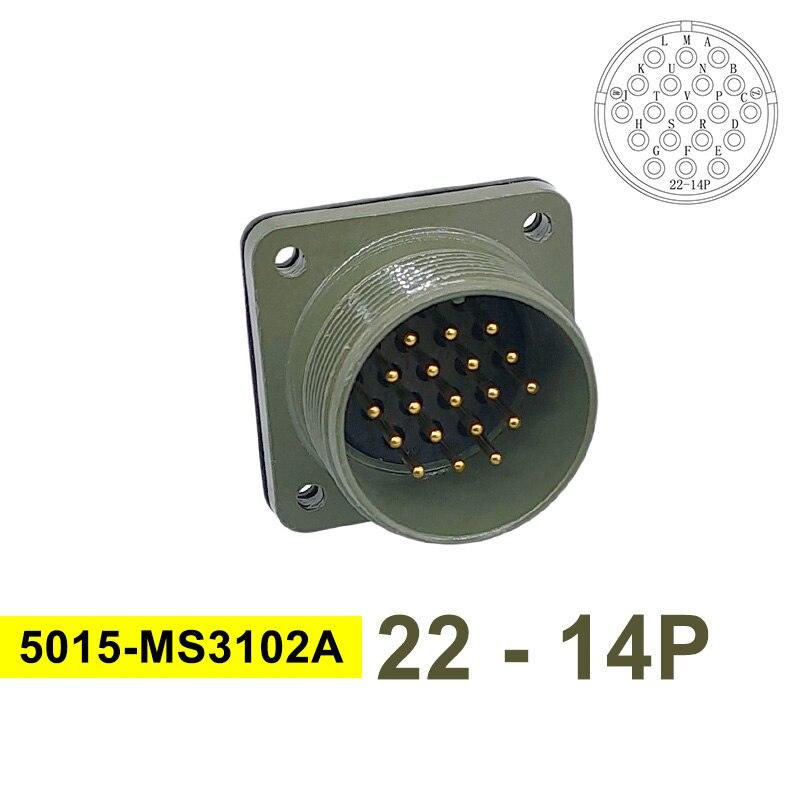

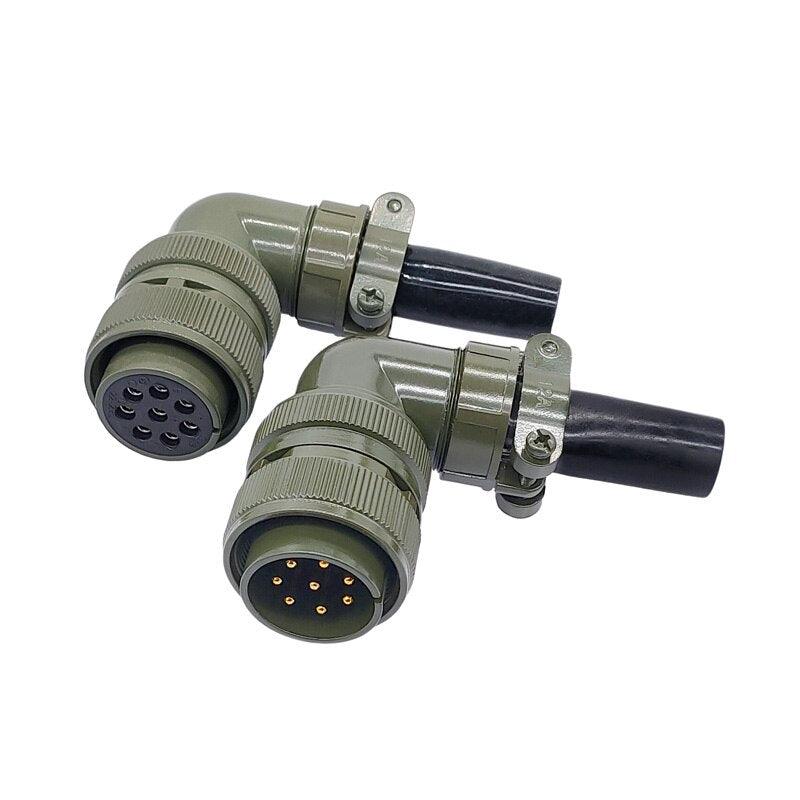

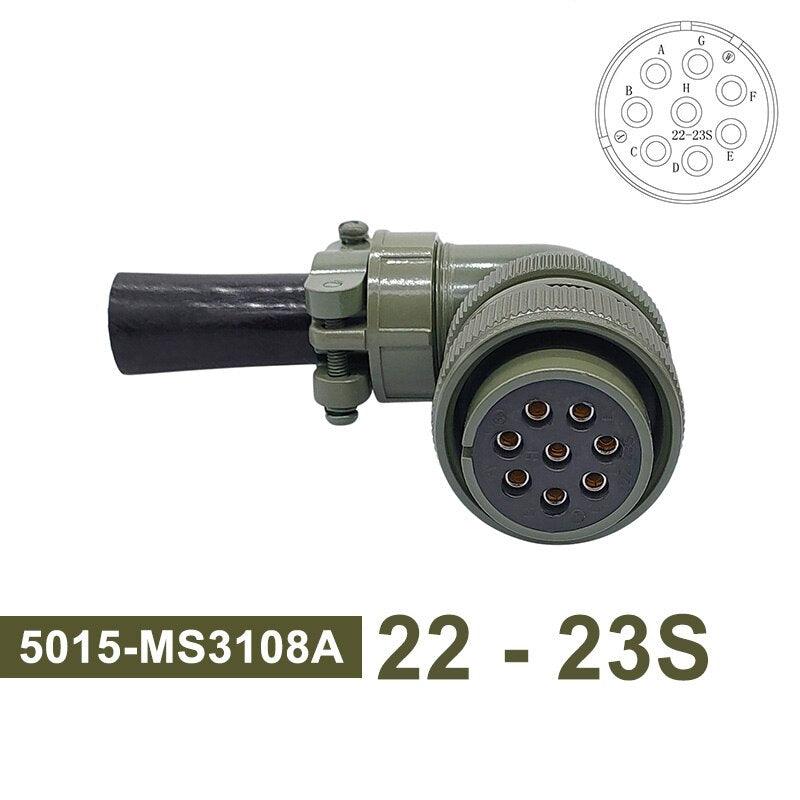

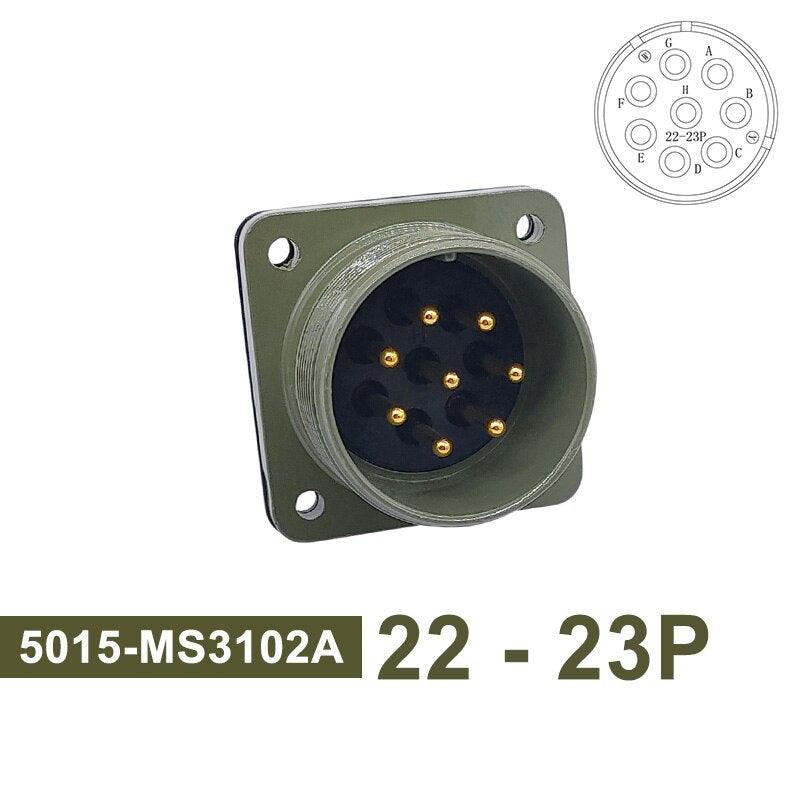

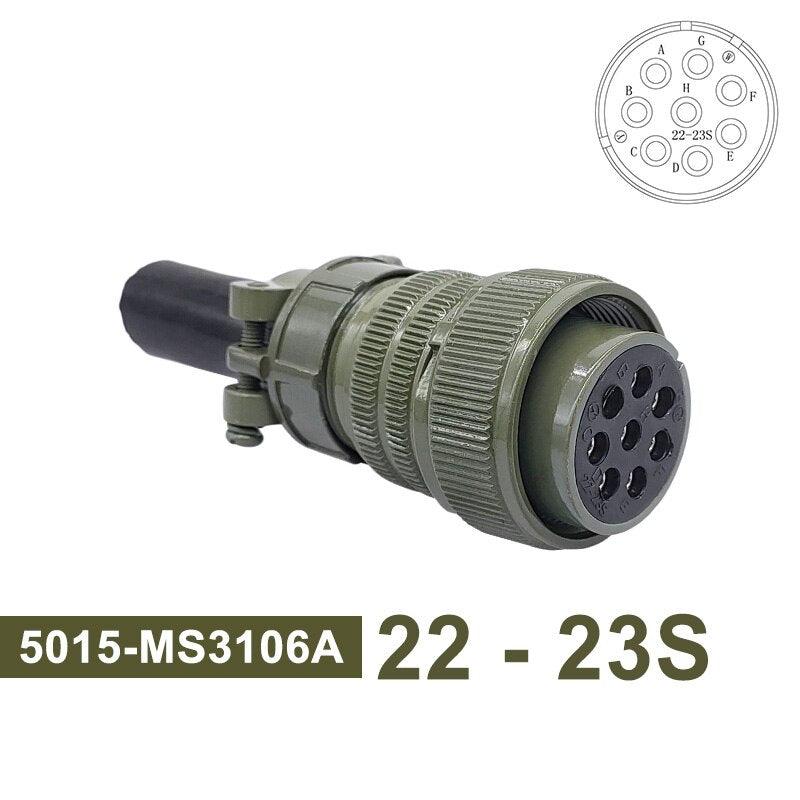

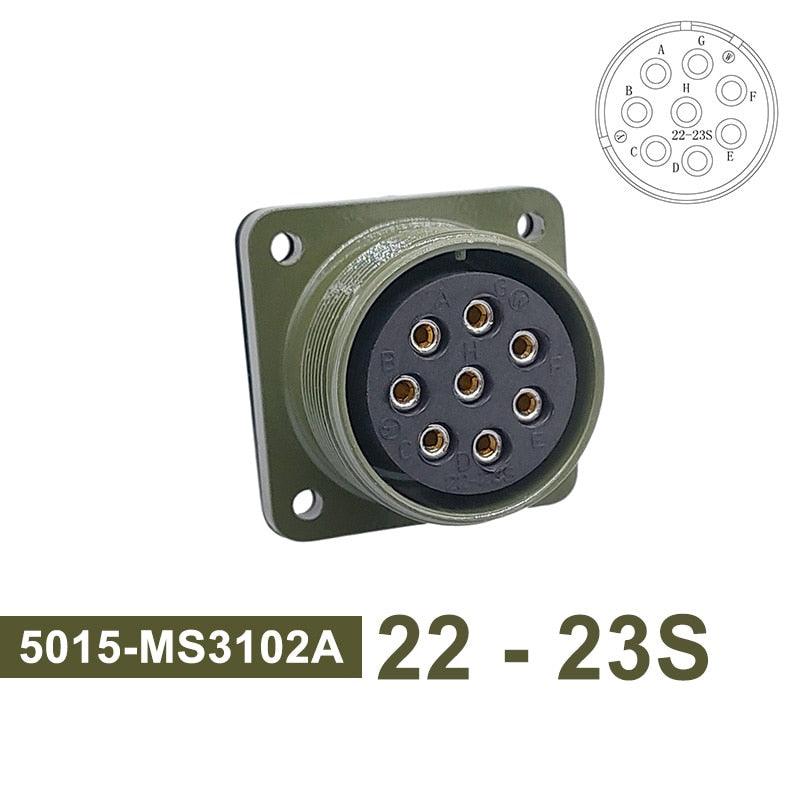

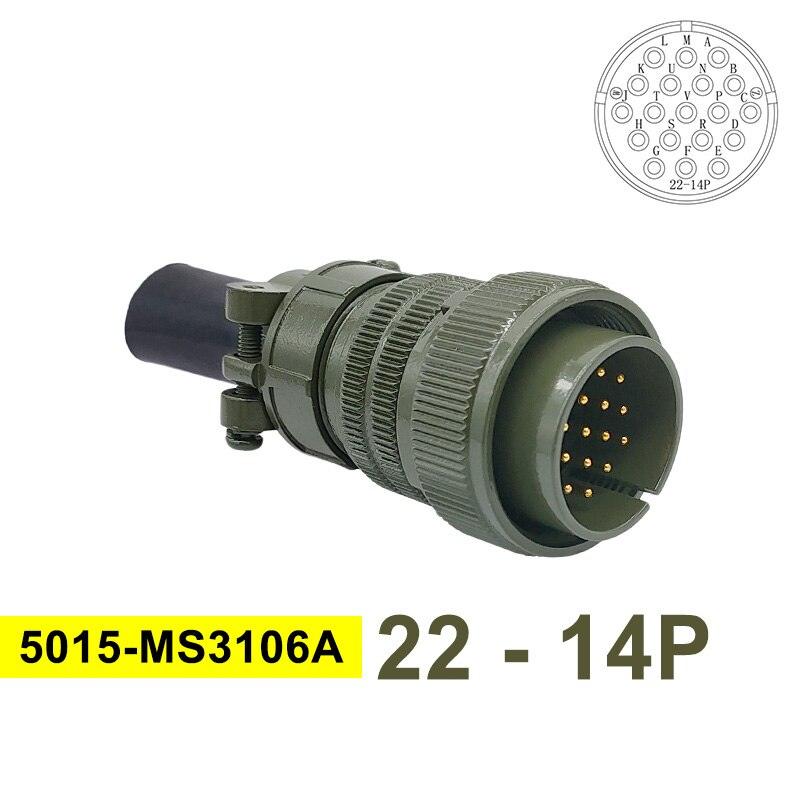

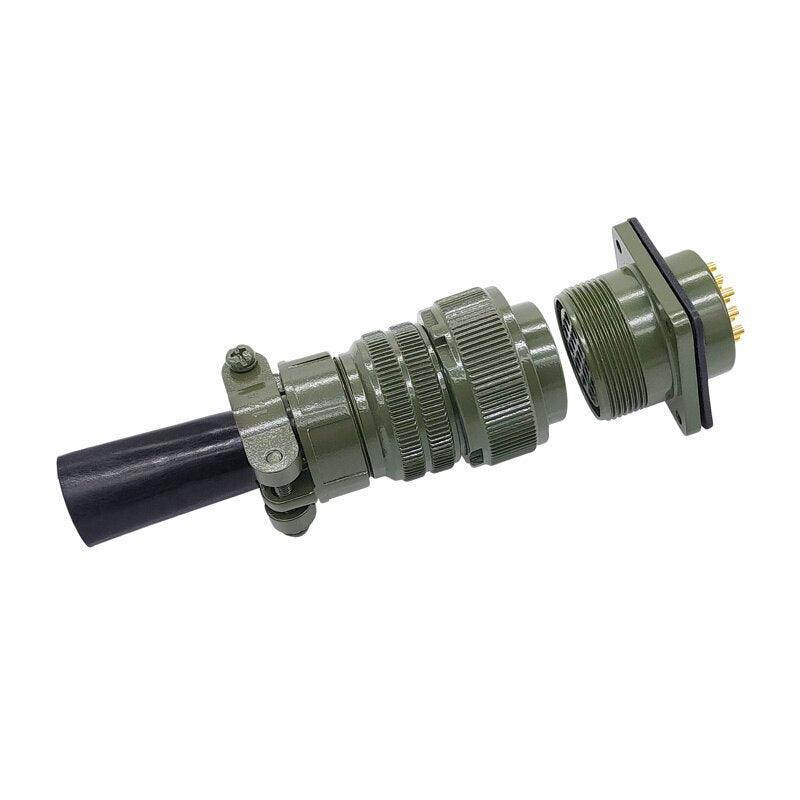

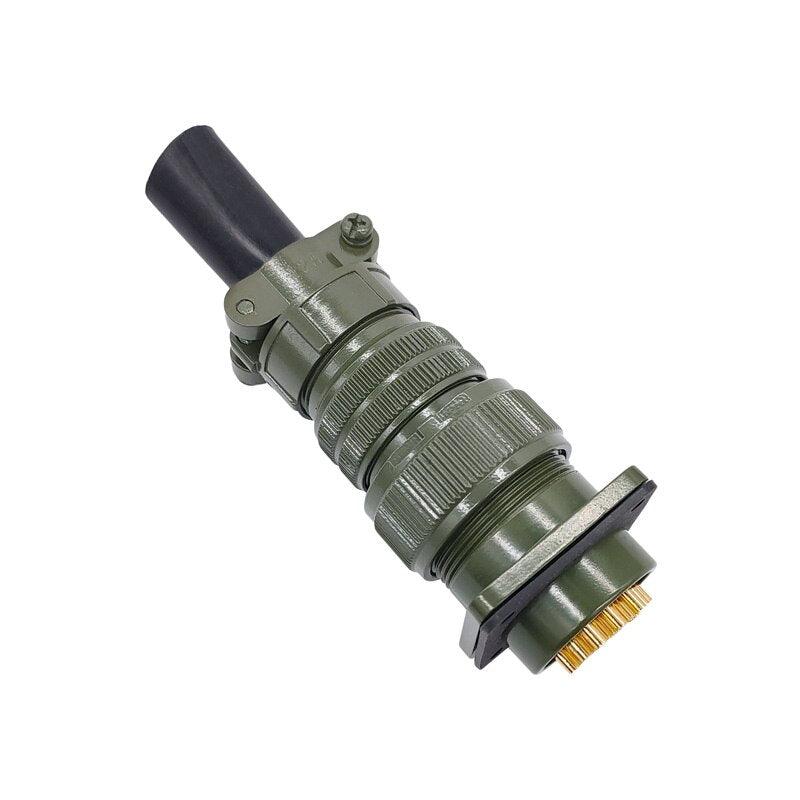

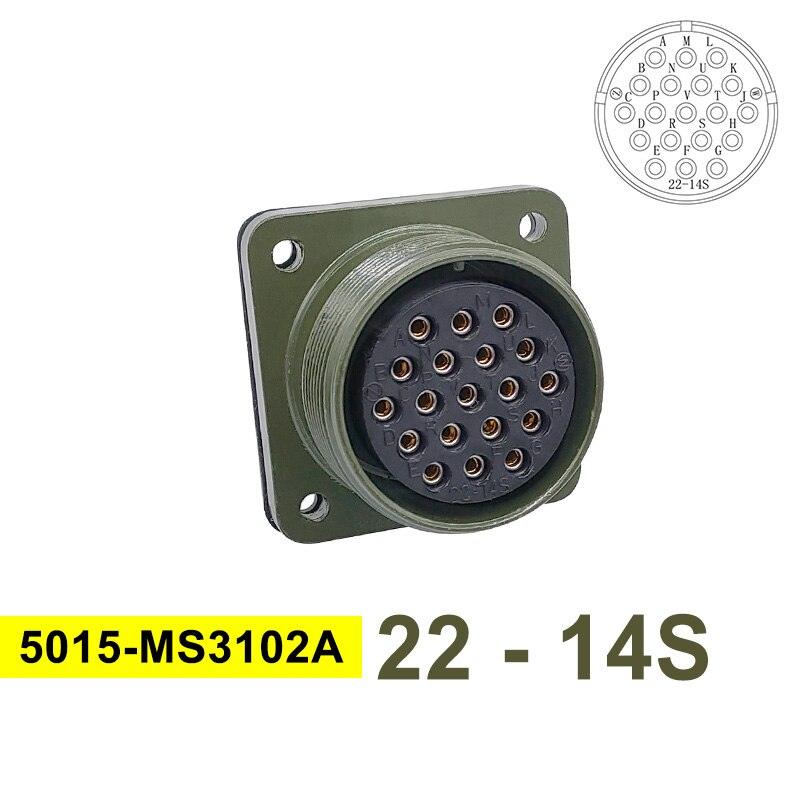

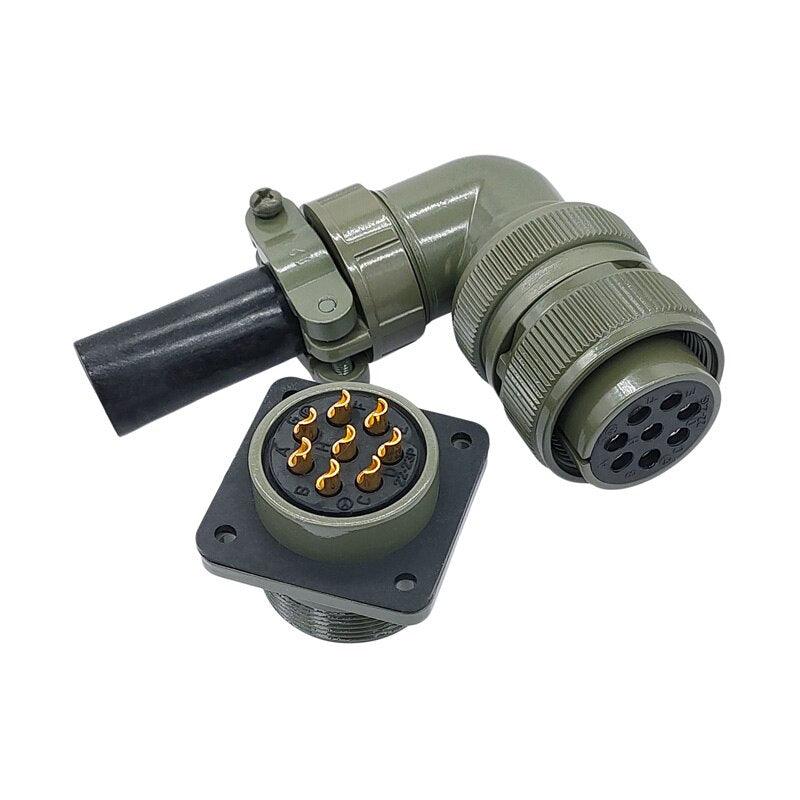

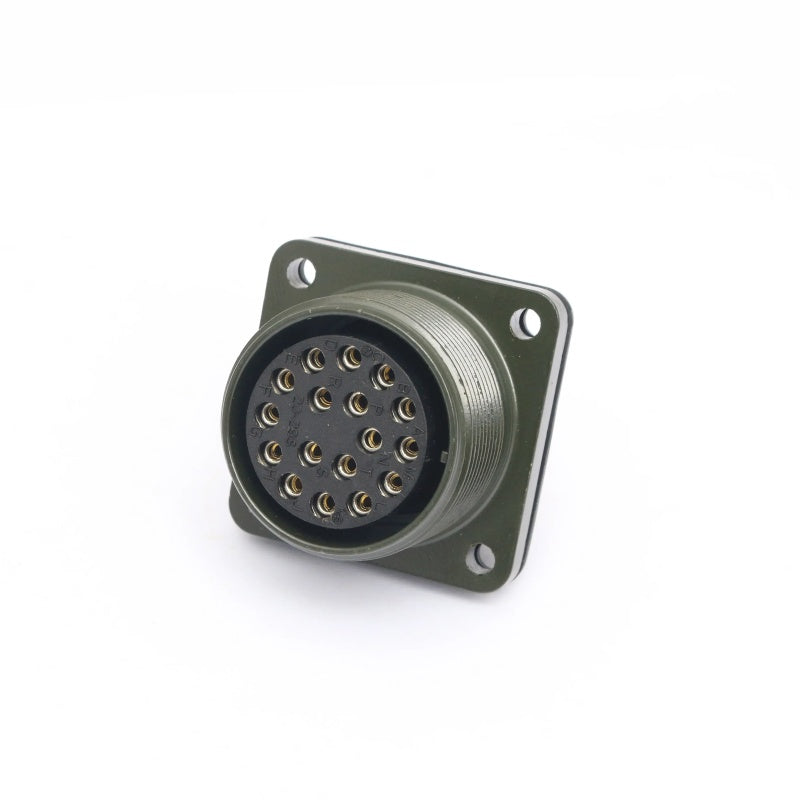

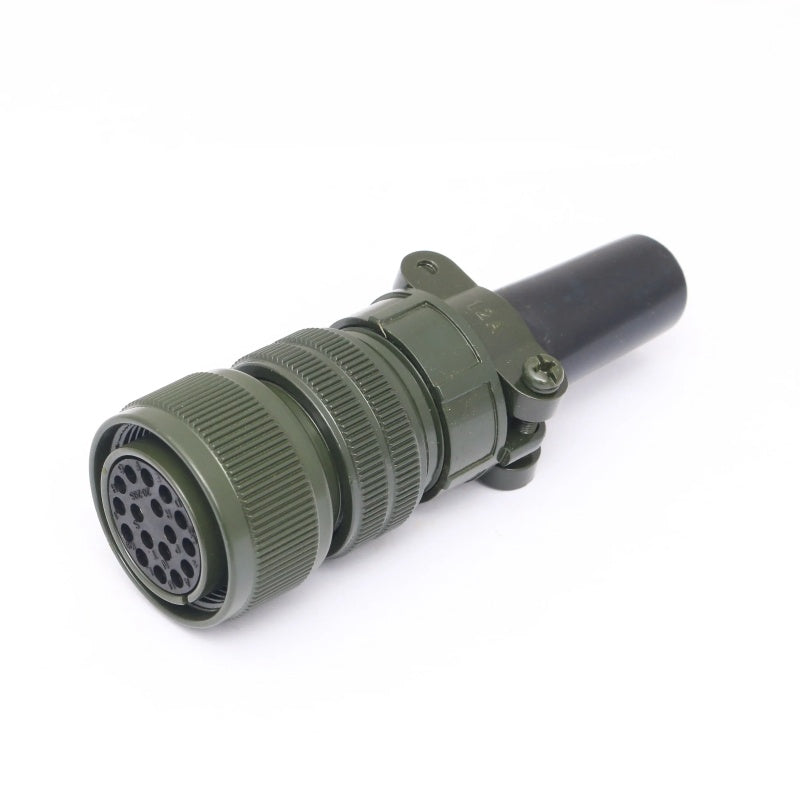

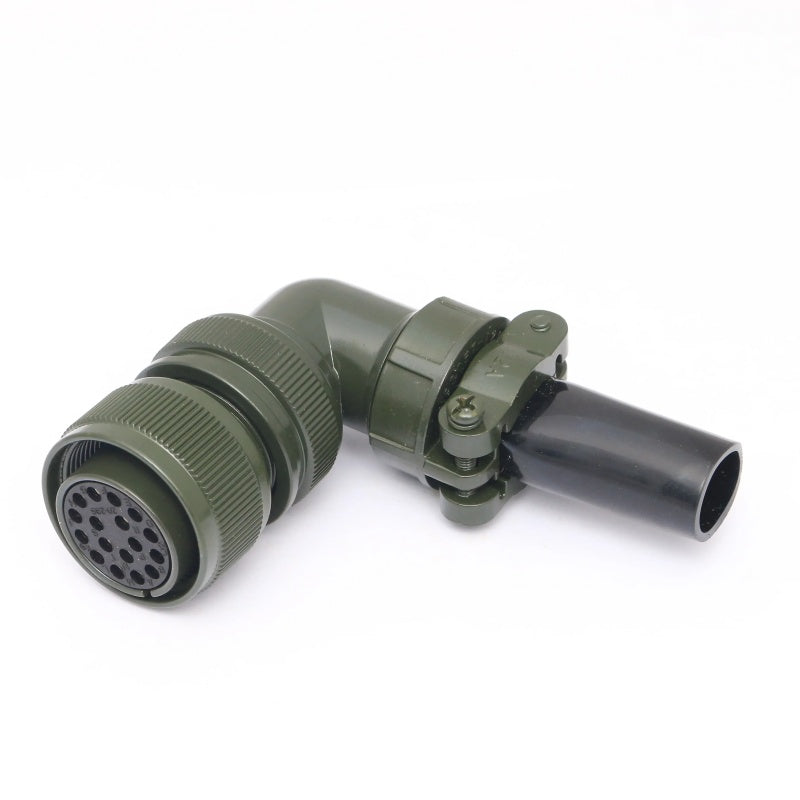

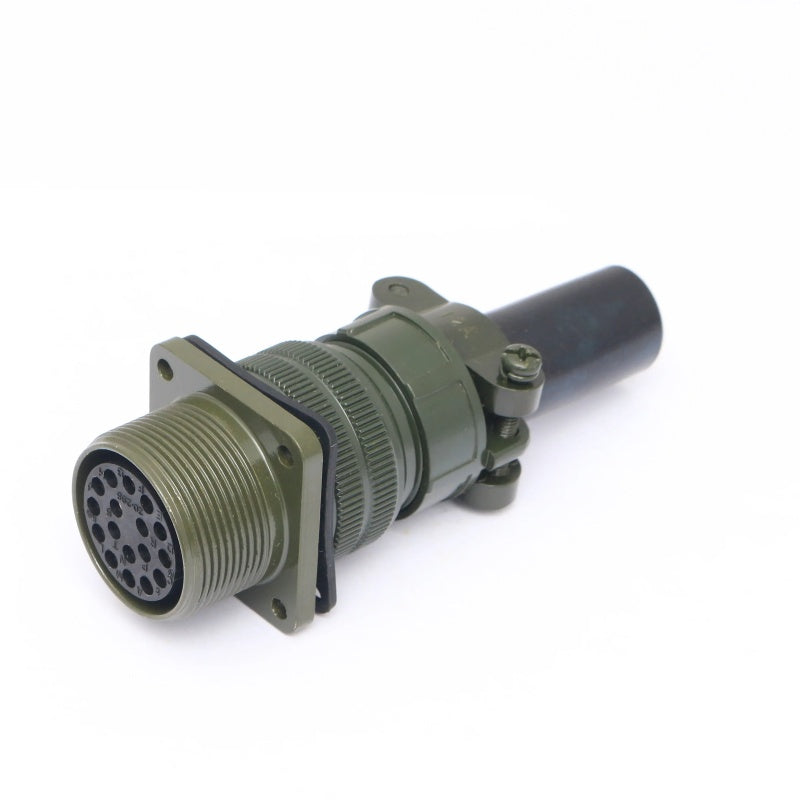

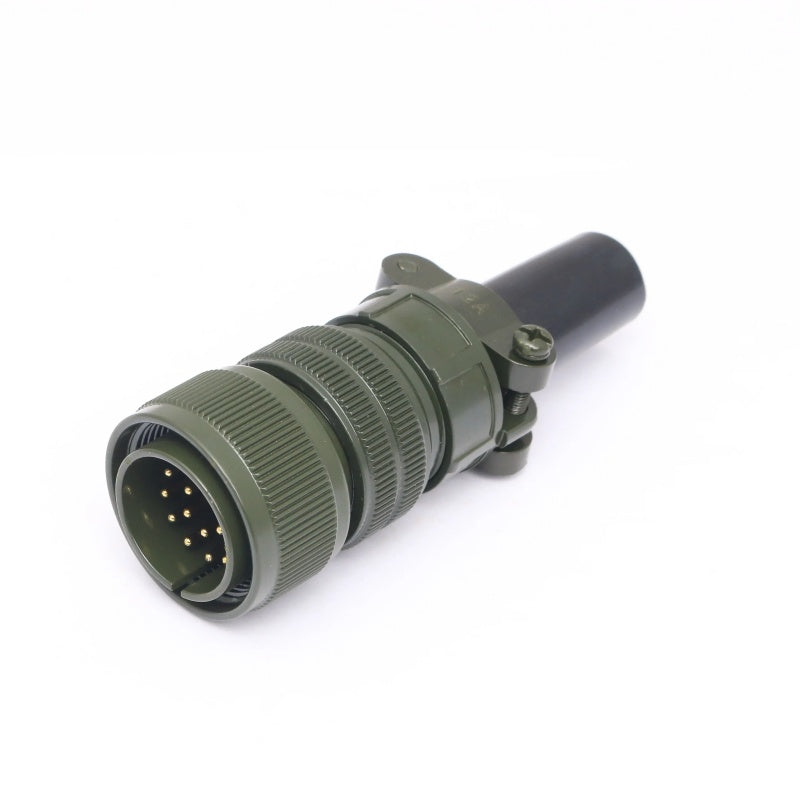

MIL-C-5015 22S Aviation Connector, 2-19 Pin, IP67 Waterproof, Male Female Docking
Product Overview
The MIL-C-5015 22S series aviation connector is a high-reliability industrial electrical connection solution, fully compliant with US Military Standard MIL-C-5015. Manufactured by Yongfeng (Feida Yongfeng), this connector covers a full range of pin counts from 2 to 19, with options for high-current (up to 46A) and multi-core signal transmission. Featuring IP67 dustproof and waterproof protection, gold/silver-plated copper contacts, and a secure threaded locking mechanism, it delivers stable power and signal transmission in harsh industrial, aerospace, and marine environments, making it ideal for heavy machinery, automation systems, and vehicle wiring.

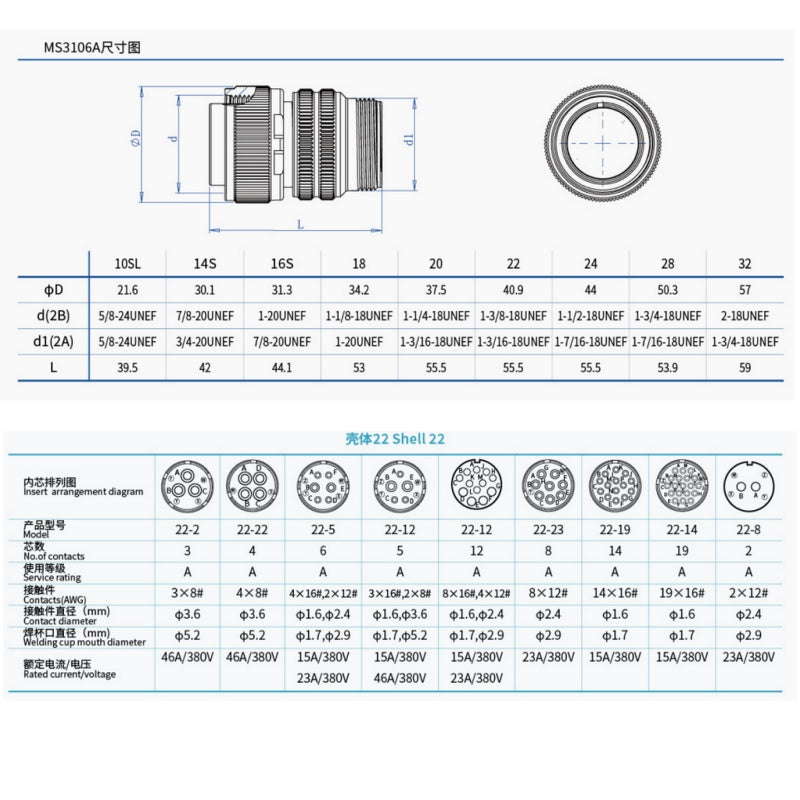

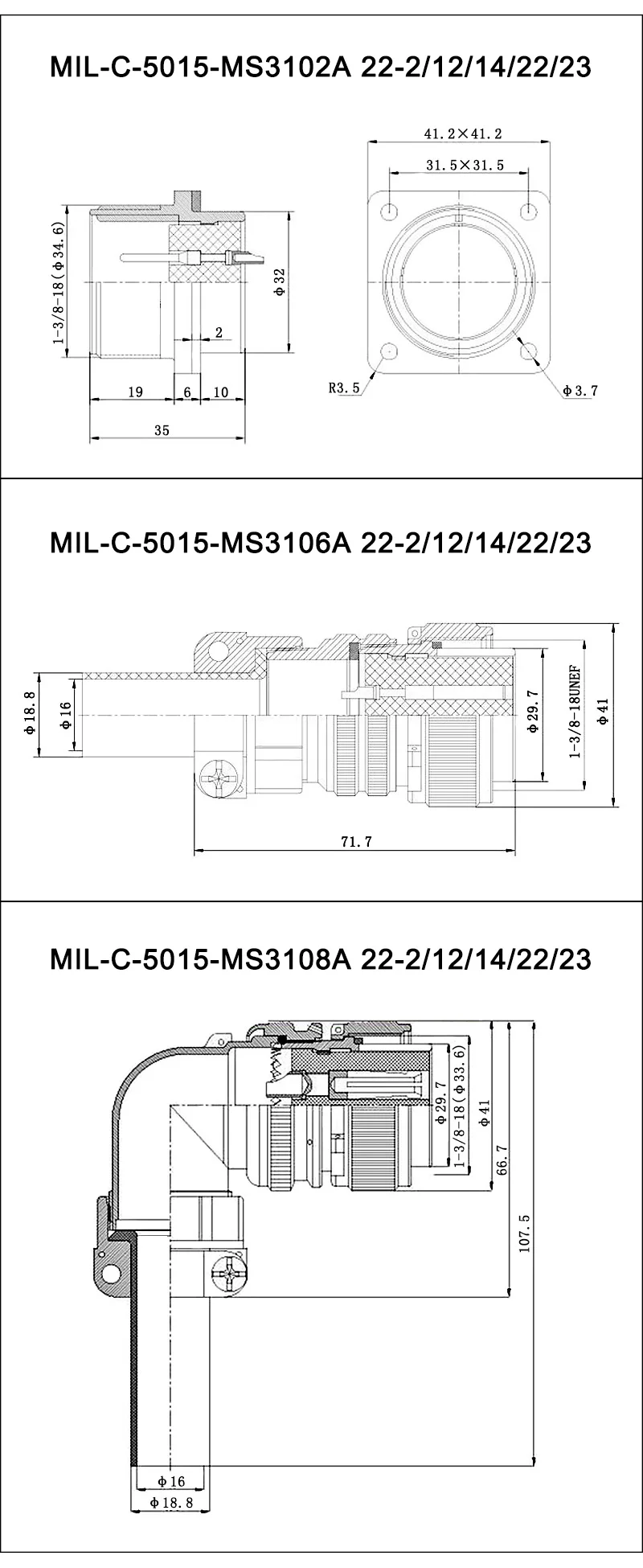

DATA SHEET
| Item | Details |
|---|---|
| Standard | MIL-C-5015 (US Military Standard) |
| Series / Shell | 22S Series, 22S Shell Size |
| Pin Count | 2, 3, 4, 5, 6, 8, 12, 14, 19 Pin |
| Rated Current/Voltage | 46A/380V (3/4/5P), 23A/380V (2/6/8/12P), 15A/380V (5/6/12/14/19P) |
| Contact Material | Gold/Silver-Plated Copper (Low Contact Resistance, Anti-Oxidation) |
| Contact Diameter | φ3.6mm (8#), φ2.4mm (12#), φ1.6mm (16#) |
| Solder Cup Diameter | φ5.2mm, φ2.9mm, φ1.7mm |
| Insulator Material | High-Temperature Resistant TPU/Rubber |
| Housing Material | Lightweight, High-Strength Aluminum Alloy |
| Protection | IP67 (Dustproof, Waterproof, Corrosion Resistant) |
| Mating Type | Threaded Locking (Anti-Vibration, Secure Connection) |
| Termination | Solder |
| Mating Life | 500 Cycles |
| Operating Temperature | -40°C ~ +70°C |
| Certification | CE |
