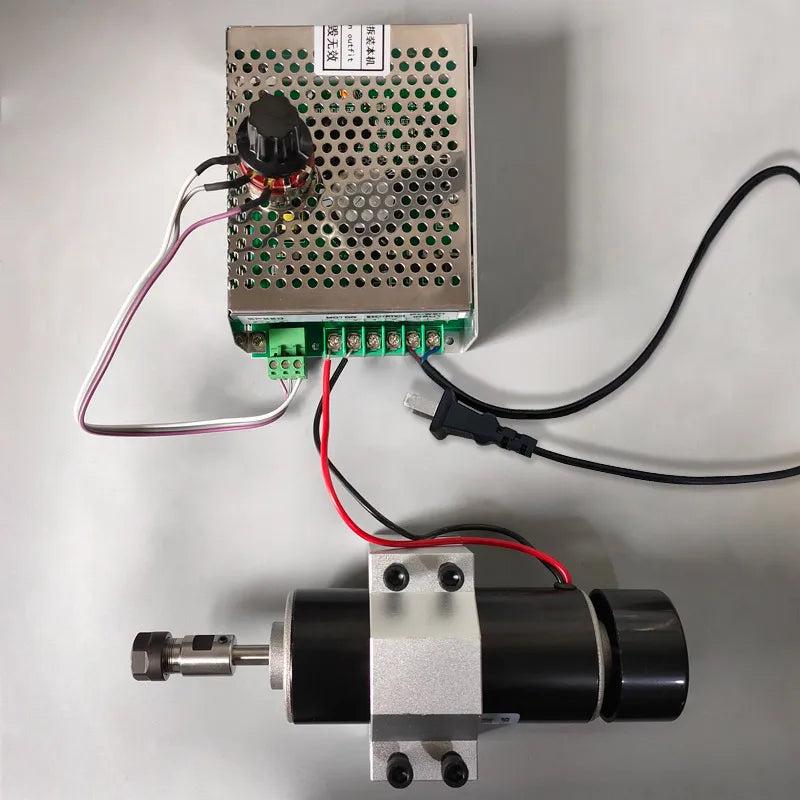

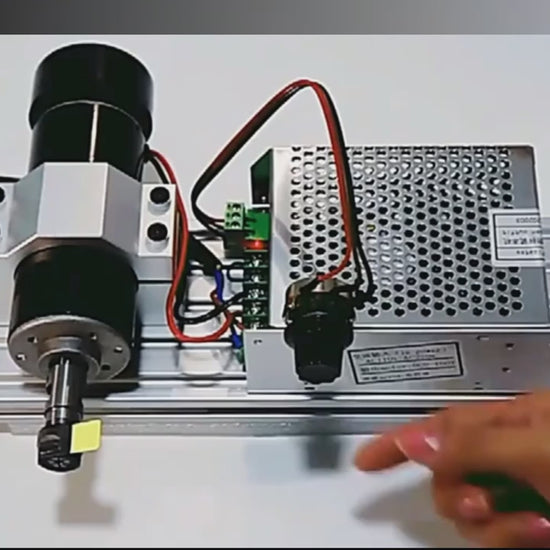

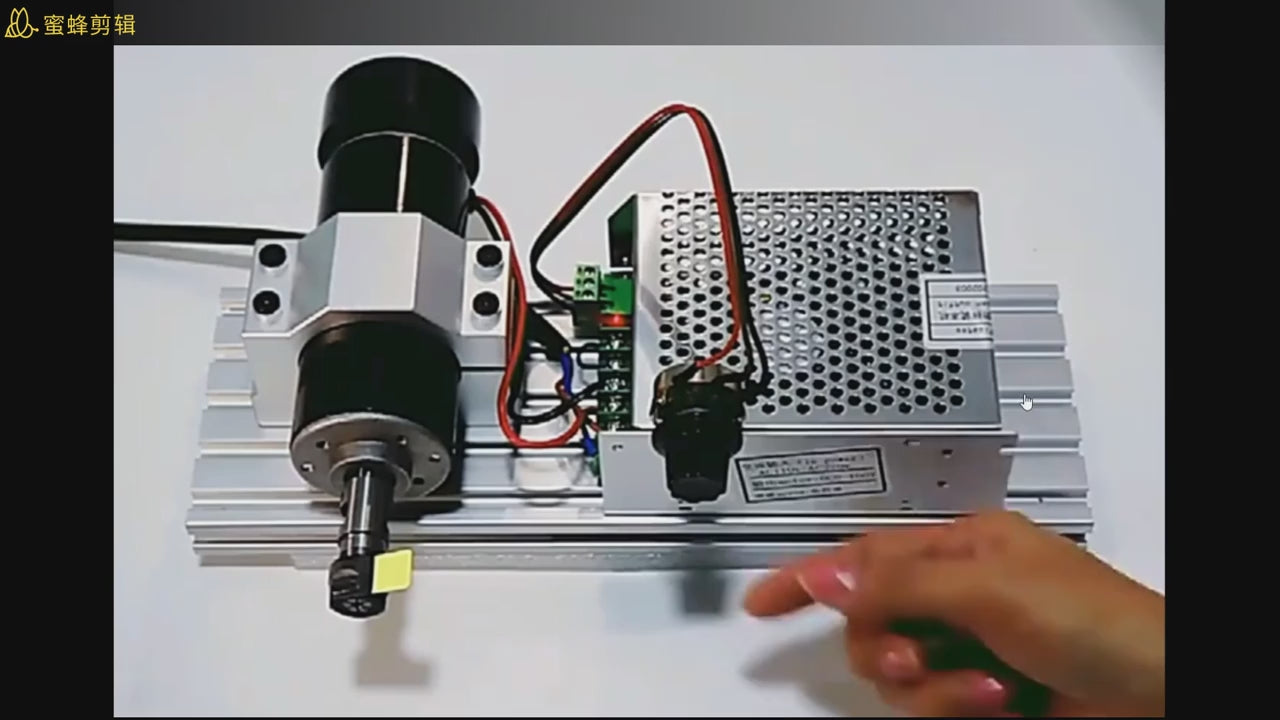

500W 100V DC Spindle Set 0~110VDC Adjustable Speed Governor Power Supply Both 110VAC & 220VAC for Engraving Machine
Couldn't load pickup availability
500w dc spindle, 100v spindle motor, cnc engraving spindle, dc spindle kit, speed governor spindle, 110vac 220vac spindle, high speed spindle
engraving machine spindle, cnc spindle motor, 0-110v spindle
Application: Milling
Brand Name: CNMAWAY
Certification: CE
Drive: Motor
High-concerned chemical: none
Maximum Torque: 550mN. M
Model Number: 500W 100V
Operating Speed: 12000rpm
Origin: Mainland China
PARAMETER
| Attribute | Value |
|---|---|
| Product Name | 500W 100V DC Spindle Motor Complete Set |
| Power | 500W |
| Input | 110VAC / 220VAC dual voltage |
| Output | 0–110VDC adjustable |

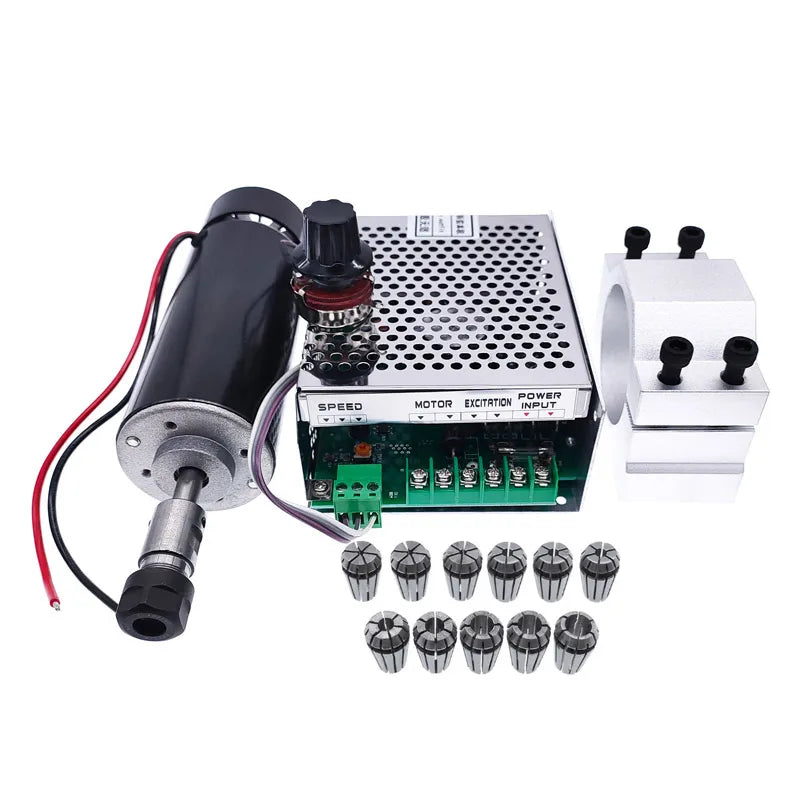

| Included | DC spindle, speed controller, power supply, ER collets, spindle mount bracket, fasteners |
| Feature | Stepless speed regulation, brush DC high-speed spindle |
| Application | DIY CNC engraver, small carving machine, PCB engraving |
FAQ
Q1: Is it brushless?
A1: This is brushed DC spindle, different from brushless spindle.
Q2: Can it cut wood and acrylic?
A2: Yes, suitable for wood, acrylic, PCB, soft plastic; not for heavy metal cutting.

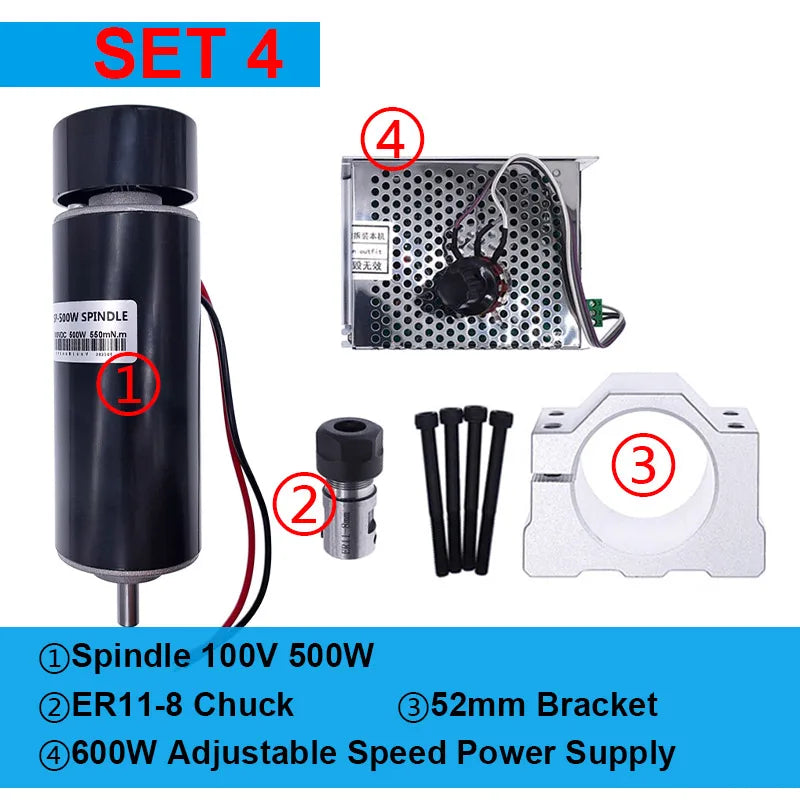

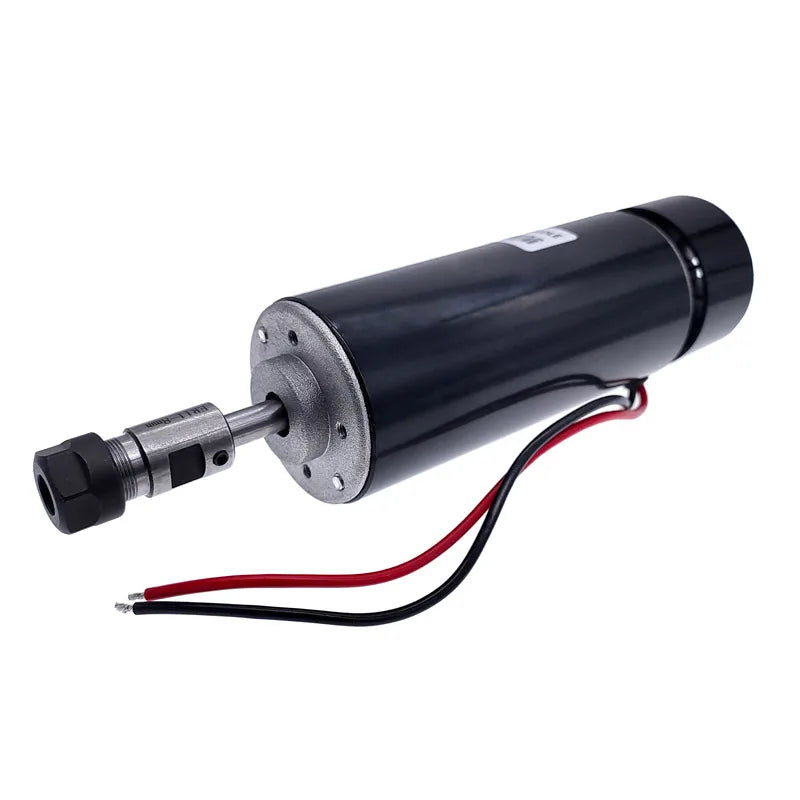

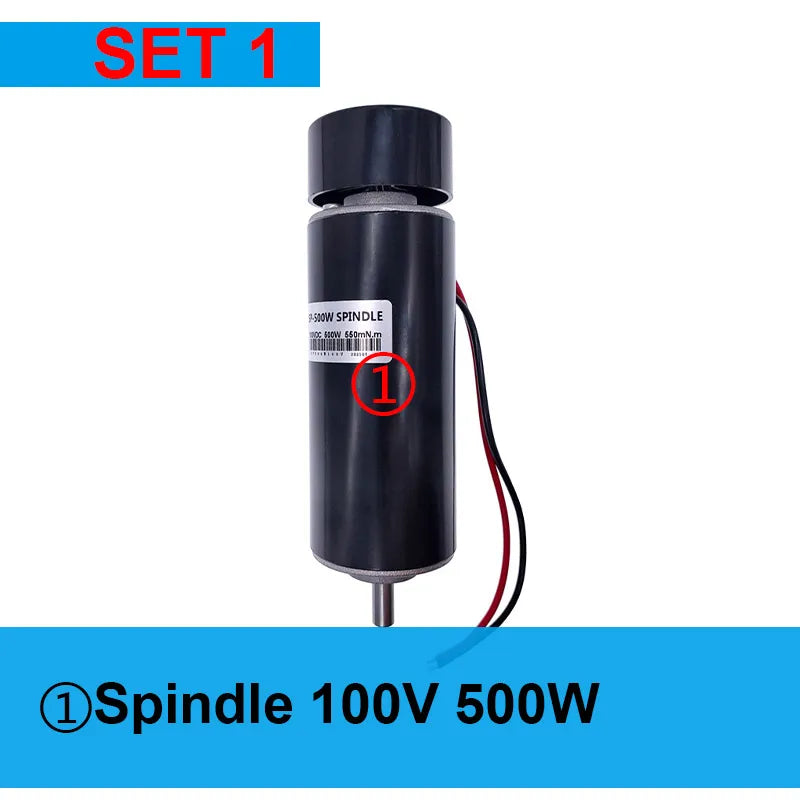

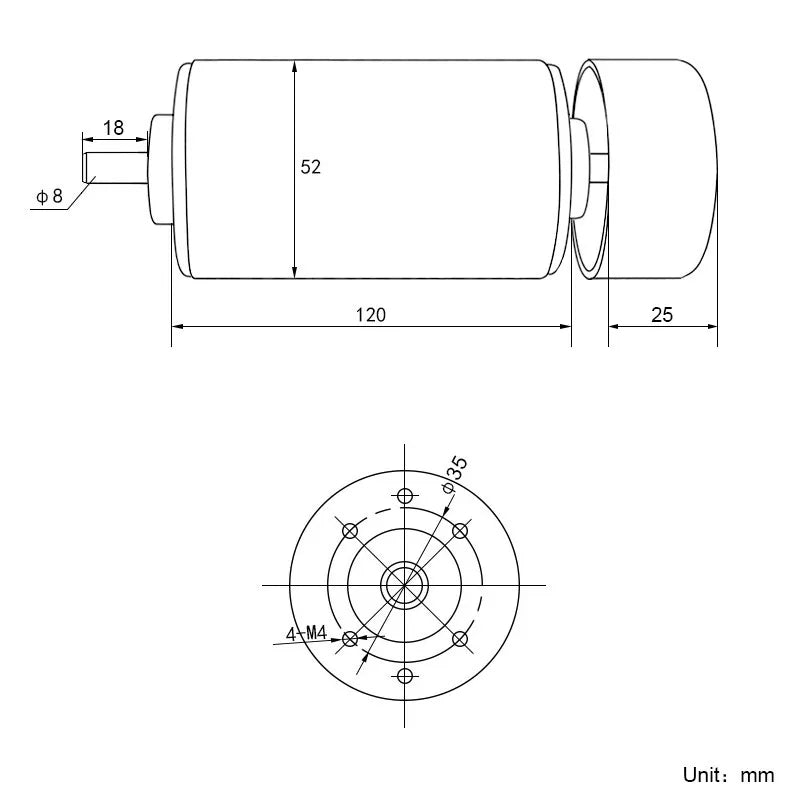

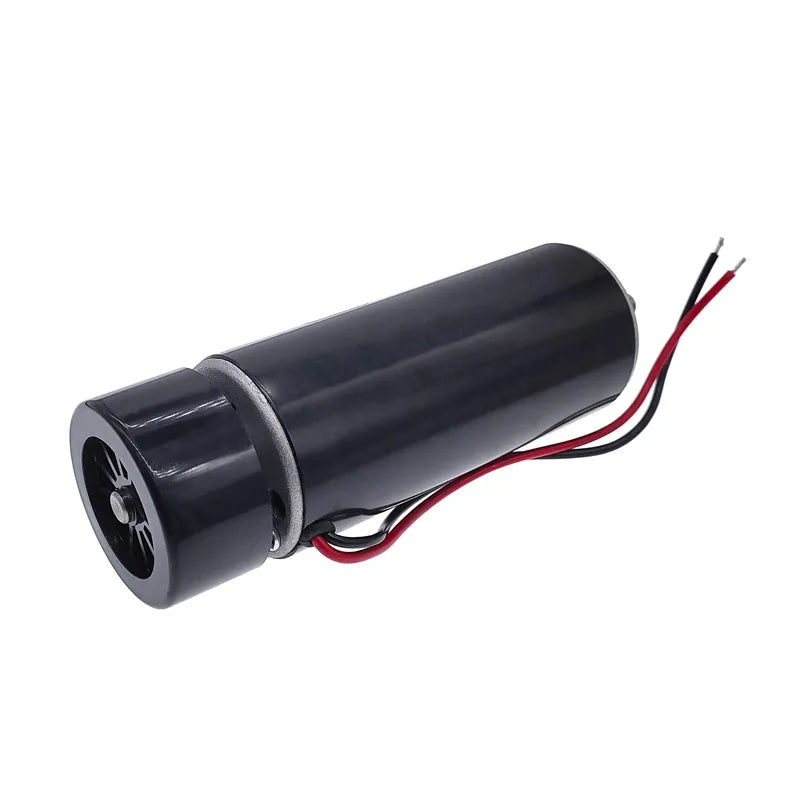

①DC SPINDLE MOTOR
Work Voltage:100VDC Starting Current: 5A POWER: 500W
Toque: 550mN.m Speed: 12000rpm Diam: 52mm
Note: Pure copper wire is used in the motor

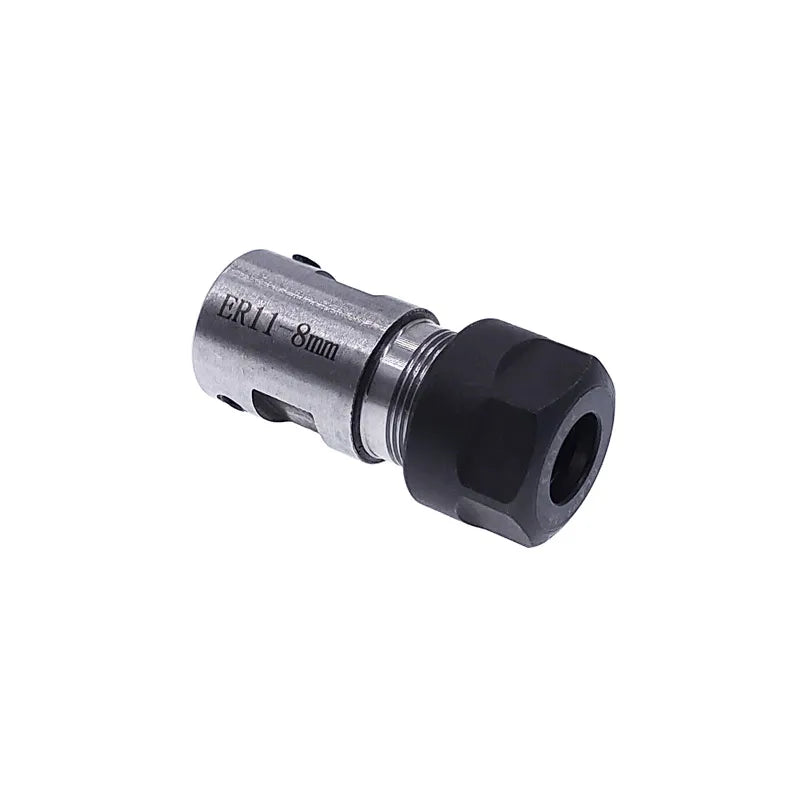

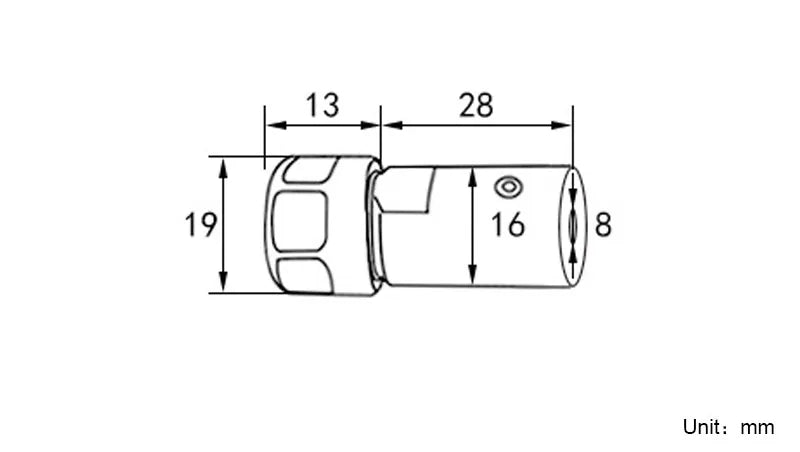

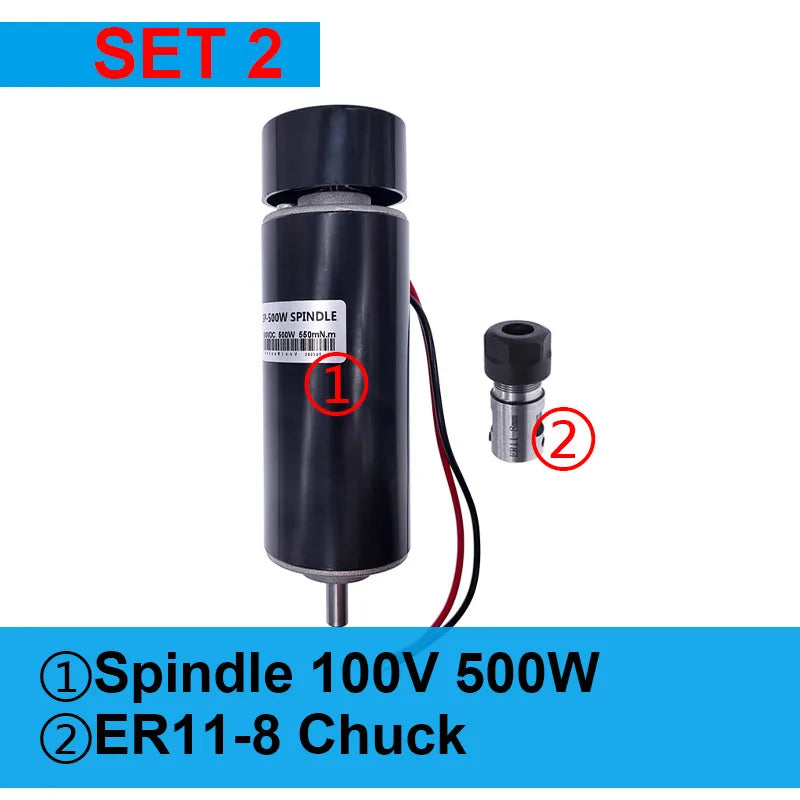

②ER11-8 CHUCK
ER11 chuck (fit for ER11 collet 1-7mm)
End aperture: 8mm (fit for φ8 motor shaft)

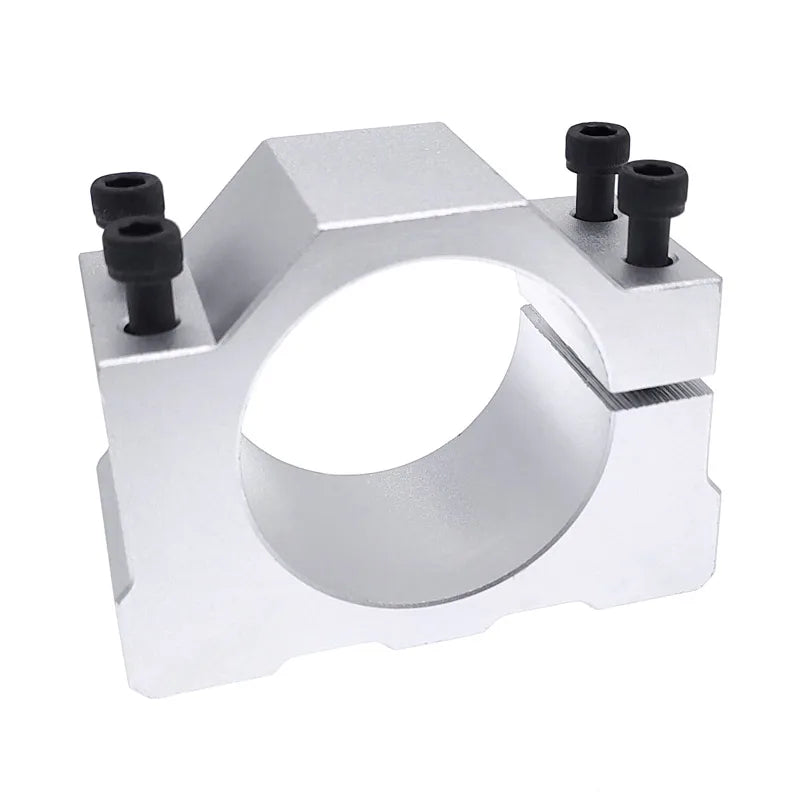

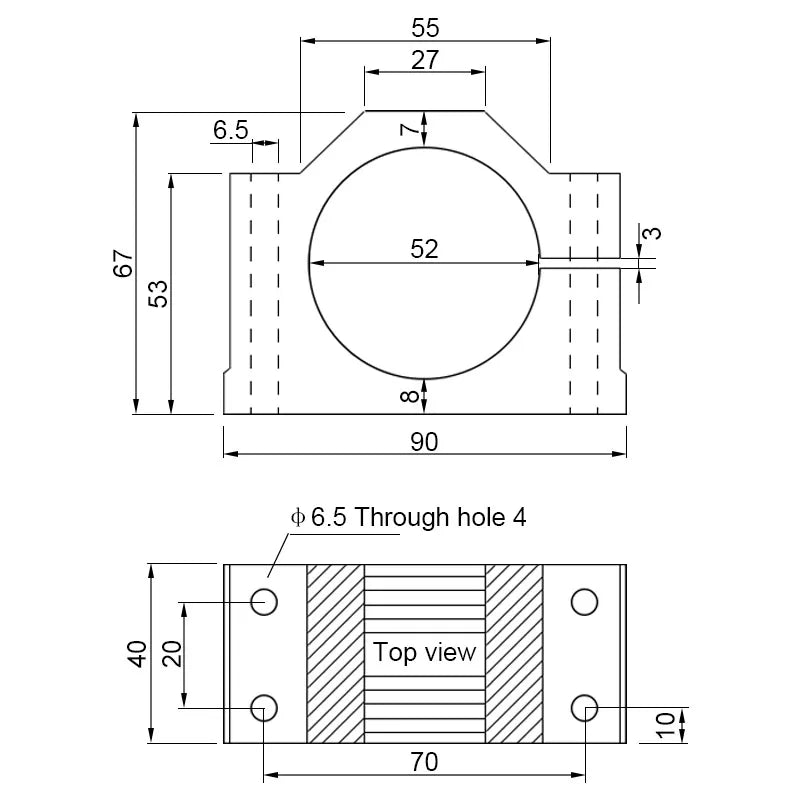

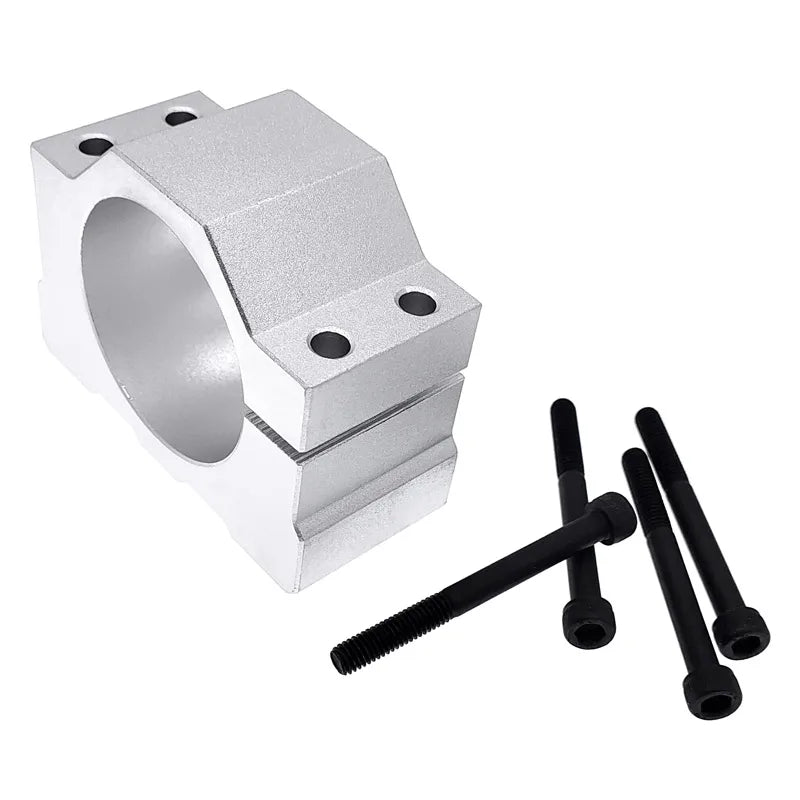

③52mm Spindle Fixed Mounting Base
Material: aluminum alloy

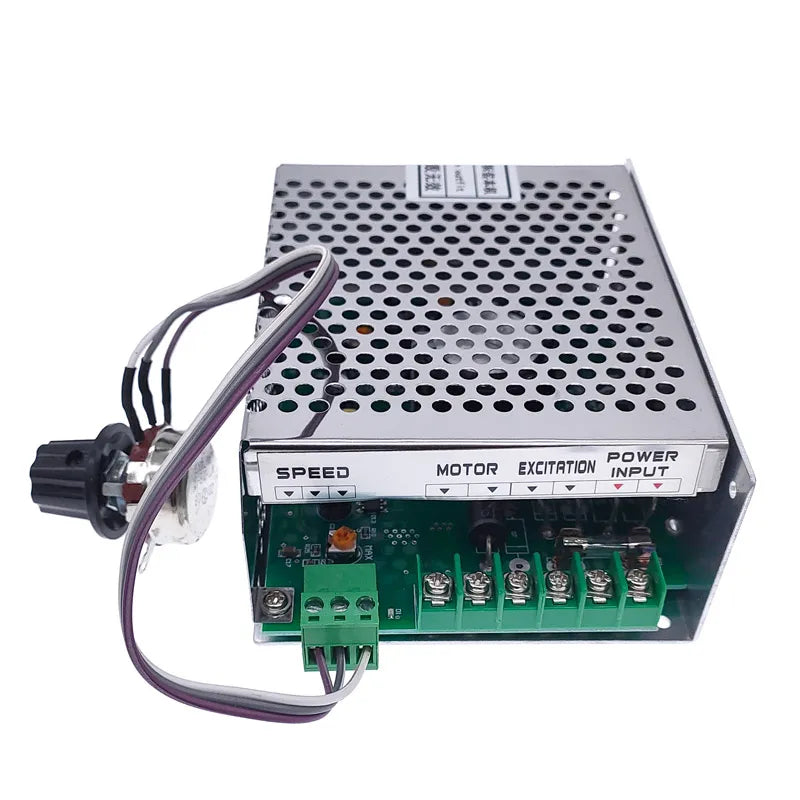

④600W Adjustable Speed Power Switch
Input voltage: 110-220VAC Output voltage: 0-110VDC
Current : 6A Excitation：1A Max POWER: 600W

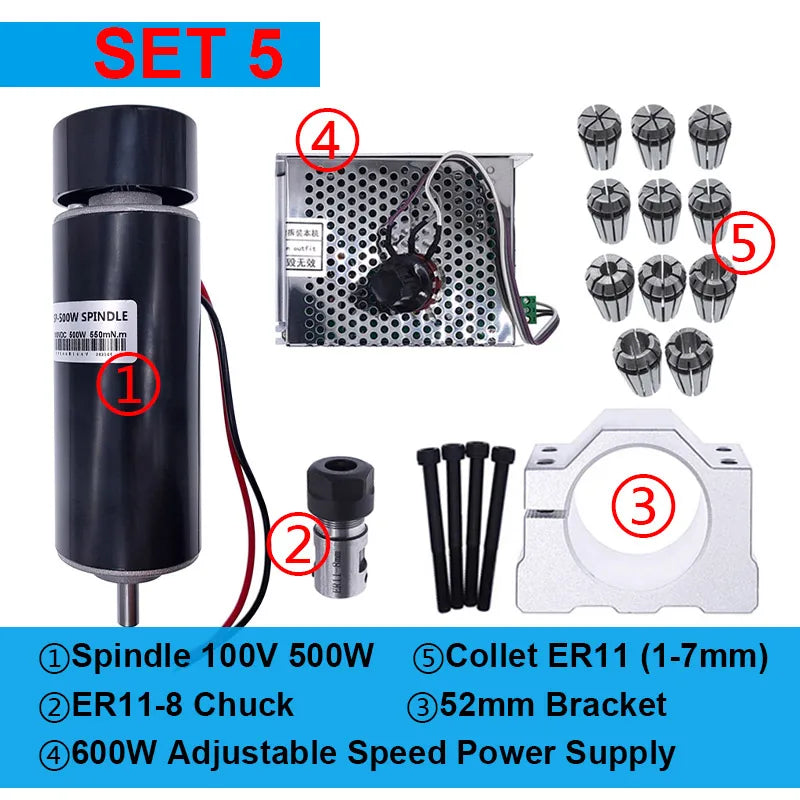

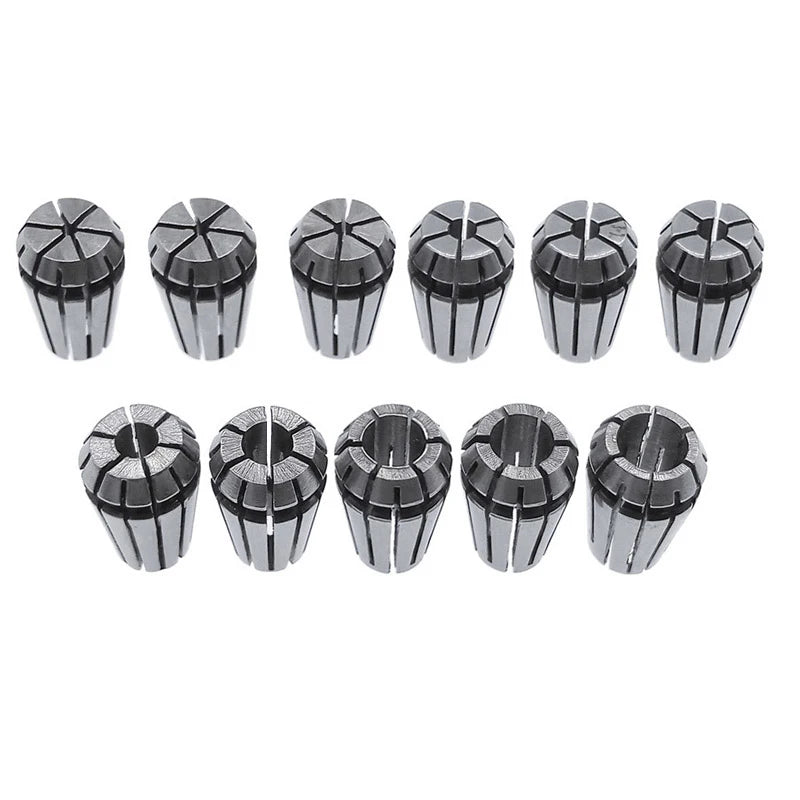

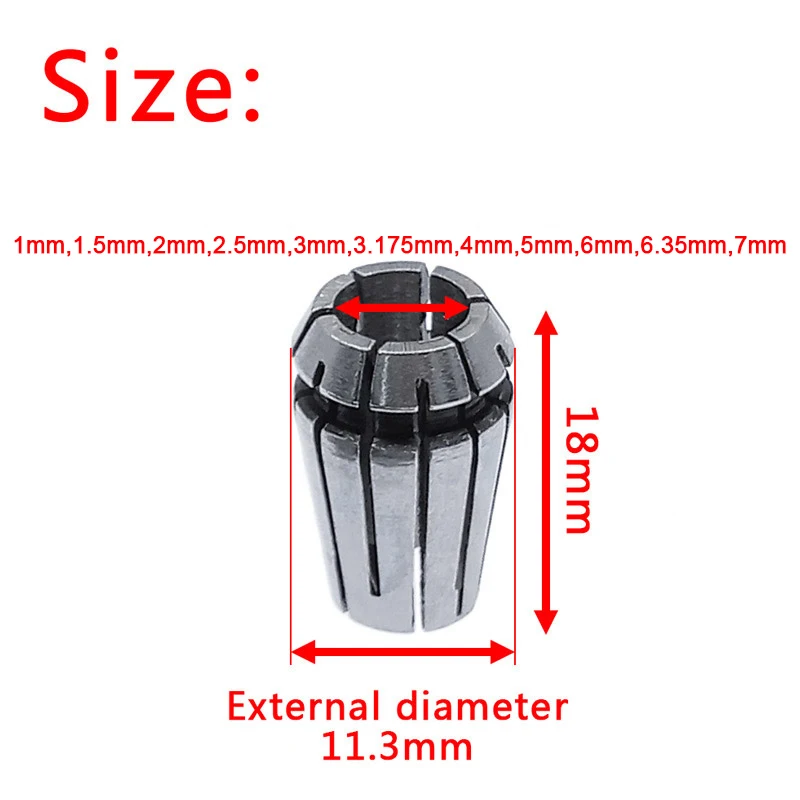

⑤ER11 Collet
ER11 collet set (1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/4mm/5mm/6mm/6.35mm/7mm)
tips:3.175=1/8 6.35=1/4
