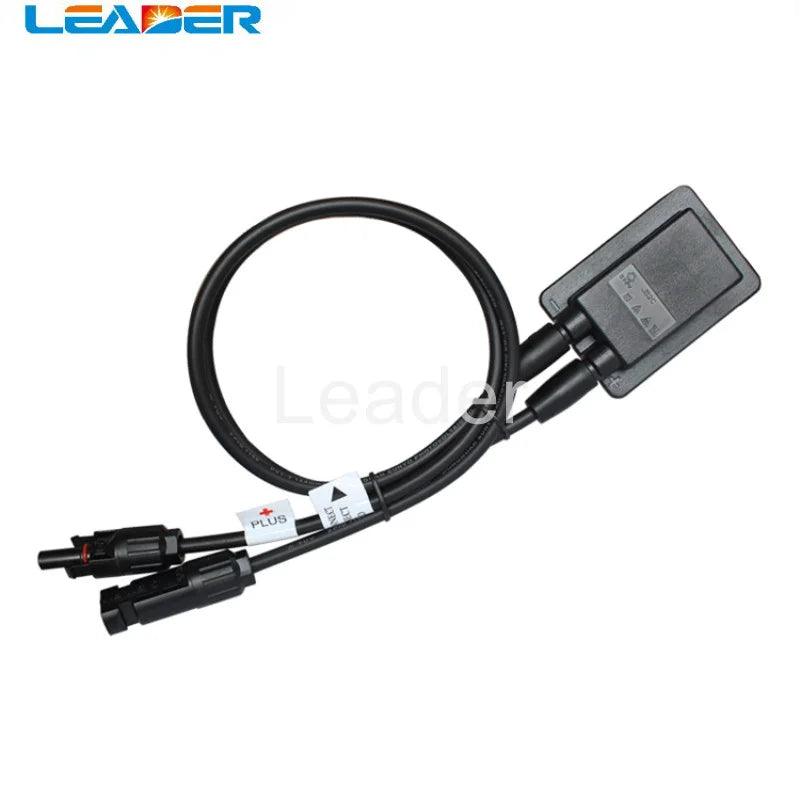

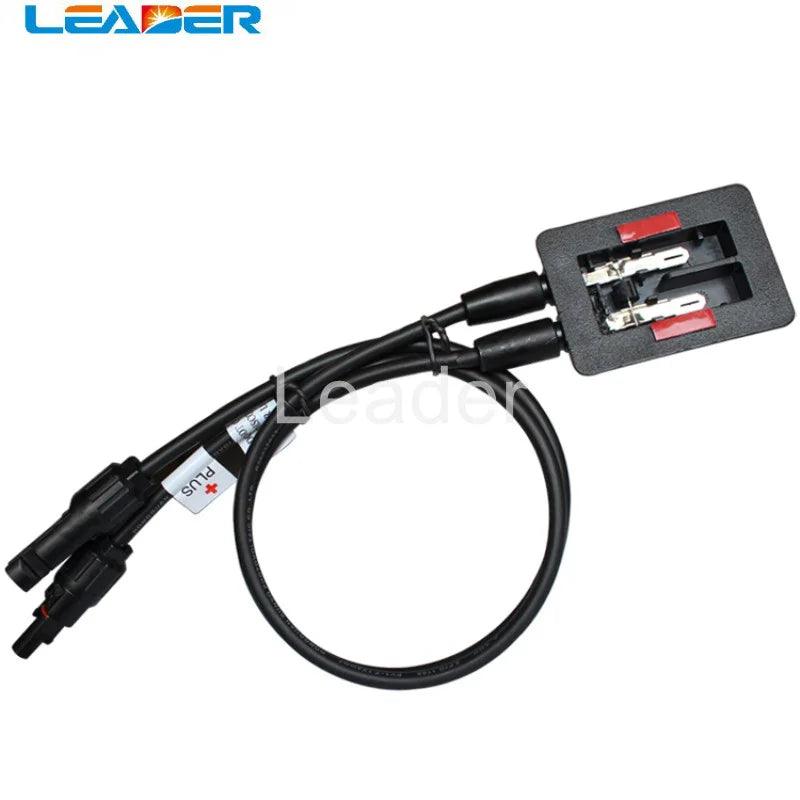

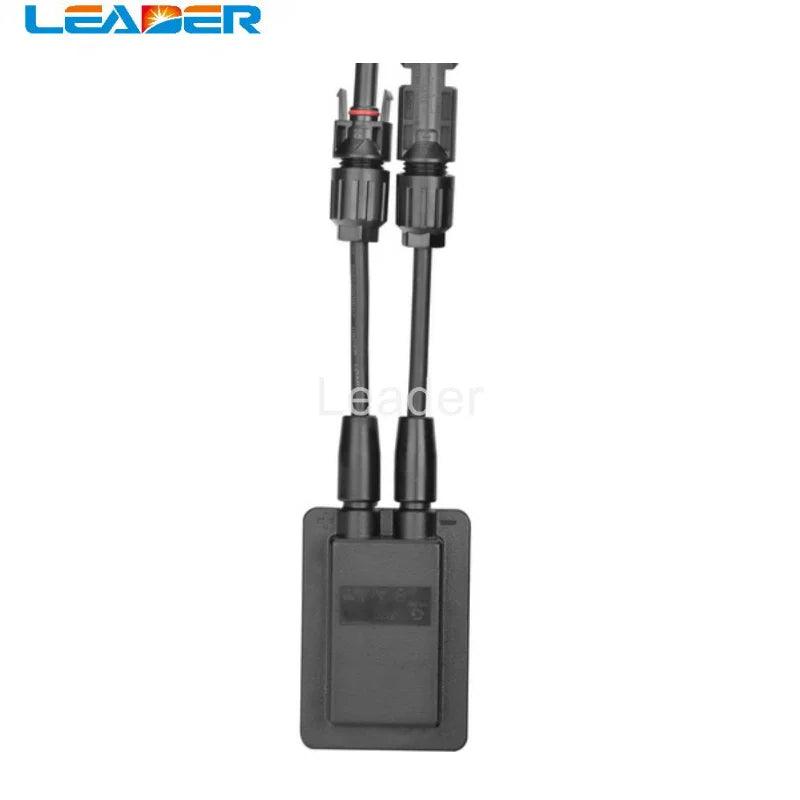

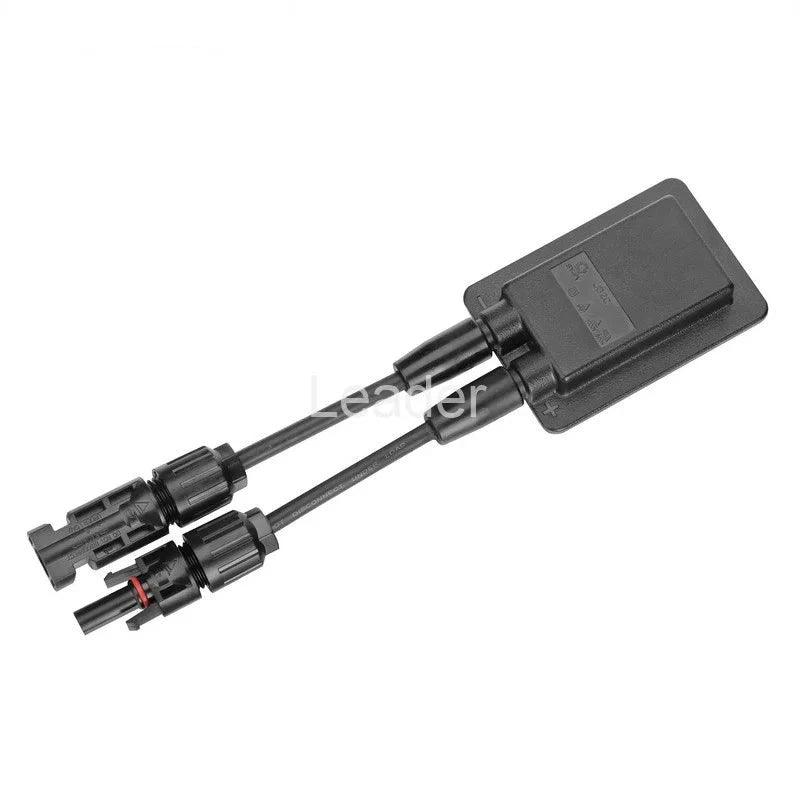

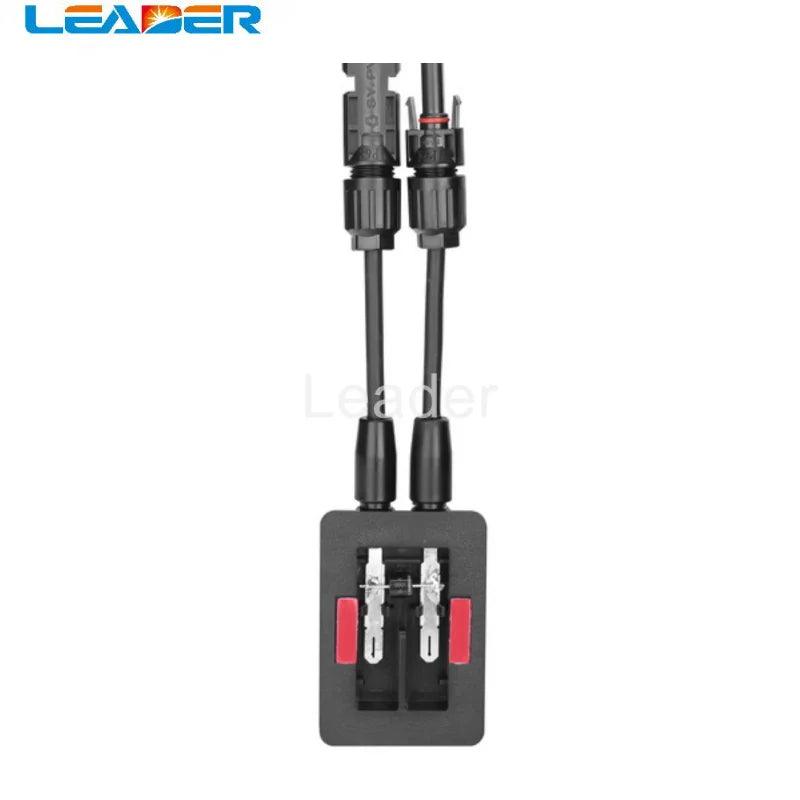

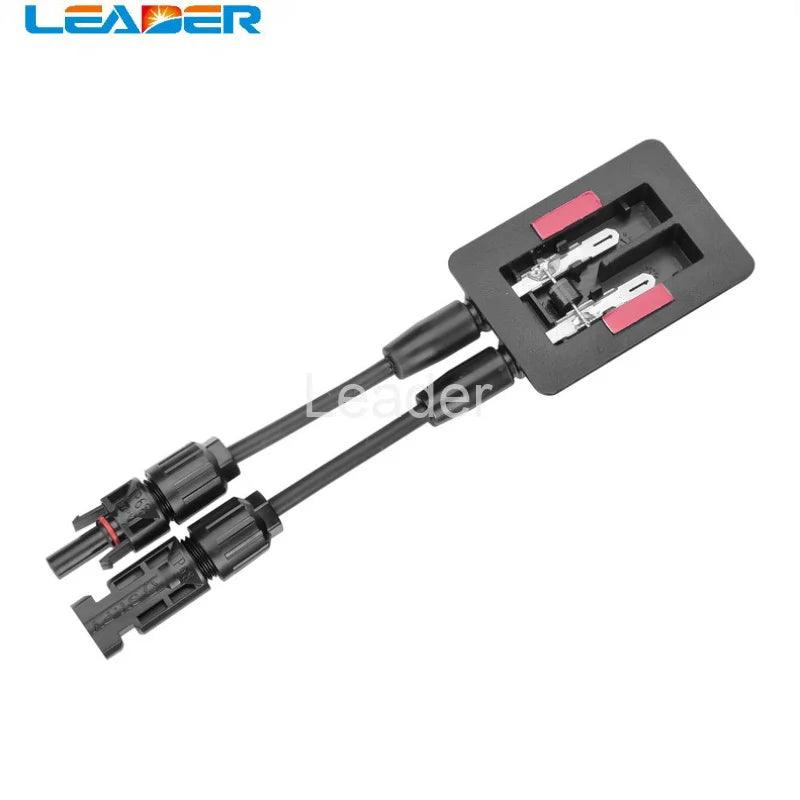

50 Pcs/lot Solar Photovoltaic Junction Box 2 Rail PV Cell Box with Solar Panel Connector and Cable for Solar Panel FS0152
Couldn't load pickup availability
SPECIFICATIONS
50 Pcs/lot Solar Photovoltaic Junction Box 2 Rail PV Cell Box with Solar Panel Connector and Cable for Solar Panel FS0152
Brand Name: BLUSUNSOLAR
Origin: Mainland China
Model Number: Solar PV junction box
Amount of Rails: 2 rail terminals
Rated Voltage: TUV 1000V DC
Rated Current: 3-20A
Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)
Contact Material: Copper, Tin Plated
BOX Materiai: PPO
Cable Size: 2.5mm sq (1M)
Protection Class: Class II
Pollution Degree: 2
Pin Od: 4.0mm
2 Way Solar Junction Box with 1M 2.5mm2 Cable and IP67 SOLAR Connector
Production introduction:
| Product No. | SM-JB2C |
| Amount of rails | 2 rail terminals |
| Rated Voltage | TUV 1000V DC |
| Rating current | 3-20A |
| Suitable cable cross sections | 2.5mm2-6.0mm2 / 14AWG-10AWG |
| Pin OD | 4.0mm |
| Proof voltage | TUV 6000V AC(1Min) / UL 2200V DC (1Min) |
| Pollution degree | 2 |
| Protection class | Class II |
| Contact Material | Copper, tin plated |
| Contact resistance | ≤5mΩ |
| Protection degree | IP67 |
| Withdrawal Force | ≥50N |
| Temperature Range | -40ºC~+85ºC |
| Flame Class | UL94V-0 |
Compnay information:
LENDER ENERGY Company
For more products information, please free contact us via Aliexpress ,
we will reply to you in 2 hours. thanks
