50 Pcs/lot 4 Way PV Combiner Boxes Photovoltaic Junction Box for Solar System, 3 Diodes Solar JB with Connector XH0200
Regular price
$888.47 USD
Regular price
$766.46 USD
Sale price
$888.47 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
50 Pcs/lot 4 Way PV Combiner Boxes Photovoltaic Junction Box for Solar System, 3 Diodes Solar JB with Connector XH0200
Brand Name: BLUSUNSOLAR
Origin: Mainland China
Model Number: 4 way solar panel box
Amount of Rails: 4 rail terminals
Rated Voltage: TUV 1000V DC
Rated Current: 3-20A
Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)
Contact Material: Copper, Tin Plated
BOX Materiai: PPO
Cable Size: 4mm sq
Protection Class: Class II
Pollution Degree: 2
Pin Od: 4.0mm

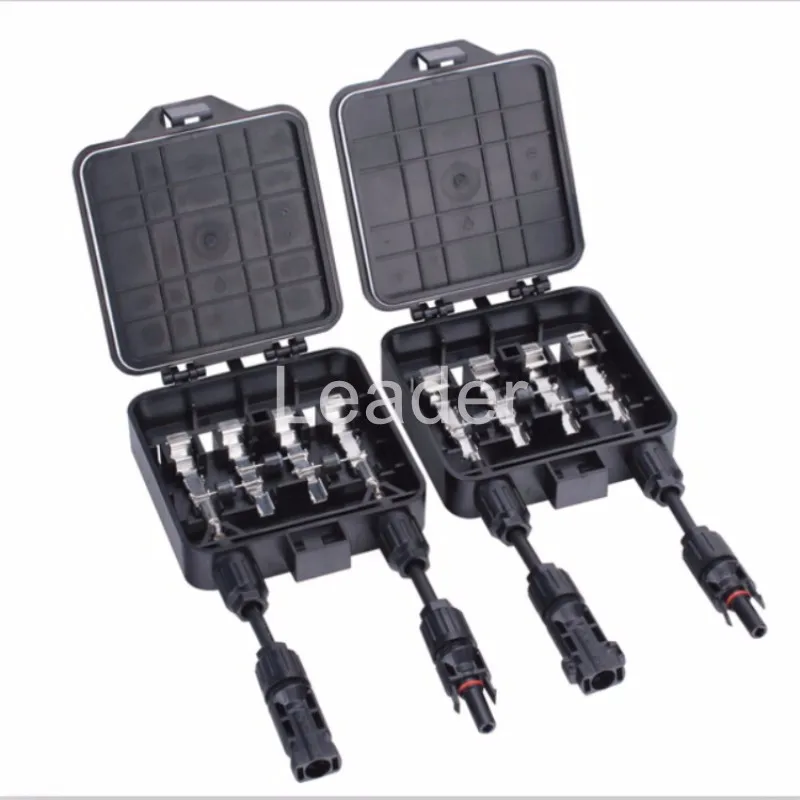

4 Way Solar Junction Box with 3 Diodes and IP67 SOLAR Connector
Production introduction:
| Product No. | SM-JB4A |
| Amount of rails | 4 rail terminals |
| Rated Voltage | TUV 1000V DC |
| Rating current | 3-20A |
| Suitable cable cross sections | 2.5mm2-6.0mm2 / 14AWG-10AWG |
| Pin OD | 4.0mm |
| Proof voltage | TUV 6000V AC(1Min) / UL 2200V DC (1Min) |
| Pollution degree | 2 |
| Protection class | Class II |
| Contact Material | Copper, tin plated |
| Contact resistance | ≤5mΩ |
| Protection degree | IP67 |
| Withdrawal Force | ≥50N |
| Temperature Range | -40ºC~+85ºC |
| Flame Class | UL94V-0 |
