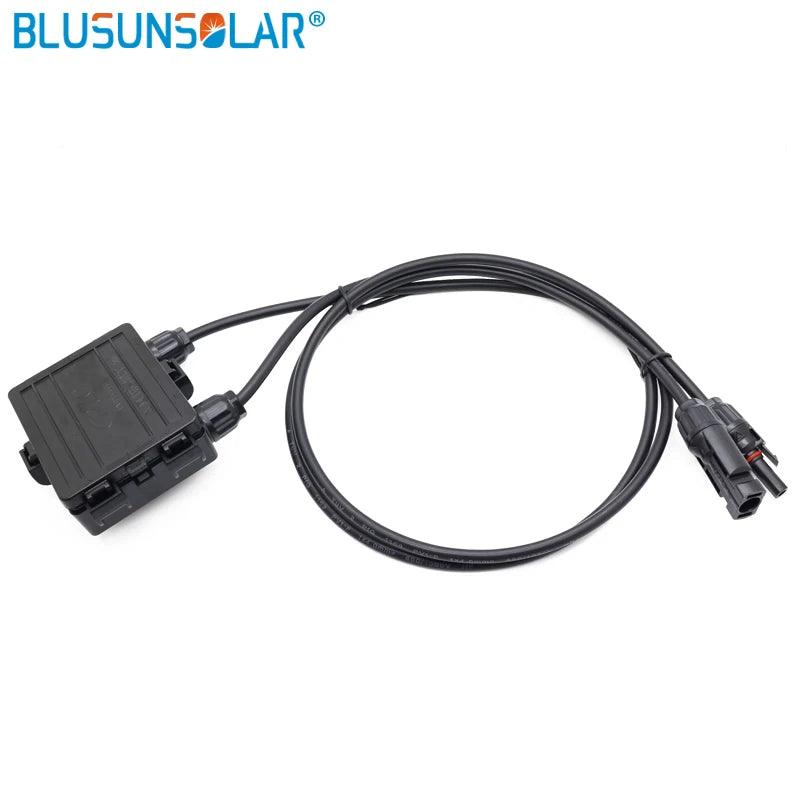

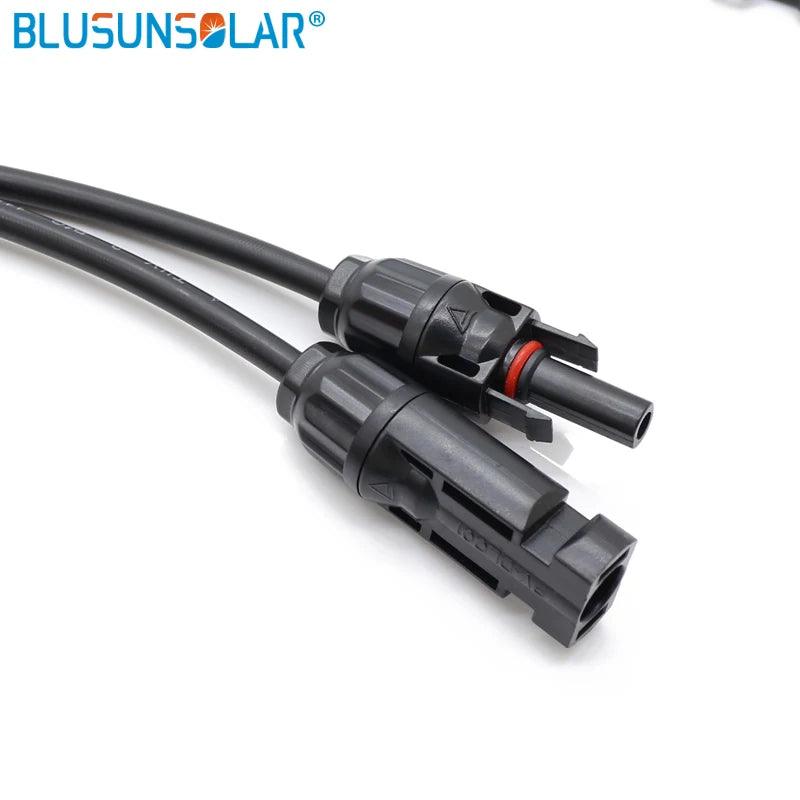

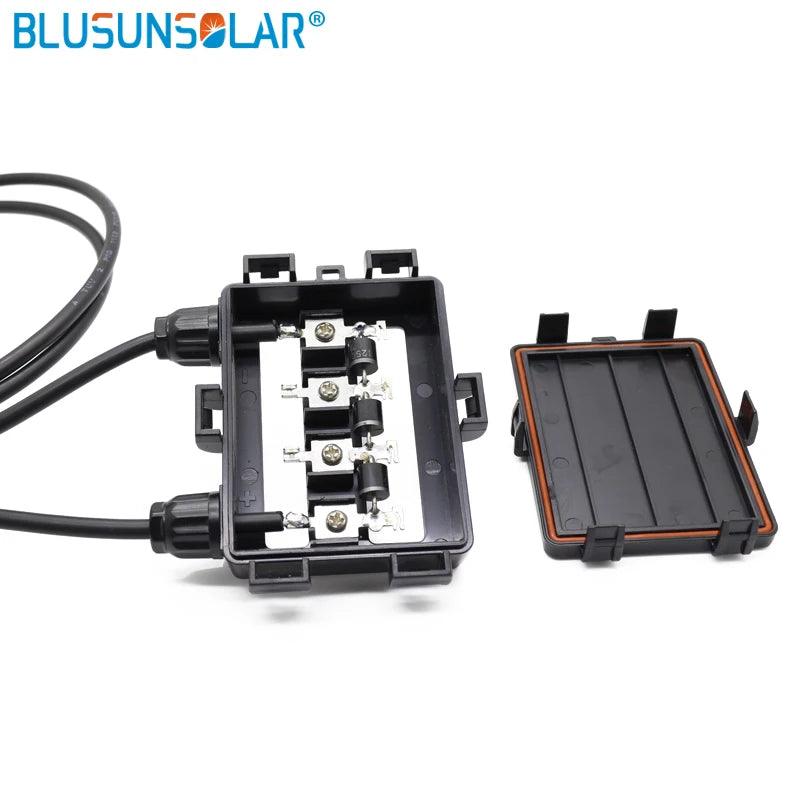

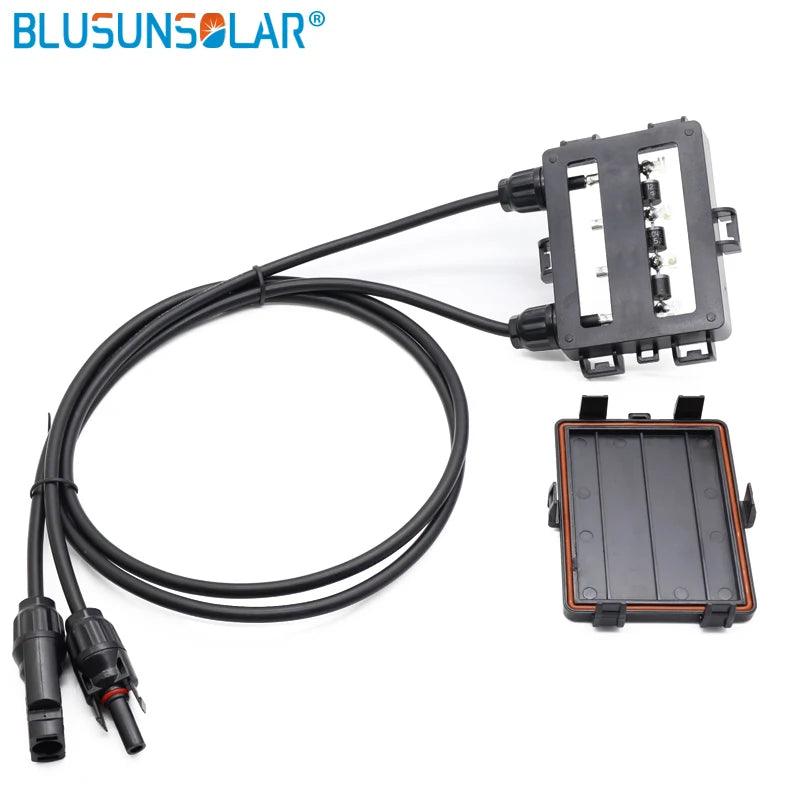

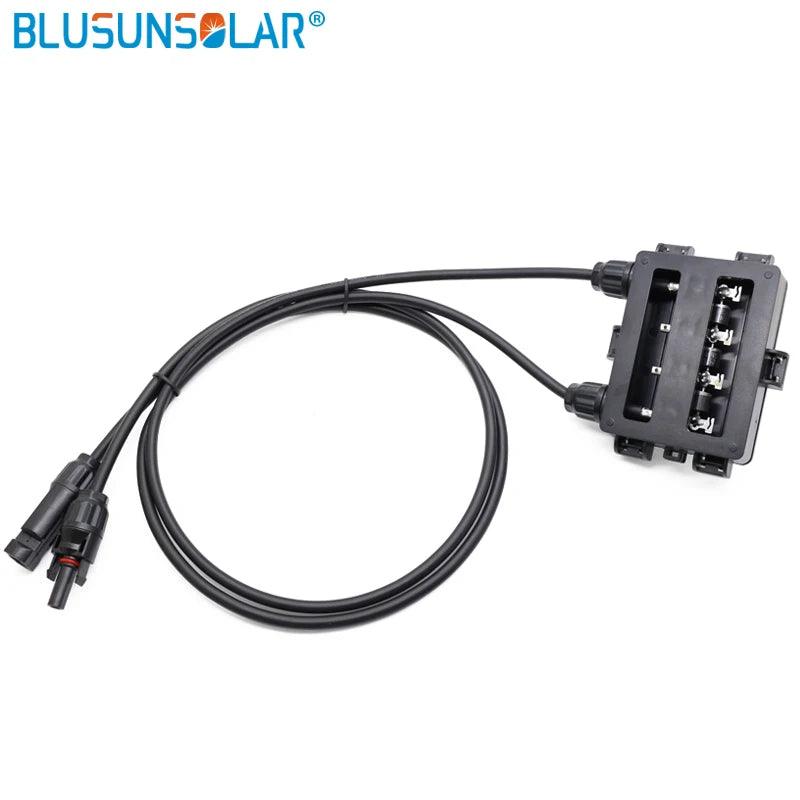

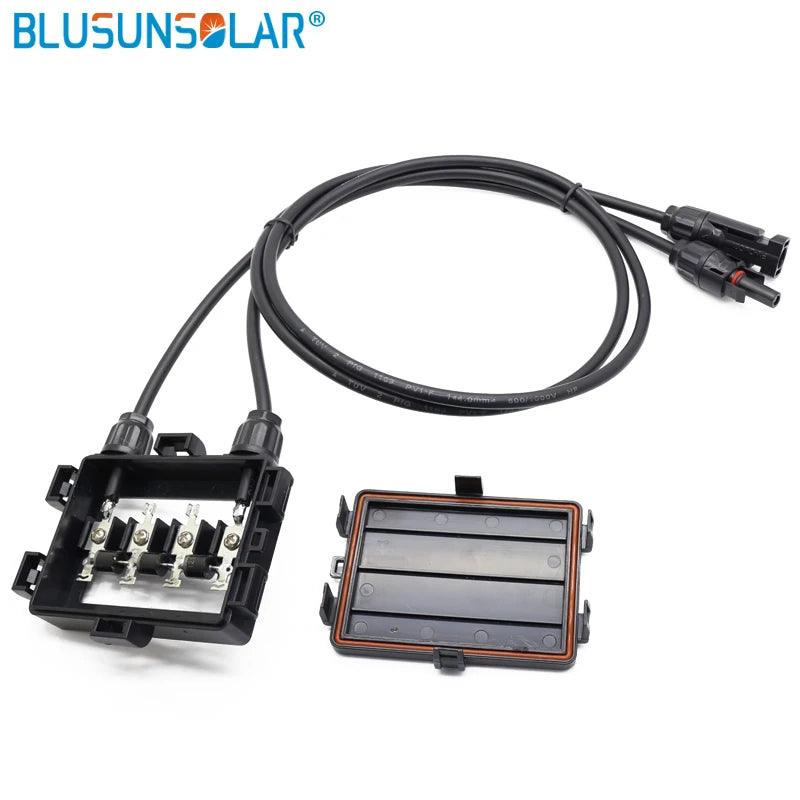

5 Pcs/lot Waterproof IP65 4 Way PV Solar Junction Box for Solar Panel with 4.0mm2 Cable and 4 Diodes XH0196
Couldn't load pickup availability
SPECIFICATIONS
5 Pcs/lot Waterproof IP65 4 Way PV Solar Junction Box for Solar Panel with 4.0mm2 Cable and 4 Diodes XH0196
Brand Name: BLUSUNSOLAR
Origin: Mainland China
Model Number: 4 way pv junction box
Amount of Rails: 4 rail terminals
Rated Voltage: TUV 1000V DC
Rated Current: 8A
Proof Voltage: TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Contact Material: Copper, Tin Plated
BOX Materiai: PPO
Protection Degree: IP65
Protection Class: Class II
Pollution Degree: 2
Pin Od: 4.0mm
5 pcs/lot Waterproof IP65 4 Way PV Solar Junction Box
for Solar Panel with 4.0mm2 Cable and 4 Diodes
Max Voltage:1000V
Junction box Current:3-15A
Temperature Rane:-40~+85
Protection:Class 2
Waterproof:IP65
Flame class:UL94V-0
Box material:PPO
Joining of ribbon:soldering
Use for solar panel:60W-80W
| Product No. | DLC608 |
| Amount of rails | 4 rail terminals |
| Rated Voltage | TUV 1000V DC |
| Rating current | 8A |
| Cable size | 4.0mm |
| Pin OD | 4.0mm |
| Proof voltage | TUV 6000V AC(1Min) / UL 2200V DC (1Min) |
| Pollution degree | 2 |
| Protection class | Class II |
| Contact Material | Copper, tin plated |
| Contact resistance | ≤5mΩ |
| Protection degree | IP 65 |
| Withdrawal Force | ≥50N |
| Temperature Range | -40~+85 |
| Flame Class | UL94V-0 |
