5 Pcs/lot Solar Photovoltaic Junction Box 3 Rail PV Cell Box with Solar Panel Connector and Cable for Solar Panel FS0154
Couldn't load pickup availability
SPECIFICATIONS
5 Pcs/lot Solar Photovoltaic Junction Box 3 Rail PV Cell Box with Solar Panel Connector and Cable for Solar Panel FS0154
Brand Name: BLUSUNSOLAR
Origin: Mainland China
Model Number: Solar PV module junction box
Amount of Rails: 3 rail terminals
Rated Voltage: TUV 1000V DC
Rated Current: 3-20A
Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)
Contact Material: Copper, Tin Plated
BOX Materiai: PPO
Cable Size: 4mm sq (1M)
Protection Class: Class II
Pollution Degree: 2
Pin Od: 4.0mm

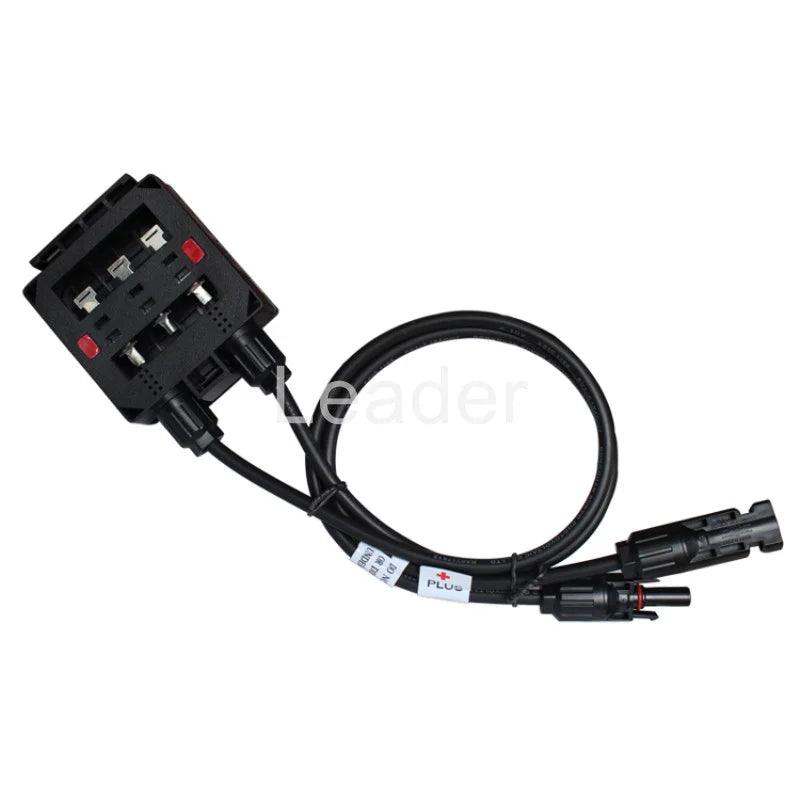

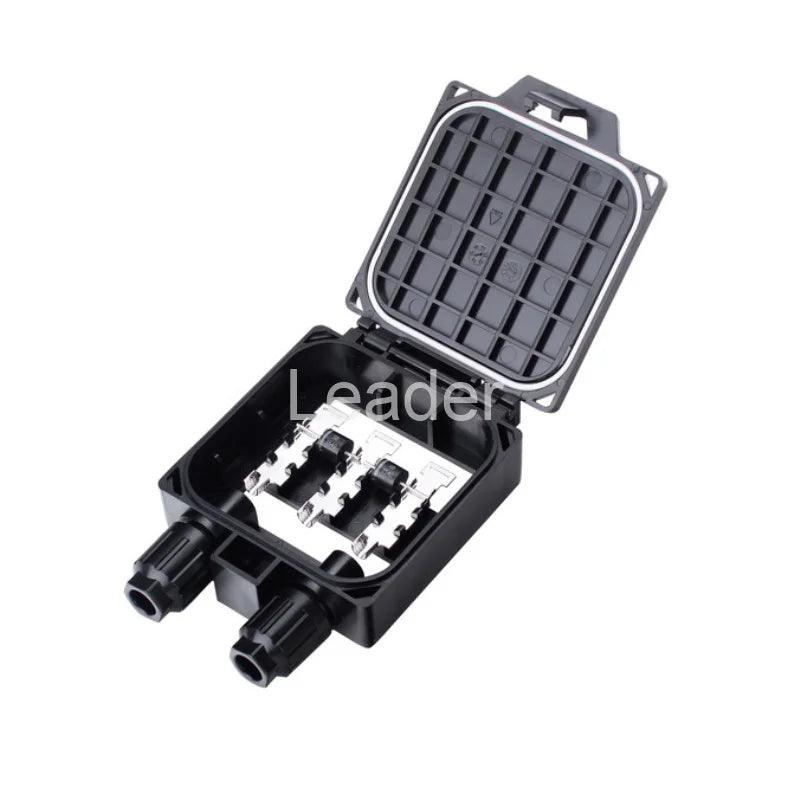

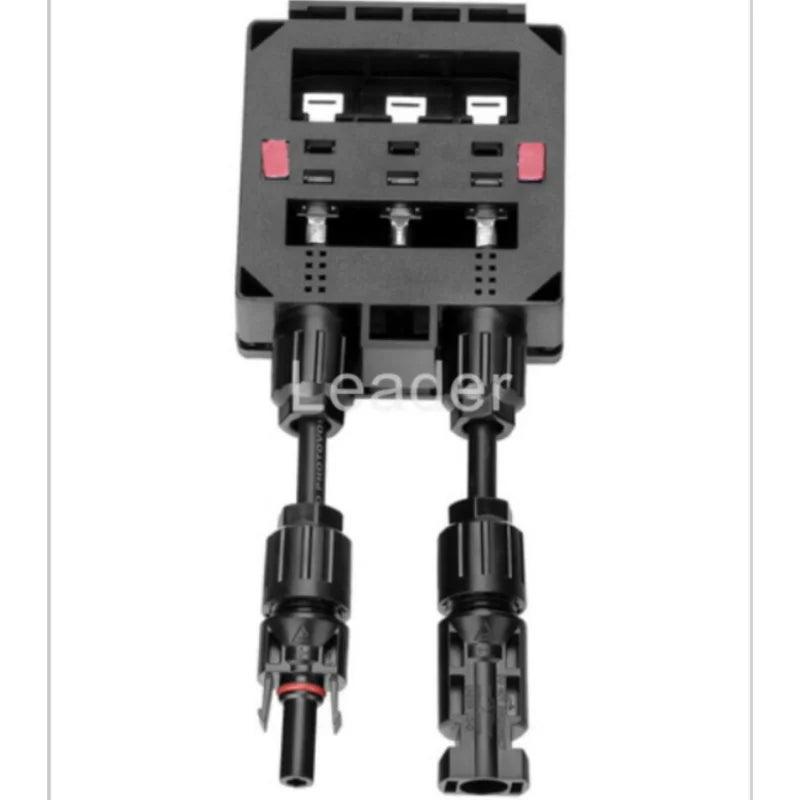

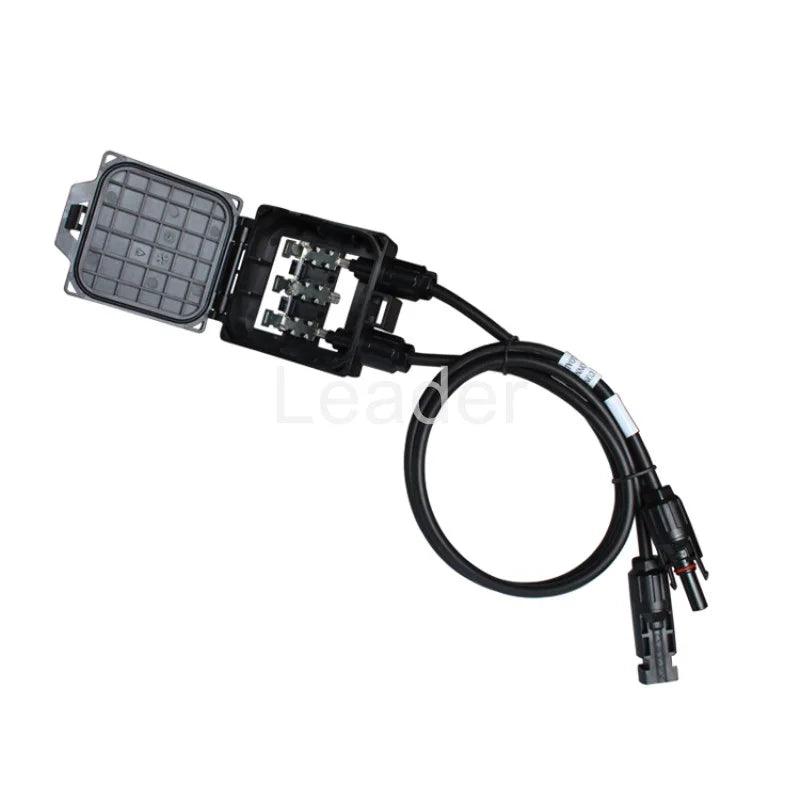

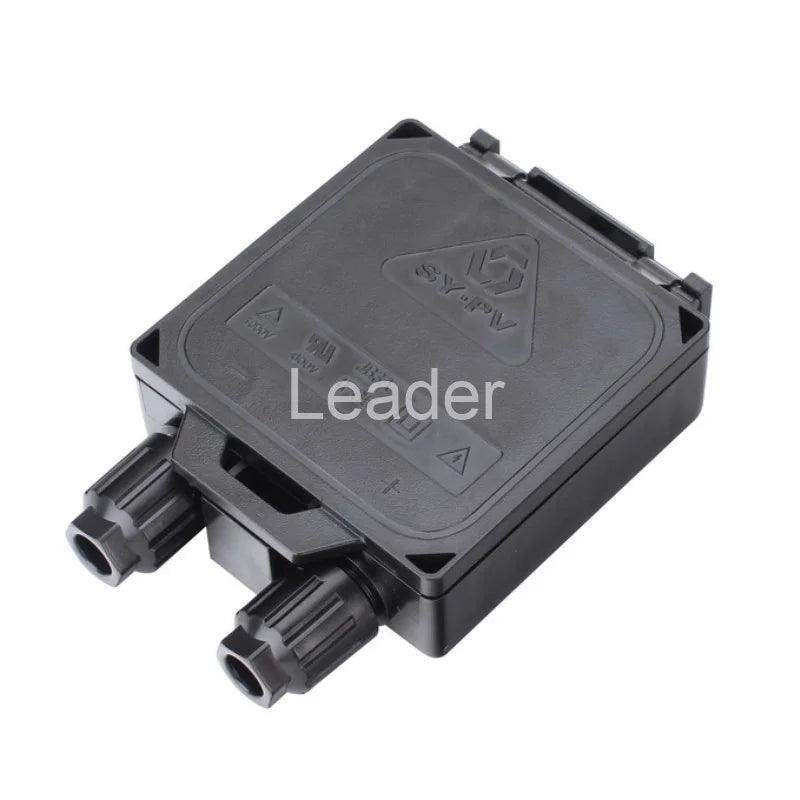

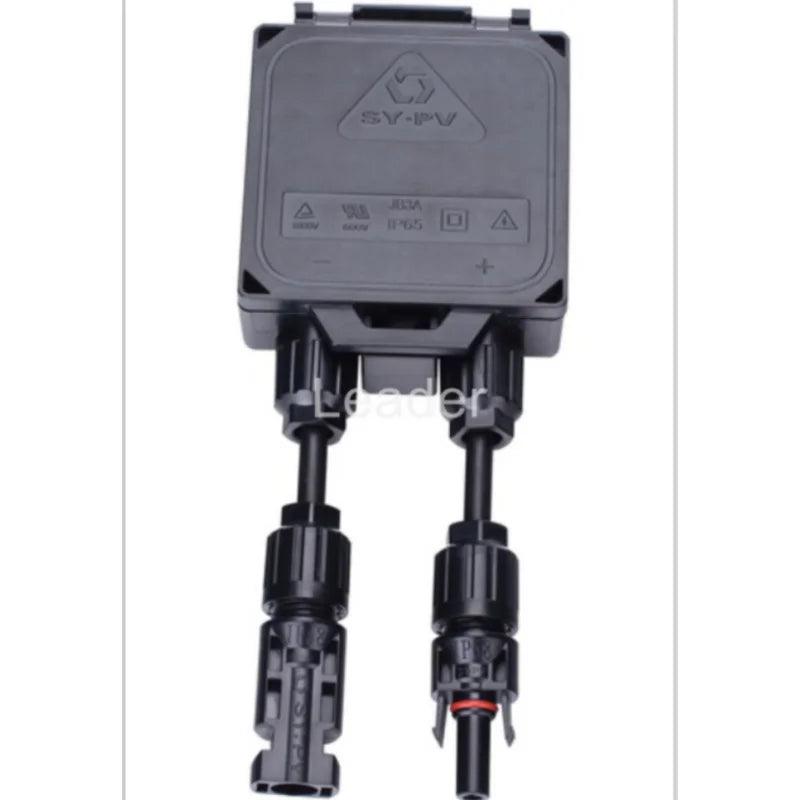

3 Way Solar Junction Box with 1M 4mm2 Cable and IP67 SOLAR Connector
Production introduction:
Product No. | SM-JB3A |
Amount of rails | 3 rail terminals |
Rated Voltage | TUV 1000V DC |
Rating current | 3-20A |
Suitable cable cross sections | 2.5mm2-6.0mm2 / 14AWG-10AWG |
Pin OD | 4.0mm |
Proof voltage | TUV 6000V AC(1Min) / UL 2200V DC (1Min) |
Pollution degree | 2 |
Protection class | Class II |
Contact Material | Copper, tin plated |
Contact resistance | ≤5mΩ |
Protection degree | IP67 |
Withdrawal Force | ≥50N |
Temperature Range | -40ºC~+85ºC |
Flame Class | UL94V-0 |
