5 Pair/lot Waterproof Solar Panel Solar PV Junction Box 1 Way PV Combiner Boxes for Solar Panel FS0146

Regular price $65.91 USD
Regular price $54.24 USD Sale price $65.91 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

5 Pair/lot Waterproof Solar Panel Solar PV Junction Box 1 Way PV Combiner Boxes for Solar Panel FS0146

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: PV Combiner Boxes

Amount of Rails: 1 Rail Terminal

Rated Voltage: TUV 1000V DC

Rating Current: 3-20A (Potting)

Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Cable Size: 2.5mm sq (1M)

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

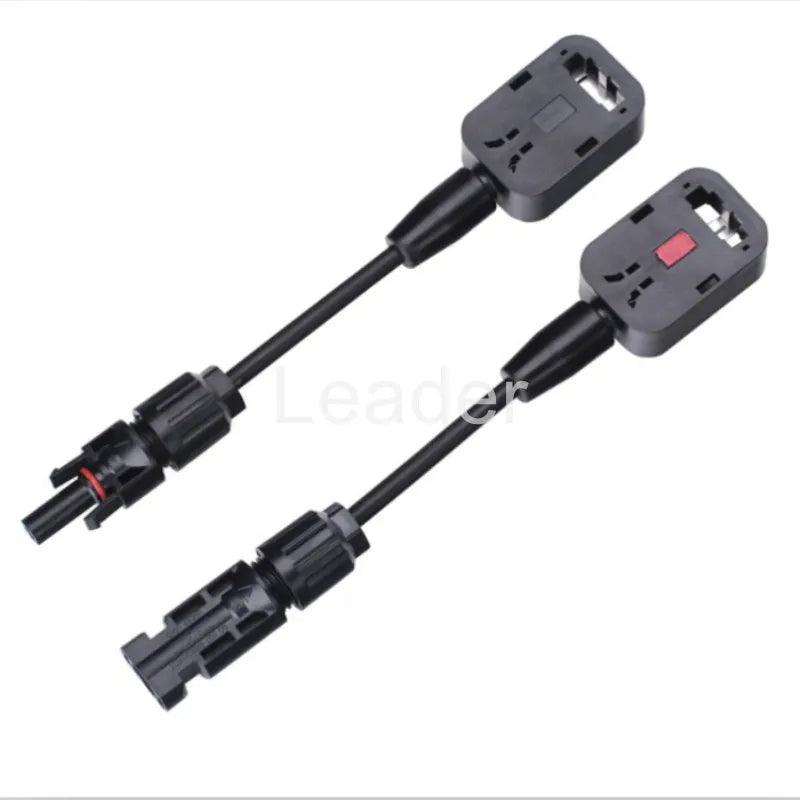

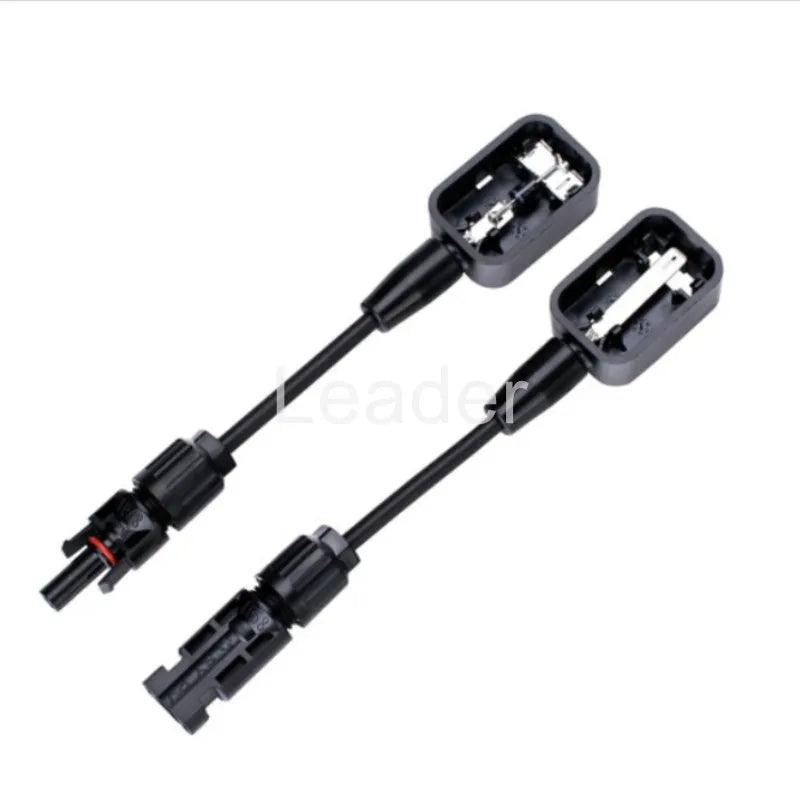

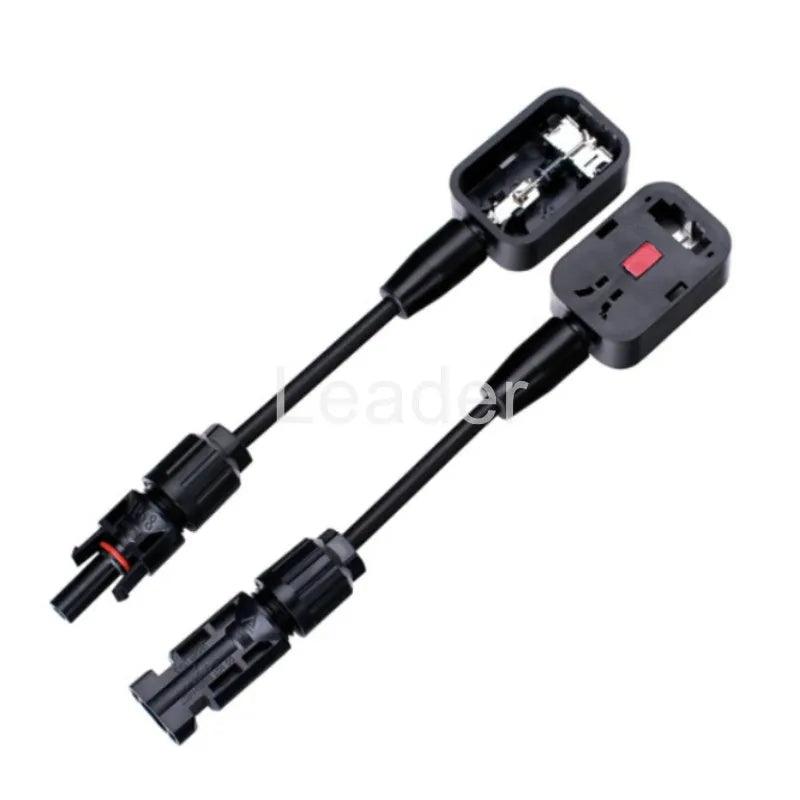

1 Way Solar Junction Box with 1M 2.5mm2 Cable and IP67 SOLAR Connector



Production introduction:

Product No. SM-JB1A
Amount of rails 1 rail terminal
Rated Voltage TUV 1000V DC
Rating current 3-20A(Potting)
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin OD 4.0mm
Proof voltage TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin plated
Contact resistance ≤5mΩ
Protection degree IP67
Withdrawal Force ≥50N
Temperature Range -40ºC~+85ºC
Flame Class UL94V-0

JB1A-0033JB1A-0034

JB1A 3JB1A 4JB1A 5



Compnay information:

LENDER ENERGY Company

LEADER ENERGY is a new energy enterprise,located in GUANGDONG, China,specializing in R&D,

manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems,

and by the products R&D,mold design,production,sales through-train service.With advanced technology,

our products have been authorized by TUV Rhineland,UL,CE successfully.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system,

modernization management approaches and excellent talent teams,

hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.
