40-60hz 45-55hz Frequency Transducer High Frequency Transmitter with input 0-6KHz-100KHz,output 0-10V 4-20mA
Couldn't load pickup availability
SPECIFICATIONS
40-60hz 45-55hz Frequency Transducer High Frequency Transmitter with input 0-6KHz-100KHz,output 0-10V 4-20mA
Response time: <200ms
Product name: Frequency transducer
Power supply: DC12-24V
Output signal: 4-20mA,0-5V,0-10V,1-5V
Operating Temperature: -30℃~+85℃
Model Number: ELFTB-7
Measuring Range: 0-100KHz

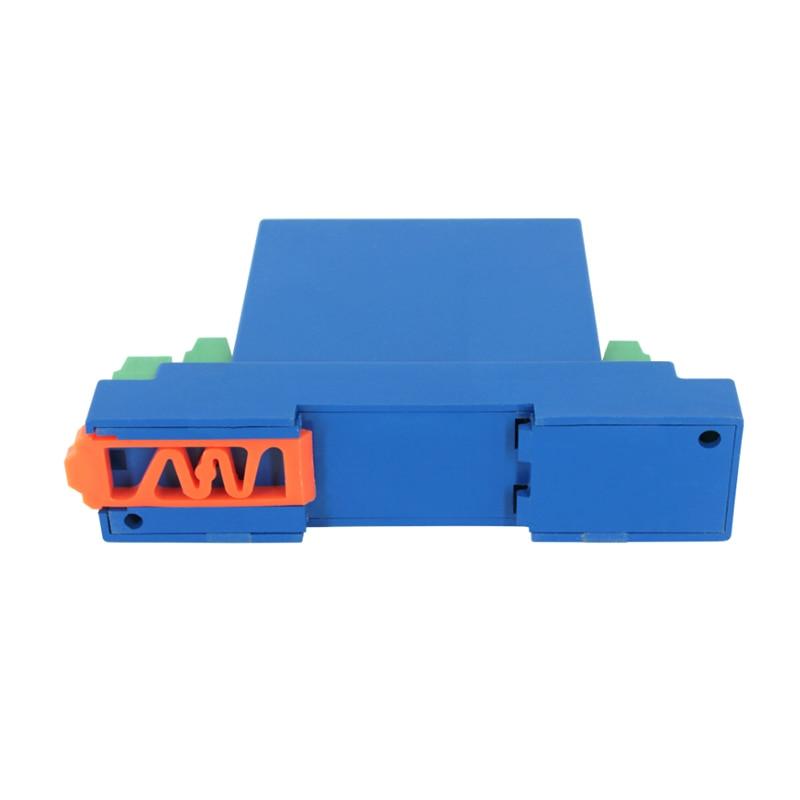

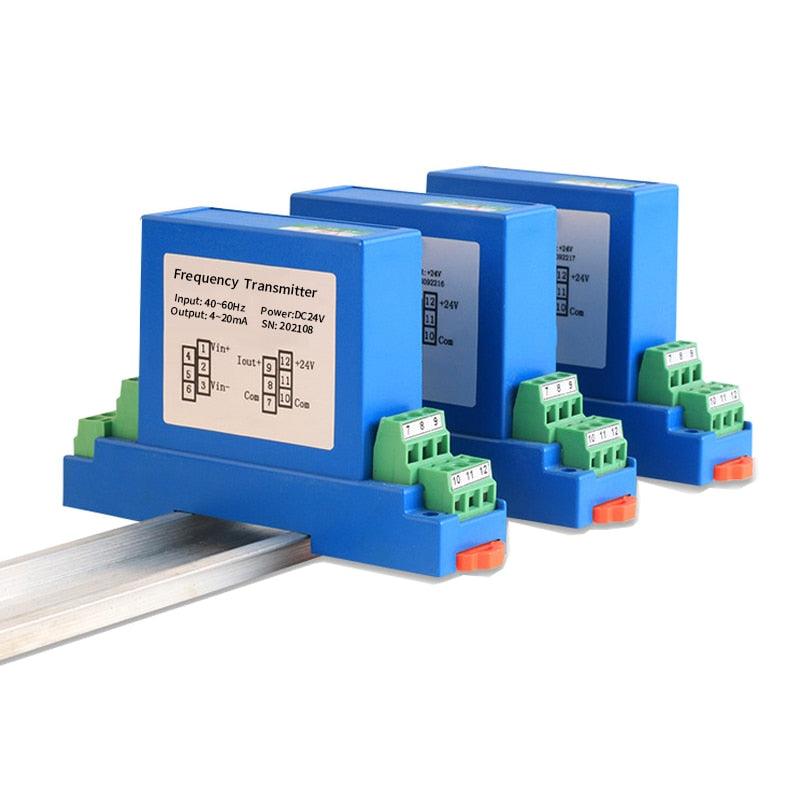

Installation method: DIN 35mm rail+ plane screw fixation
Input frequency range: 0-100KHz
Display Type: Analog Only
Dimensions: No aperture
DIY Supplies: ELECTRICAL
Certification: CE
Brand Name: KEJUN
Accuracy Class: 0.2%FS
40-60hz 45-55hz Frequency Transducer High Frequency Transmitter with input 0-6KHz-100KHz,output 0-10V 4-20mA
NOTES:
The frequency transmitter we can make any range within 50-100KHz.
If you need other frequency range, please contact me.
We can make special customization for you.
1>>. Working principle: Linear photoelectric isolation principle
2>>. Usage: Used for isolation measurement of various waveform frequency signals from 50Hz to 100kHz.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Widely used in various measuring frequencies and places that need to be converted into frequency signals.
5>>. Full channel configuration,parameters customized.
