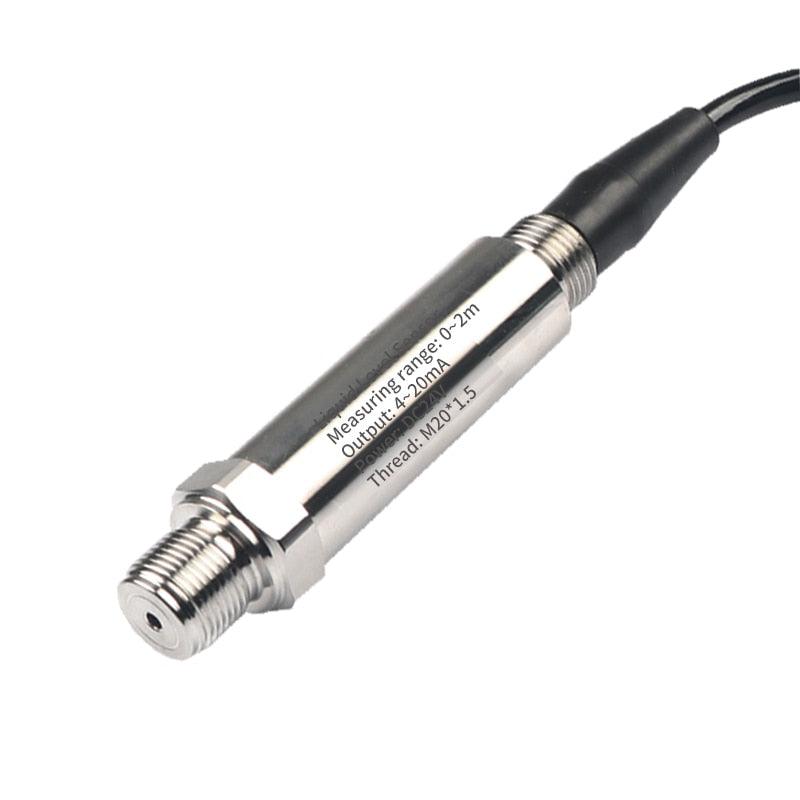

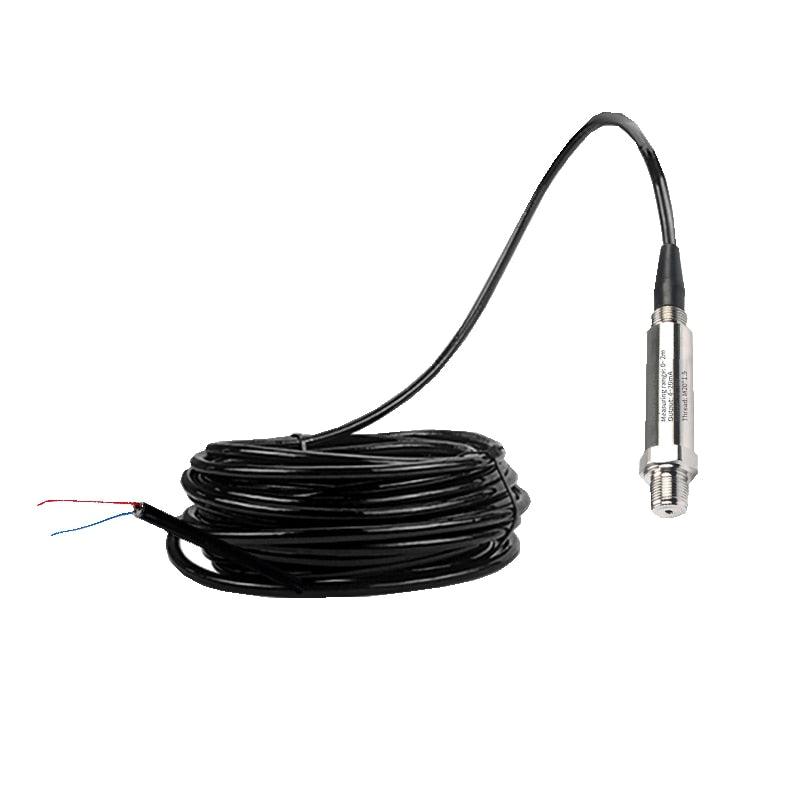

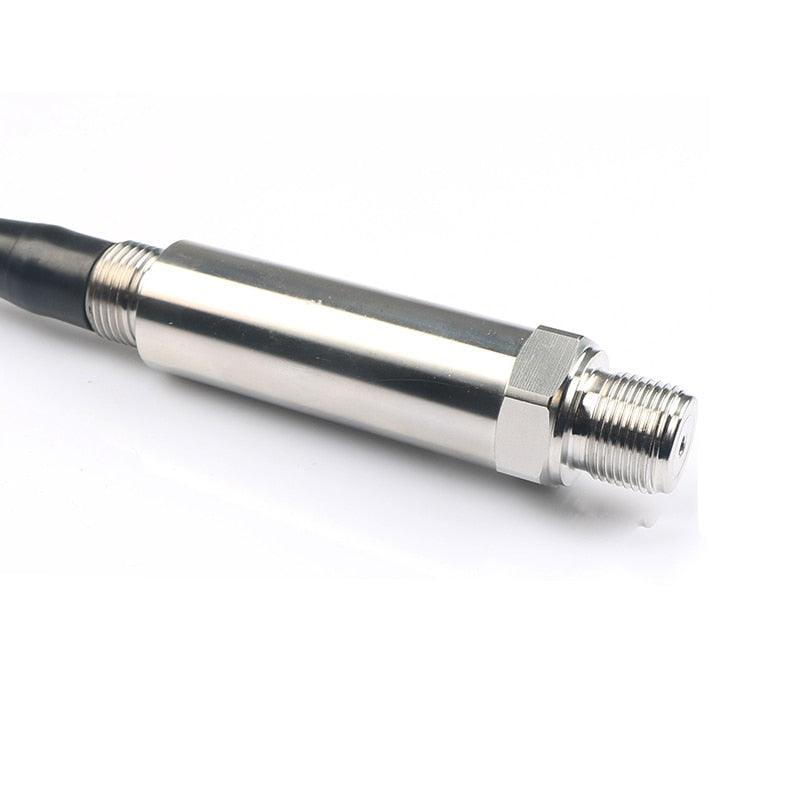

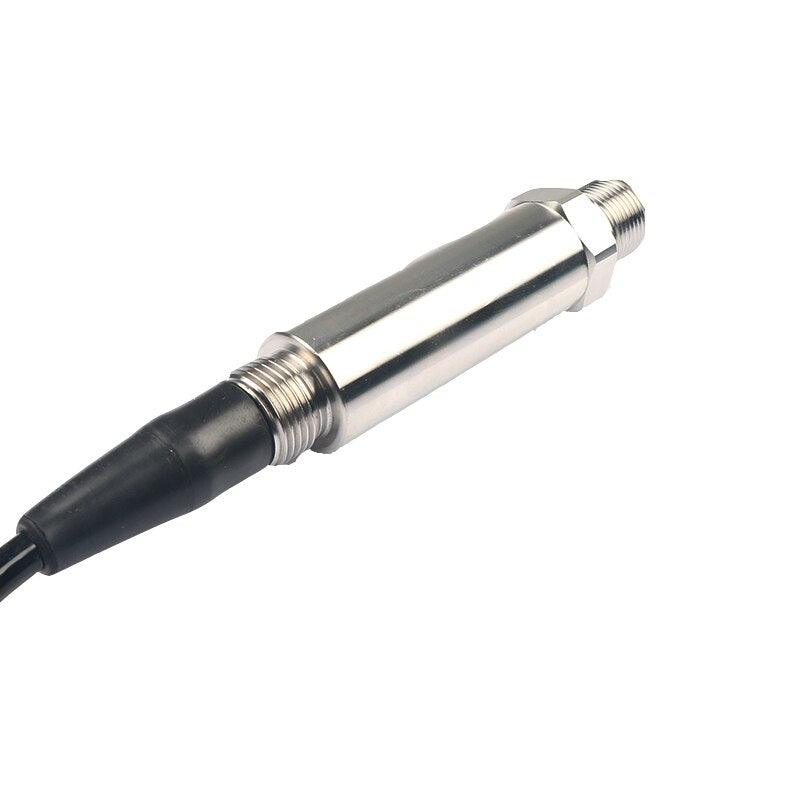

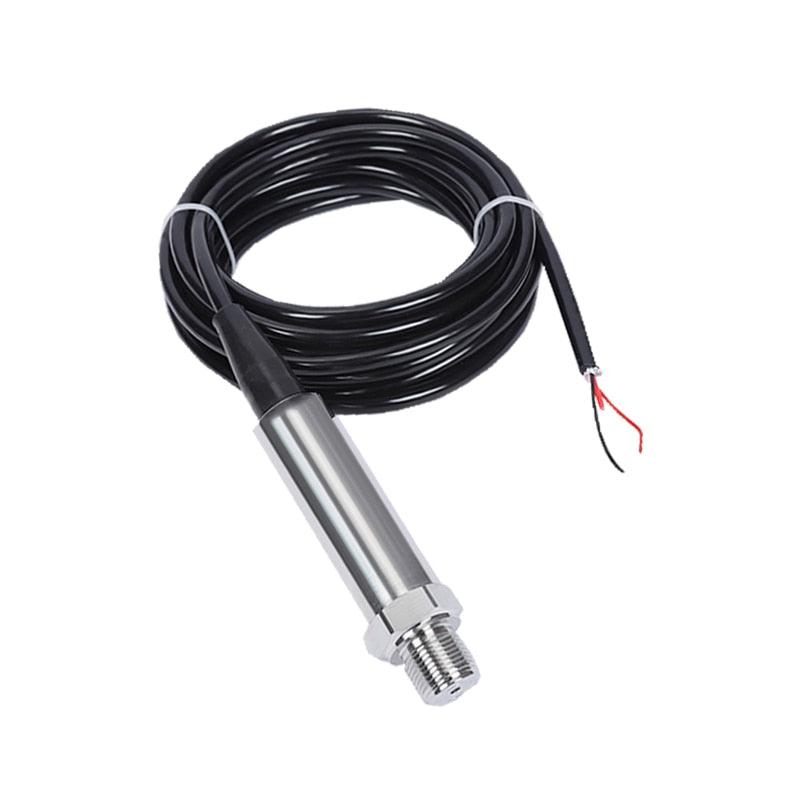

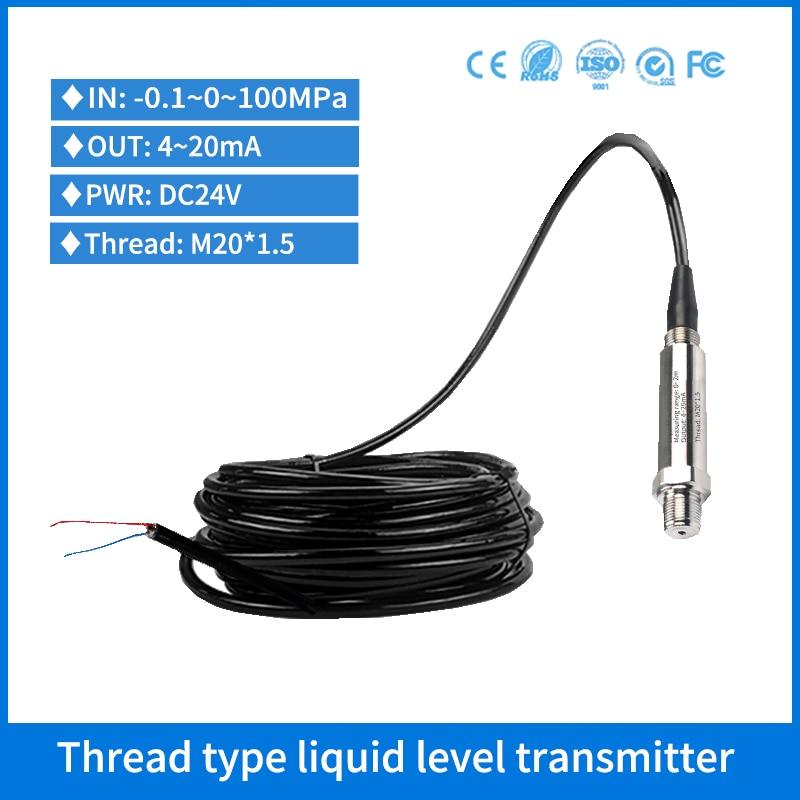

4 20ma Submersible Hydrostatic Water Liquid Level Transducer Hydraulic Pipe Tube Water Pressure Transmitter Sensor

SPECIFICATIONS

Thread size: M20*1.5

Response time: ≤10mS

Product name: Liquid level/Pressure transmitter

Power supply: 12~36Vdc(24Vdc)

Overload capacity: 150%FS

Output signal: 4~20mA

Origin: Mainland China

Model Number: ELLT2002

Measuring range: 0~0.5~500 metres

Long term stability: ±0.2%FS/year

Certification: CE,FCC

Brand Name: KEJUN

Accuracy: 0.2%FS

4 20ma Submersible Hydrostatic Water Liquid Level Transducer Hydraulic Pipe Tube Water Pressure Transmitter Sensor

LEVEL SENSOR DATA SHEET DOWNLOAD

1>>. ELLT200 Submersible level transmitter(static pressure level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly.

2>>. ELLT200 transmitter adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement

liquid level is not affected by the change of external atmospheric pressure the measurement is accurate with long term stability and excellent performance.
