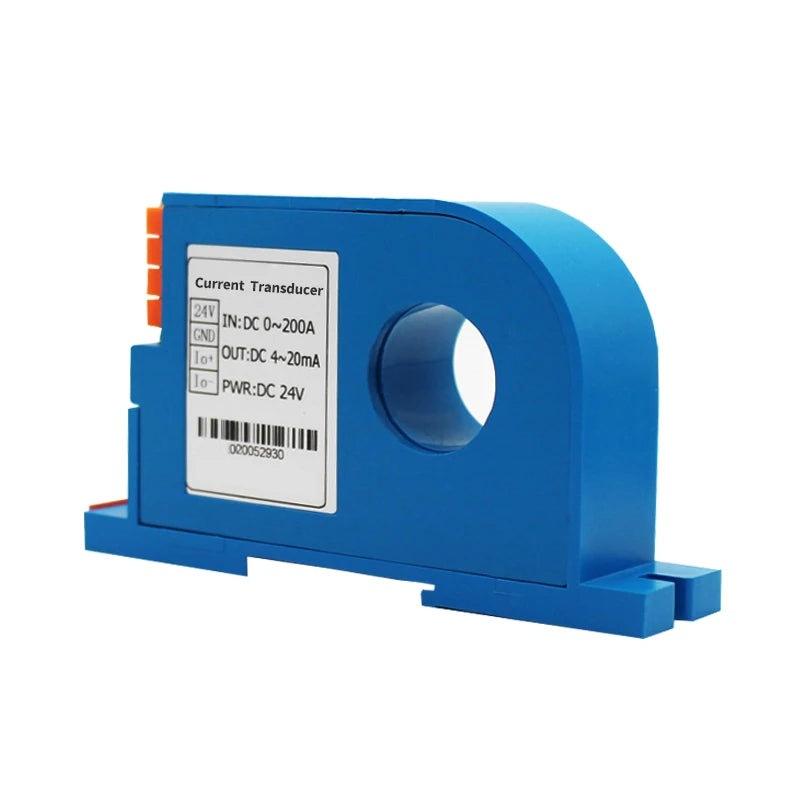

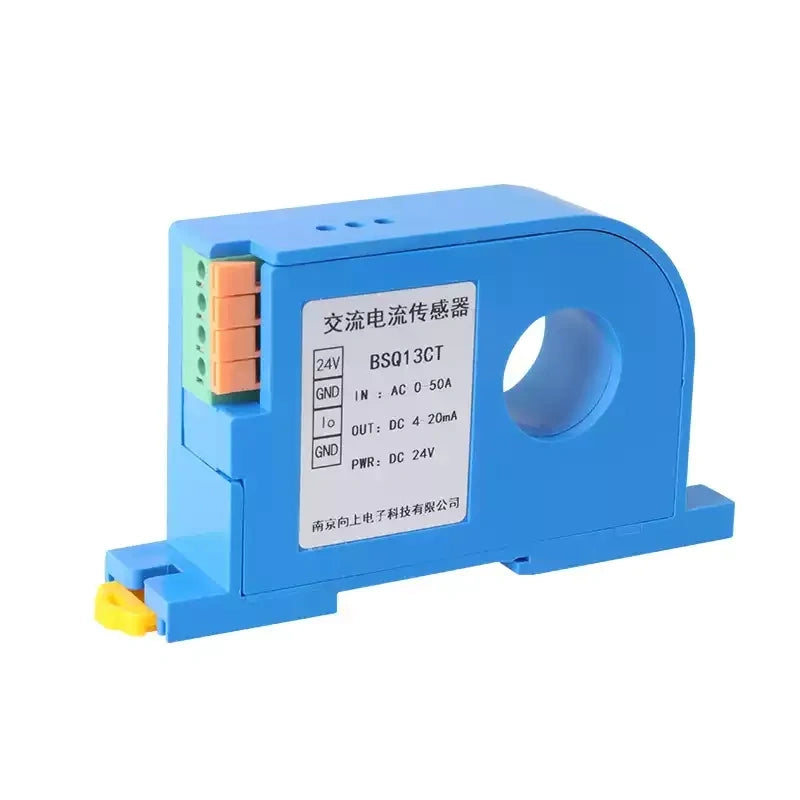

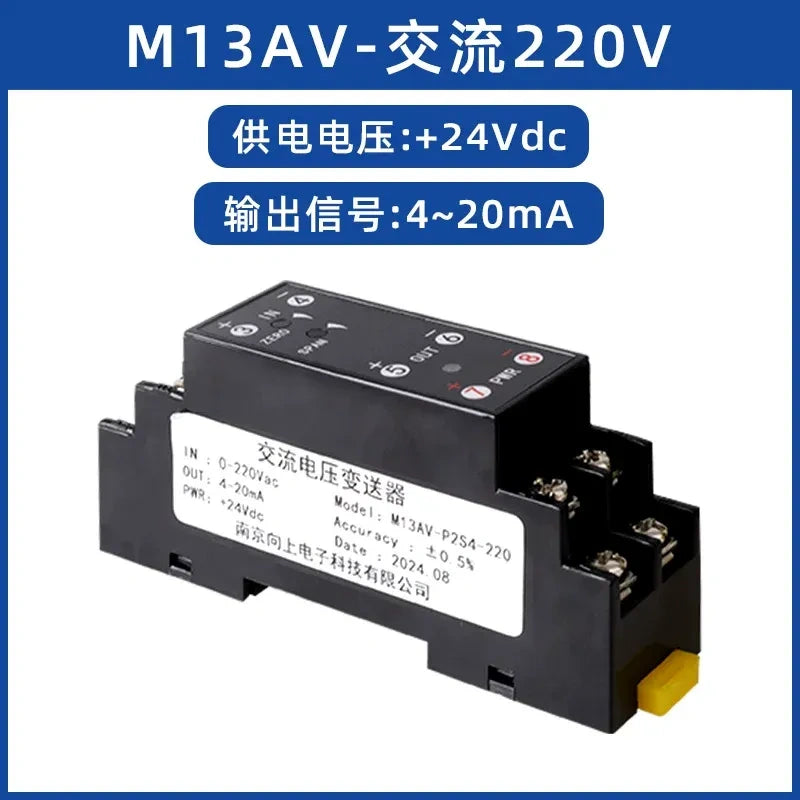

Hall Effect AC/DC Current & Voltage Transmitter

$35.60 USD
$61.47 USD $35.60 USD
Sale Sold out
Shipping calculated at checkout.
Input Power
Model NO.
Output Signal

AC/DC Current Voltage Transmitter, Hall Effect Isolated Sensor, 4-20mA/0-5V/0-10V/RS485 Output, 0-400A/0-1000V Range, DC12V/24V/AC220V Powered DIN Rail Transducer

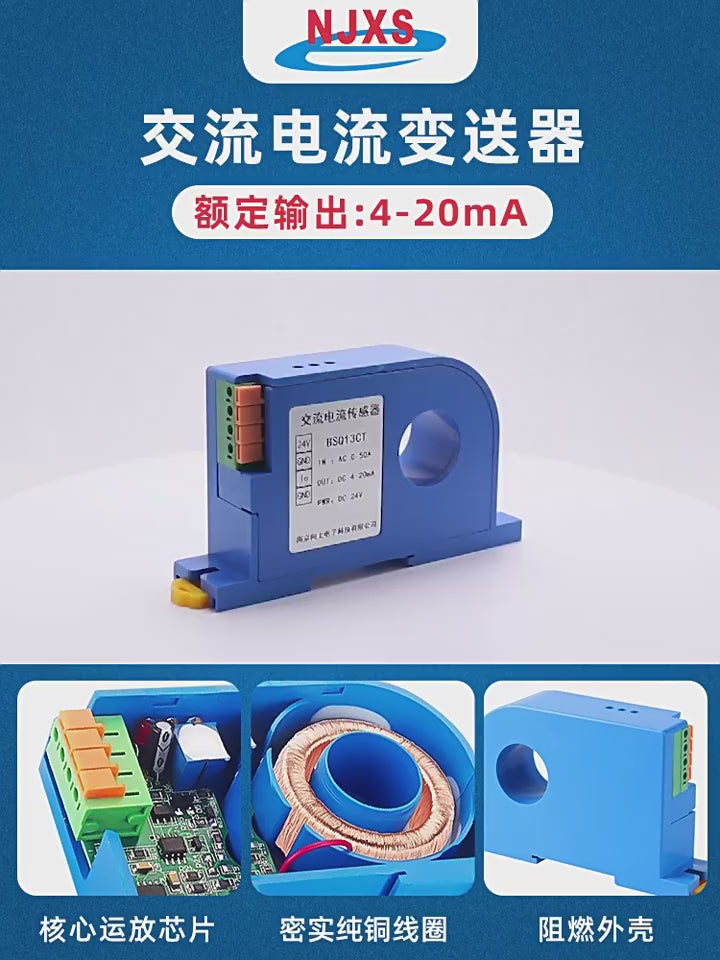

This Hall Effect AC/DC Current & Voltage Transmitter is a high-precision isolated transducer designed for converting AC/DC current/voltage signals into standard industrial outputs. Built with electromagnetic induction principle, it features primary-secondary isolation and reliable performance for power monitoring and control systems.

✨ Key Features

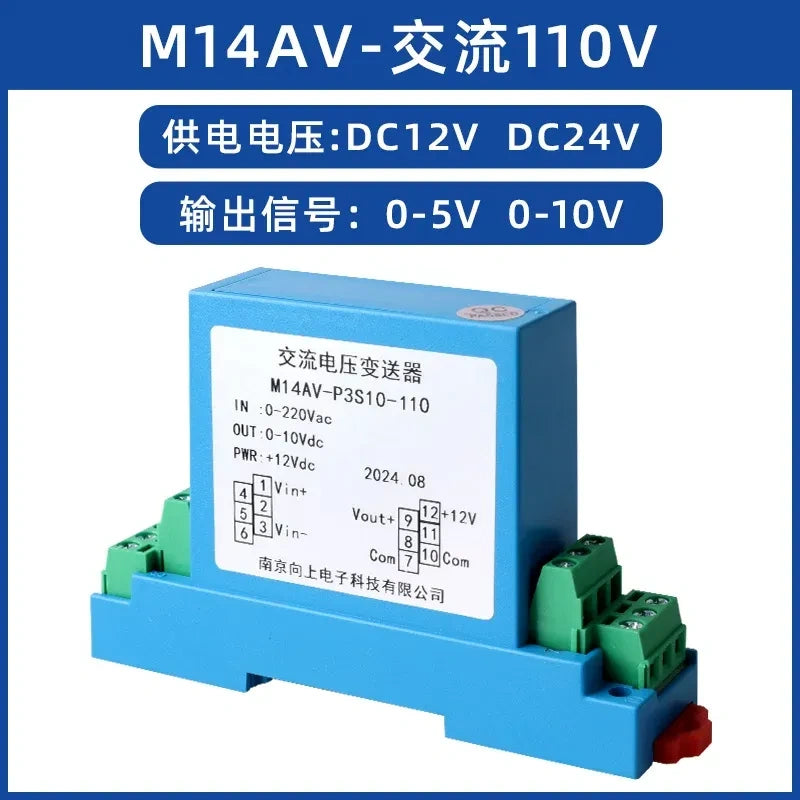

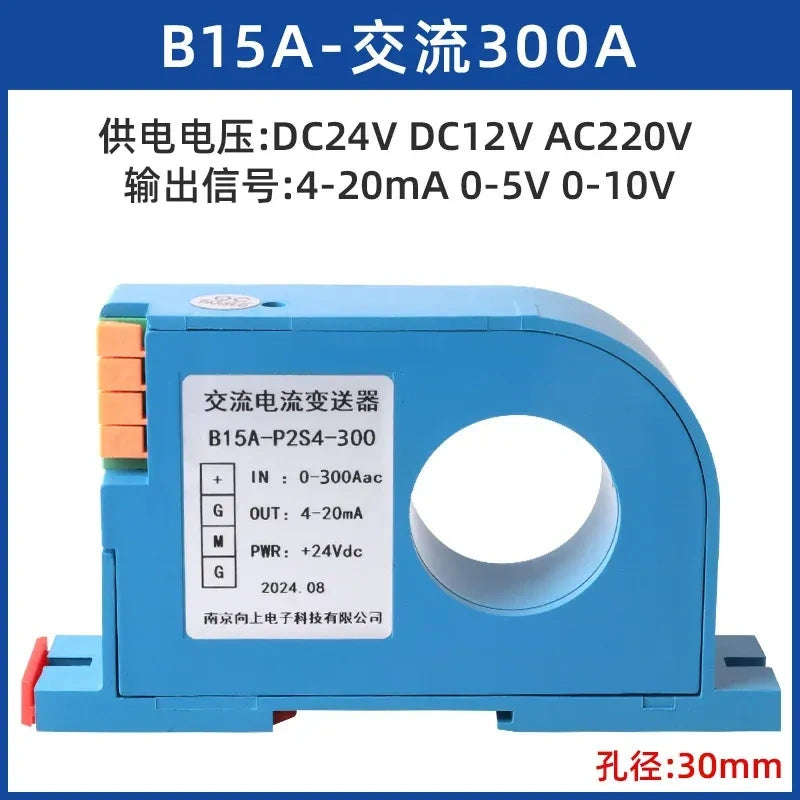

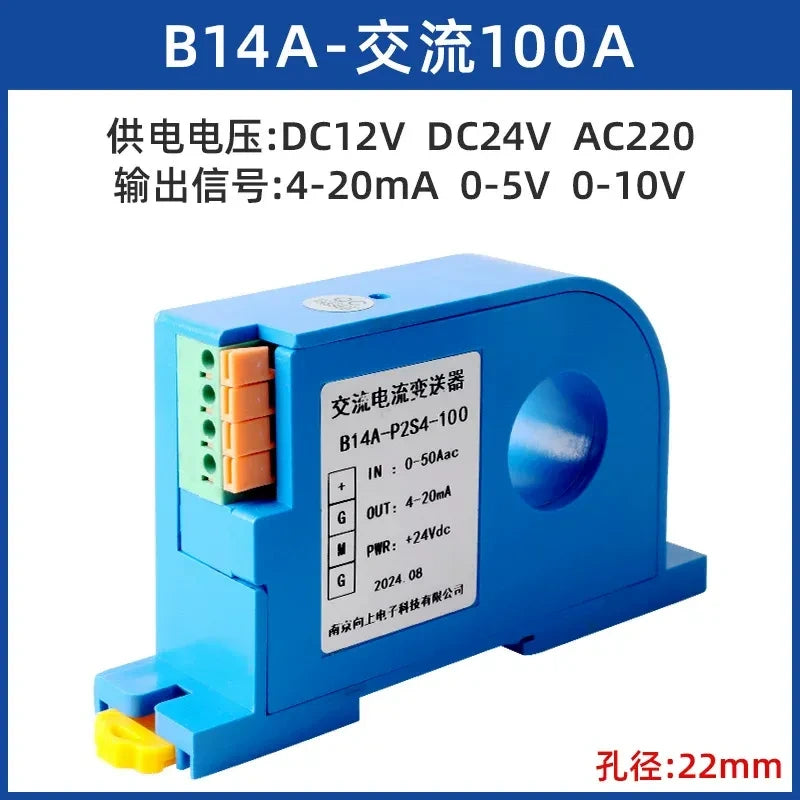

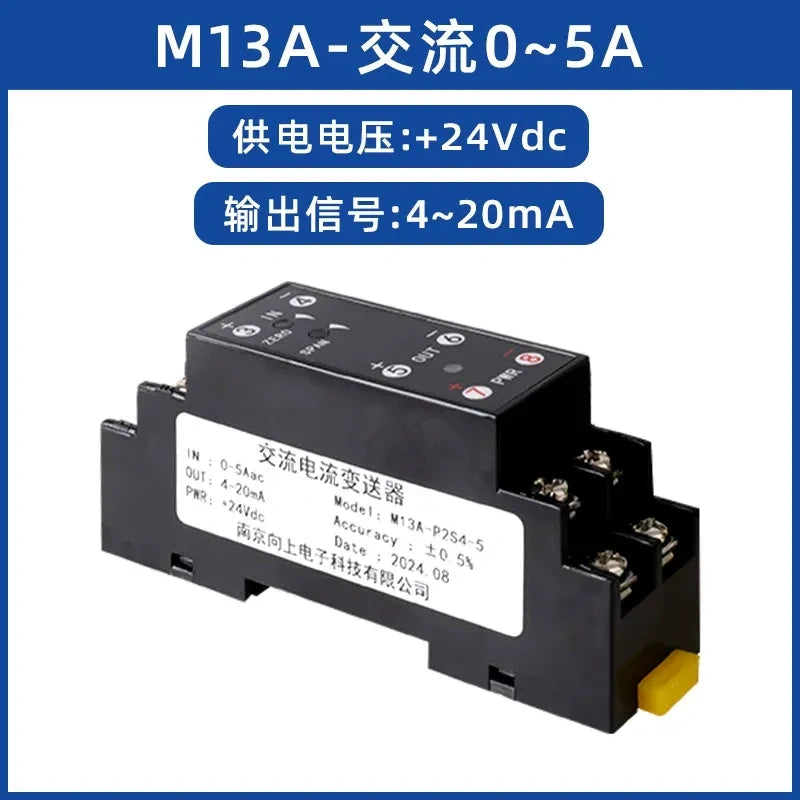

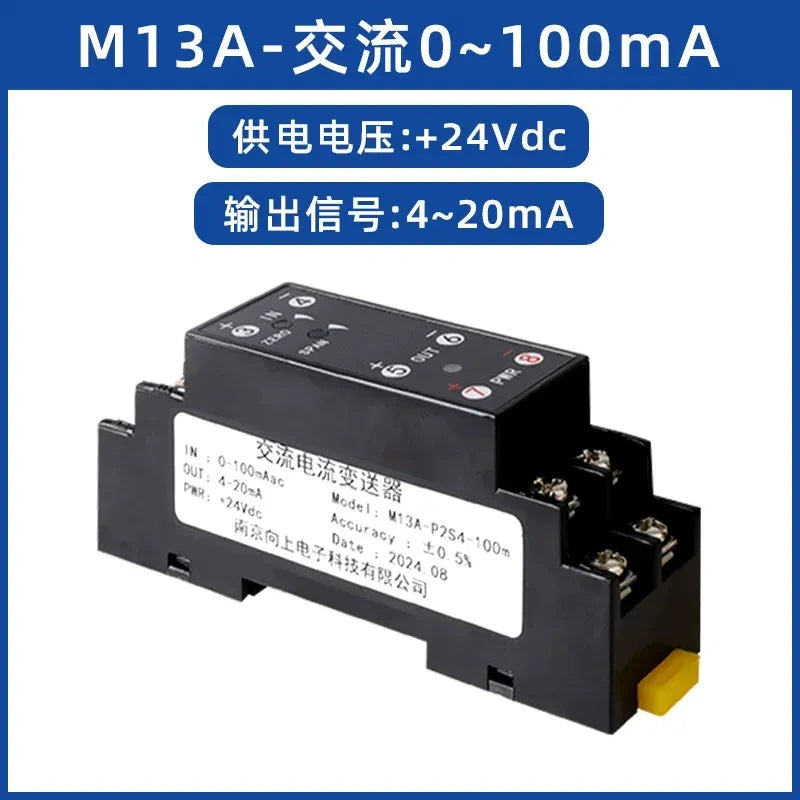

✅ Wide Input Range: AC Current: 0-5A/10A/20A/50A/100A/150A/200A/300A/400A; DC Current: 0-20A/50A/100A/200A/300A; AC Voltage: 0-110V/220V/380V/1000V.

✅ Multiple Output Options: 4-20mA / 0-5V / 0-10V / RS485, compatible with PLC, DCS, and industrial controllers.

✅ Flexible Power Supply: DC12V (P3) / DC24V (P2) / AC220V (P7) options available.

✅ High Precision & Stability: 0.5% accuracy, 0.2% linearity error, and ≤350ms response time.

✅ 6 Protection Functions: Input overload, anti-surge, output overcurrent, overvoltage, anti-short circuit, reverse connection protection.

✅ DIN Rail Mount: Standard rail/plane screw installation for easy integration in control cabinets.

✅ Reliable Performance: Low power consumption, high anti-interference, no insertion losses, operating temperature: -10℃~+70℃.

📊 Technical Specifications

Parameter Details
Product Type Hall Effect Current/Voltage Transmitter
Input Signal AC/DC Current: 0-5A to 0-400A; AC Voltage: 0-110V to 0-1000V
Output Signal 4-20mA / 0-5V / 0-10V / RS485
Power Supply DC12V / DC24V / AC220V
Accuracy 0.5%
Linearity Error 0.2%
Response Time ≤350ms
Bandwidth 50/60Hz
Insulation Voltage AC 2.5KV 50Hz 1min
Operating Temperature -10℃ ~ +70℃
Storage Temperature -25℃ ~ +85℃
Installation DIN Rail / Screw Mount
Application Power, Petroleum, Coal, Metallurgy, Railway, Municipal Engineering

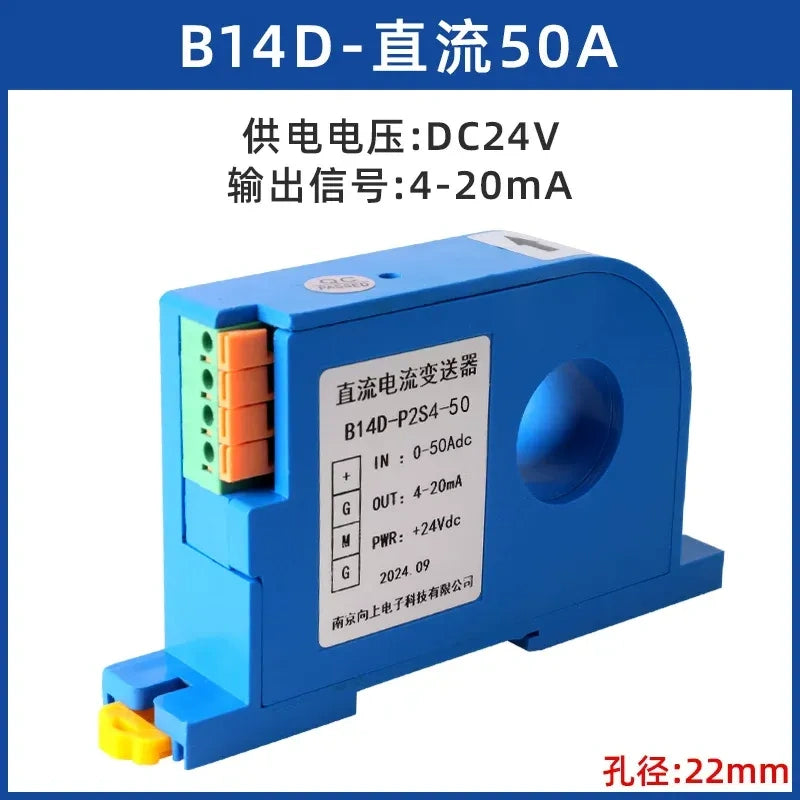

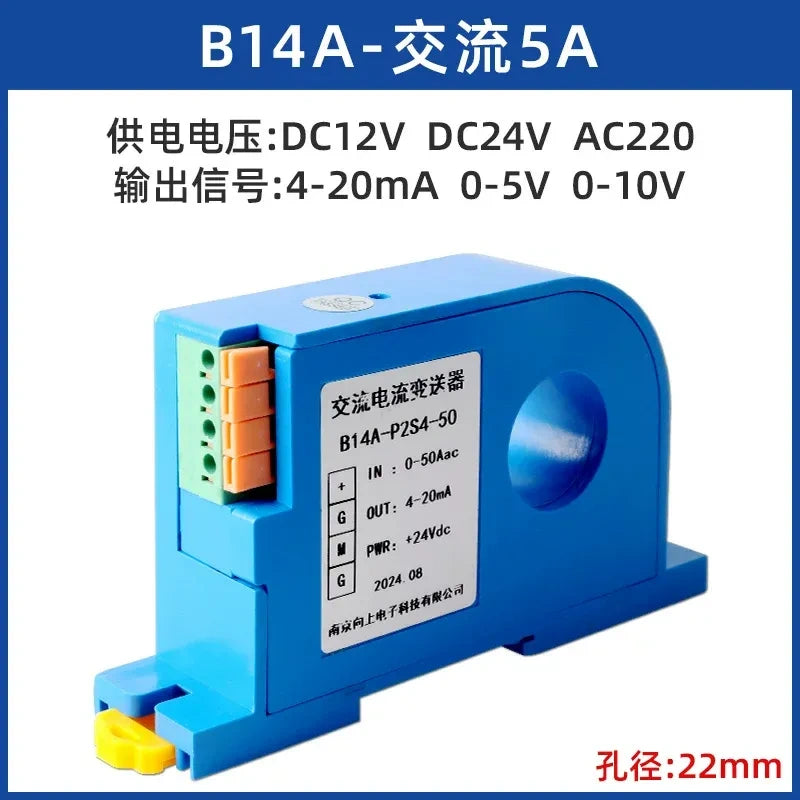

The aperture diameter is 22mm.

If you need other size (25mm, 31mm), please contact me.

We can make special customization for you.
