3-Stage Quiet Electric Linear Actuator, 12V/24V DC

Name: 3-Stage Quiet Electric Linear Actuator, 12V/24V DC
Brand: electrical center b2c
SKU: 12/24V 33mm/s 300N(30kg) Stroke=50mm+50mm
Price: 101.8 USD
Availability: InStock

$101.80 USD

Sale Sold out

Shipping calculated at checkout.

Mode NO. 12/24V 33mm/s 300N(30kg) Stroke=50mm+50mm 12/24V 33mm/s 300N(30kg) Stroke=100mm+100mm 12/24V 33mm/s 300N(30kg) Stroke=150mm+150mm 12/24V 33mm/s 300N(30kg) Stroke=200mm+200mm 12/24V 33mm/s 300N(30kg) Stroke=250mm+250mm 12/24V 33mm/s 300N(30kg) Stroke=300mm+300mm

Product variants

Quantity

Triple-Stage Silent Electric Push Rod, 33mm/s Speed, 300N Force, for Home & Industrial Automation

核心描述

This 3-Stage Quiet Electric Linear Actuator is an industrial-grade telescopic motor designed for reciprocating linear motion applications. With a low noise level as low as 22dB, high thrust of 300N, and IP54 waterproof rating, it’s ideal for home automation, industrial equipment, furniture lifts, and more.

关键特性

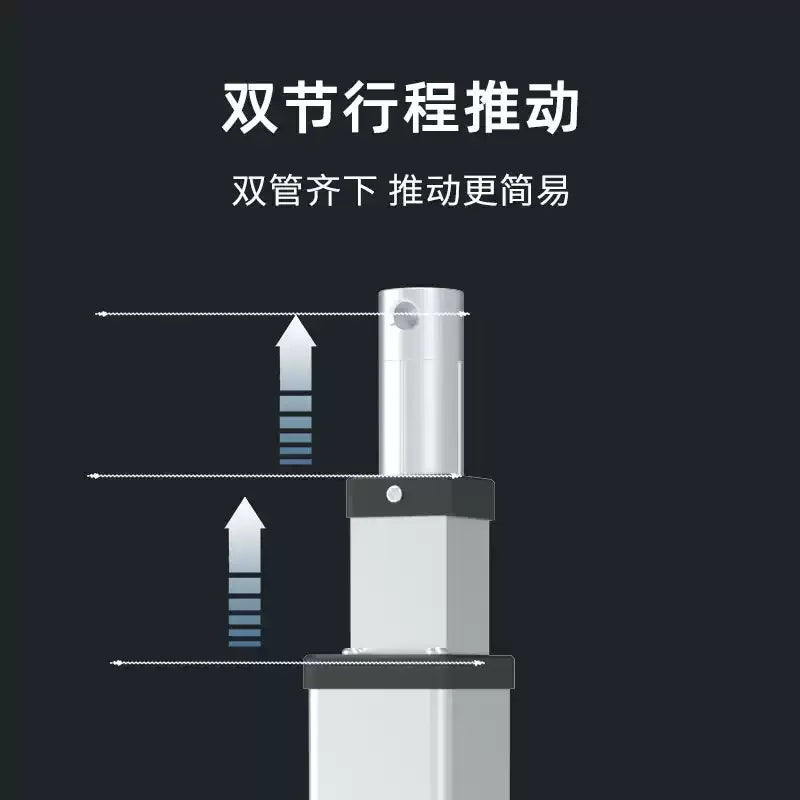

✅ Triple-Stage Telescopic Design: Extended stroke range with compact retracted length, perfect for limited space
✅ Ultra-Quiet Operation: Noise level as low as 22dB, ensuring a comfortable and disturbance-free working environment
✅ High Thrust & Efficiency: Rated thrust 300N at 33mm/s speed, driven by trapezoidal screw for low friction and high efficiency
✅ Dual Voltage Compatibility: Works with both 12V and 24V DC power supplies for flexible integration
✅ IP54 Waterproof Rating: Dust and splash-proof, meeting national standard testing for reliable use in various environments

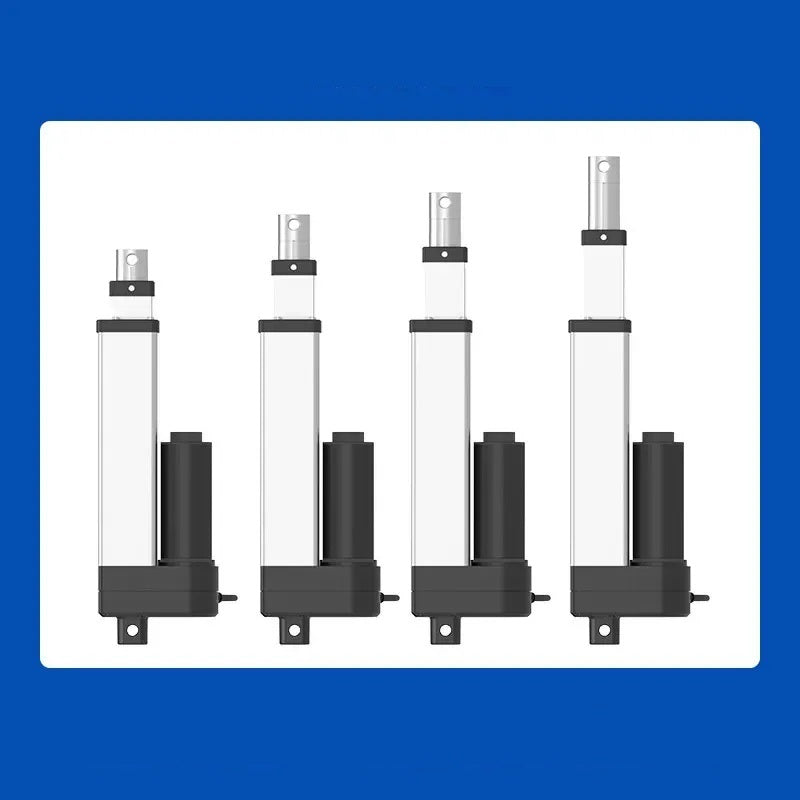

✅ Customizable Stroke: Available in standard strokes (50+50mm to 300+300mm) with custom options for longer lengths
✅ Sturdy Construction: High-quality materials for durability, suitable for long-term use in industrial and home applications

规格说明

Product Name: 3-Stage Silent Electric Linear Actuator / Telescopic Push Rod
Rated Voltage: 12V / 24V DC
Rated Speed: 33mm/s
Rated Thrust: 300N (at 12V/24V)
Stroke Options: 50+50mm, 100+100mm, 150+150mm, 200+200mm, 250+250mm, 300+300mm (custom available)
Mounting Hole Distance: 245mm, 295mm, 345mm, 395mm, 445mm, 495mm (corresponding to stroke)
Noise Level: As low as 22dB
Waterproof Rating: IP54
Transmission Type: Trapezoidal screw (low friction, high efficiency)
Application: Industrial equipment, home automation, furniture lifts, recliners, bed bases, cabinets, and more

DATA SHEET

规格型号	英文标题

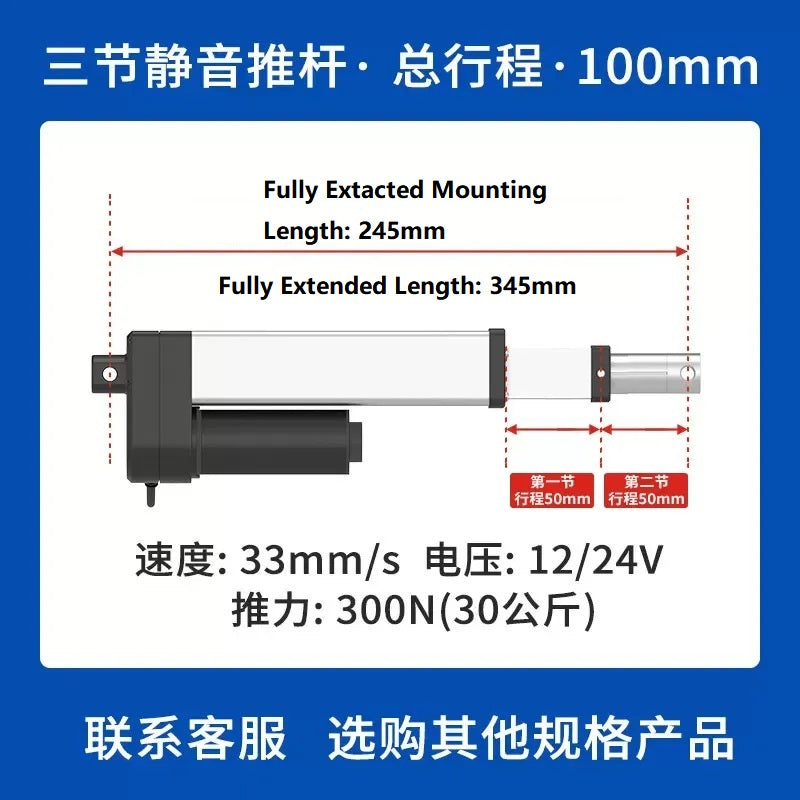

50+50mm Stroke	`50+50mm Stroke 3-Stage Linear Actuator, 245mm Mounting Hole Distance`

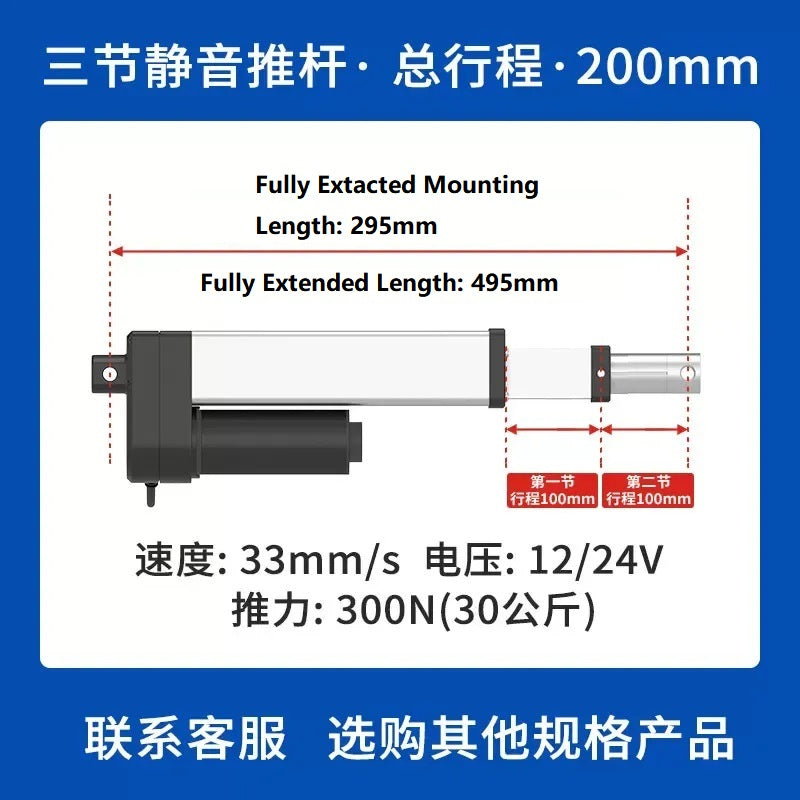

100+100mm Stroke	`100+100mm Triple-Stage Electric Push Rod, 295mm Mounting Hole Spacing`

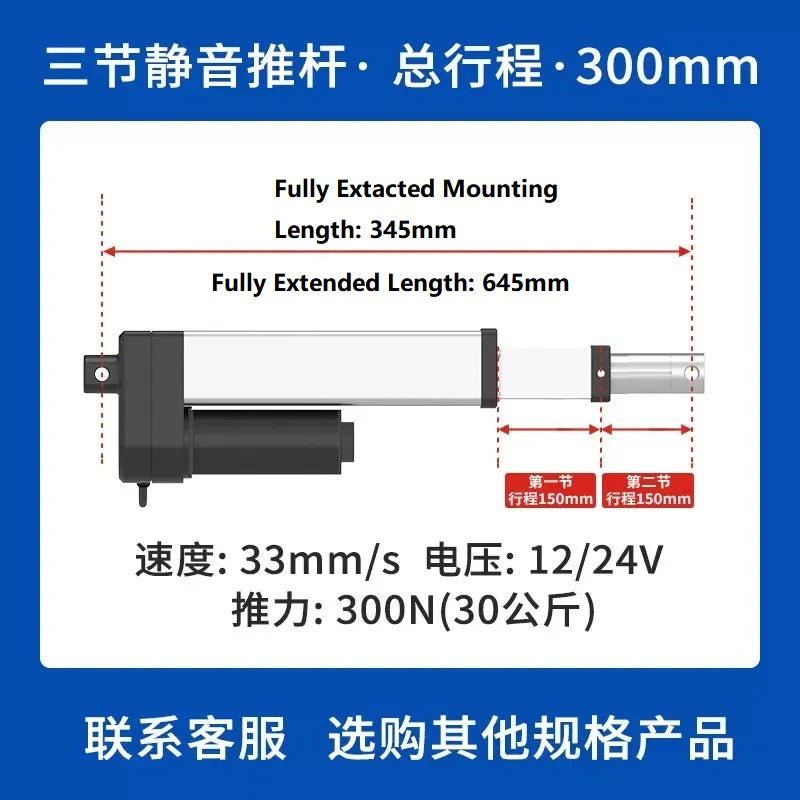

150+150mm Stroke	`150+150mm Industrial Linear Actuator, 345mm Installation Hole Distance`

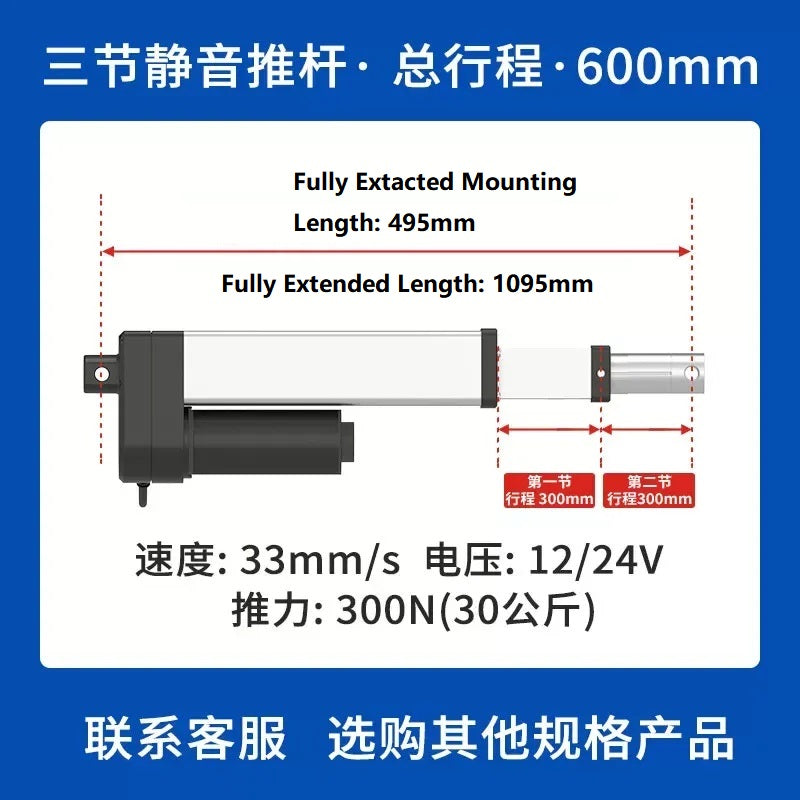

300+300mm Stroke	`300+300mm Silent Telescopic Actuator, 495mm Mounting Hole Distance`

Attribute	Value
Product Name	3-Stage Silent Electric Linear Actuator
Type	Telescopic / Reciprocating Linear Motor
Rated Voltage	12V / 24V DC
Rated Speed	33mm/s
Rated Thrust	300N
Stroke Options	50+50mm, 100+100mm, 150+150mm, 200+200mm, 250+250mm, 300+300mm (custom available)
Mounting Hole Spacing	245mm, 295mm, 345mm, 395mm, 445mm, 495mm
Noise Level	≤22dB
Waterproof Rating	IP54
Transmission	Trapezoidal Screw (low friction, high efficiency)
Application	Industrial Automation, Home Automation, Furniture Lifts, Recliners, Bed Bases, Cabinets
