CJX9 Series 240VAC 2P 40A Contactor AC Contactor Two Pole Contactor Air Conditioner

$22.70 USD
$28.10 USD $22.70 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

CJX9 Series 240VAC 2P 40A Contactor AC Contactor Two Pole Contactor Air Conditioner double pole contactor

Number of Pole: 2

Model Number: CJX9-2P-40A

Main Circuit Rating Voltage: 240VAC

Main Circuit Rating Current: 40A

Current type: AC type

Coil voltage: 240VAC

Coil current: 40A

Application: Air Conditioning

CJX9 Series 240VAC 2P 40A Contactor AC Contactor Two Pole Contactor Air Conditioner

1. CJX9 Electrical Contactor Application?

Air conditioner contactors are definite purpose AC contactor are designed for use in refrigeration, air conditioning, and electric heating systens. Power connections can be made with either screw terminals with quick connects or lug terminals with  quick connects.

Application:

1) Air Conditioning          2) Heating                                                  3) Ventilating

4) Refrigeration              5) Food and Beverage Industries             6)Hoist and Cranes

7)Elevators                     8) Lighting                                                   9) Pool and Spa

10) Welding                   11) Pump and Compressor                       12) Conveyors

2. CJX9 Electrical Contactor  Specifications?



Coil rating 1Pole contactors 2 pole contacts
Nominal coil voltage 24 120 208/240 277 24 120 208/240 277
Nominal coil resistance Ohms 18 420 1800 2500 11 237 1000 1600
Maximum pick up voltage 18 88 177 221 18 88 177 221
Maximum drop out voltage 6-15 20-70 40-140 50-165 6-15 20-70 40-140 50-165
Nominal rush Va@50Hz 31 31 31 31 33 33 33 33
Nominal rush Va@60Hz 28 28 28 28 30 30 30 30
Nominal rush Va@50Hz 6 6 6 6 8 8 8 8
Nominal rush Va@60Hz 5 5 5 5 6.5 6.5 6.5 6.5
Maximum coil voltage 30 132 264 300 30 132 132 300



Coil rating 3Pole contactors 4 pole contacts
Nominal coil voltage 24 120 208/240 277 24 120 208/240 277
Nominal coil resistance Ohms 7 180 720 900 6 150 600 750
Maximum pick up voltage 18 88 177 220 18 88 177 220
Maximum drop out voltage 6-15 20-70 40-140 50-165 6-15 20-70 40-140 65-185
Nominal rush Va@50Hz 65 65 65 65 62 62 62 62
Nominal rush Va@60Hz 60 60 60 60 59 59 59 59
Nominal rush Va@50Hz 7.5 7.5 7.5 7.5 9 9 9 9
Nominal rush Va@60Hz 6 6 6 6 7 7 6 7
Maximum coil voltage 30 132 264 300 30 132 264 300



3. CJX9 Electrical Contactor Terminal?



 CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval



4. CJX9 Electrical Contactor Dimensions?



1Pole  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval
 2Pole  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval
 3Pole  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval  CJX9 Electrical Contactor 1P ,50Hz/60Hz,20A, 25A,30A,,24V,120V,240V,UL Approval

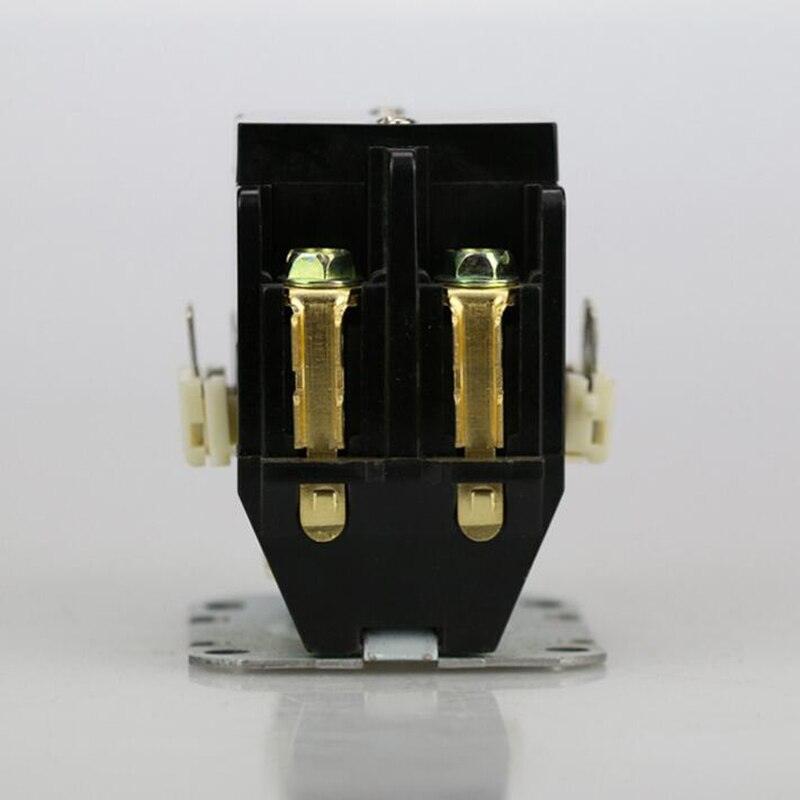

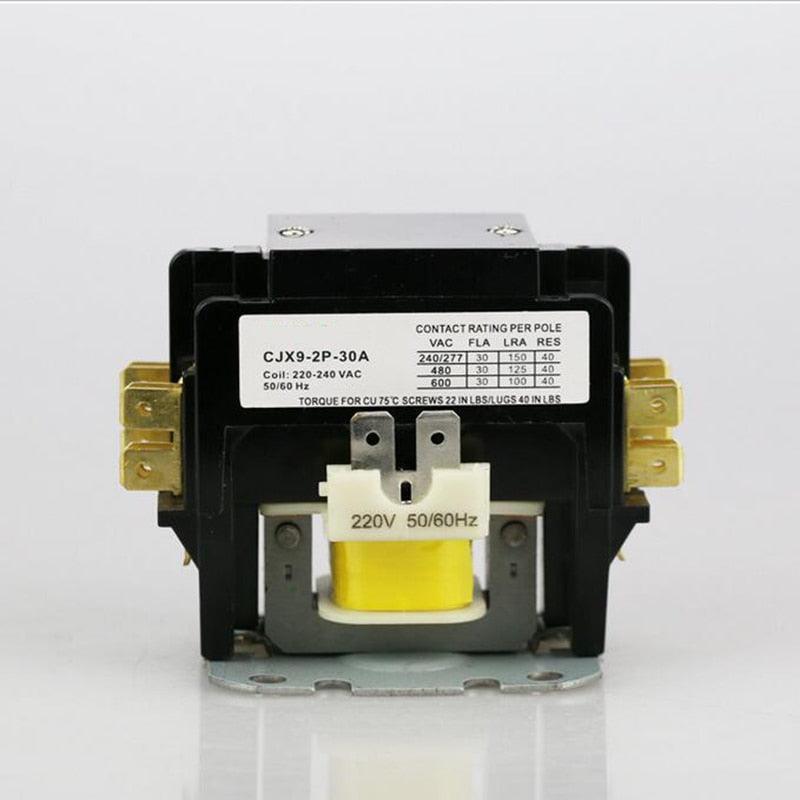

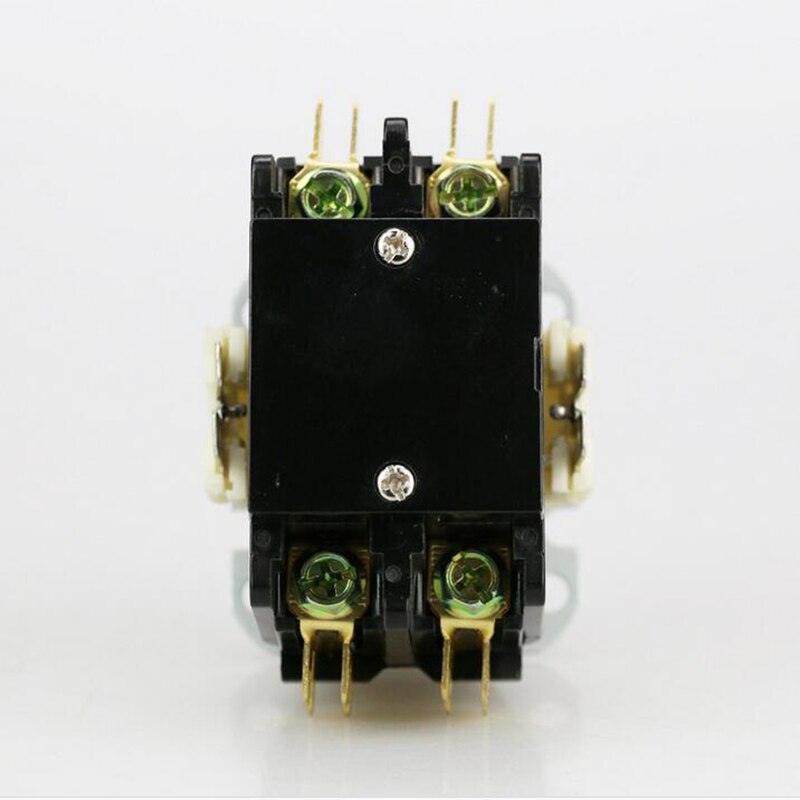

5. CJX9 Electrical Contactor Pictures?
