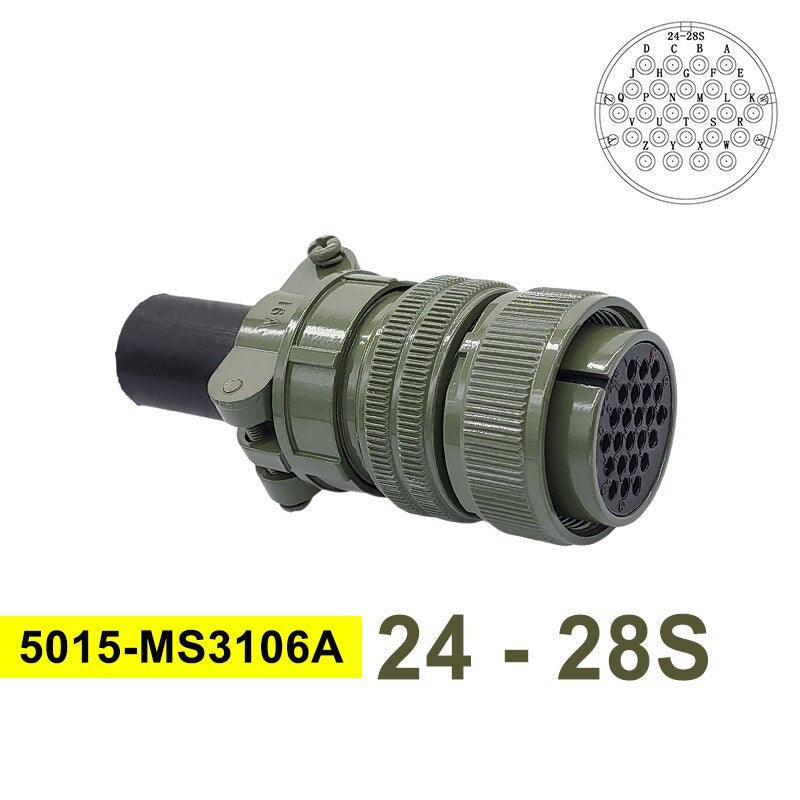

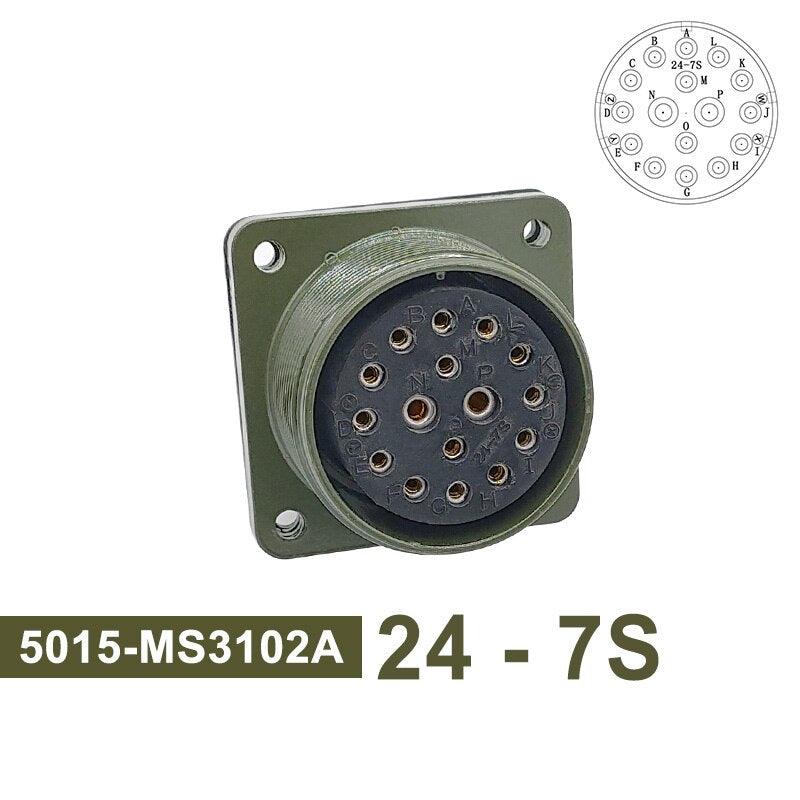

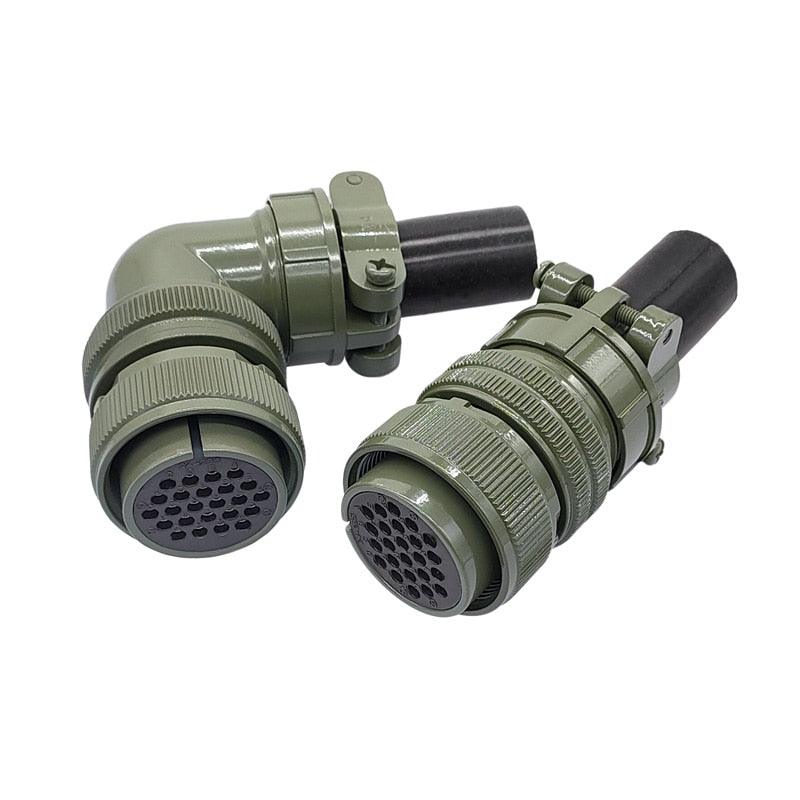

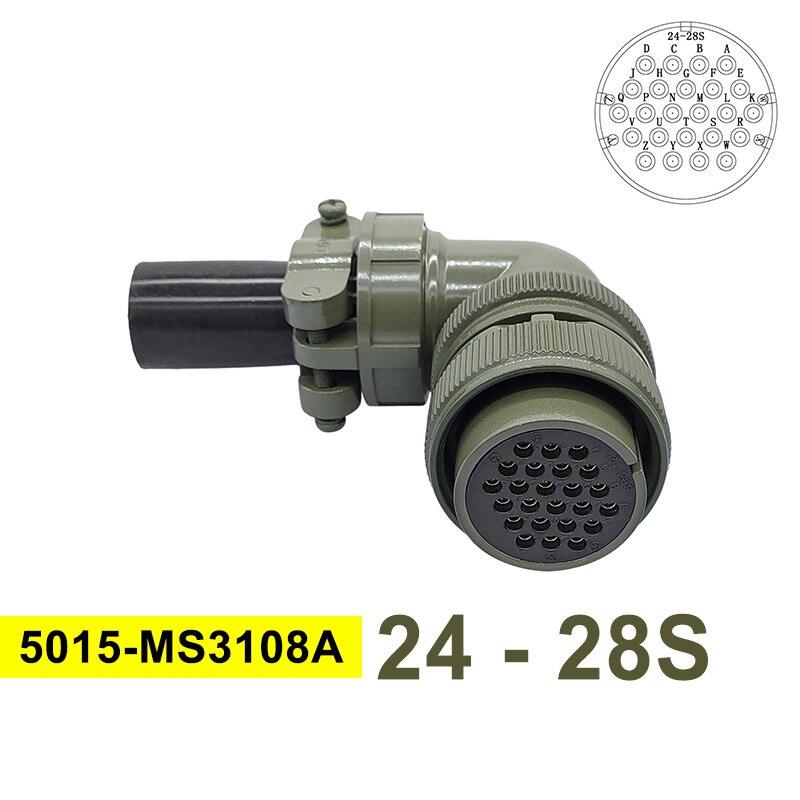

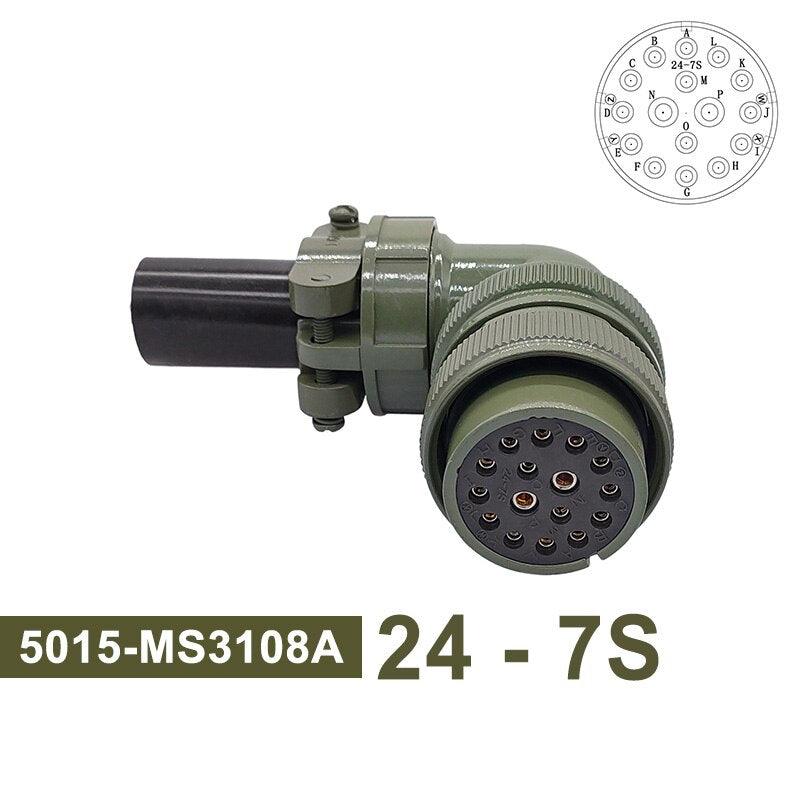

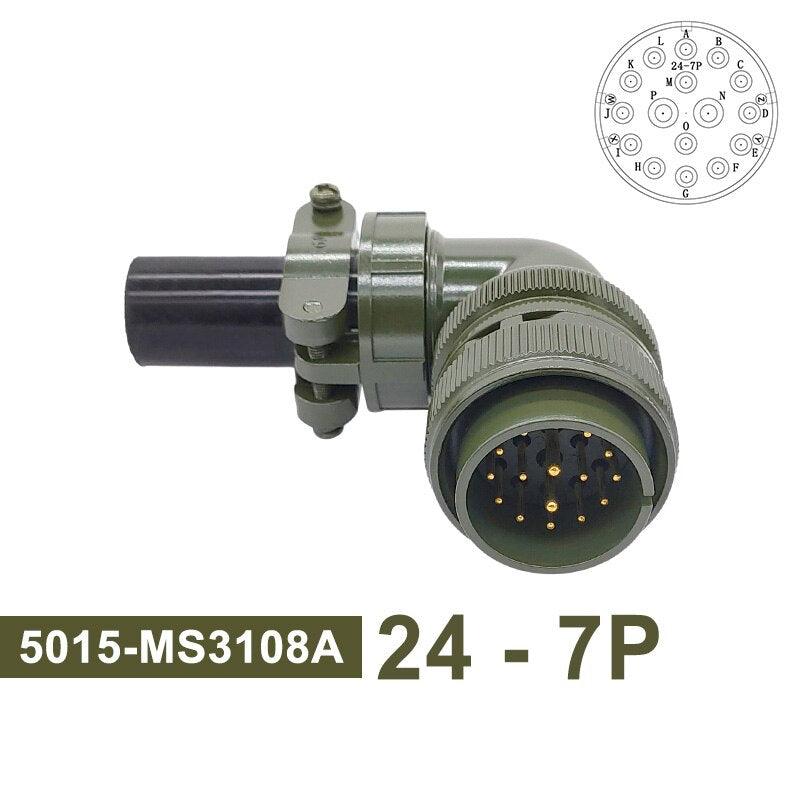

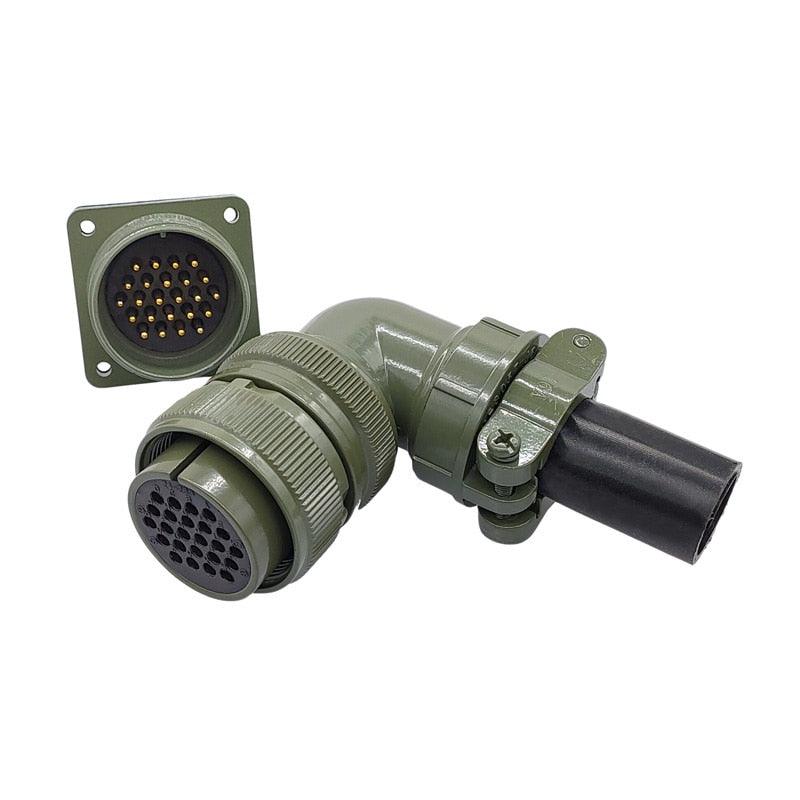

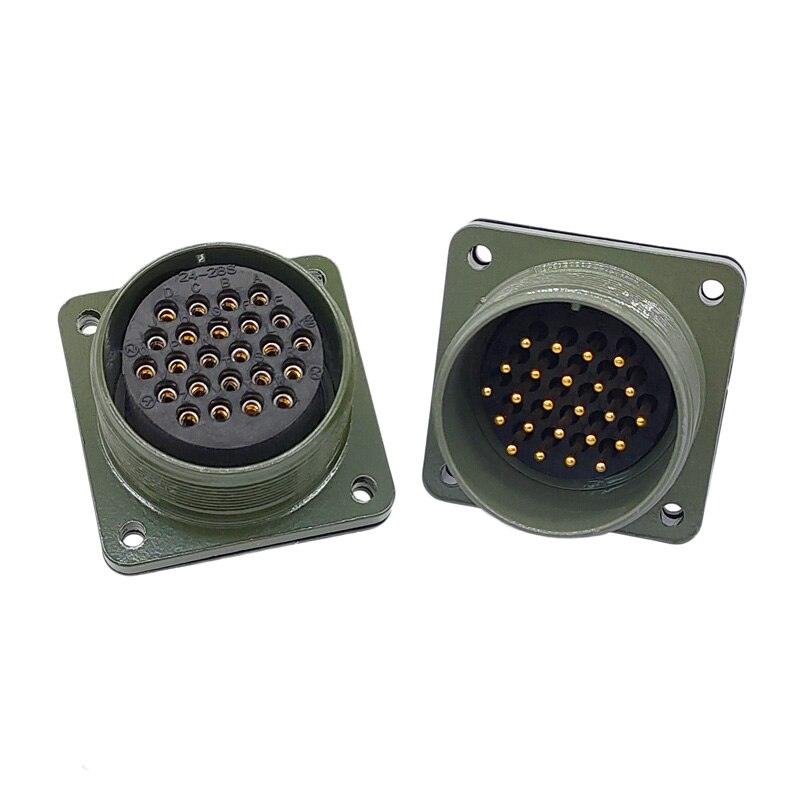

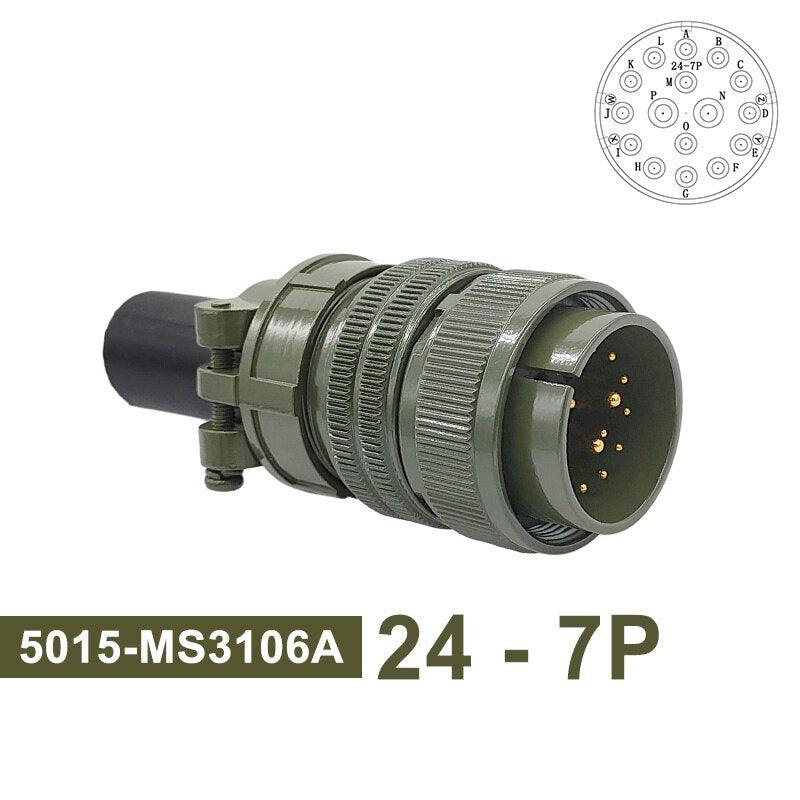

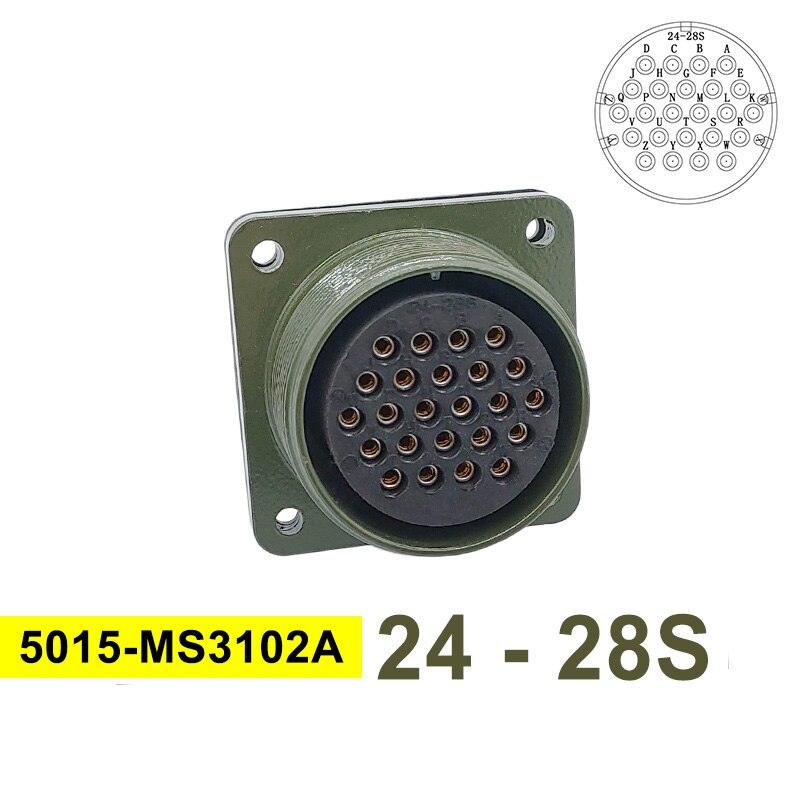

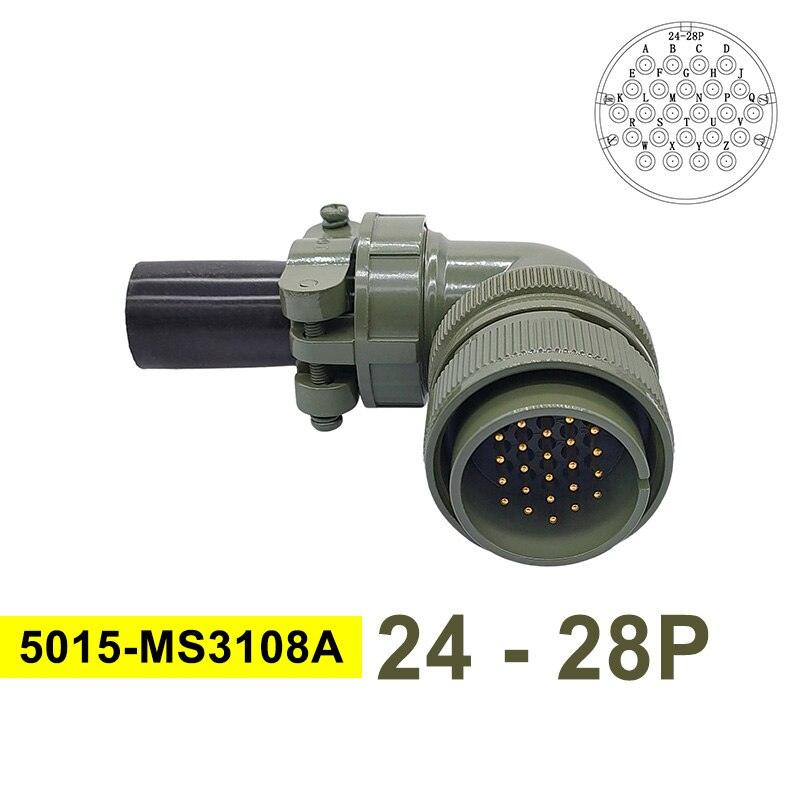

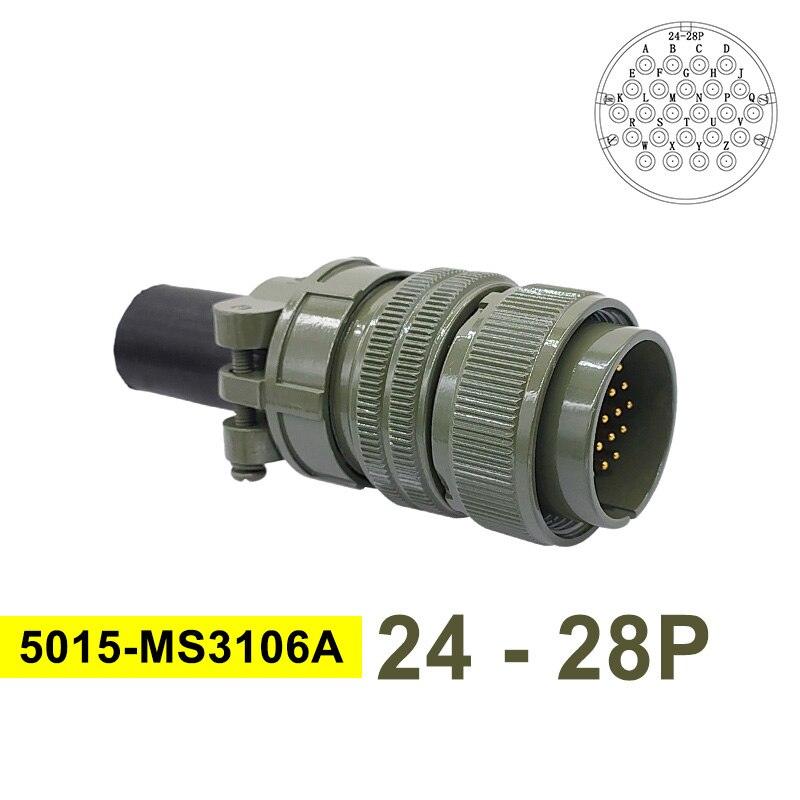

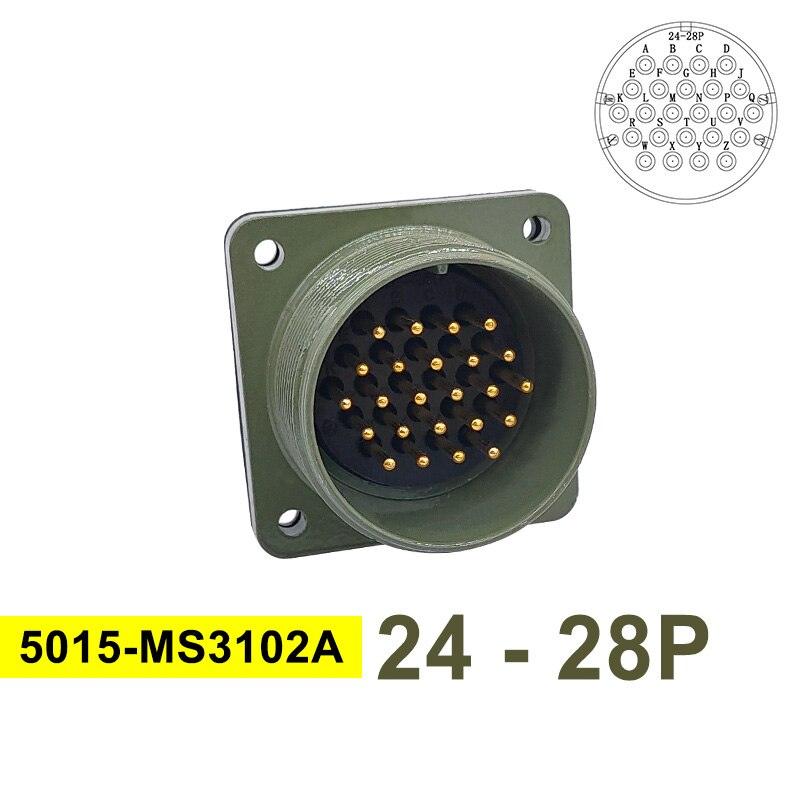

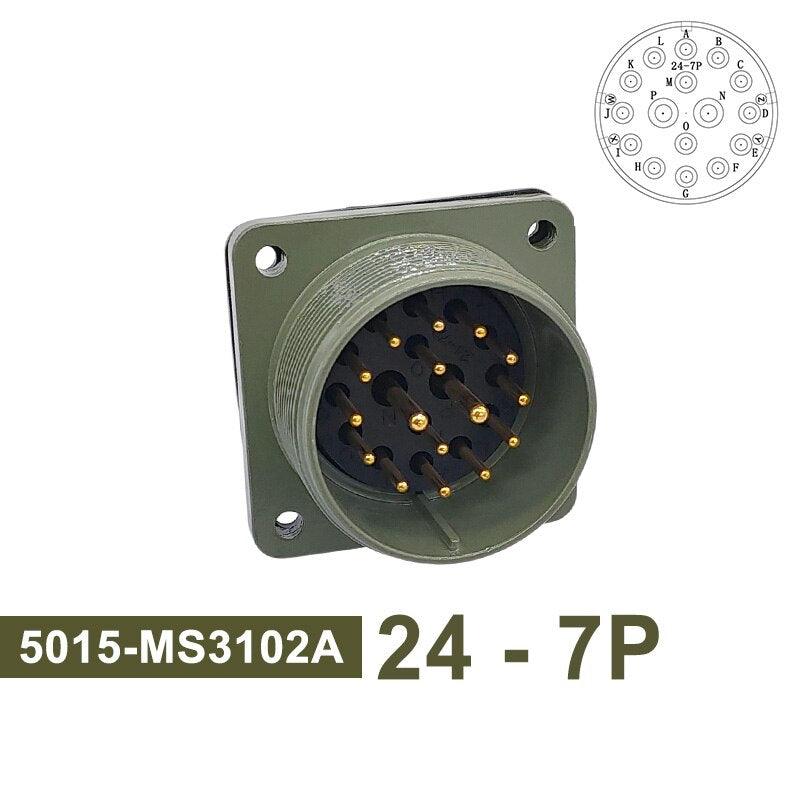

  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • MIL-C-5015 24S Connector, MIL-SPEC 5015 Plug, 7/9/16/24 Pin Aviation Connector, IP67 Waterproof Connector, Gold-Plated Contacts, Military Standard Circular Connector, Industrial Multi-Core Plug, 380V Power Connector, Aerospace Connector, Corrosion Resistant Connector
  • MIL-C-5015 24S Connector, MIL-SPEC 5015 Plug, 7/9/16/24 Pin Aviation Connector, IP67 Waterproof Connector, Gold-Plated Contacts, Military Standard Circular Connector, Industrial Multi-Core Plug, 380V Power Connector, Aerospace Connector, Corrosion Resistant Connector
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • 24-7 24-28 Military Specification Connector MIL STD 5015 MIL-C Circular Connectors MS3102 Socket MS3106 MS3108 Plug.
  • MIL-C-5015 28S Connector, 3-37 Pin Aviation Plug, IP67 Waterproof Connector, High Current 46A Connector, Gold-Plated Contacts, Military Standard Circular Connector, Industrial Multi-Core Plug, 380V Power Connector, Aerospace Connector, Corrosion Resistant Connector
  • MIL-C-5015 28S Connector, 3-37 Pin Aviation Plug, IP67 Waterproof Connector, High Current 46A Connector, Gold-Plated Contacts, Military Standard Circular Connector, Industrial Multi-Core Plug, 380V Power Connector, Aerospace Connector, Corrosion Resistant Connector
  • MIL-C-5015 28S Connector, 3-37 Pin Aviation Plug, IP67 Waterproof Connector, High Current 46A Connector, Gold-Plated Contacts, Military Standard Circular Connector, Industrial Multi-Core Plug, 380V Power Connector, Aerospace Connector, Corrosion Resistant Connector
  • MIL-C-5015 28S Connector, 3-37 Pin Aviation Plug, IP67 Waterproof Connector, High Current 46A Connector, Gold-Plated Contacts, Military Standard Circular Connector, Industrial Multi-Core Plug, 380V Power Connector, Aerospace Connector, Corrosion Resistant Connector
1 34

electrical center b2c

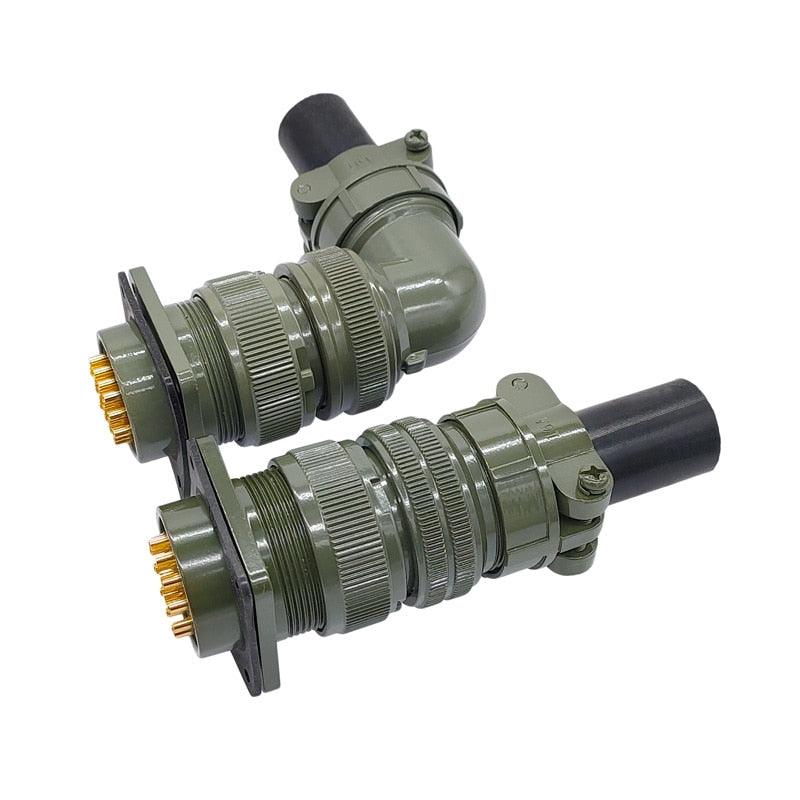

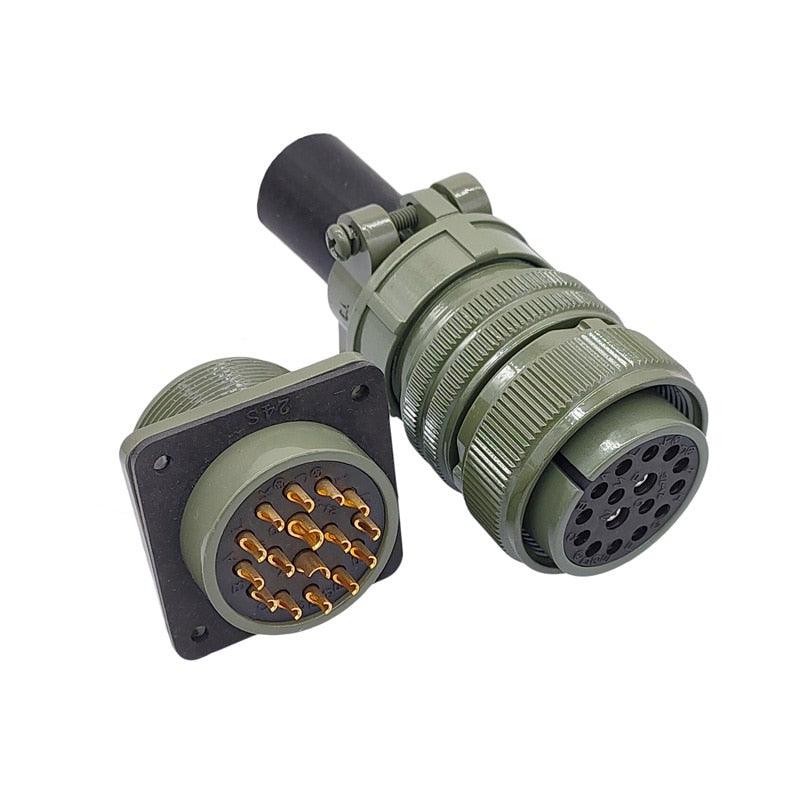

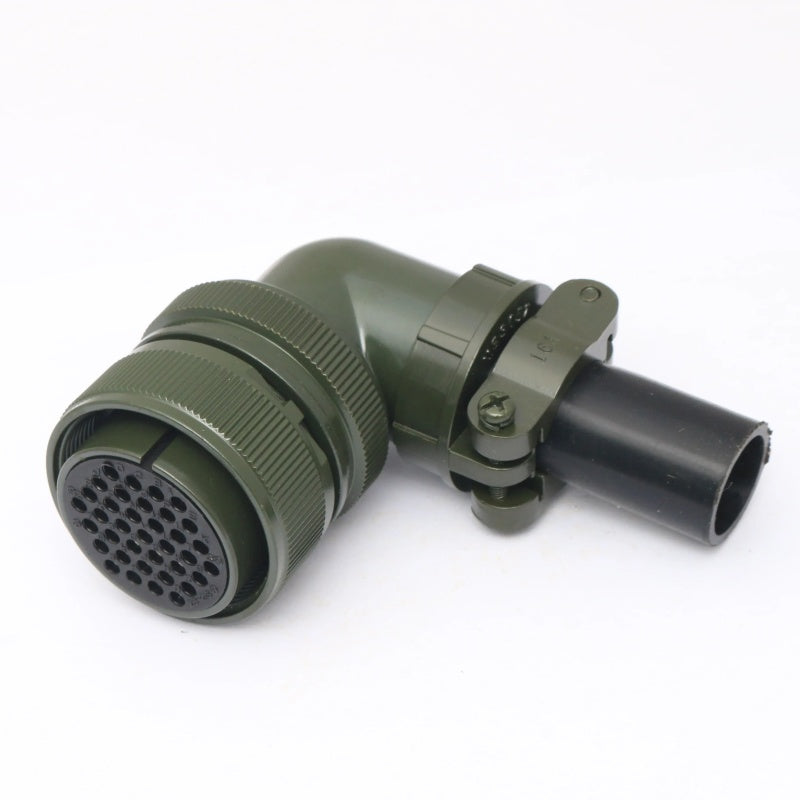

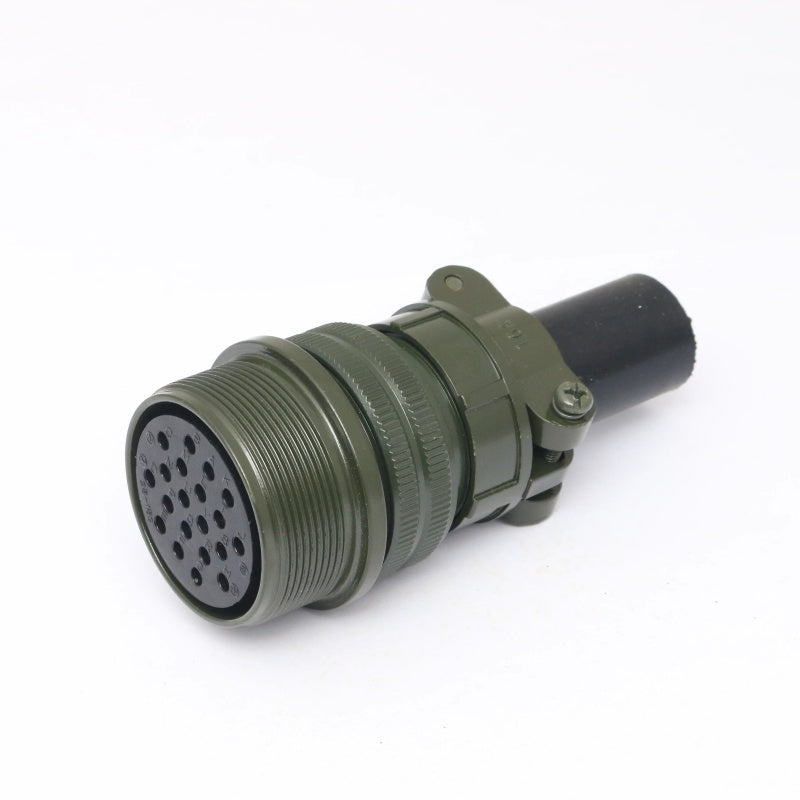

MIL-C-5015 24S Series Circular Aviation Connector

$22.80 USD
$7.56 USD $22.80 USD
Sale Sold out
Shipping calculated at checkout.
Number of Contacts
Contact Type
Shell Type

MIL-C-5015 24S Series Circular Aviation Connector, 7/9/16/24 Pin, IP67 Waterproof

Product Overview


The MIL-C-5015 (MIL-SPEC 5015) 24S series circular aviation connector is a high-reliability industrial electrical connection solution, fully compliant with strict US Military Standard specifications. Manufactured by Yongfeng (Feida Yongfeng), this connector is available in 7, 9, 16, and 24 pin configurations, designed for both signal and power transmission in harsh environments. Featuring IP67 dustproof and waterproof protection, gold/silver-plated copper contacts, and a secure threaded locking mechanism, it delivers stable, long-lasting performance for industrial automation, aerospace, marine, and automotive applications.

DATA SHEET

中文属性 英文属性（工业标准） PARAMETER
产品名称 Product Name MIL-C-5015 24S Series Waterproof Circular Industrial Aviation Connector
品牌 Brand Yongfeng (Feida Yongfeng)
产品型号 Model Number 24S Series (7Pin, 9Pin, 16Pin, 24Pin), MIL-C-5015 Standard
系列标准 Standard Series MIL-C-5015 (US Military Standard / MIL-SPEC 5015)
芯数 Pin Configuration 7 Pin, 9 Pin, 16 Pin, 24 Pin
额定电流 / 电压 Rated Current/Voltage 15A / 380V AC (Standard), 23A/380V (High-Current Variant)
防护等级 Protection Rating IP67 (Dustproof, Waterproof, Corrosion Resistant)
接插方式 Mating Type Threaded Locking (Circular Thread Interface)
接线方式 Termination Solder
插拔寿命 Mating Cycle 500 Times
工作温度 Operating Temperature -40°C ~ +70°C
外壳材质 Housing Material Aluminum Alloy (Lightweight, High Strength)
绝缘材质 Insulator Material TPU/Rubber (High Temperature Resistant, Flame Retardant)
触点材质 Contact Material Gold/Silver-Plated Copper (High Conductivity, Anti-Oxidation)
认证标准 Certification CE
应用场景 Application Industrial Automation, Aerospace, Marine, Automotive, Sensor Signal/Power Transmission
