22mm LED Push Button Switch/ LA38-11DN/ZS

Name: 22mm LED Push Button Switch/ LA38-11DN/ZS
Brand: electrical center b2c
SKU: LA38-11DN/ DC24V RED / Momentary Self-Reset type / 1NO + 1NC
Price: 13.5 USD
Availability: InStock

$13.50 USD

Sale Sold out

Shipping calculated at checkout.

Operation Type Momentary Self-Reset type Latching Self-Locking type

Contact Config. 1NO + 1NC 2NO

Product variants

Quantity

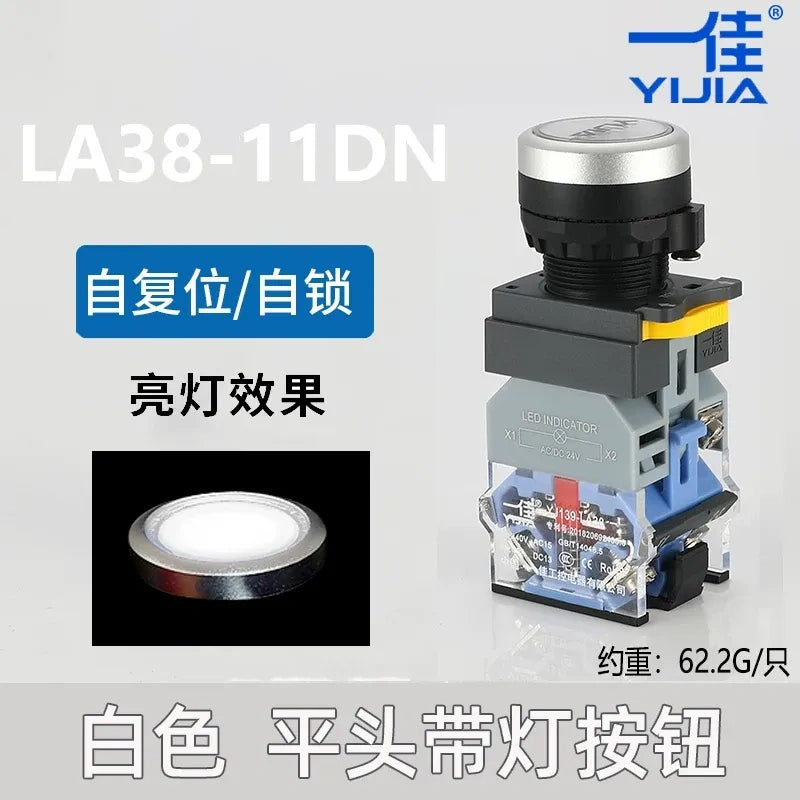

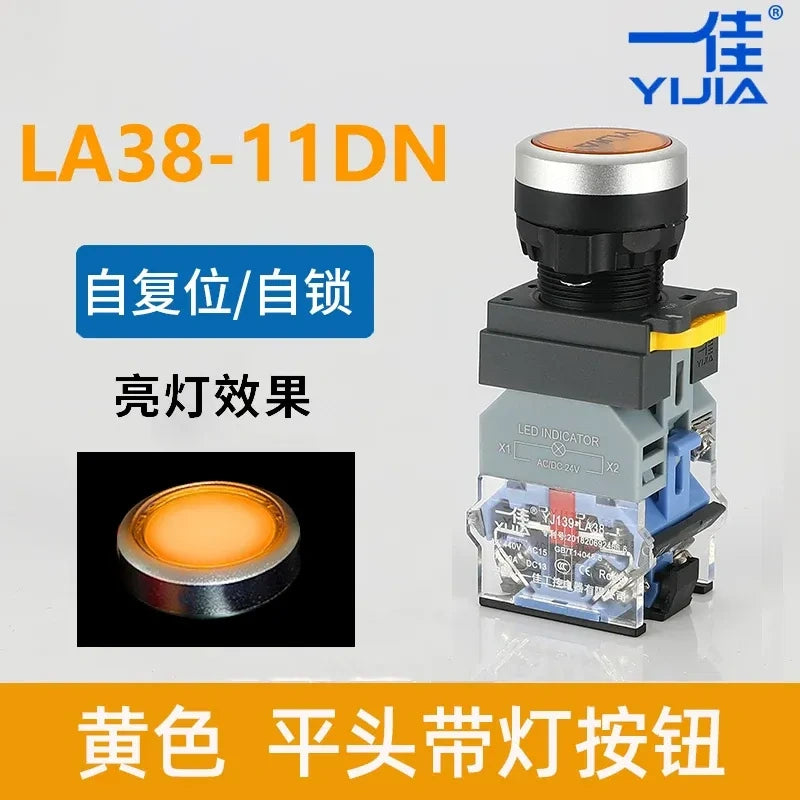

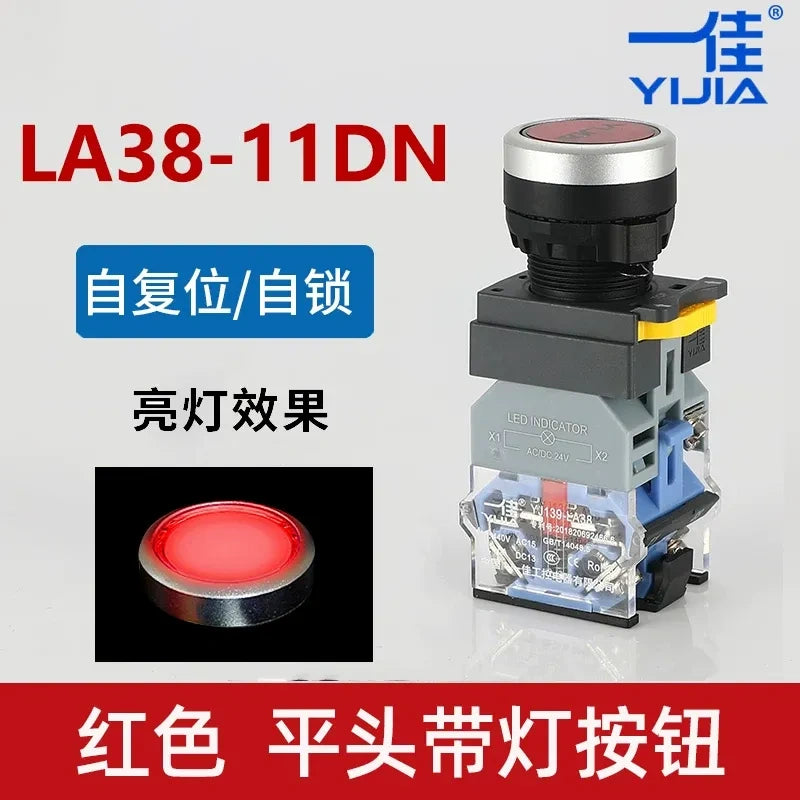

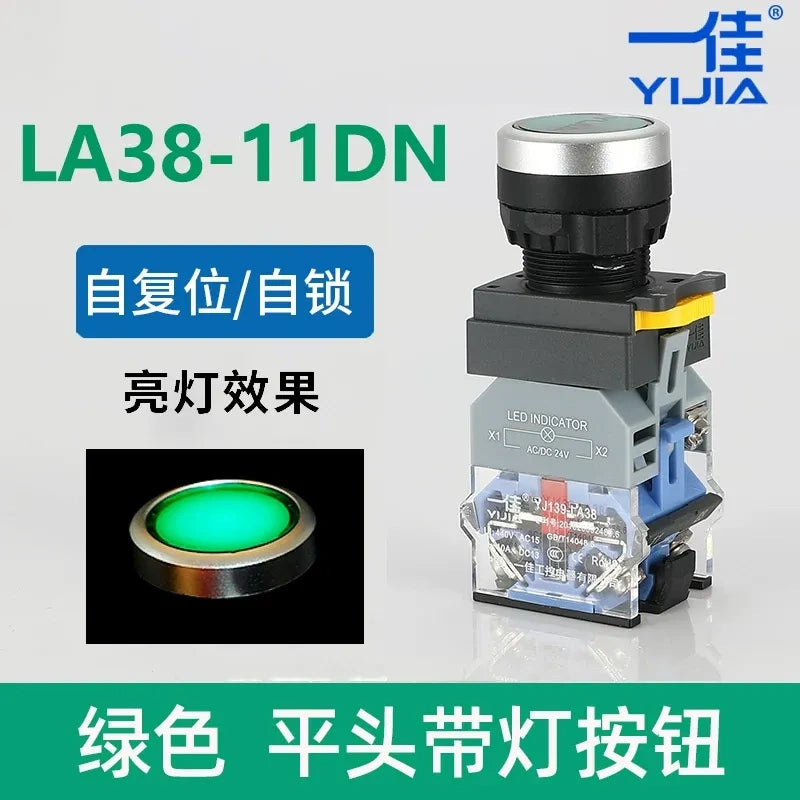

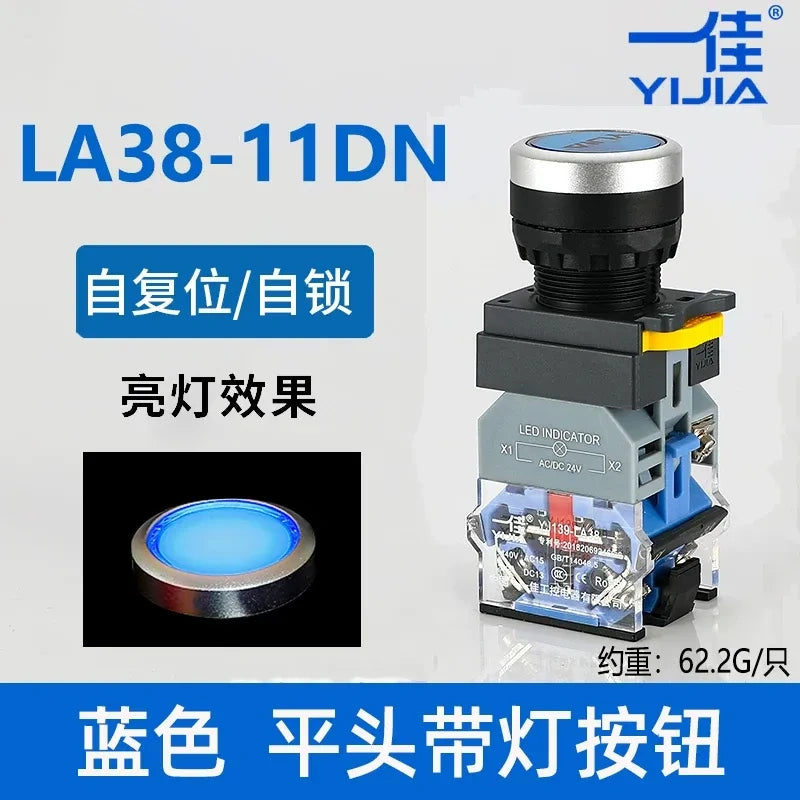

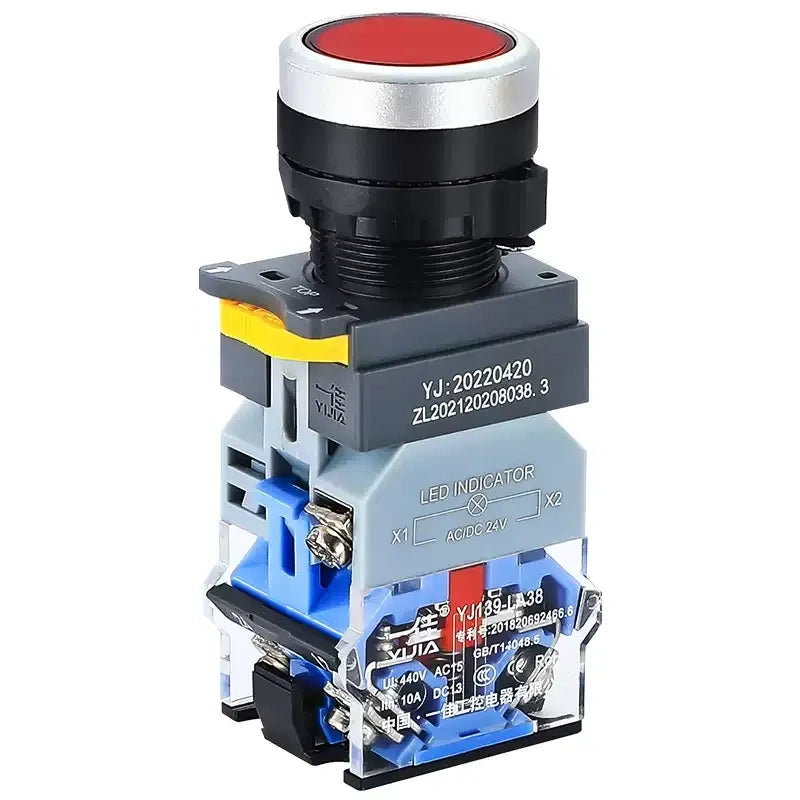

22mm LED Push Button Switch, LA38-11DN/ZS, 1NO 1NC, Momentary / Latching, 24V / 220V, 10A, Red/Green/Yellow/Blue/White

1. Overview

This 22mm LED illuminated push button switch (model LA38-11DN/ZS) is a reliable control component for industrial and DIY projects. It features a flat head design, silver alloy contacts, and a durable construction suitable for long-term use.

2. Key Specifications

Mounting Hole Size: 22mm
Contact Configuration: 1NO + 1NC or 2NO
Contact Material: Silver Alloy
Rated Current: ≤10A
Voltage Options: DC 24V / AC 220V
Operation Type: Momentary (spring return) / Latching (lock-in)

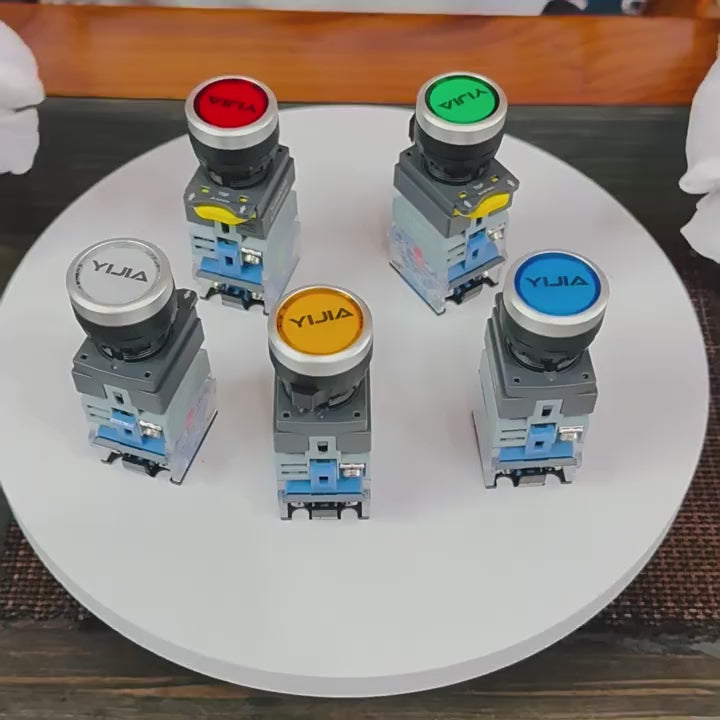

LED Colors: Red / Green / Yellow / Blue / White
Mechanical Life: 1,000,000 cycles (NO), 2,000,000 cycles (NC)

3. Features

Illuminated LED Indicator: Clearly shows power or status, available in 5 colors for different applications.
Two Operation Modes: Choose between momentary (resets when released) or latching (stays locked) for flexible control.
Durable Silver Contacts: Ensure low resistance and long service life, ideal for repeated use.
Universal Compatibility: Works with both 24V DC and 220V AC systems, suitable for control panels, machinery, and DIY projects.

4. Applications

Industrial control panels, machine tools, automation equipment, DIY electronics, and any circuit requiring manual control with status indication.

DATA SHEET

Attribute	English
Product Type	Illuminated Push Button Switch
Model	LA38-11DN/ZS
Mounting Size	22mm
Contact Configuration	1NO + 1NC / 2NO
Contact Material	Silver Alloy
Rated Current	≤10A
Voltage	DC 24V / AC 220V
Operation Type	Momentary / Latching
LED Colors	Red / Green / Yellow / Blue / White
Mechanical Life	1,000,000 / 2,000,000 cycles
Application	Industrial Control, DIY Electronics, Automation
