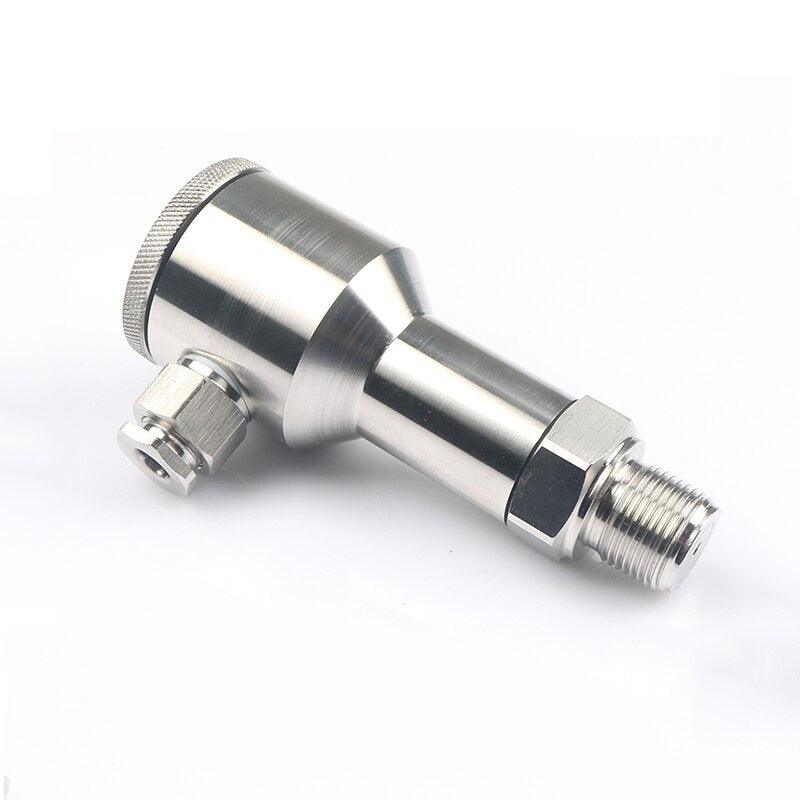

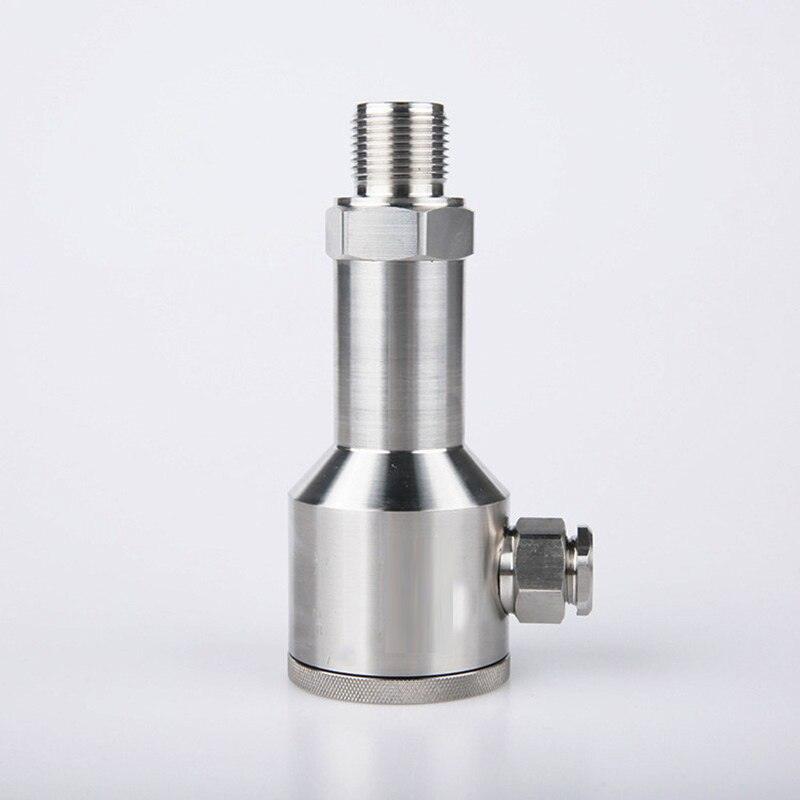

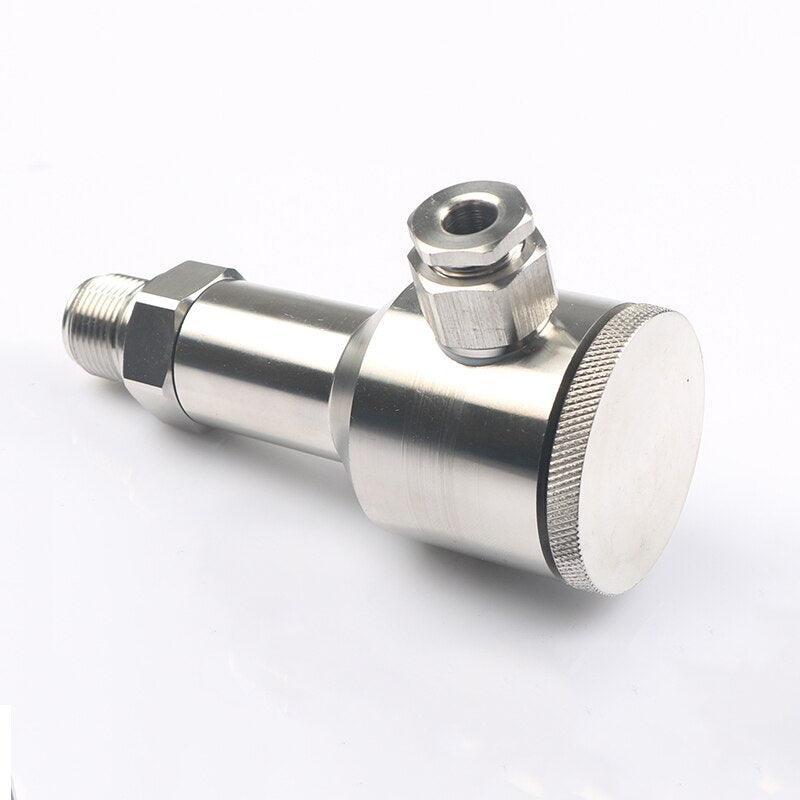

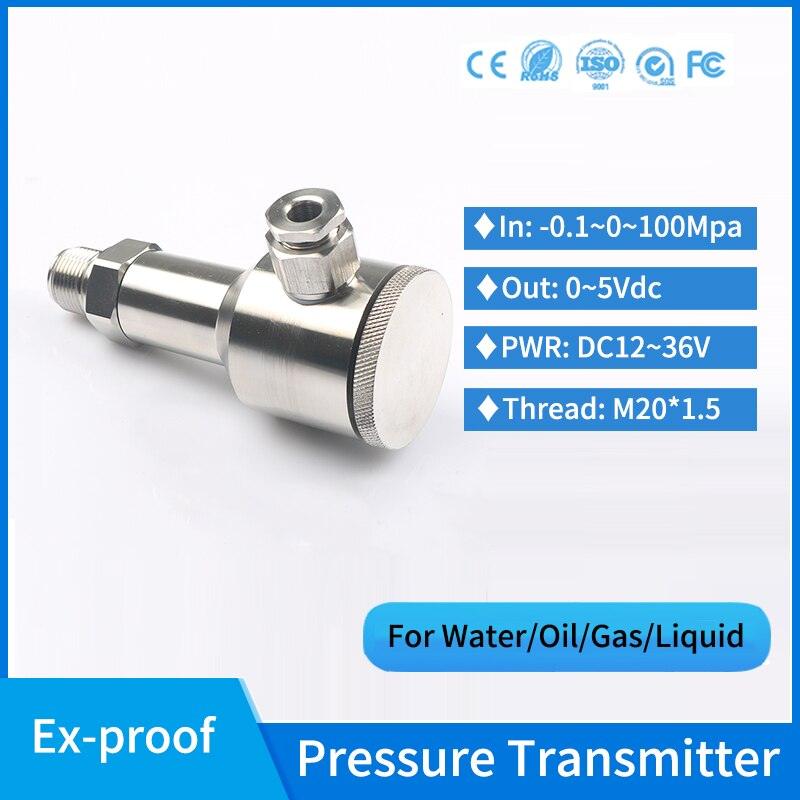

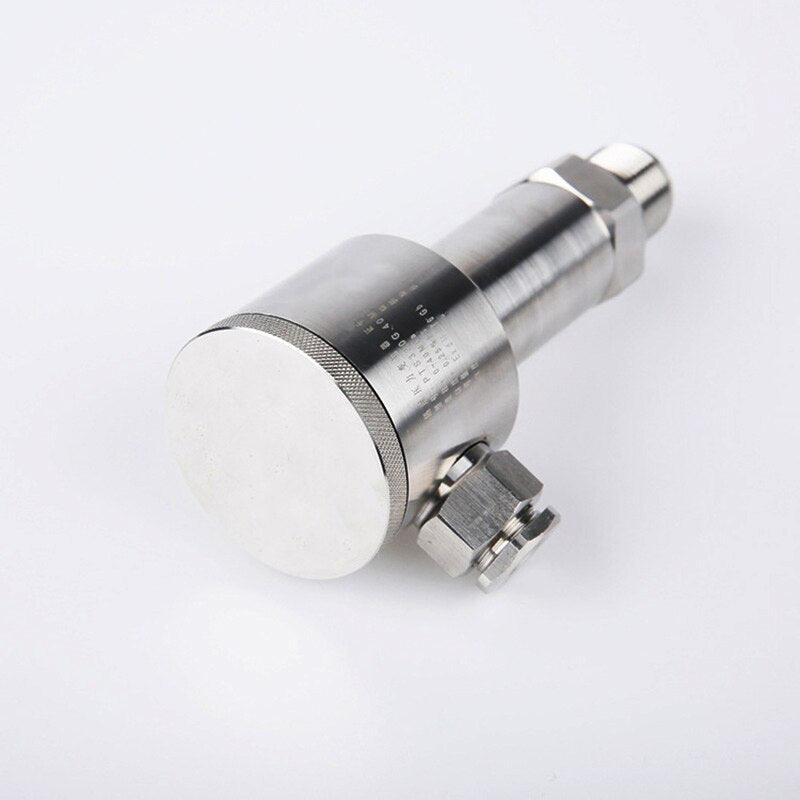

200bar Explosion-proof Crude Oil Pressure Transmitter 300bar Hydraulic Fuel Tank 0-5V Absolute Pressure Sensor for lpg
SPECIFICATIONS
200bar Explosion-proof Crude Oil Pressure Transmitter 300bar Hydraulic Fuel Tank 0-5V Absolute Pressure Sensor for lpg
Sensor: Diffusion silicon chip
Product name: Pressure transmitter
Power supply: DC24V
Output signal: 0-5V dc
Origin: Mainland China
Model Number: ELPT300
Measure range: -0.1~0~100MPa
Max Measuring Range: 400 Bar & Above
Material: Stainless Steel
Certification: CE,FCC
Brand Name: KEJUN
Accuracy: 0.2%FS
200bar Explosion-proof Crude Oil Pressure Transmitter 300bar Hydraulic Fuel Tank 0-5V Absolute Pressure Sensor for lpg
1>>. Explosion-proof pressure transmitter used sensitive & high performance diffusion silicon piezoresistive chip.

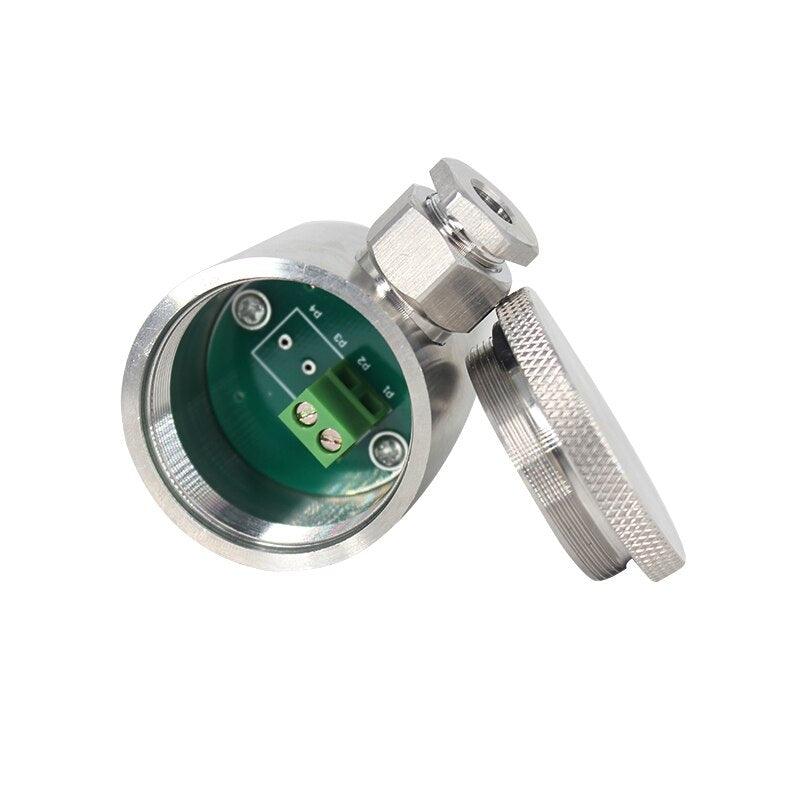

2>>. The internal circuit board converts the pressure signal into standard analog signal,users can directly connect the transmitter with computer interface card,control instrument,intelligent instrument or PLC.
3>>. This pressure transmitter has many good features,small volume,light weight,easy to install,all stainless steel sealing structure,high anti-vibration and anti-impact performance.
4>>. This pressure transmitter is widely used in process control, aviation, aerospace, automobile, medical equipment and many other fields.
