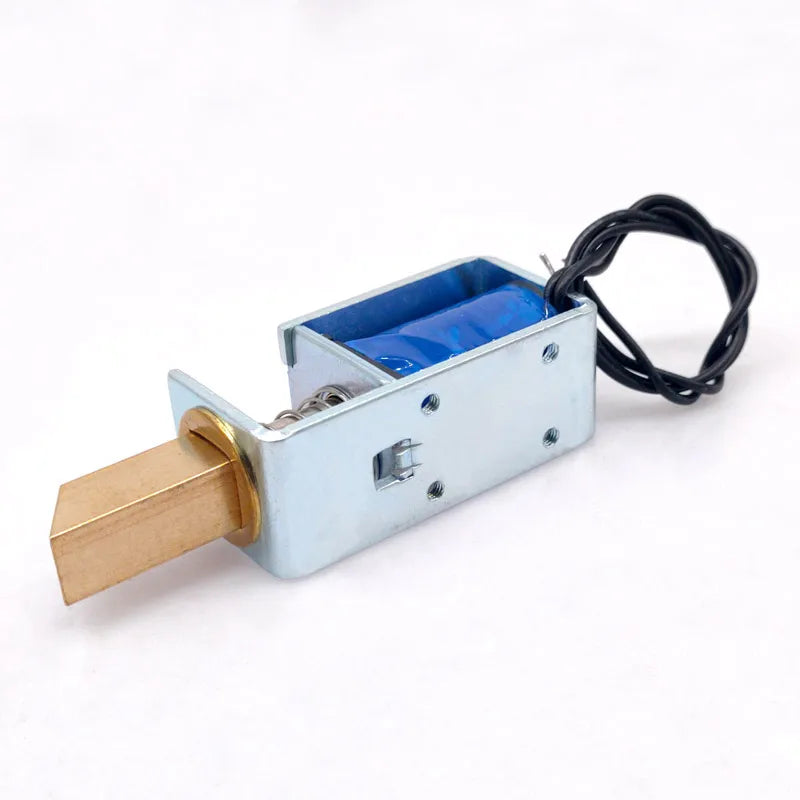

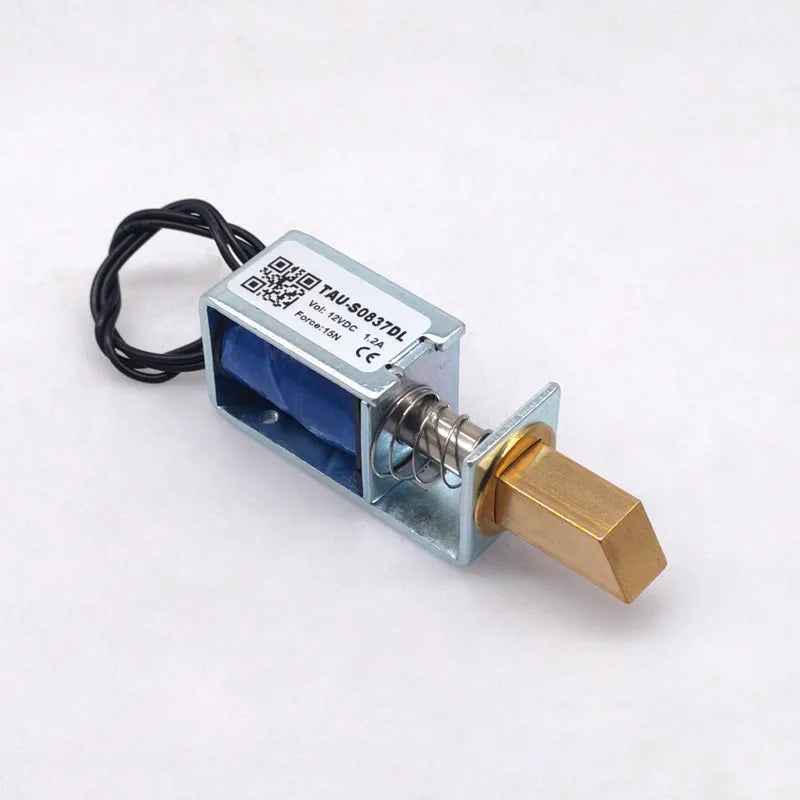

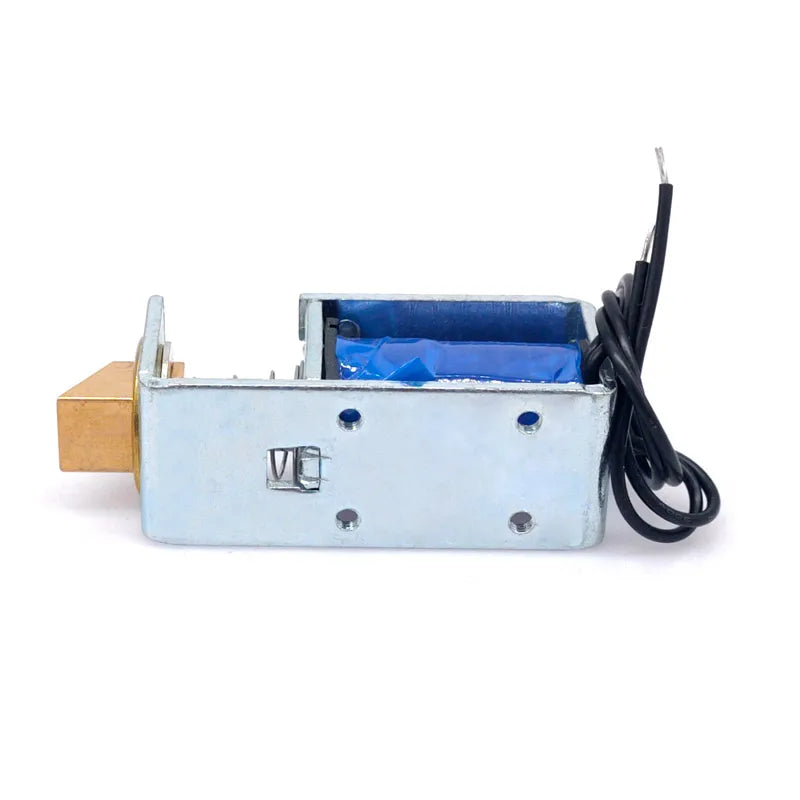

1Pc TAU-S0837DL DC 6V 12V 24V Electric Locks Electromagnet Stroke 10mm Magnetic Lock for the Cabinet Door Lock
Couldn't load pickup availability
S0837DL solenoid lock, TAU-S0837DL electric lock, 15N electromagnet lock, 10mm stroke solenoid latch, dc6v solenoid lock, dc12v cabinet electric lock, dc24v drawer electromagnetic lock,
pull type solenoid, vending machine lock, access control solenoid lock
Brand Name: CNMAWAY
Certification: CE
High-concerned chemical: none

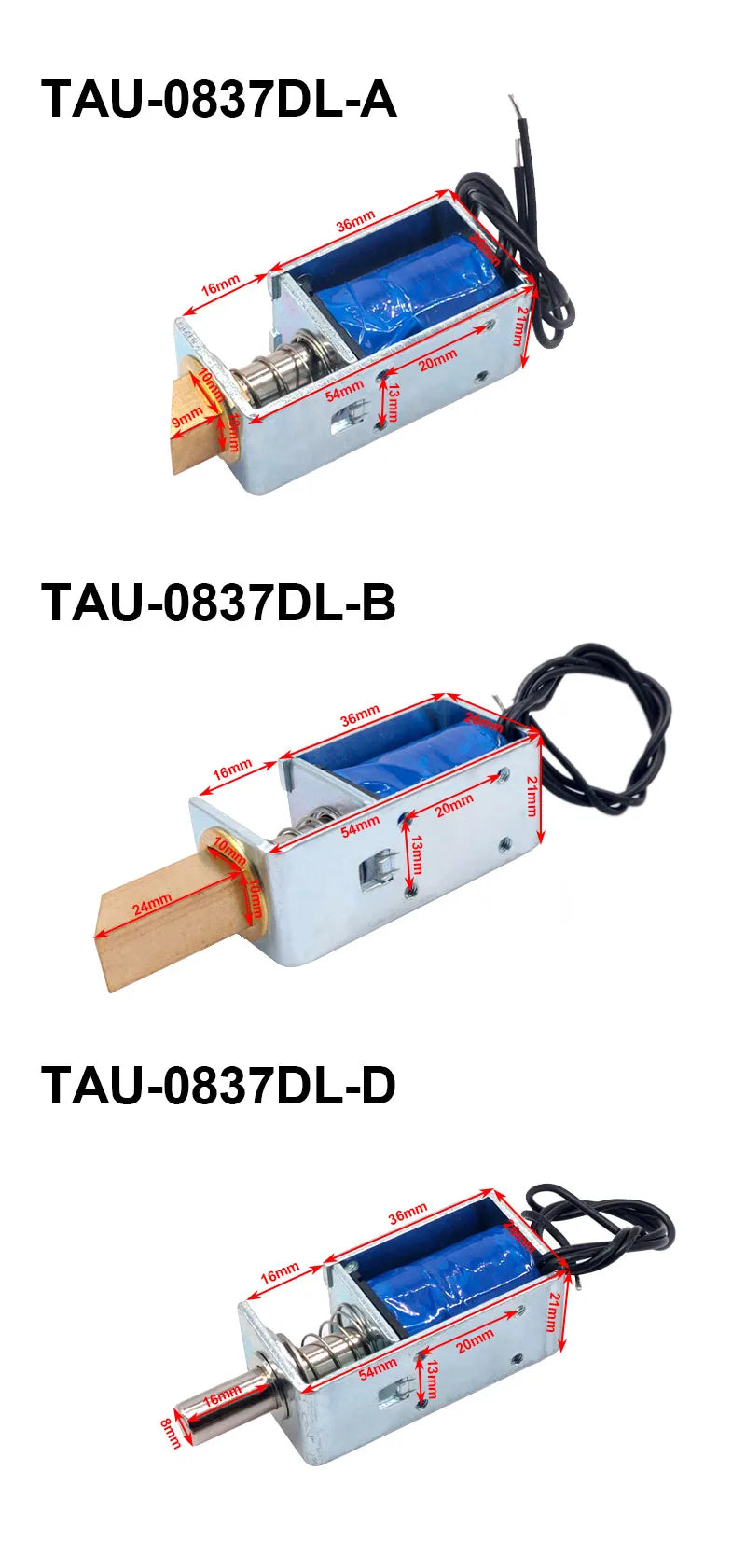

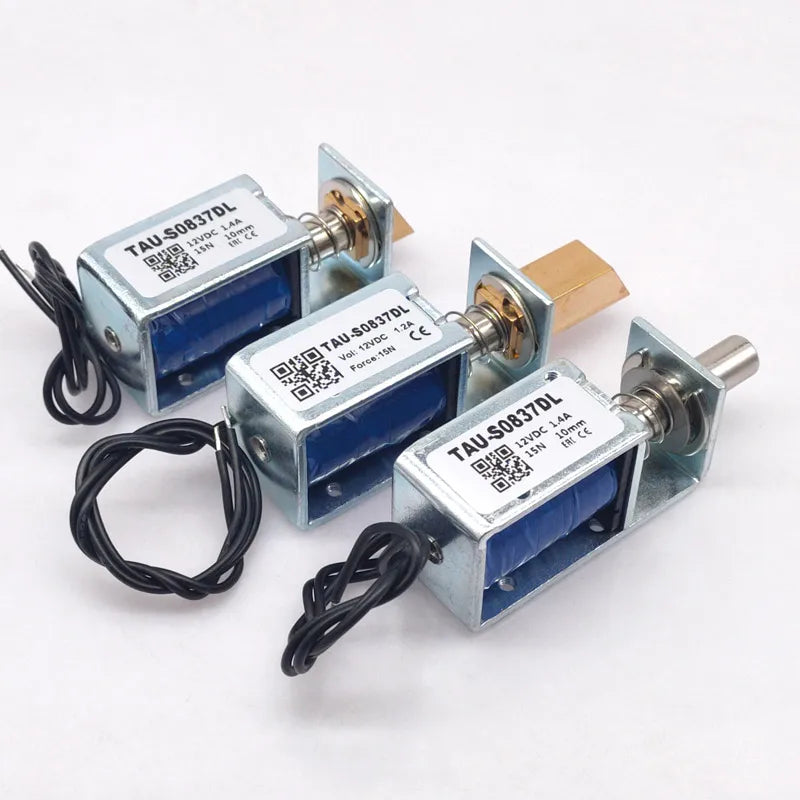

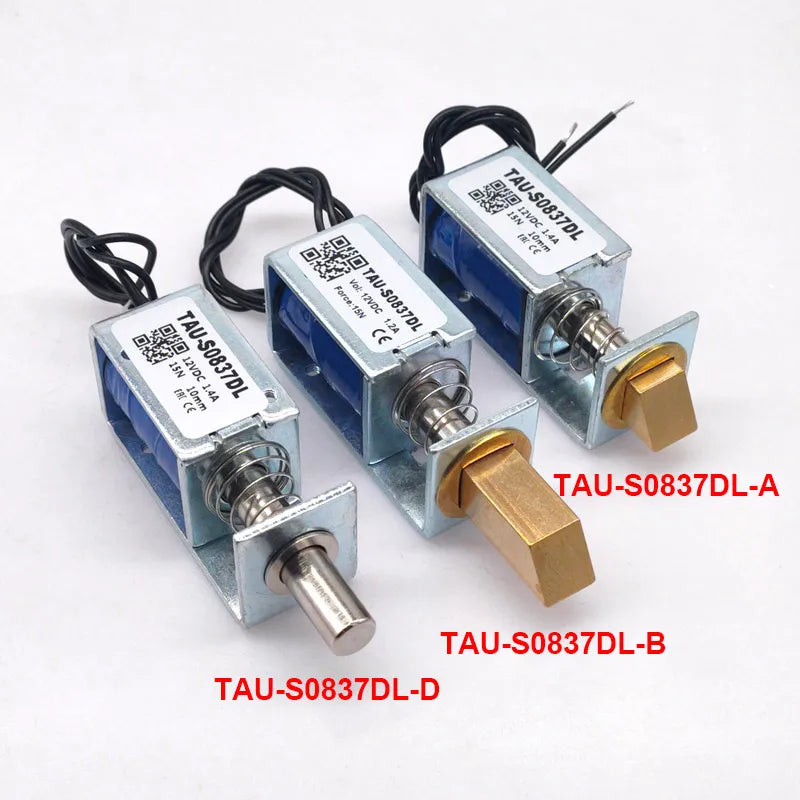

Model Number: TAU-0837DL-A/TAU-0837DL-B/TAU-0837DL-D
Origin: Mainland China
Shape: COIL

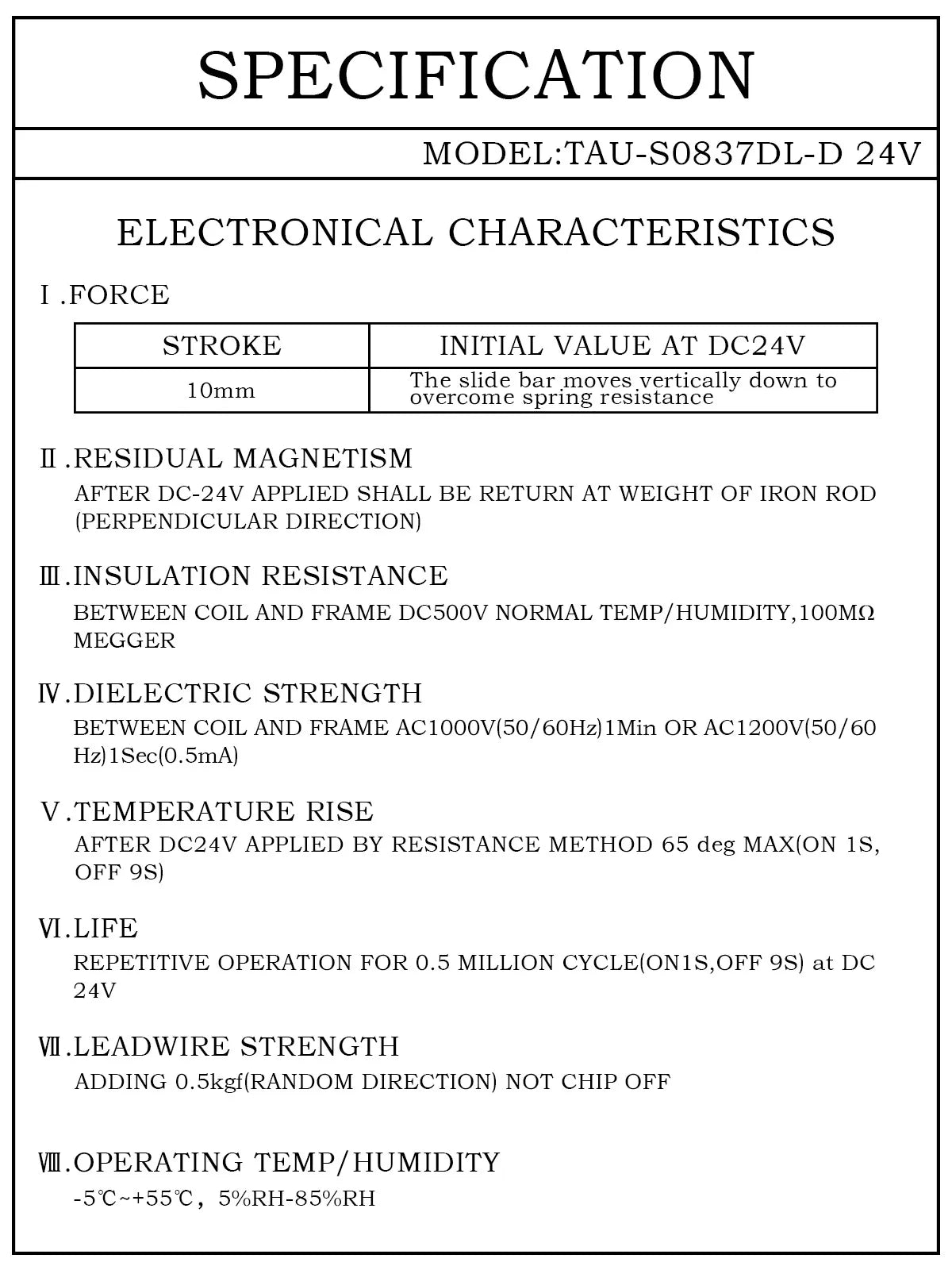

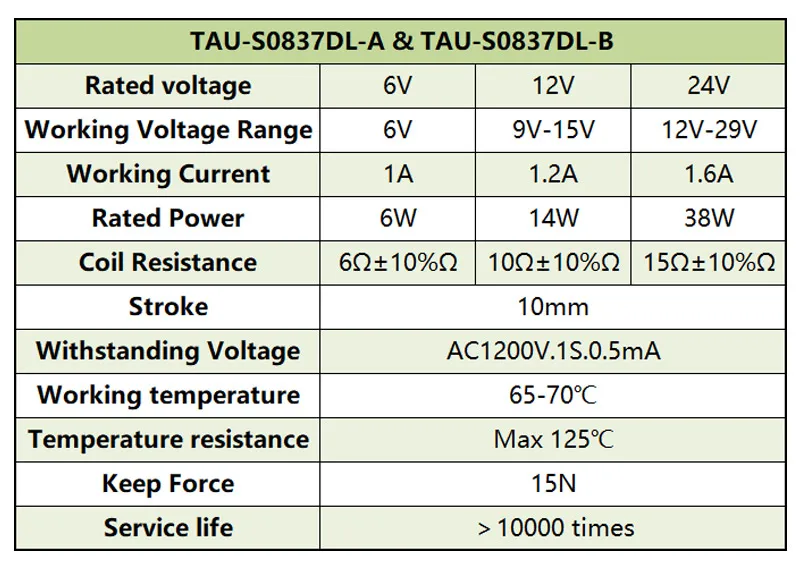

Specification
| Attribute | Value |
|---|---|
| Product Name | TAU-S0837DL Pull-Type Solenoid Electric Lock |

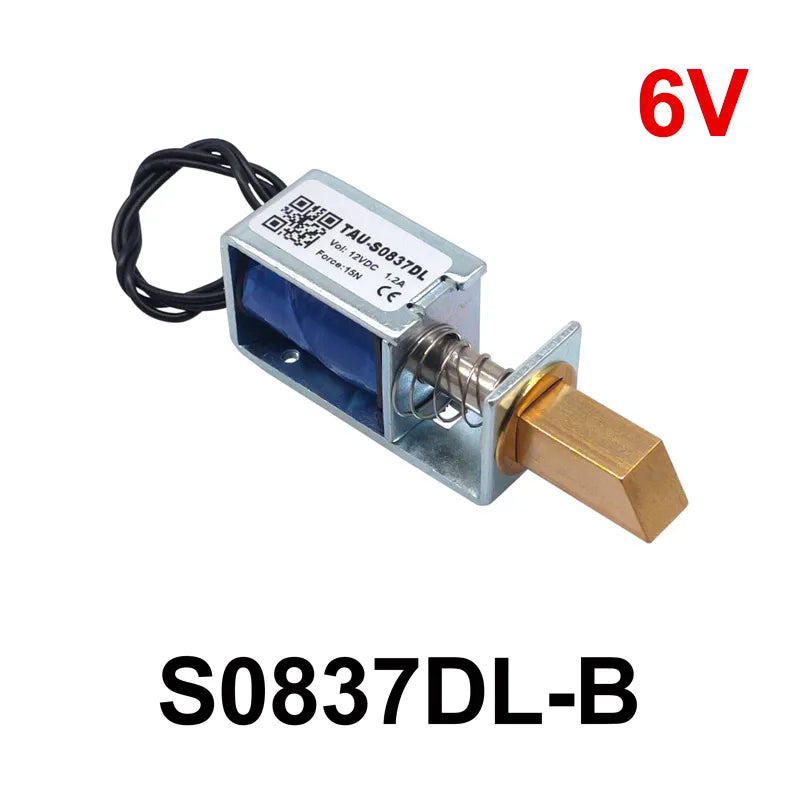

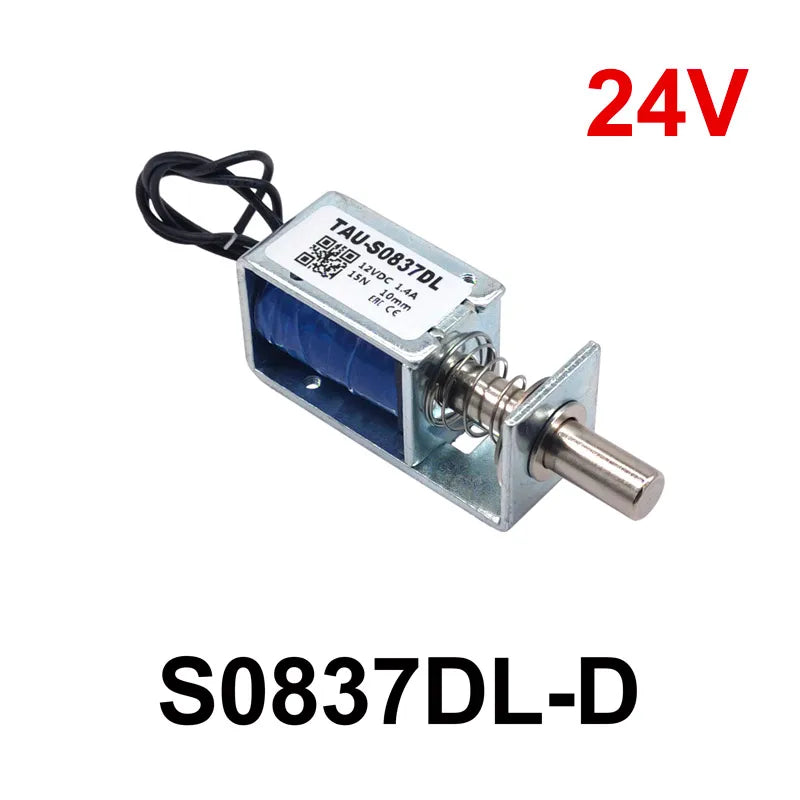

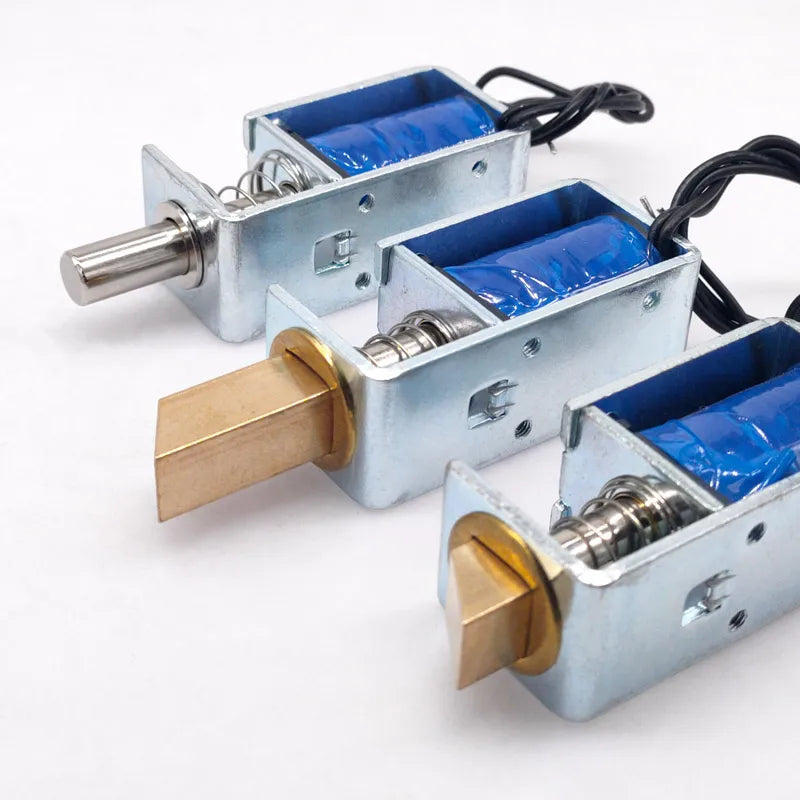

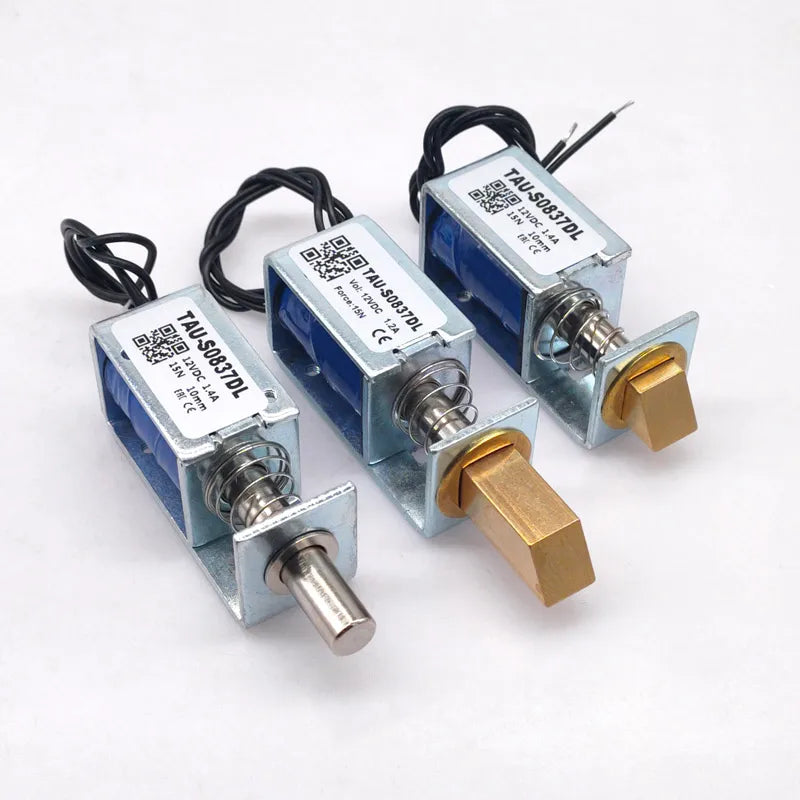

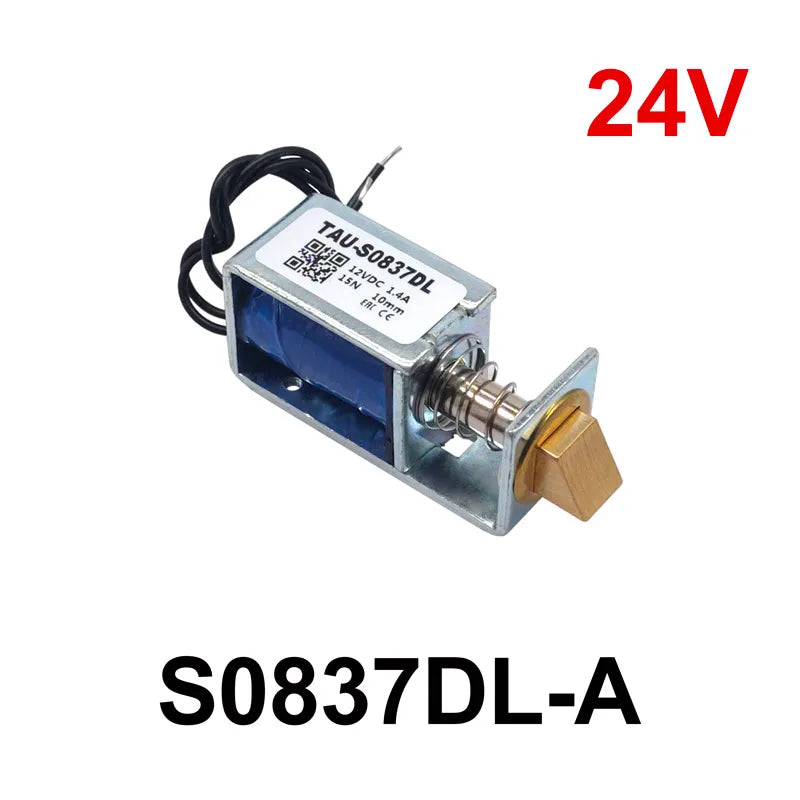

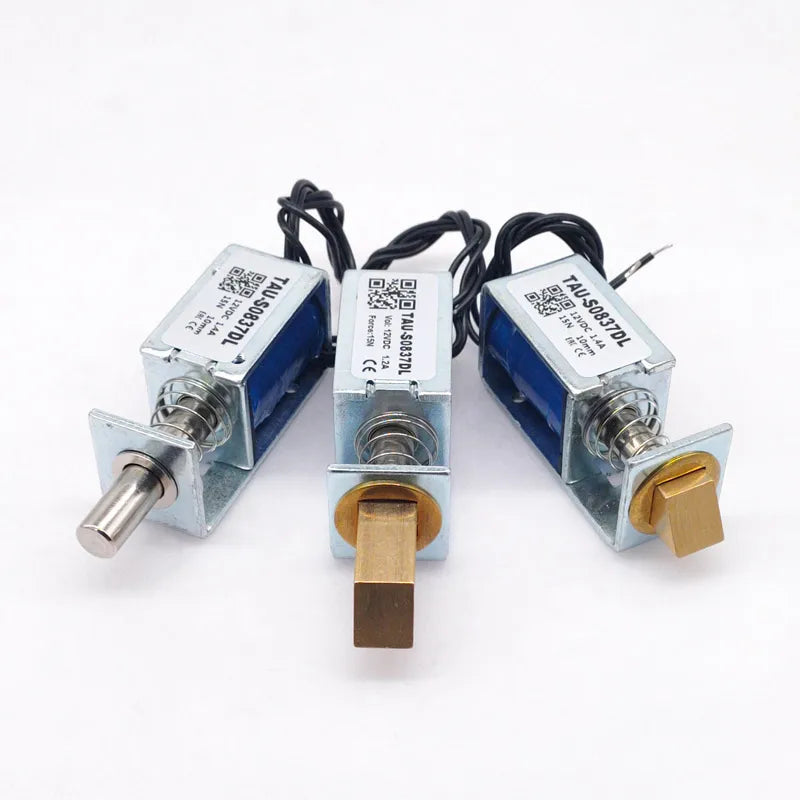

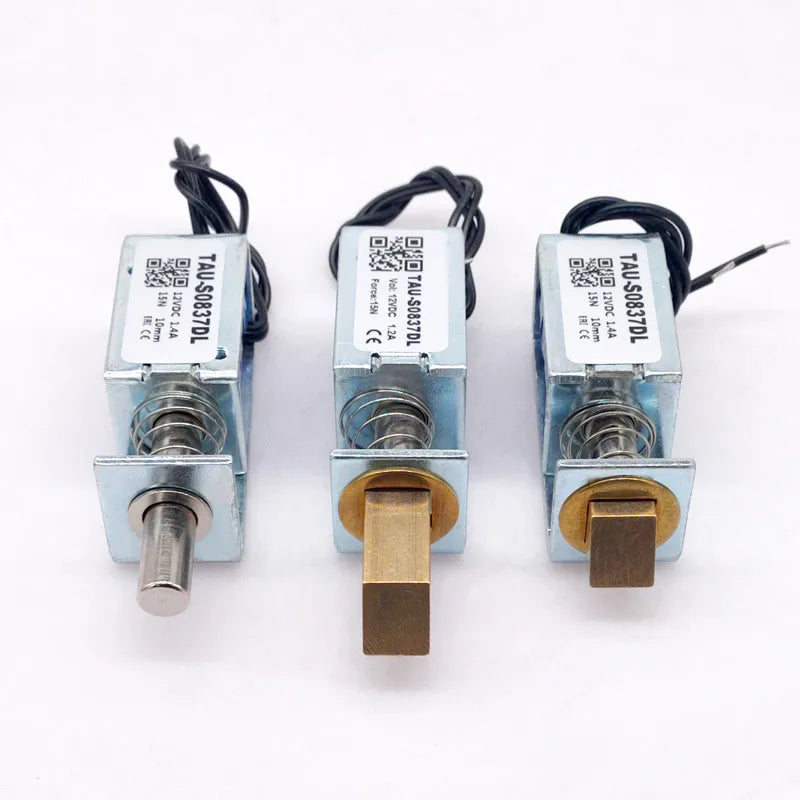

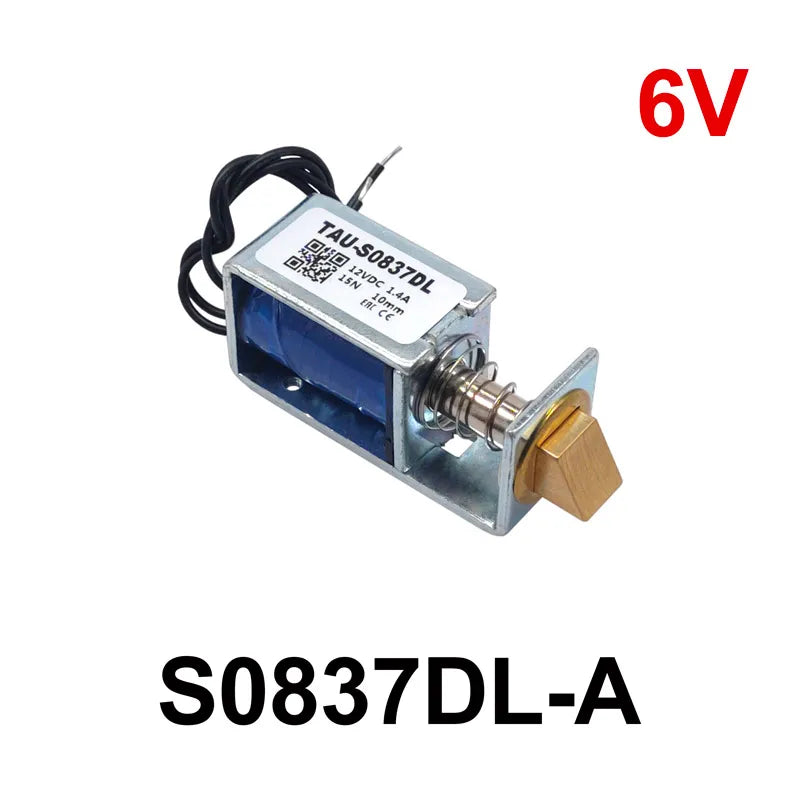

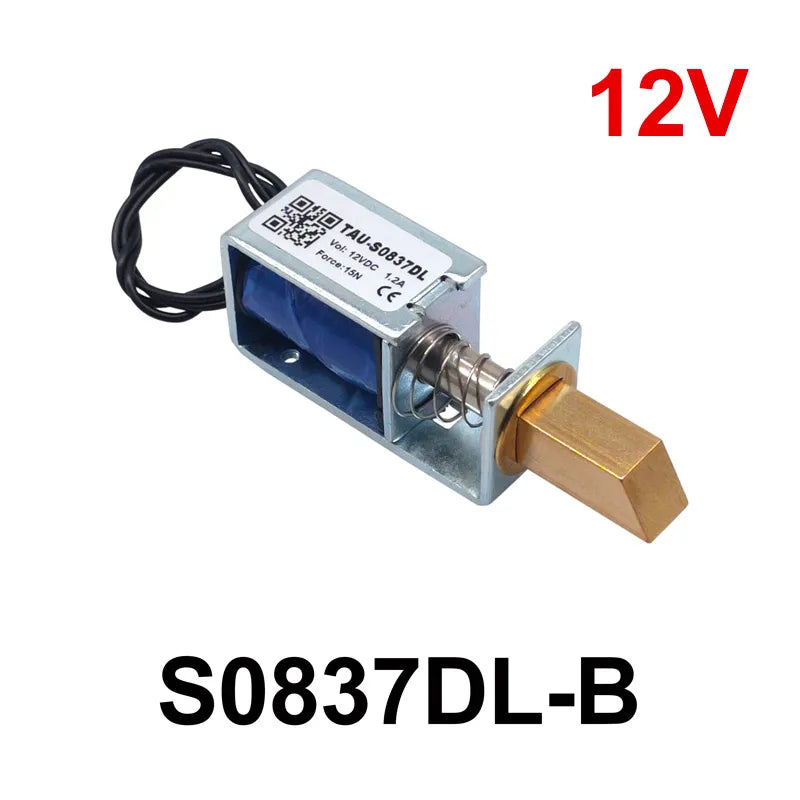

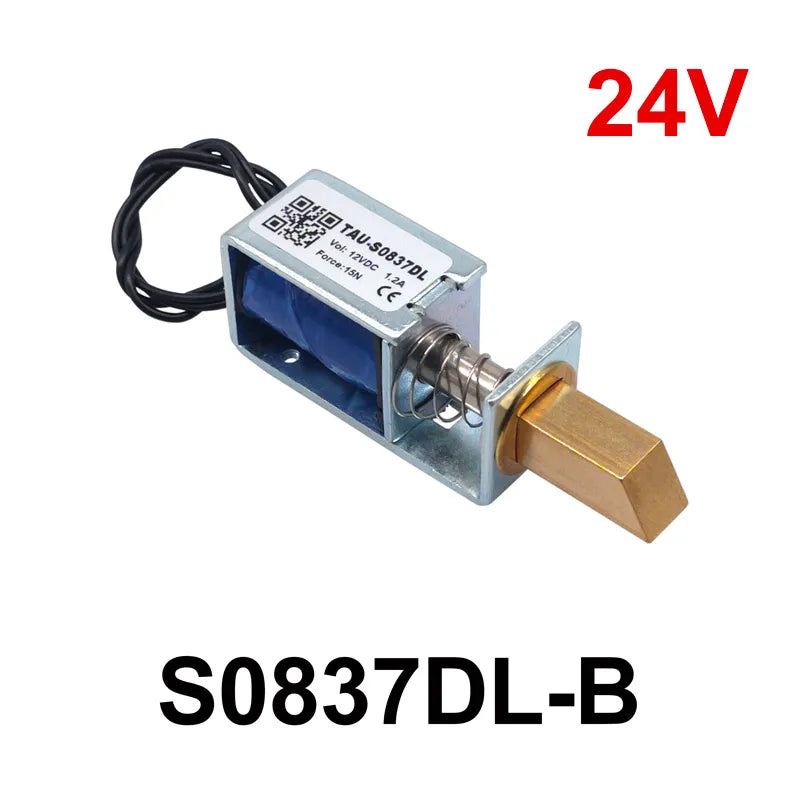

| Model | S0837DL A / B / D |
| Rated Voltage | DC 6V, DC 12V, DC 24V |
| Pull Force | 15N |
| Stroke | 10 mm |
| Working Type | Pull-type electromagnet |
| Feature | Compact body, brass bolt, continuous short-time power on, simple two-wire wiring |
| Application | Cabinet, drawer, locker, vending machine, automation equipment access lock |

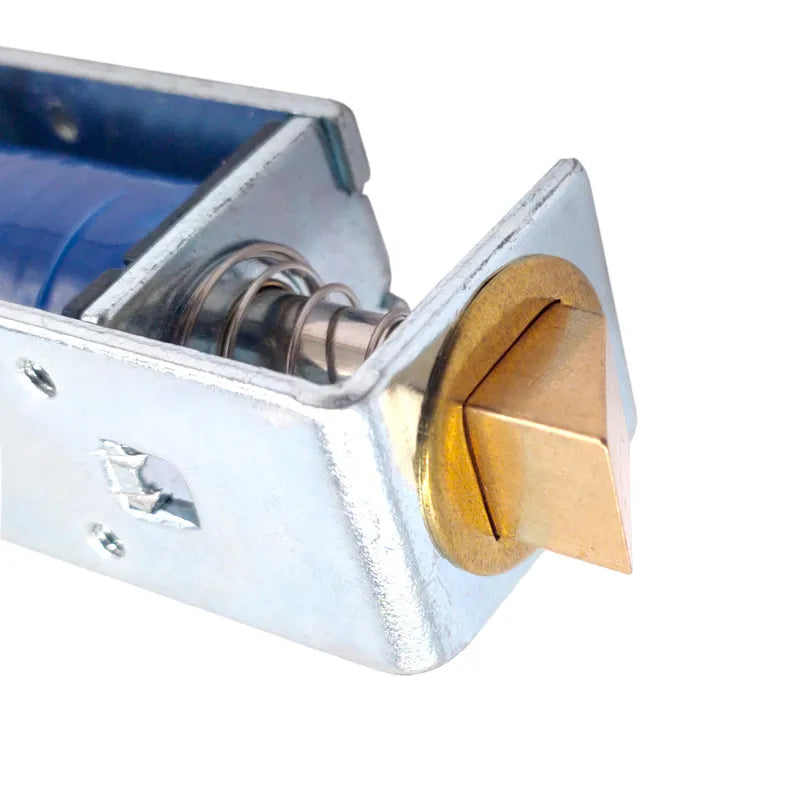

| Housing | Metal casing, copper lock tongue |
FAQ
Q1: Is this pull type or push type solenoid?
A1: It is pull-type. When powered on, the bolt retracts inward to unlock.
Q2: What is the force and stroke?
A2: Pull force 15N, bolt travel 10mm.
Q3: Can it keep energized for a long time?
A3: It is an intermittent working solenoid. Long continuous power supply will cause overheating and burnout.
Q4: What voltages are available?
A4: DC6V, DC12V and DC24V versions for selection.
Q5: Where is it commonly installed?
A5: Ideal for small cabinets, drawers, storage lockers and vending machines.
Dear friends:
The electromagnet only suitable for intermittent work, such as 1 seconds on and 1 seconds off. It's okay to work like this all day.
All of the electromagnet will raise the temperature when it's worked,don't worry, the temperature rises to a certain temperature, it will be stable.Of course,fast cooling environment is more conducive to service life.
Happy shopping!
Care Instructions
Care Instructions
Customer Reviews

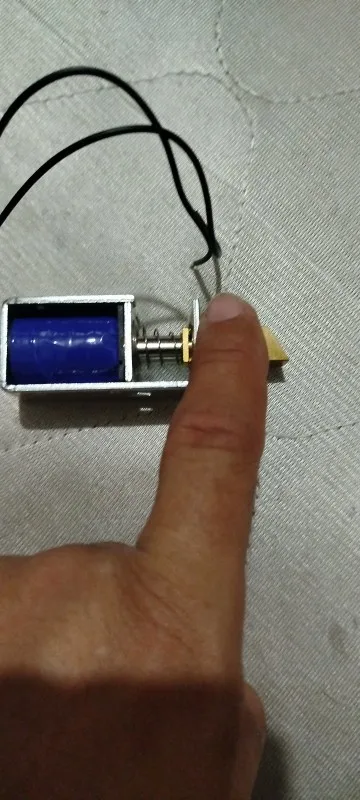

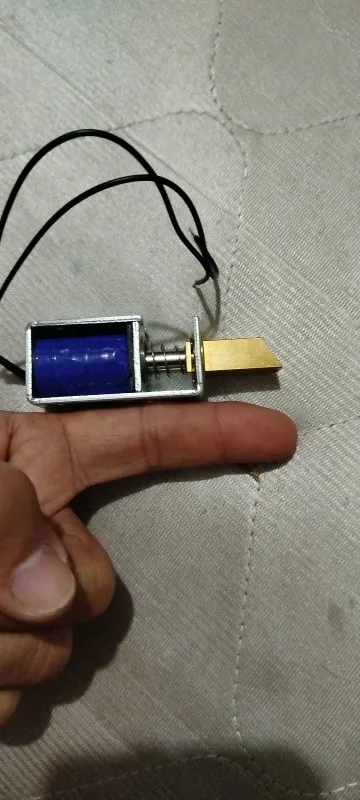

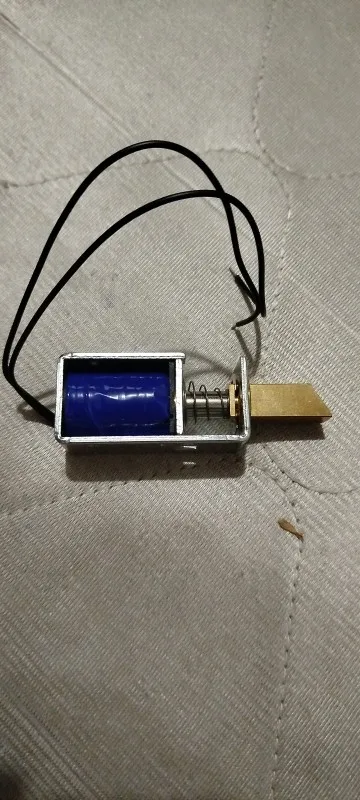

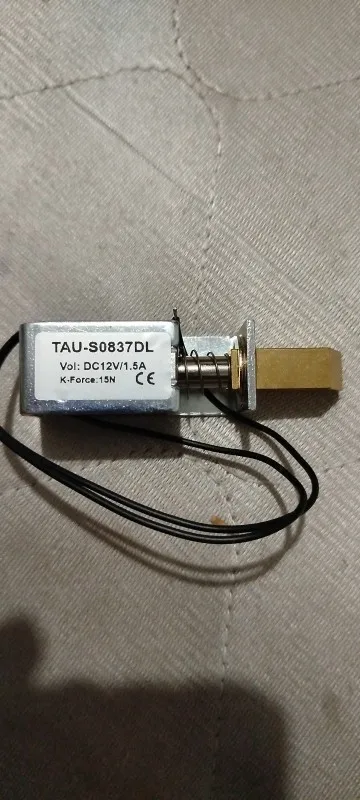

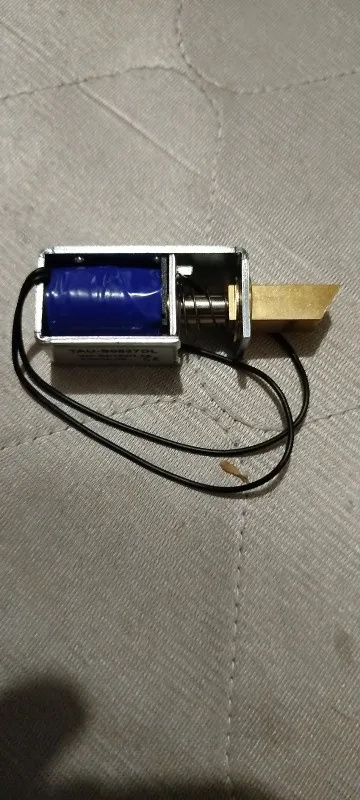

Came fast to eu, estonia. very well packed. quality as high as can be, good quality finalizing. toy, spring needs non touch space to push lock tong in hole. very weak spring, weaker than ball point pens...
