1PC 12MM Momentary LED Metal Button Switch Automatic Reset

Regular price $4.68 USD
Regular price Sale price $4.68 USD
Sale Sold out
Shipping calculated at checkout.
Color
Voltage
Size|Standard

SPECIFICATIONS

1PC 12MM Momentary LED 3V 5V 6V12V 24V 220V Metal Button Switch

Instantaneous Button Automatic Reset LED Waterproof Button

Warranty: 2 years

Unit Type: piece

Switch Type: Push Button Switch

Package Weight: 0.017kg (0.04lb.)

Package Size: 20cm x 15cm x 3cm (7.87in x 5.91in x 1.18in)

Model Number: 12MM

Material: Stainless steel

Item Type: Switches

Item Type: Switches

Features: Self-Recovery

Certification: CQC,EMC,CCC,ce

12MM Momentary LED 3V 5V 6V12V 24V 220V Metal Button Switch Instantaneous Button Automatic Reset LED Waterproof Button

Product parameters
Head shape: flat round

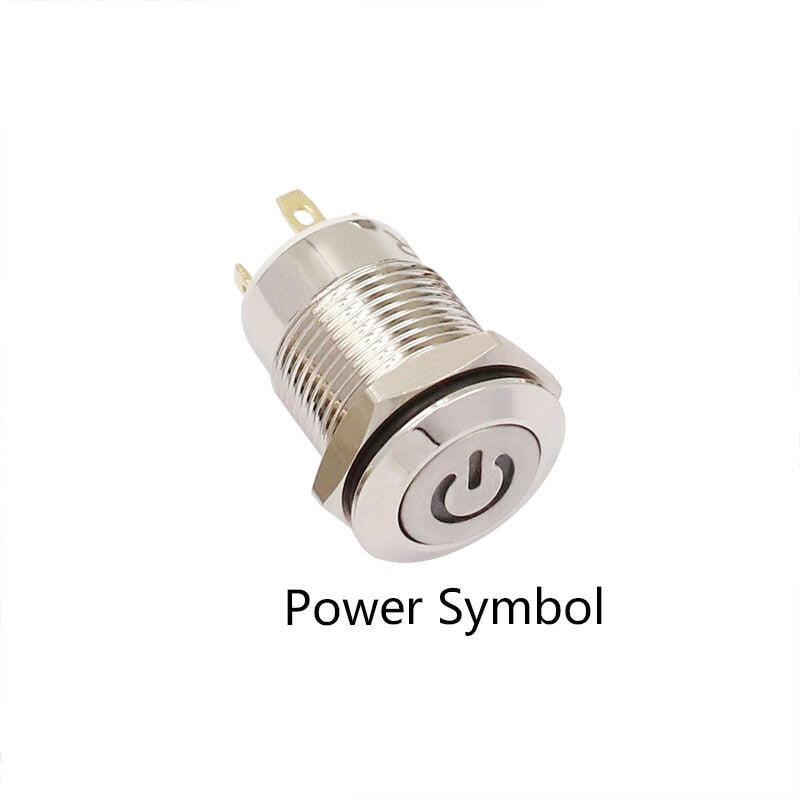

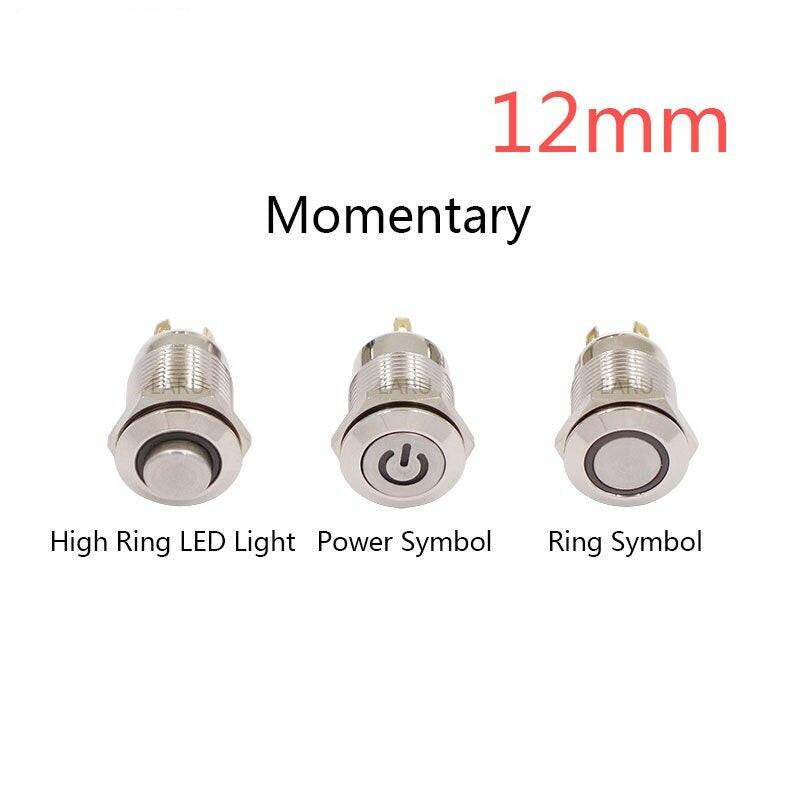

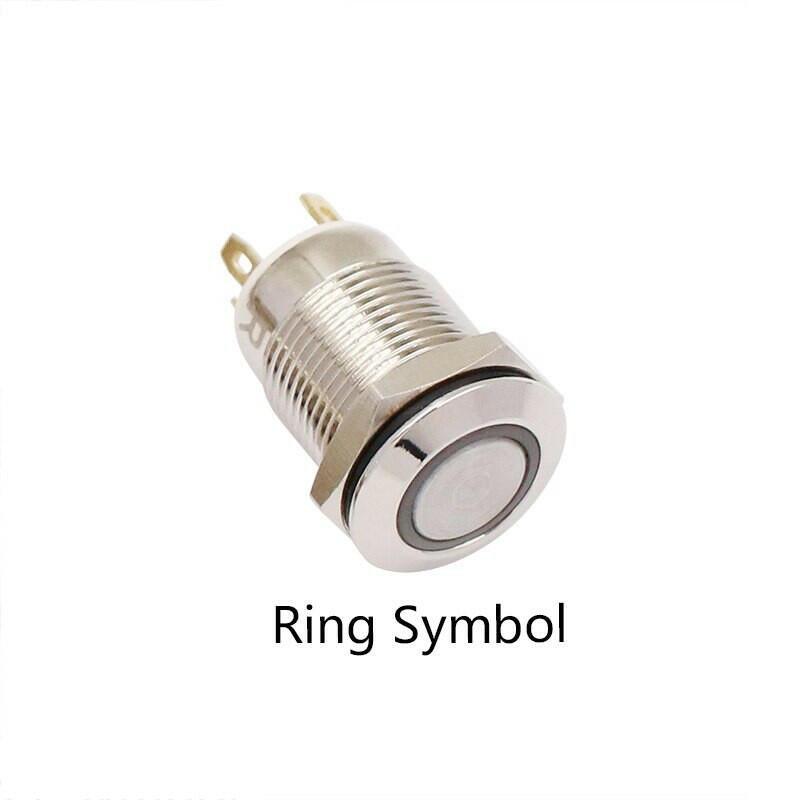

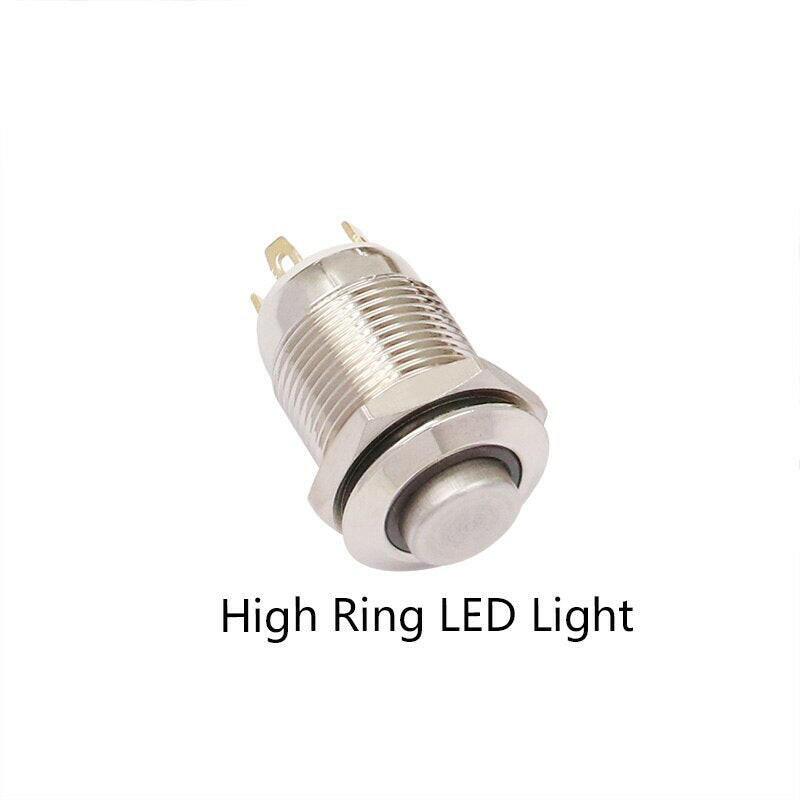

With light: Ring Symbol / Power Symbol / High Ring LED Light
Housing material: brass nickel plated
Operation type: Momentary

Contact material: silver alloy

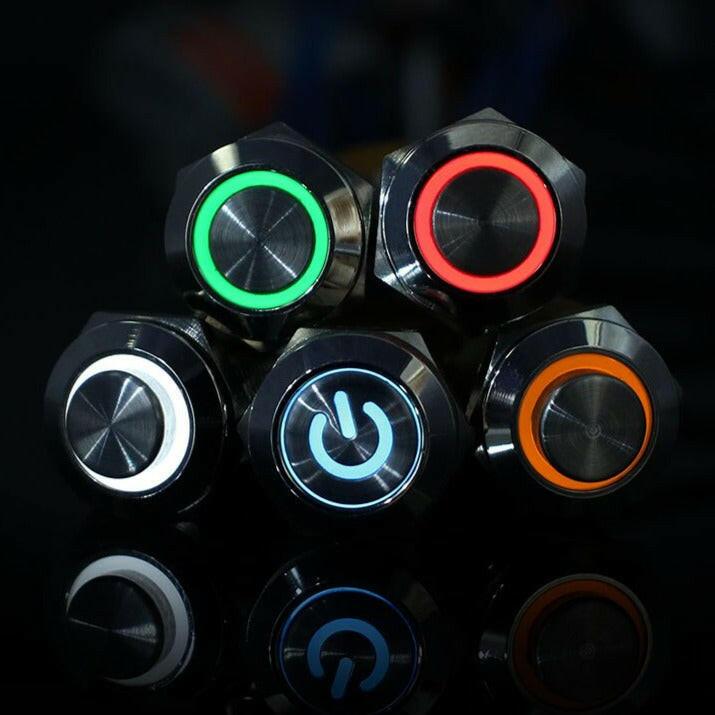

Luminous color: red / yellow / blue / green / white
Protection level: IP65 IK08
Switch combination: one normally open
Opening size: 12mm
Weight: 0.015kg
LED lamp voltage: 3~6V/12V/24V/110V/220V
