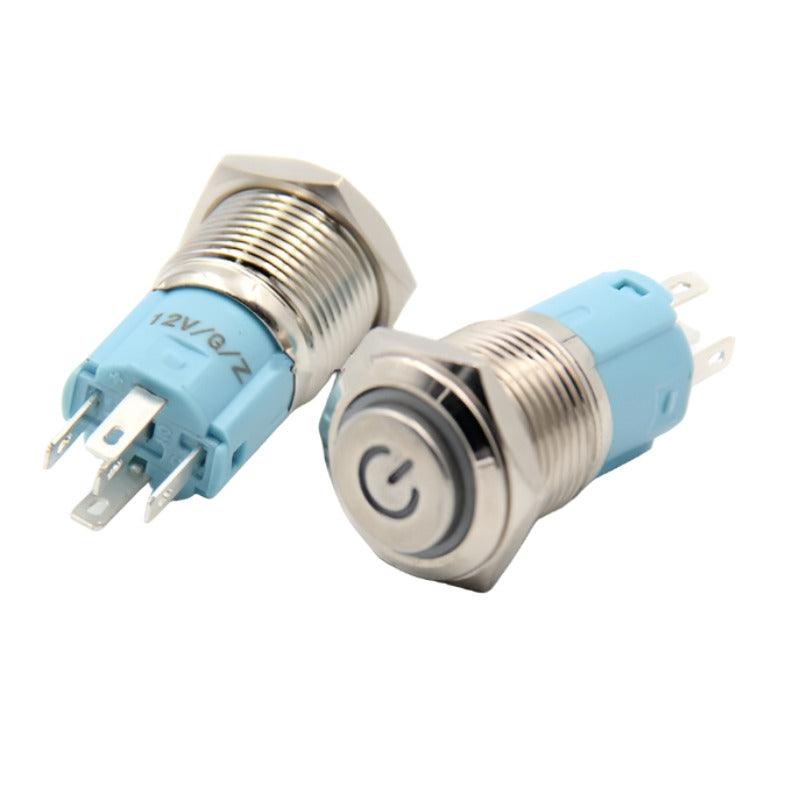

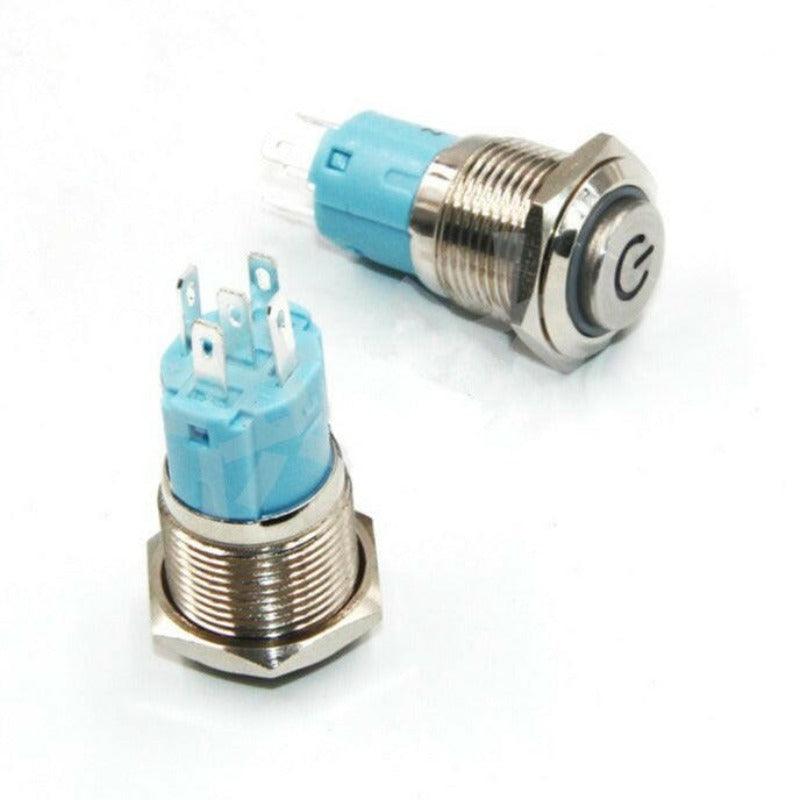

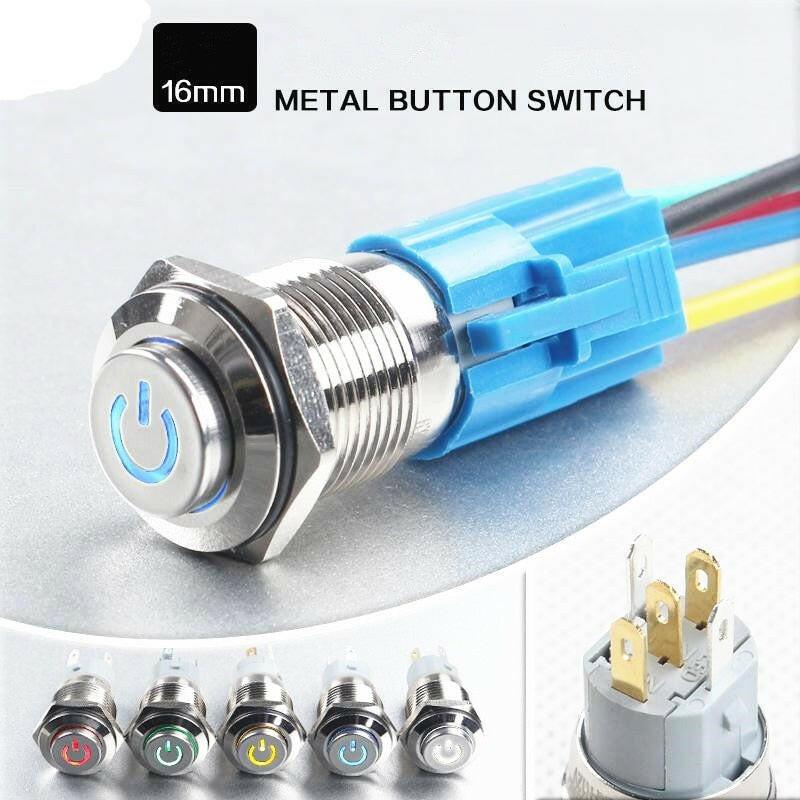

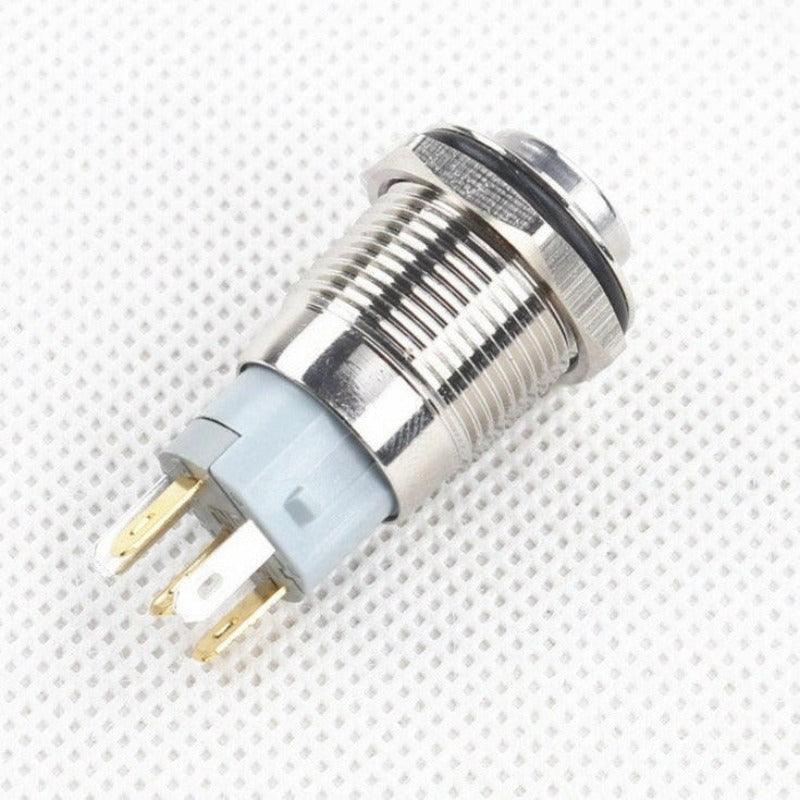

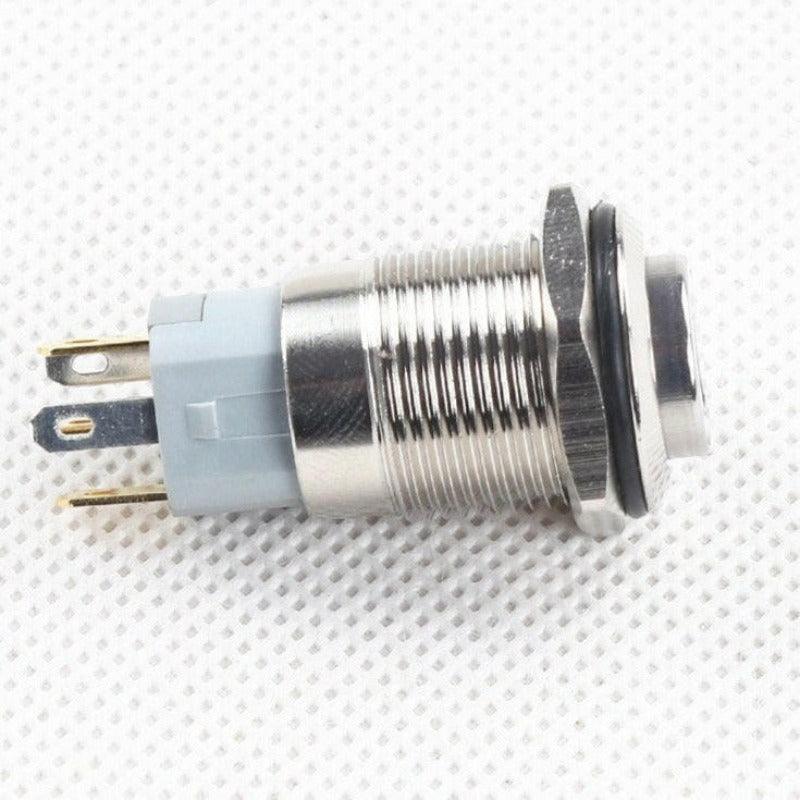

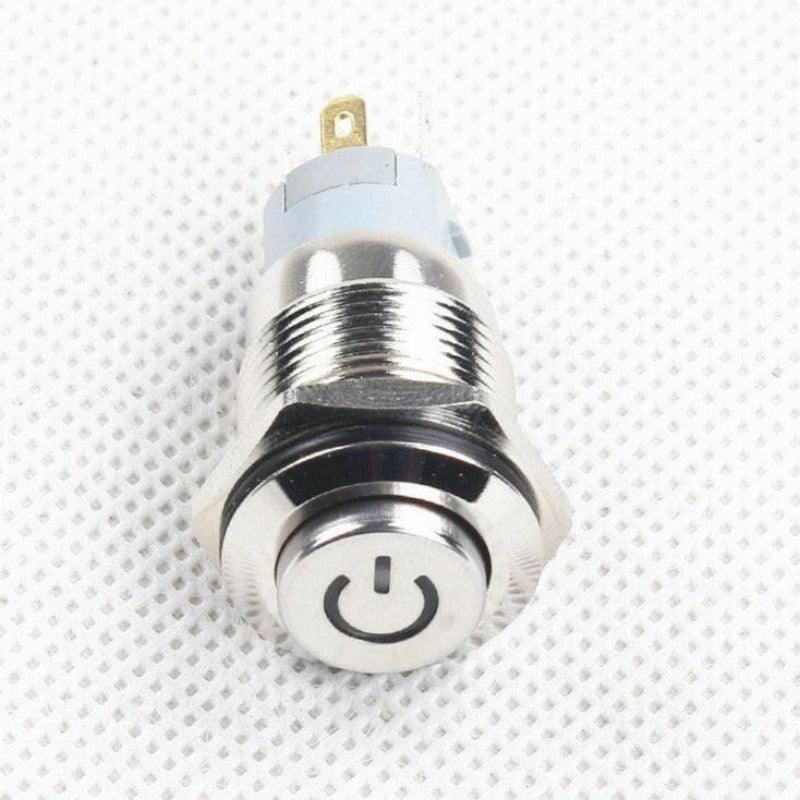

16mm Waterproof Latching Stainless Steel Metal Push Button Switch

Regular price $5.17 USD
Regular price Sale price $5.17 USD
Sale Sold out
Shipping calculated at checkout.
Color
Voltage

SPECIFICATIONS

16mm Waterproof Latching Stainless Steel Metal Power Horn Push Button Switch LED Car Auto Engine PC Power Start Starter 12V 24V

Warranty: 10 years

Switch Type: Push Button Switch

Package Weight: 0.024kg (0.05lb.)

Operating Temperature: -25°C to +55°C

Operating Humidity: 45 to 85% RH

Model Number: 16mm Push Button Switch

Minimum Applicable Load: 5V AC/DC, 1mA

Material: Stainless steel

Item Type: Switches

Item Type: Switches

Insulation Resistance: 100MΩ minimum (500V DC megger)

Features: Latching Lighting

Electrical Life: 100,000 operations minimum (at full rated load)

Degree of Protection: IP67, >10g

Contact material: Silver plated

Contact Resistance: 50MΩ maximum

Certification: UL,ce,CCC

Brand Name: EARUELETRIC

Packet Include: 1pcs Switch

Principle: Automatic lock, Push for contact, Push again for separation

Voltage: 3v,5v,6v,9v,12V,24V,48V,110V,220V,380V

Colors:   Red,Yellow,Blue,Green,White
