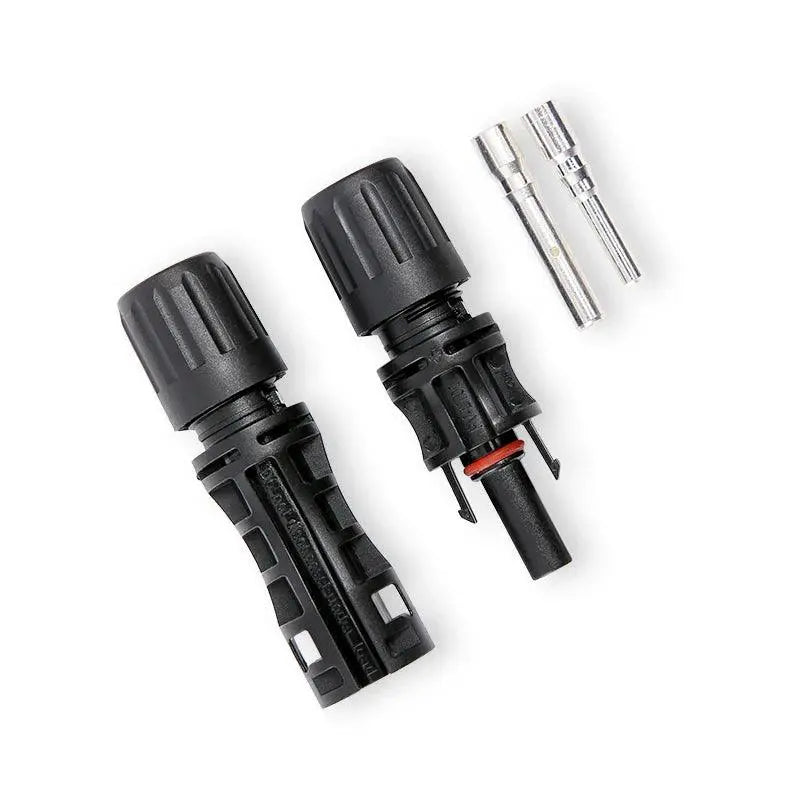

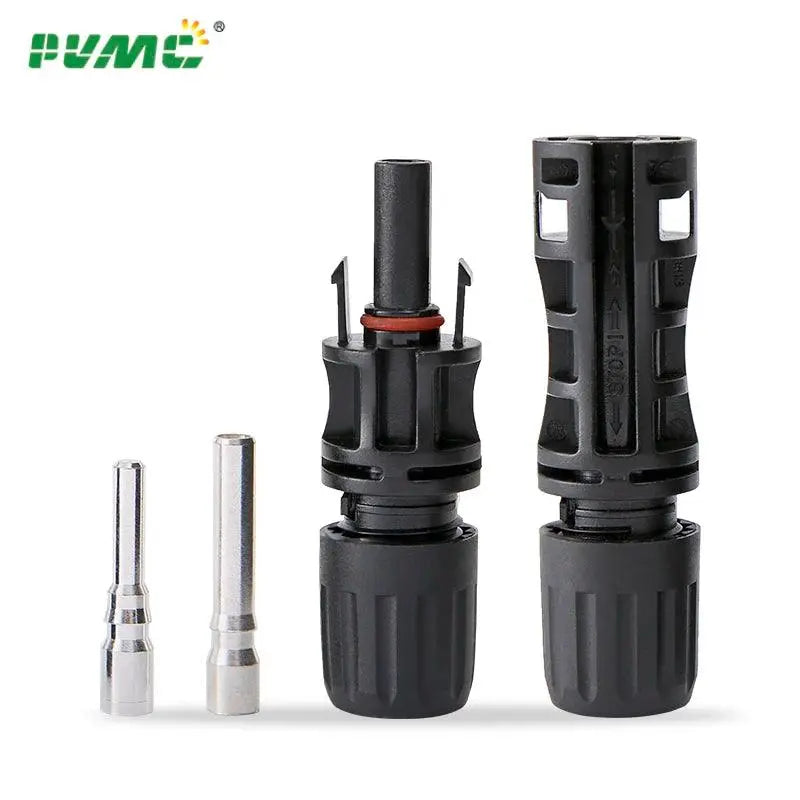

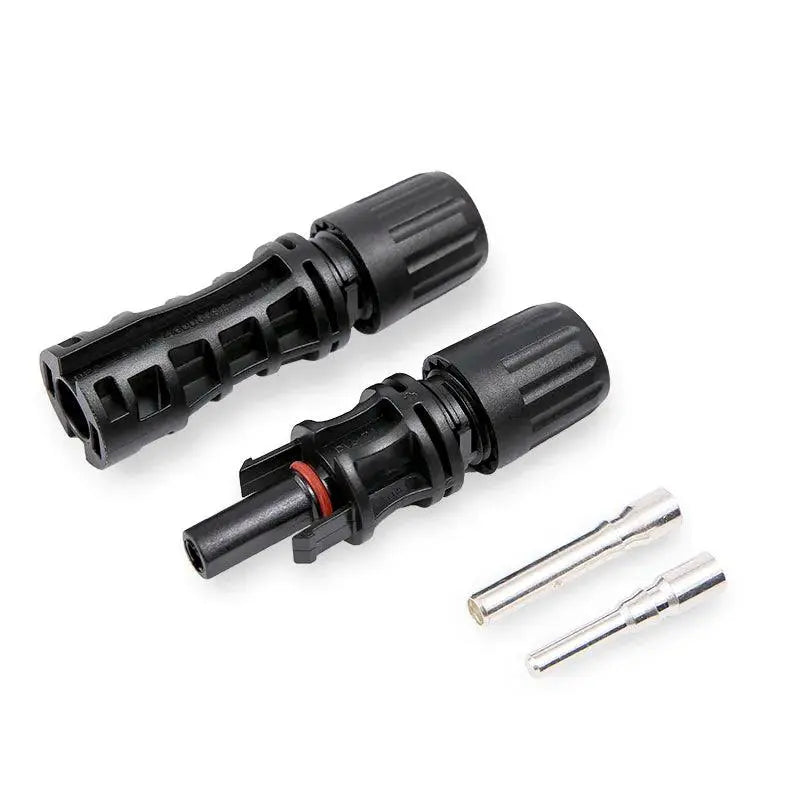

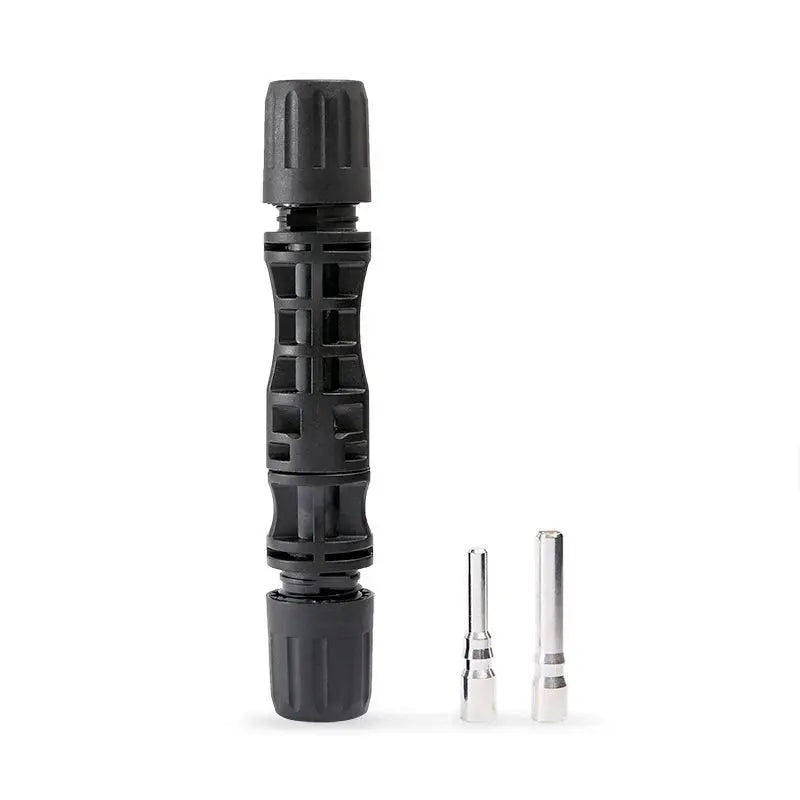

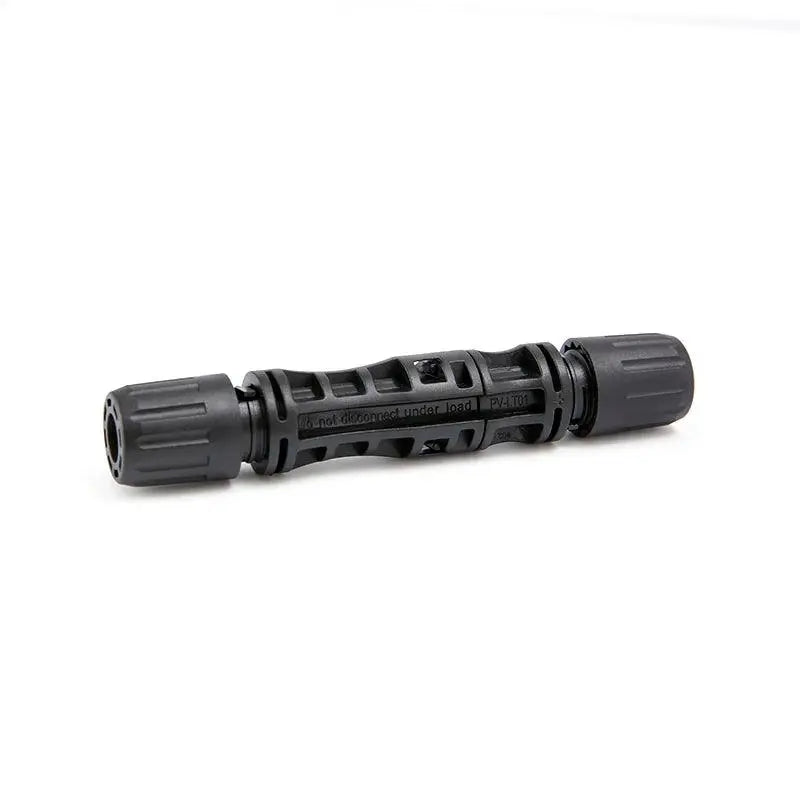

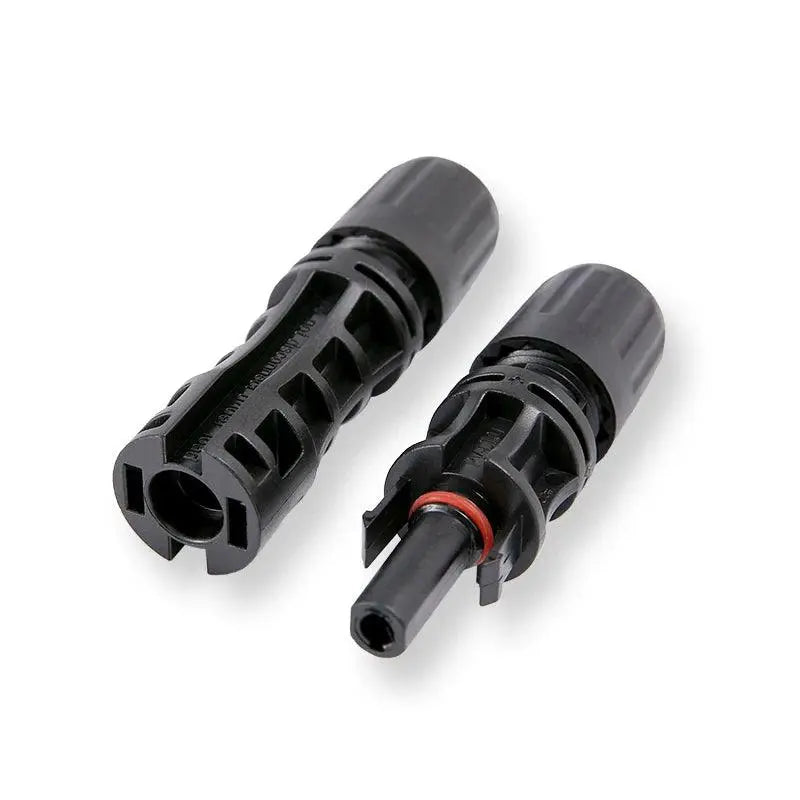

10 Pairs 1500V/60A Connector male and female Solar Panel PV Connector used for Solar Cable 6/10mm2 Wholesale
Regular price
$29.55 USD
Regular price
$32.80 USD
Sale price
$29.55 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Free Shippi 10 Pairs 1500V/60A Connector male and female Solar Panel PV Connector used for Solar Cable 6/10mm2 Wholesale
Brand Name: PVMC
Origin: Mainland China
Model Number: Connector-1500V55A
Specifications
* Rated current: 60A
* Rated voltage: 1500V DC
* Connector contact resistance:≤0.5mΩ
* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 6m㎡--10m㎡
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp
