12V High-power Neodymium Strong Magnetic Brushless Motor 800W High Torque DIY Power Vehicle And Ship Thruster Power Motor

Regular price $206.42 USD
Regular price $98.11 USD Sale price $206.42 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

12V High-power Neodymium Strong Magnetic Brushless Motor 800W High Torque DIY Power Vehicle And Ship Thruster Power Motor

Origin: Mainland China

Model Number: 12V 800W

is_customized: Yes

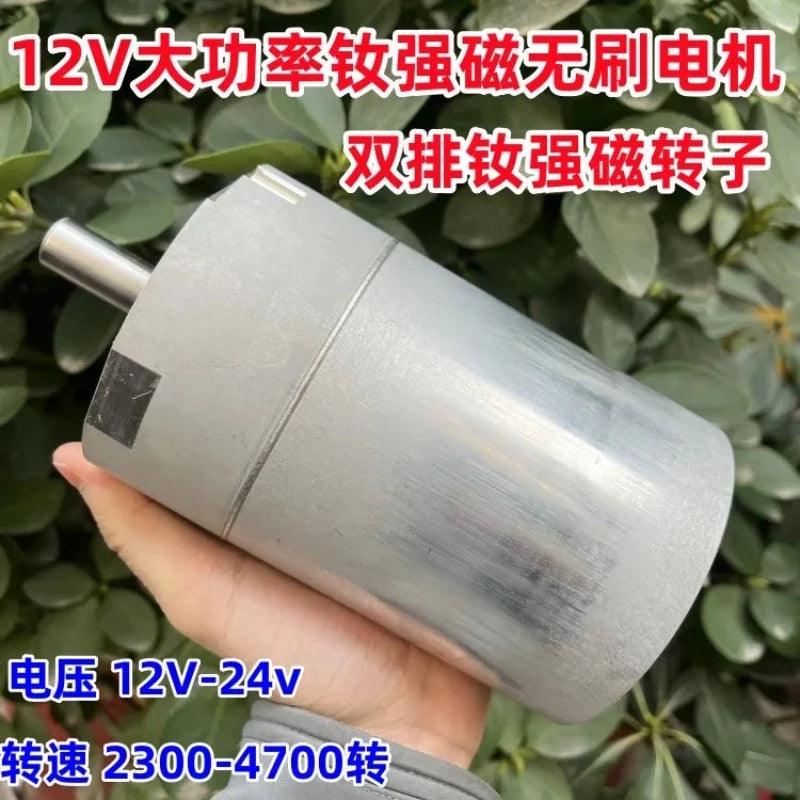

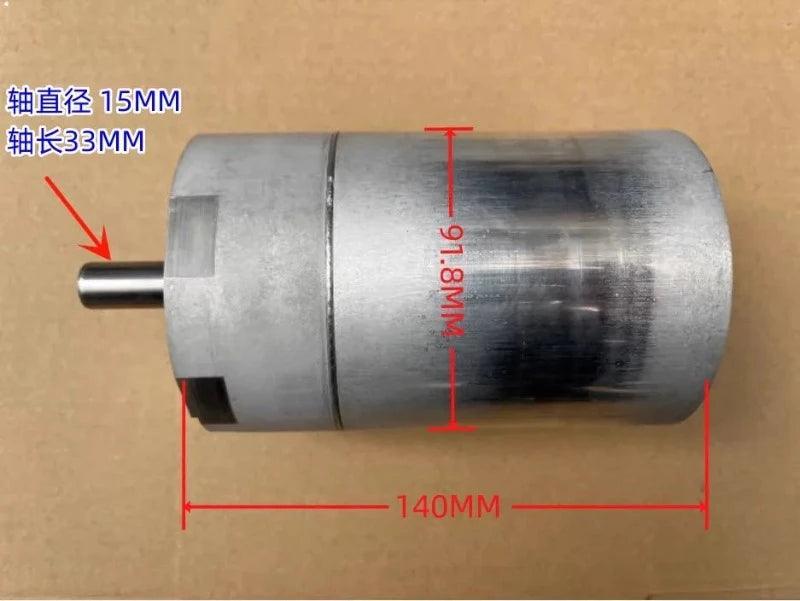

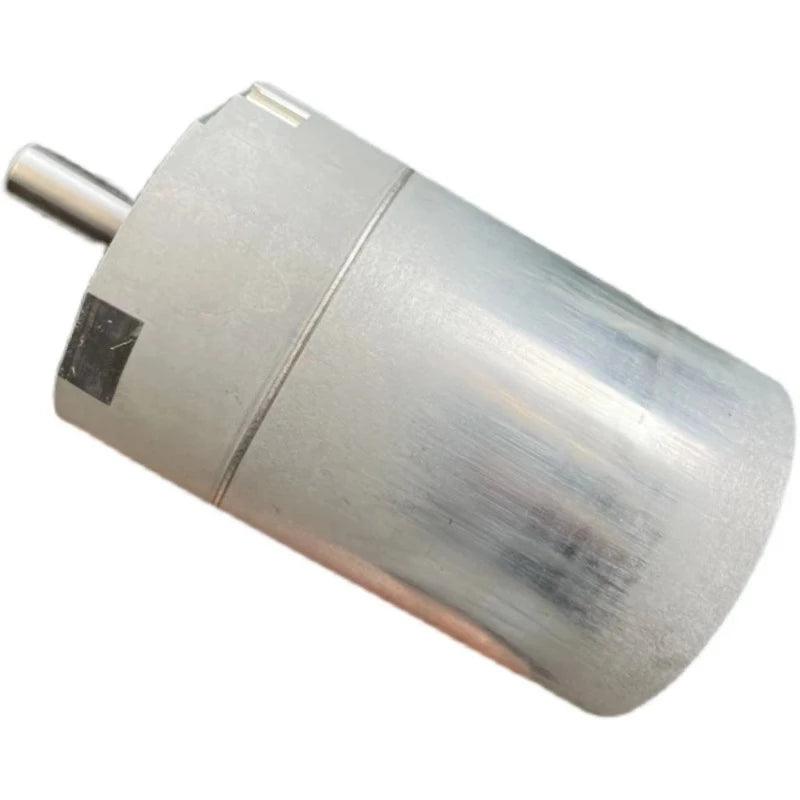

The brand new high-power 12V 800W brushless motor comes in a brand new original packaging, and the driver can be equipped with a Hall free brushless driver to operate. As long as the driver is connected to the motor's UVW three-phase copper feet, the motor has excellent workmanship. The motor shell is made of aluminum material, and the internal rotor is arranged in double rows of neodymium strong magnets. It is wrapped in stainless steel explosion-proof material, with a copper coil diameter of 1.4mm and a motor weight of about 2.3kg.




The motor does not have specific parameters. Compared to the previous 600W Nidec motor, which weighs about 2.1KG, the estimated power of this motor is around 800W. The measured speed of the motor under 12V and 24V voltages is as follows: the 12V voltage no-load speed is about 2300 rpm, the no-load current is about 2.7A, the 24V voltage no-load speed is about 4700 rpm, and the no-load current is 3.6A.




There are many uses of motors, mainly including high-power manned toys, bicycles, Kick scooter, boat propellers, electric water pump pumps, etc. If the load of a Hall free motor is large, it will shake a few times. The main electric vehicle controller will recognize the direction and turn it at the beginning. Hall free motor drive is generally suitable for light load starting, such as changing to a marine thruster. After turning, the load is not a problem. If you need to start with a large load, it is better to modify the Hall motor yourself. You need to research and test the specific situation yourself. Hall free drive is available on Taobao.




The rated voltage of the motor is 12V, and it can be used at voltages ranging from 12-24V through actual testing. Attention should be paid to the heat dissipation of the motor casing during specific use.

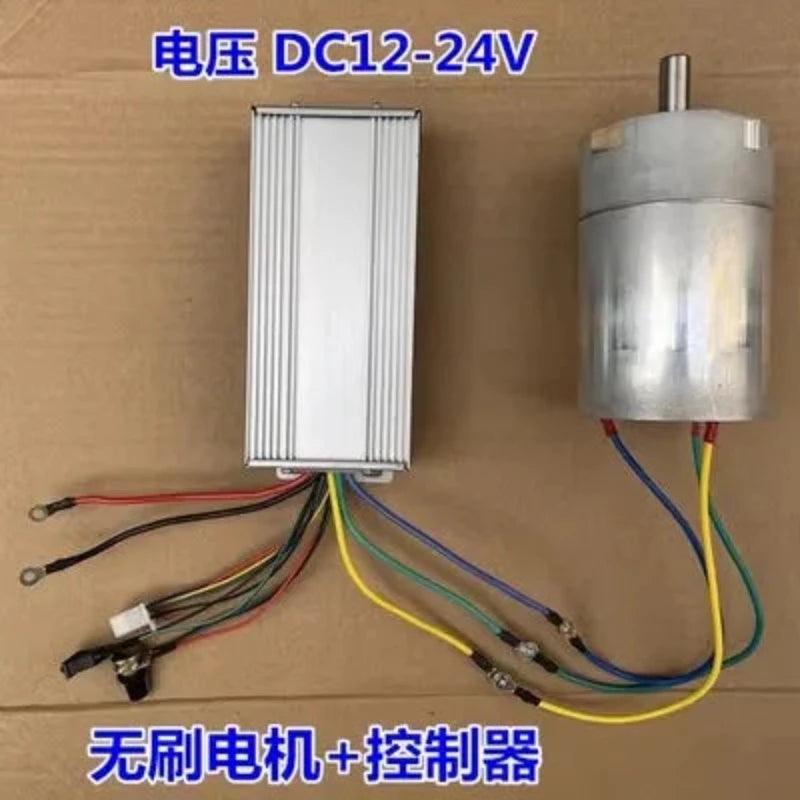

This motor requires a brushless controller or a model brushless electrical regulator to operate. It cannot be directly connected to 12V like a brushless motor, and the brushless motor must be driven to operate
