12V 24V DC Brushless Motor Controller BLDC 6V-30V 3A 90W Electric Motors PWM Speed Brake Reversed CW CCW Mini Regulator Engine

Regular price $21.48 USD
Regular price $22.83 USD Sale price $21.48 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

12V 24V DC Brushless Motor Controller BLDC 6V-30V 3A 90W Electric Motors PWM Speed Brake Reversed CW CCW Mini Regulator Engine

Brand Name: HYSMOTOR

Origin: Mainland China

Brushless motor controller introduction
1. Voltage: 6V To 30V
2. Power : 90W
3. Maximum current : 3A
4. Ways to adjust the speed: stepless speed regulation
5. Frequency switching: The default position is 20khz (that is, 2 needles near the terminal block), 2 needles near the adjustment speed knob are 2khz, we will send you 20khz by default.

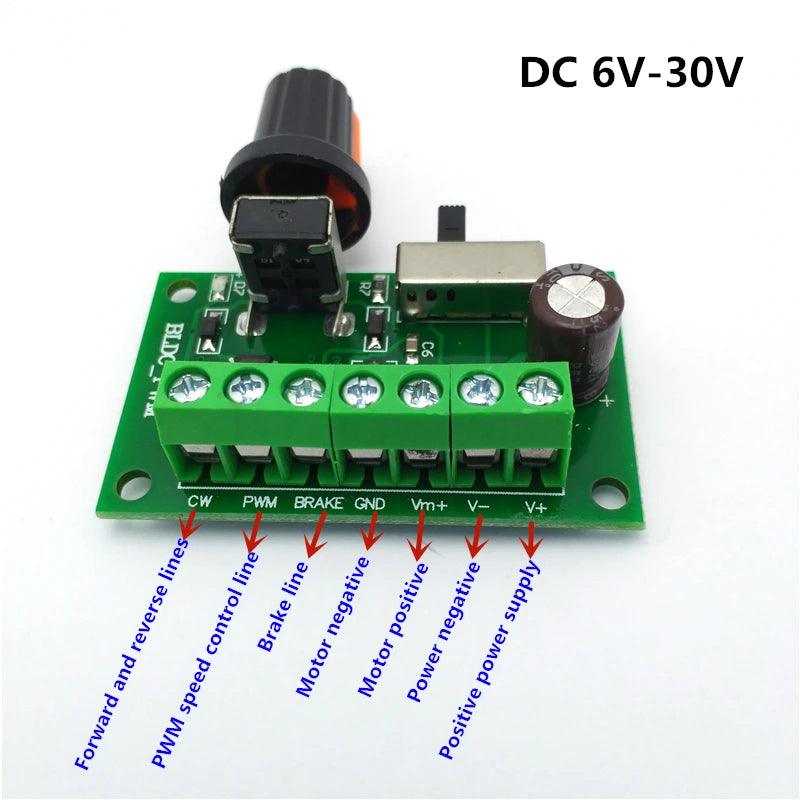

6. Function: Rotate clockwise or counterclockwise; stepless adjustment speed; brake function, but the motor itself must have brake function
7. This controller is suitable for 3-phase brushless motor PWM speed regulation of some built-in drives, brushless fan speed regulation, etc.
8. Because the brushless motor itself has FG signal output, but this controller does not have FG signal speed measurement function, so please do not connect the motor signal output line to this controller. Thanks
9. Do not connect the positive and negative terminals of the DC power supply incorrectly, otherwise the controller will burn out.
10. Features:

the DC motor speed controller can control the direction of  DC motor, CW/CCW rotation

  • This motor controller board can adjust the speed of the motor by the speed control knob

  • With emergency stop button, safe to use

  • This speed controller support  6-30V voltage,and suitable for 37GB3525 brushless motor

  • The motor speed controller has speed control knob, easy to operate

The size is for reference only,the measurement will be slightly different,please pay attention before buying
DC6-24V brushless DC motor PWM speed control board with forward / reverse / brake function (requires motor's own support)
It is suitable for most BL series brushless motors with built-in drivers and DC brushless motors that support PWM speed regulation.
